978VWHADGFREQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> 978VWHADGFREQ

978VWHADGFREQ: DescriptionCMOS Output Clock Oscillator, 30MHz Min, 200MHz Max; CategoryPassive components oscillator; File Size172KB，2 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/

Download Datasheet Parametric View All

978VWHADGFREQ Overview

CMOS Output Clock Oscillator, 30MHz Min, 200MHz Max

978VWHADGFREQ Parametric

Parameter Name	Attribute value
Maker	Vectron International, Inc.
Reach Compliance Code	unknown
Ageing	1 PPM/YEAR
Maximum control voltage	3 V
Minimum control voltage
Frequency Adjustment - Mechanical	YES
Frequency offset/pull rate	8 ppm
frequency stability	2%
Manufacturer's serial number	978W
Installation features	SURFACE MOUNT
Maximum operating frequency	200 MHz
Minimum operating frequency	30 MHz
Maximum operating temperature	50 °C
Minimum operating temperature
Oscillator type	CMOS
physical size	19mm x 12.19mm x 6.73mm
Nominal supply voltage	3.3 V
surface mount	YES

Preview

Download Datasheet

View All

978W

Typical Applications

PCS Base Stations

Land Mobile Radio

Cellular Telephony

Radio in the Local Loop

Test Equipment

Avionics

TCXO

Features

High Frequency

3.3 Volt Supply

Low Profile Package

Standard 4-Pin DIP Package

Mechanical Control, EFC Optional

Surface Mount Options Available

Frequency Range

Parameters

Operating

Temperature Range

Frequency Stability

(ppm)

> 30 MHz – 200 MHz

Model Numbers

Clipped Sine Wave

(1 Vpp min. into 1kΩ)

Square Wave

(CMOS)

0....50°C

0.....70°C

-20....+70°C

-30....+70°C

-40....+85°C

1.0 ppm

2.0 ppm

2.5 ppm

5.0 ppm

2.0 ppm

2.5 ppm

1.0 ppm

2.0 ppm

2.5 ppm

1.0 ppm

2.0 ppm

2.5 ppm

978WCB

978WAD

978WDE

978WDF

978WBD

978WBE

978WCB

978WCD

978WCE

978WEB

978WED

978WEE

978WHCB

978WHAD

978WHDE

978WHDF

978WHBD

978WHBE

978WHCB

978WHCD

978WHCE

978WHEB

978WHED

978WHEE

Typical Phase Noise @ 40 MHz

Note: Model 978W custom versions available with output waveforms of ACMOS, SINE, ECL & PECL

Additional Parameters

Supply Voltage:

Current

Clipped Sinewave:

CMOS:

Aging:

Mechanical Frequency

Control:

Electrical Frequency

Control

Voltage Range:

Deviation:

Slope:

Input Impedance:

+3.3 Vdc

2 mA to 6 mA

5 mA to 40 mA

1 ppm/year

3.5 ppm min.

1Hz Offset

10Hz Offset

100Hz Offset

1kHz Offset

10kHz Offset

<- 55 dBc / Hz

<-90 dBc / Hz

<-120 dBc / Hz

<-140dBc / Hz

<-150dBc / Hz

0 to 3 Vdc

8 ppm min.

(others available)

Positive

> 10 kohms

Corning Frequency Control • Worldwide Data Book 2001

v1.1.2001-10-09

Corning Frequency Control Inc.

• 100 Watts Street • Mt. Holly Springs, PA 17065 • Tel 1-717-486-3411 • Fax 1-717-486-5920 • www.corningfrequency.com

Tele Quarz GmbH & Co. KG

• Landstrasse • D-74924 Neckarbischofsheim, Germany • Tel +49-7268-801-0 • Fax +49-07268-801-281 • www.telequarz.de

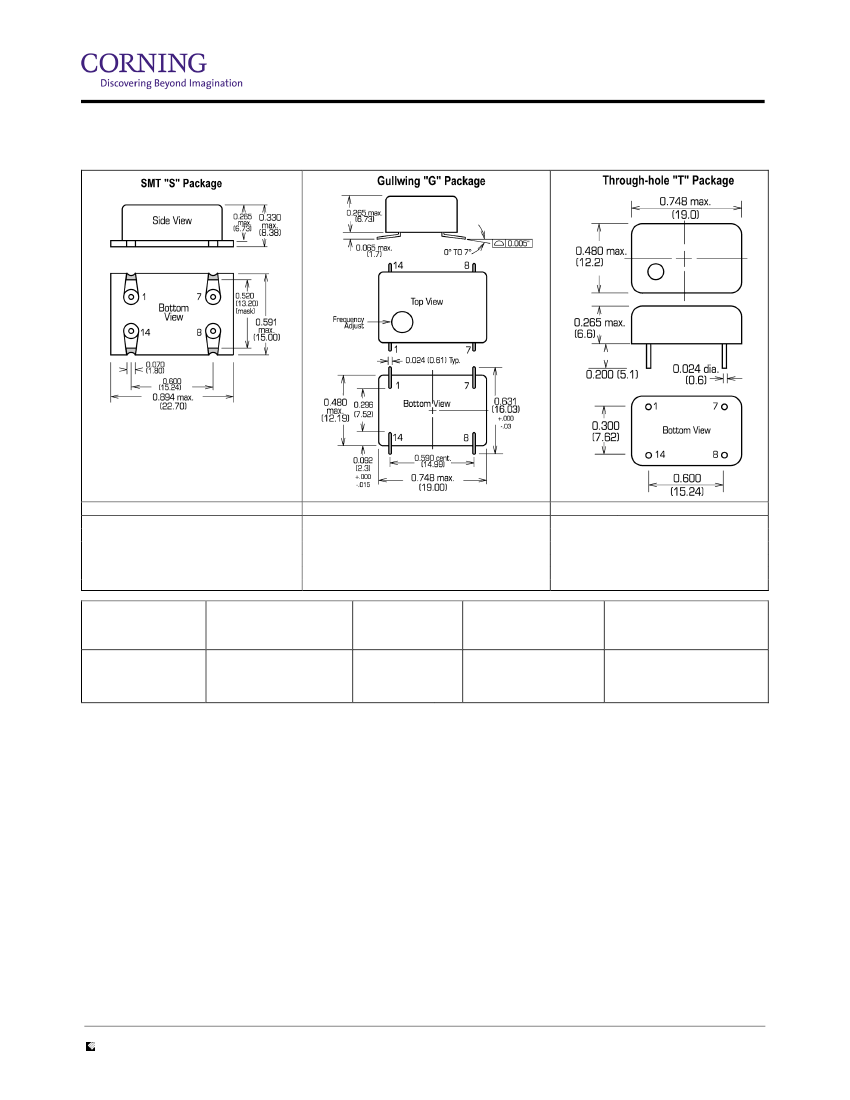

1/2
