TLE2082ACP: DescriptionDUAL OP-AMP, 5100uV OFFSET-MAX, 9.4MHz BAND WIDTH, PDIP8, ROHS COMPLIANT, PLASTIC, DIP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size2MB，80 Pages; ManufacturerRochester Electronics; Websitehttps://www.rocelec.com/; Environmental Compliance

Download Datasheet Parametric View All

TLE2082ACP Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	TLE2082ACP	-	-	View	Buy Now

TLE2082ACP Overview

DUAL OP-AMP, 5100uV OFFSET-MAX, 9.4MHz BAND WIDTH, PDIP8, ROHS COMPLIANT, PLASTIC, DIP-8

TLE2082ACP Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Rochester Electronics
Parts packaging code	DIP
package instruction	ROHS COMPLIANT, PLASTIC, DIP-8
Contacts	8
Reach Compliance Code	unknown
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.005 µA
Nominal Common Mode Rejection Ratio	89 dB
Maximum input offset voltage	5100 µV
JESD-30 code	R-PDIP-T8
JESD-609 code	e4
length	9.81 mm
Humidity sensitivity level	NOT APPLICABLE
Negative supply voltage upper limit	-19 V
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Maximum seat height	5.08 mm
Nominal slew rate	38 V/us
Supply voltage upper limit	19 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIFET
Temperature level	COMMERCIAL
Terminal surface	NICKEL PALLADIUM GOLD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Nominal Uniform Gain Bandwidth	9400 kHz
width	7.62 mm

Preview

Download Datasheet

View All

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu

r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

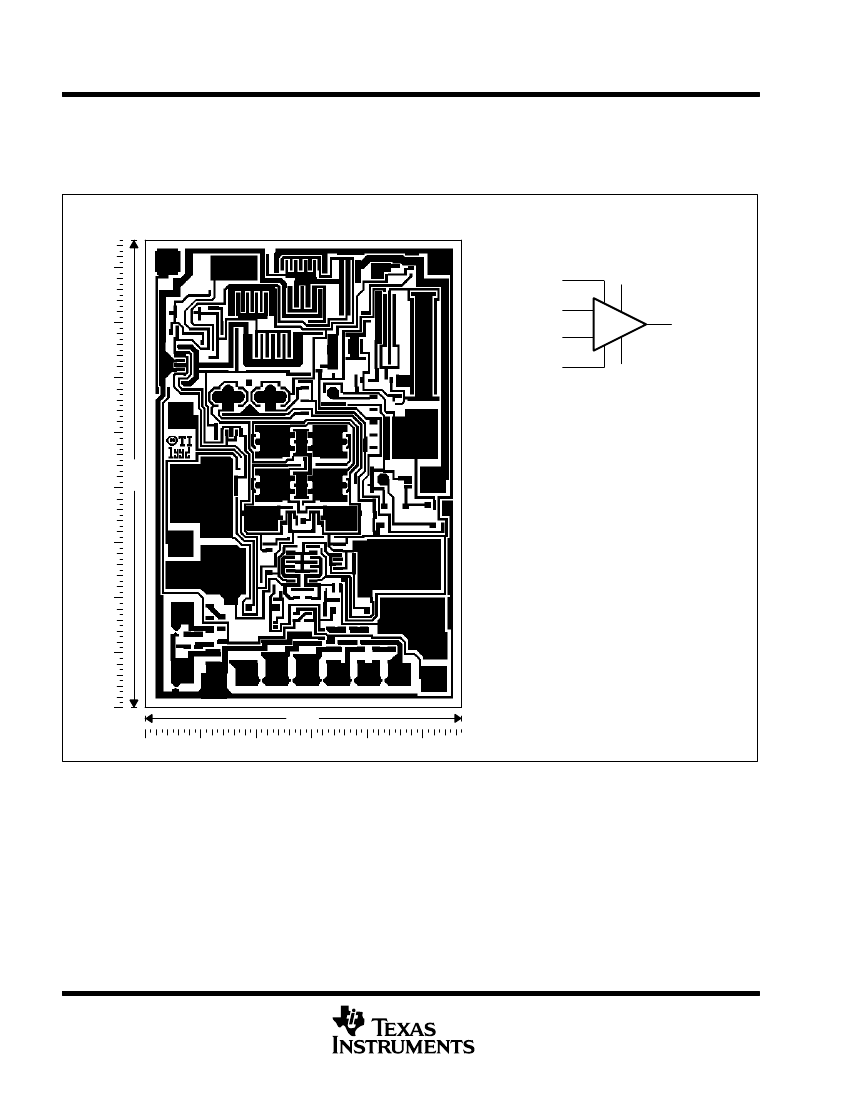

TLE208x, TLE208xA, TLE208xY

EXCALIBUR HIGH-SPEED JFET-INPUT

OPERATIONAL AMPLIFIERS

SLOS182B – FEBRUARY 1997 – REVISED JUNE 2001

Direct Upgrades to TL05x, TL07x, and

TL08x BiFET Operational Amplifiers

Greater Than 2× Bandwidth (10 MHz) and

3× Slew Rate (45 V/µs) Than TL08x

On-Chip Offset Voltage Trimming for

Improved DC Performance

Wider Supply Rails Increase Dynamic

Signal Range to

±19

description

The TLE208x series of JFET-input operational amplifiers more than double the bandwidth and triple the slew

rate of the TL07x and TL08x families of BiFET operational amplifiers. The TLE208x also have wider

supply-voltage rails, increasing the dynamic-signal range for BiFET circuits to

±19

V. On-chip zener trimming

of offset voltage yields precision grades for greater accuracy in dc-coupled applications. The TLE208x are

pin-compatible with lower performance BiFET operational amplifiers for ease in improving performance in

existing designs.

BiFET operational amplifiers offer the inherently higher input impedance of the JFET-input transistors, without

sacrificing the output drive associated with bipolar amplifiers. This makes these amplifiers better suited for

interfacing with high-impedance sensors or very low level ac signals. They also feature inherently better ac

response than bipolar or CMOS devices having comparable power consumption.

Because BiFET operational amplifiers are designed for use with dual power supplies, care must be taken to

observe common-mode input-voltage limits and output voltage swing when operating from a single supply. DC

biasing of the input signal is required and loads should be terminated to a virtual ground node at mid-supply.

Texas Instruments TLE2426 integrated virtual ground generator is useful when operating BiFET amplifiers from

single supplies.

The TLE208x are fully specified at

±15

V and

±5

V. For operation in low-voltage and/or single-supply systems,

Texas Instruments LinCMOS families of operational amplifiers (TLC- and TLV-prefix) are recommended.

When moving from BiFET to CMOS amplifiers, particular attention should be paid to slew rate and bandwidth

requirements and output loading.

For BiFET circuits requiring low noise and/or tighter dc precision, the TLE207x offer the same ac response as

the TLE208x with more stringent dc and noise specifications.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of

Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

LinCMOS is a trademark of Texas Instruments.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of Texas Instruments

standard warranty. Production processing does not necessarily include

testing of all parameters.



2001, Texas Instruments Incorporated

POST OFFICE BOX 655303

•

DALLAS, TEXAS 75265
