M-8870-02SM datasheet, PDF - EEWORLD Datasheet

M-8870-02SM: DescriptionDTMF Signaling Circuit, CMOS, PDSO18,; CategoryWireless rf/communication Telecom circuit; File Size400KB，8 Pages; ManufacturerIndustrial Defender Inc

Download Datasheet Parametric Compare View All

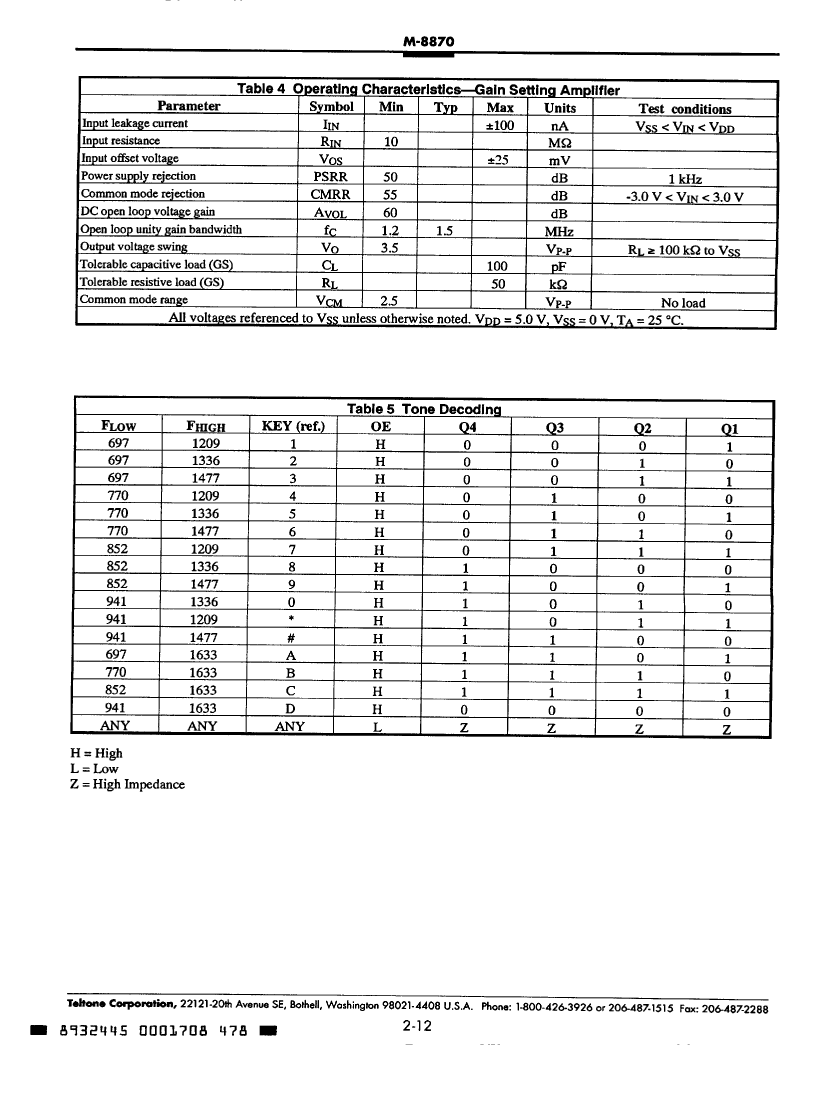

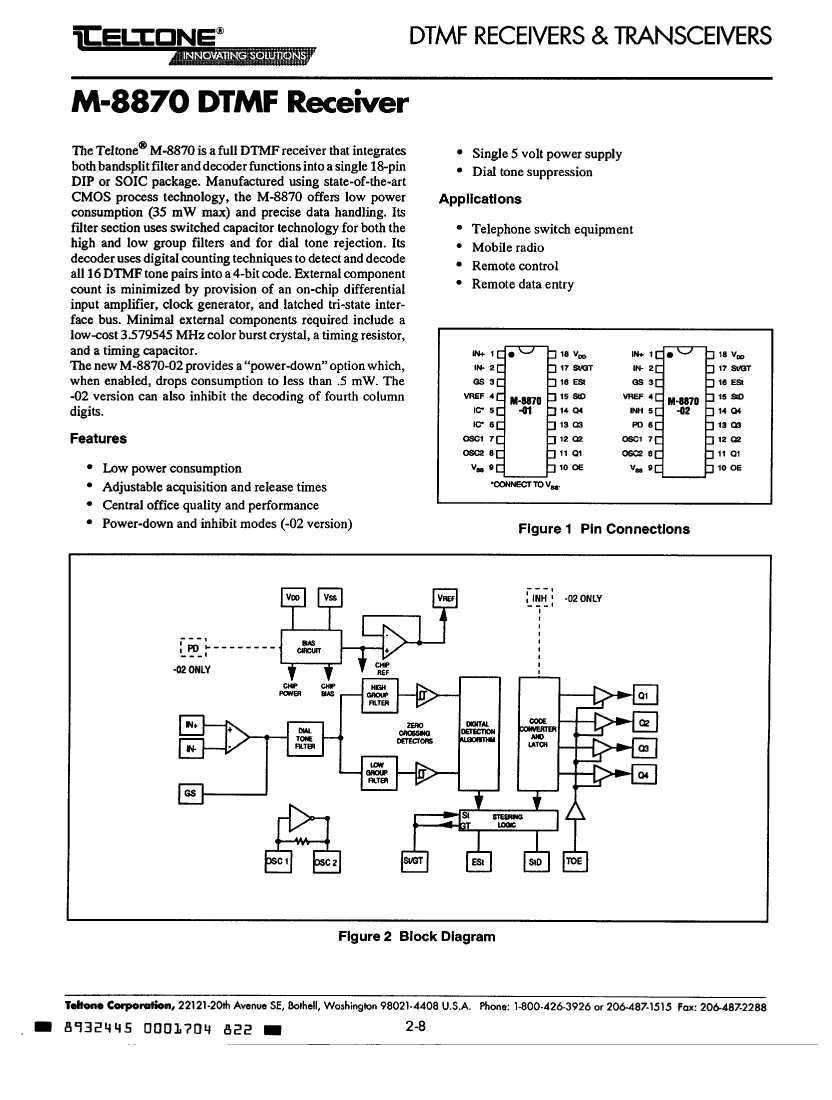

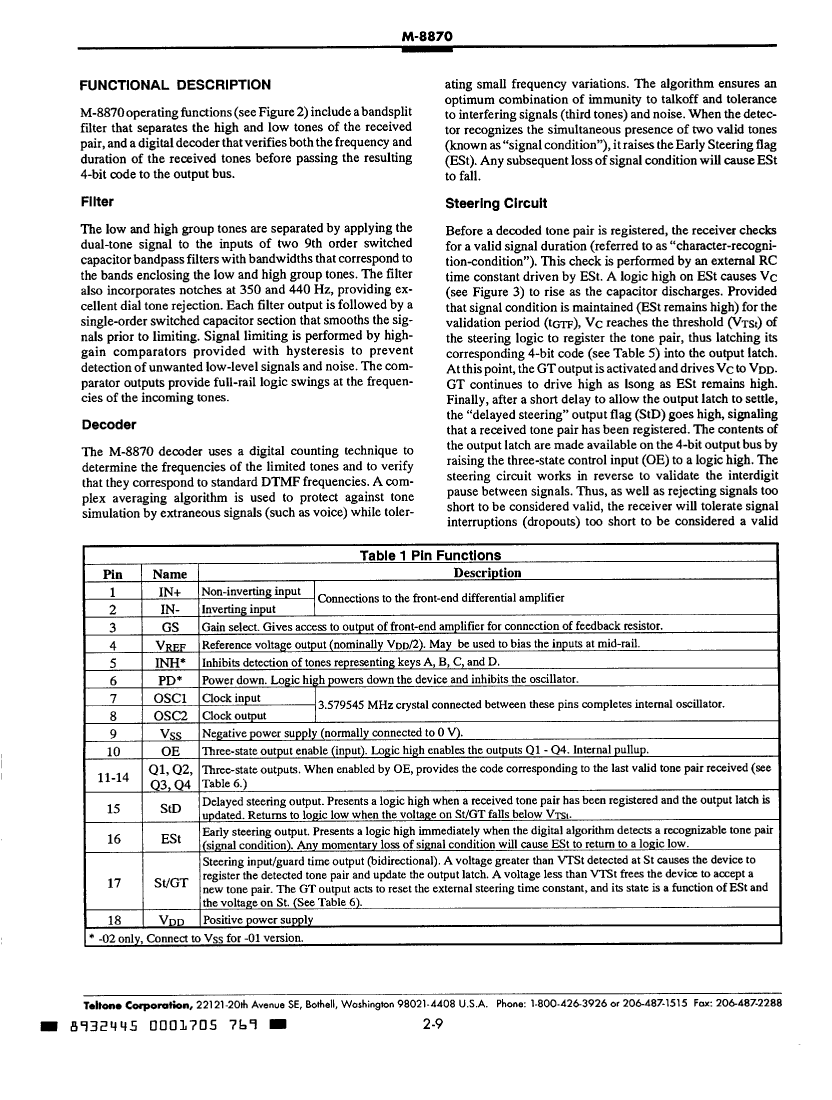

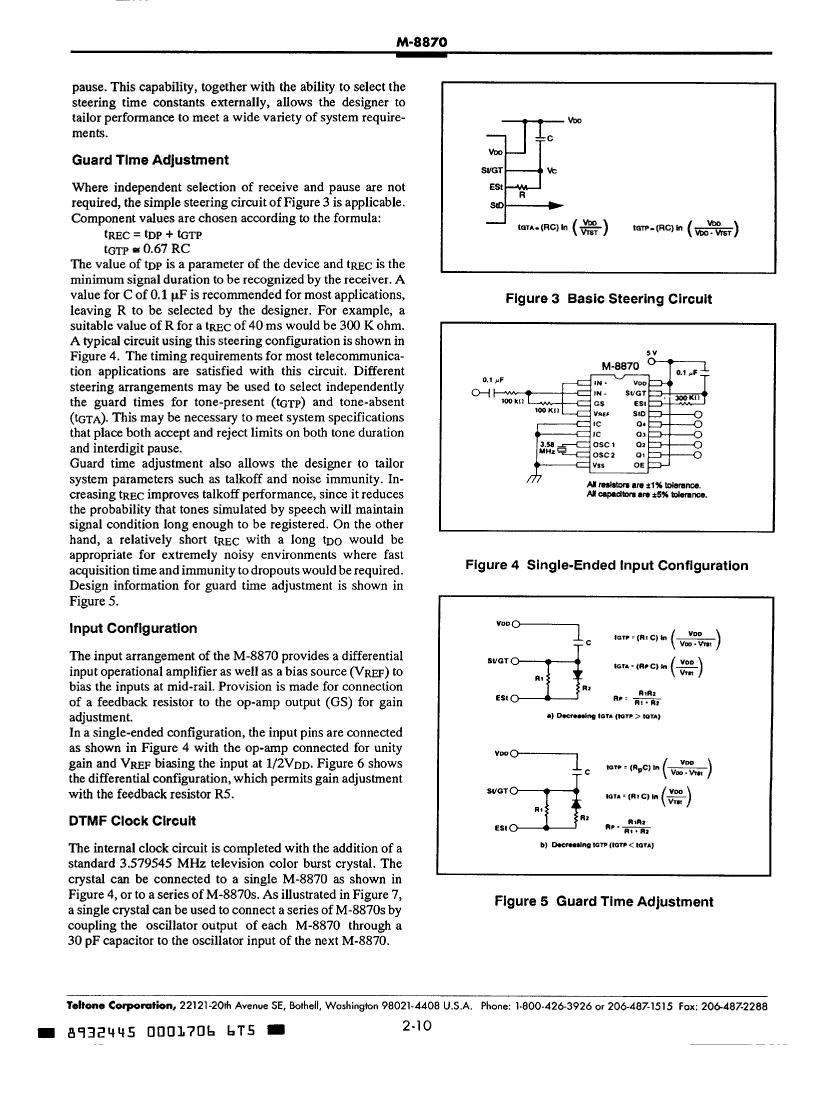

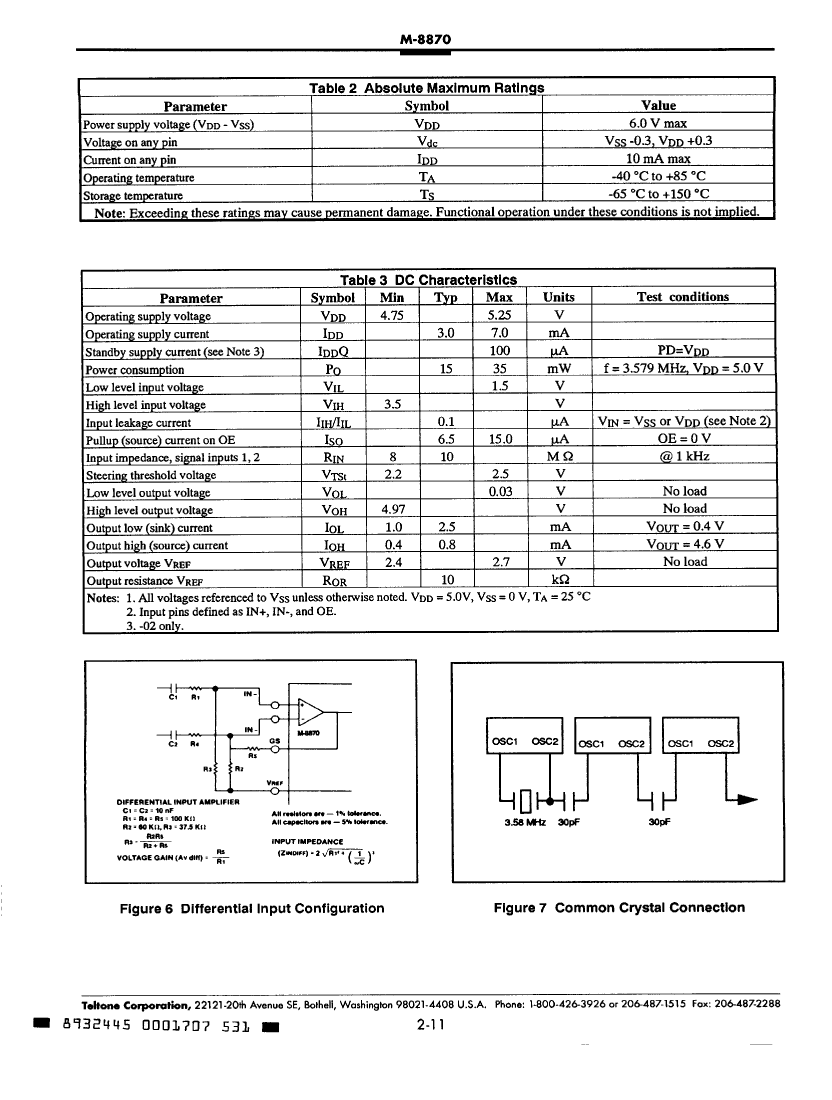

M-8870-02SM Overview

DTMF Signaling Circuit, CMOS, PDSO18,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Industrial Defender Inc
package instruction	SOP, SOP18,.4
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G18
JESD-609 code	e0
Number of functions	1
Number of terminals	18
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP18,.4
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Maximum slew rate	7 mA
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Telecom integrated circuit types	DTMF SIGNALING CIRCUIT
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

This Material Copyrighted By Its Respective Manufacturer

	M-8870-02SM	M-8870-01C	M-8870-02
Description	DTMF Signaling Circuit, CMOS, PDSO18,	DTMF Signaling Circuit, CMOS, PDIP18,	DTMF Signaling Circuit, CMOS, PDIP18,
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Industrial Defender Inc	Industrial Defender Inc	Industrial Defender Inc
package instruction	SOP, SOP18,.4	DIP, DIP18,.3	DIP, DIP18,.3
Reach Compliance Code	unknown	unknown	unknown
JESD-30 code	R-PDSO-G18	R-PDIP-T18	R-PDIP-T18
JESD-609 code	e0	e0	e0
Number of functions	1	1	1
Number of terminals	18	18	18
Maximum operating temperature	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP
Encapsulate equivalent code	SOP18,.4	DIP18,.3	DIP18,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum slew rate	7 mA	7 mA	7 mA
Nominal supply voltage	5 V	5 V	5 V
surface mount	YES	NO	NO
technology	CMOS	CMOS	CMOS
Telecom integrated circuit types	DTMF SIGNALING CIRCUIT	DTMF SIGNALING CIRCUIT	DTMF SIGNALING CIRCUIT
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
