Z8913520VSC datasheet, PDF - EEWORLD Datasheet

Z8913520VSC: DescriptionMicrocontroller, 8-Bit, MROM, Z8 CPU, 20.4MHz, CMOS, PQCC68,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size3MB，61 Pages; ManufacturerIXYS

Download Datasheet Parametric Compare View All

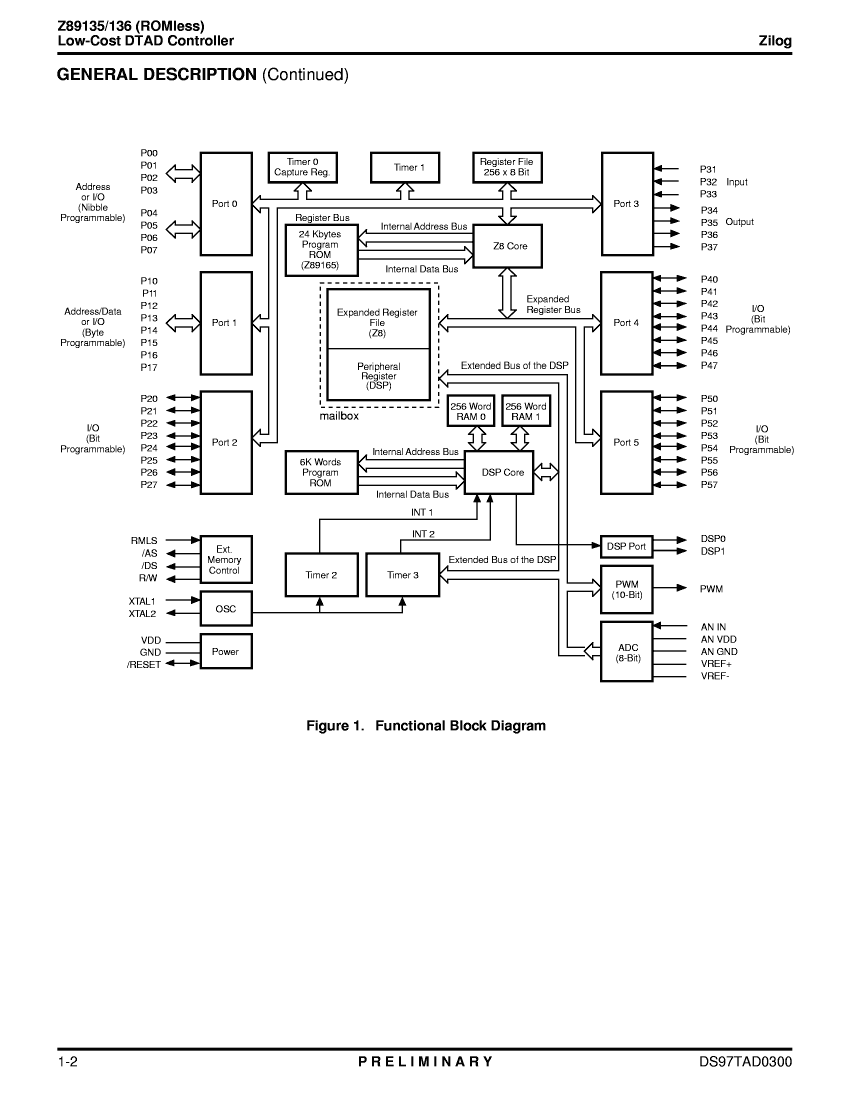

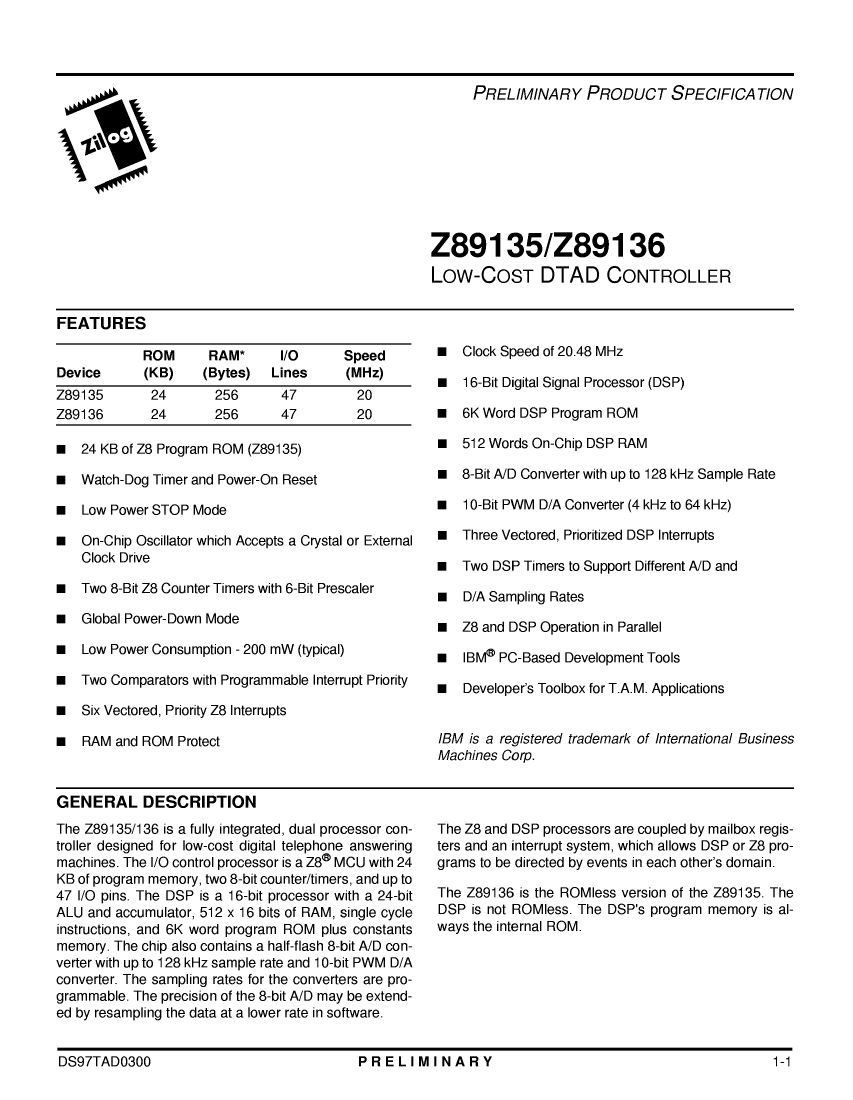

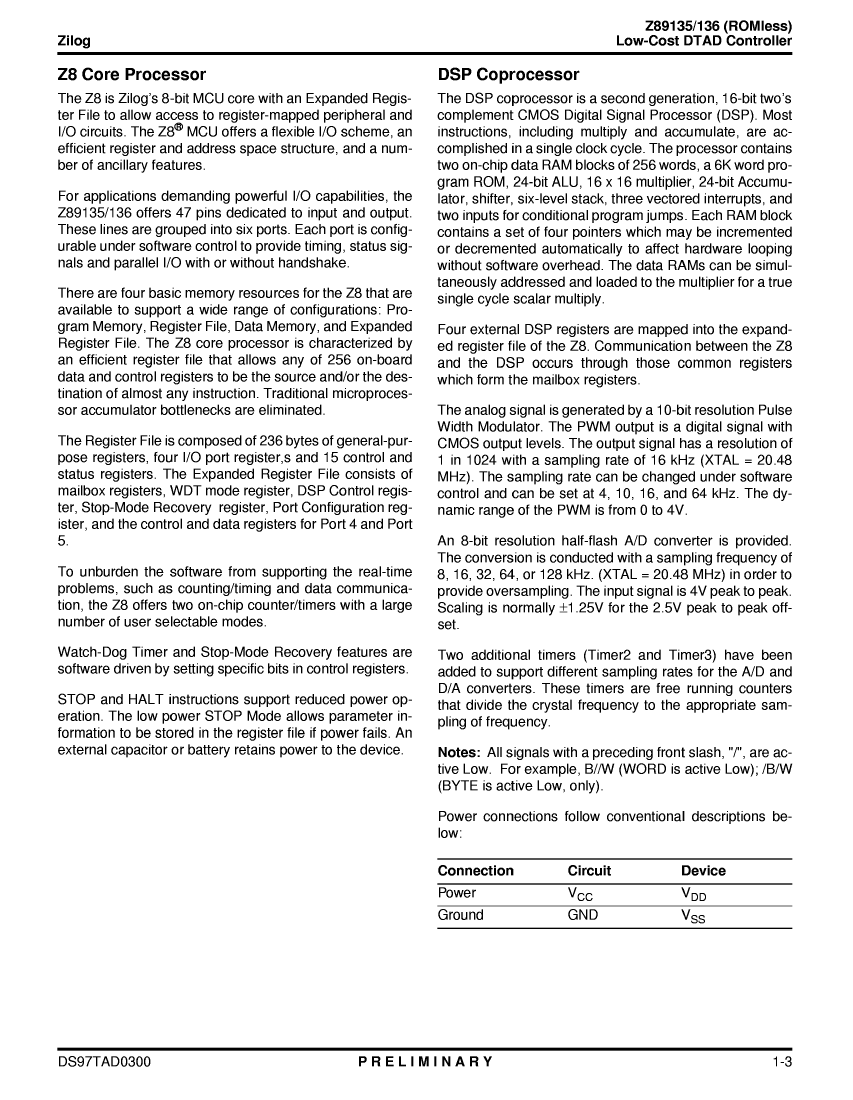

Z8913520VSC Overview

Microcontroller, 8-Bit, MROM, Z8 CPU, 20.4MHz, CMOS, PQCC68,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	IXYS
package instruction	QCCJ, LDCC68,1.0SQ
Reach Compliance Code	unknown
Has ADC	YES
Address bus width	16
bit size	8
CPU series	Z8
DAC channel	YES
DMA channel	NO
External data bus width	8
JESD-30 code	S-PQCC-J68
length	24.23 mm

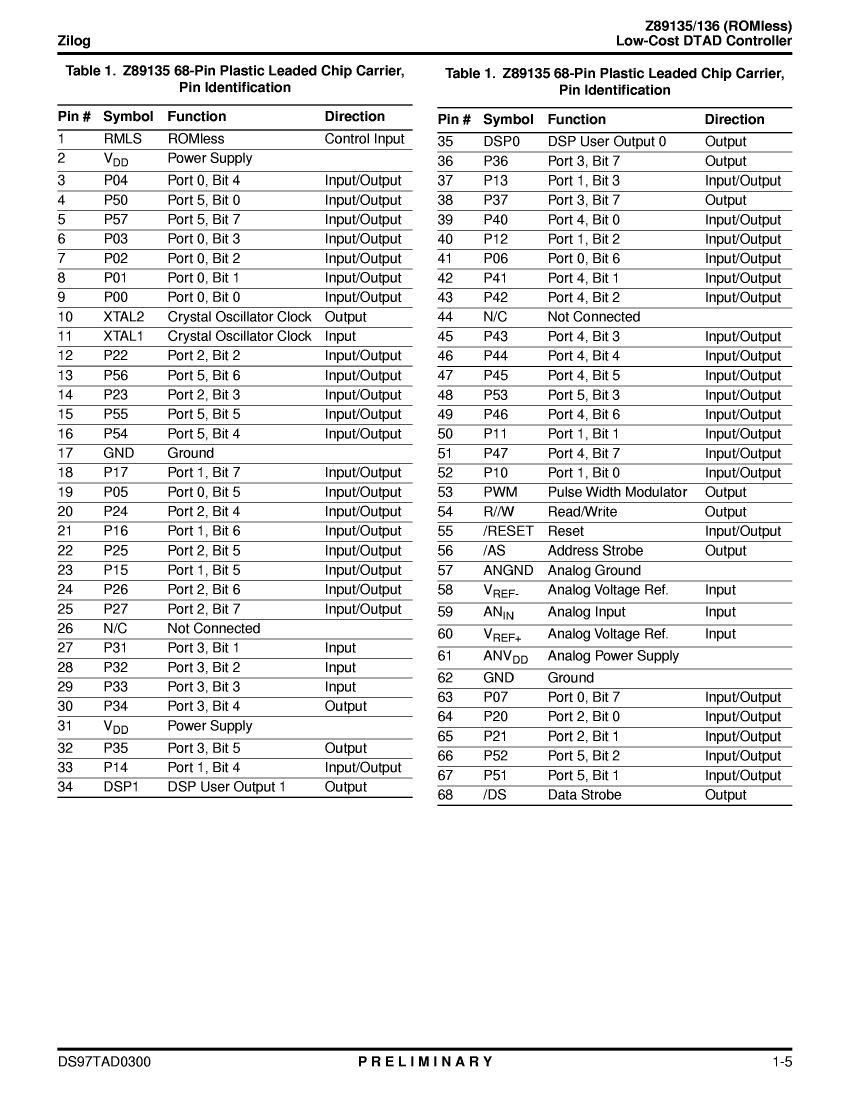

Number of I/O lines	47

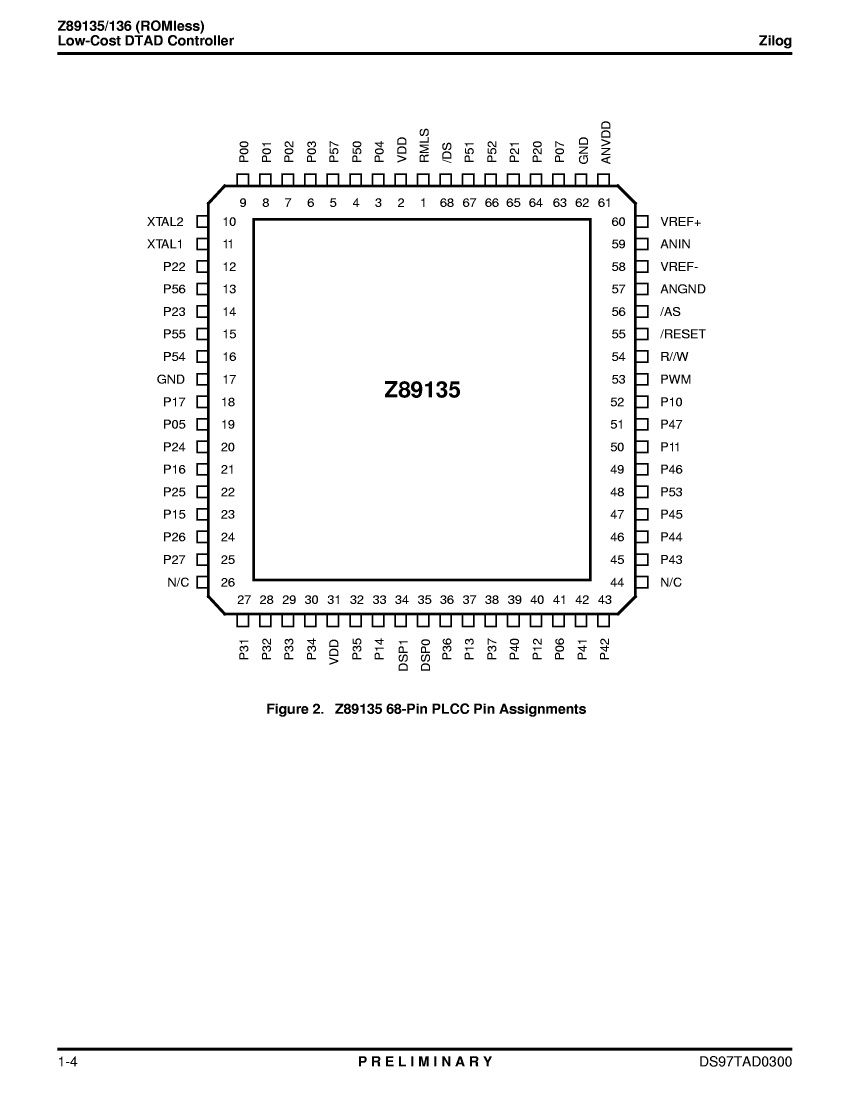

Number of terminals	68
Maximum operating temperature	55 °C
Minimum operating temperature
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	1280
rom(word)	30720
ROM programmability	MROM
speed	20.48 MHz
Maximum slew rate	40 mA
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	24.23 mm

	Z8913520VSC	Z8913620VSC
Description	Microcontroller, 8-Bit, MROM, Z8 CPU, 20.4MHz, CMOS, PQCC68,	Microcontroller, 8-Bit, MROM, Z8 CPU, 20.4MHz, CMOS, PQCC68,
Is it Rohs certified?	incompatible	incompatible
Maker	IXYS	IXYS
Reach Compliance Code	unknown	unknow
Has ADC	YES	YES
Address bus width	16	16
bit size	8	8
CPU series	Z8	Z8
DAC channel	YES	YES
DMA channel	NO	NO
External data bus width	8	8
JESD-30 code	S-PQCC-J68	S-PQCC-J68
length	24.23 mm	24.23 mm
Number of I/O lines	47	47
Number of terminals	68	68
Maximum operating temperature	55 °C	55 °C
PWM channel	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ
Encapsulate equivalent code	LDCC68,1.0SQ	LDCC68,1.0SQ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
RAM (bytes)	1280	1280
rom(word)	30720	30720
ROM programmability	MROM	MROM
speed	20.48 MHz	20.48 MHz
Maximum slew rate	40 mA	40 mA
Maximum supply voltage	5.25 V	5.25 V
Minimum supply voltage	4.75 V	4.75 V
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal form	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
width	24.23 mm	24.23 mm
