178 CONTACT(S), MALE, MULTIWAY RACK AND PANEL CONN, CRIMP, PLUG

Preview

Download Datasheet

View All

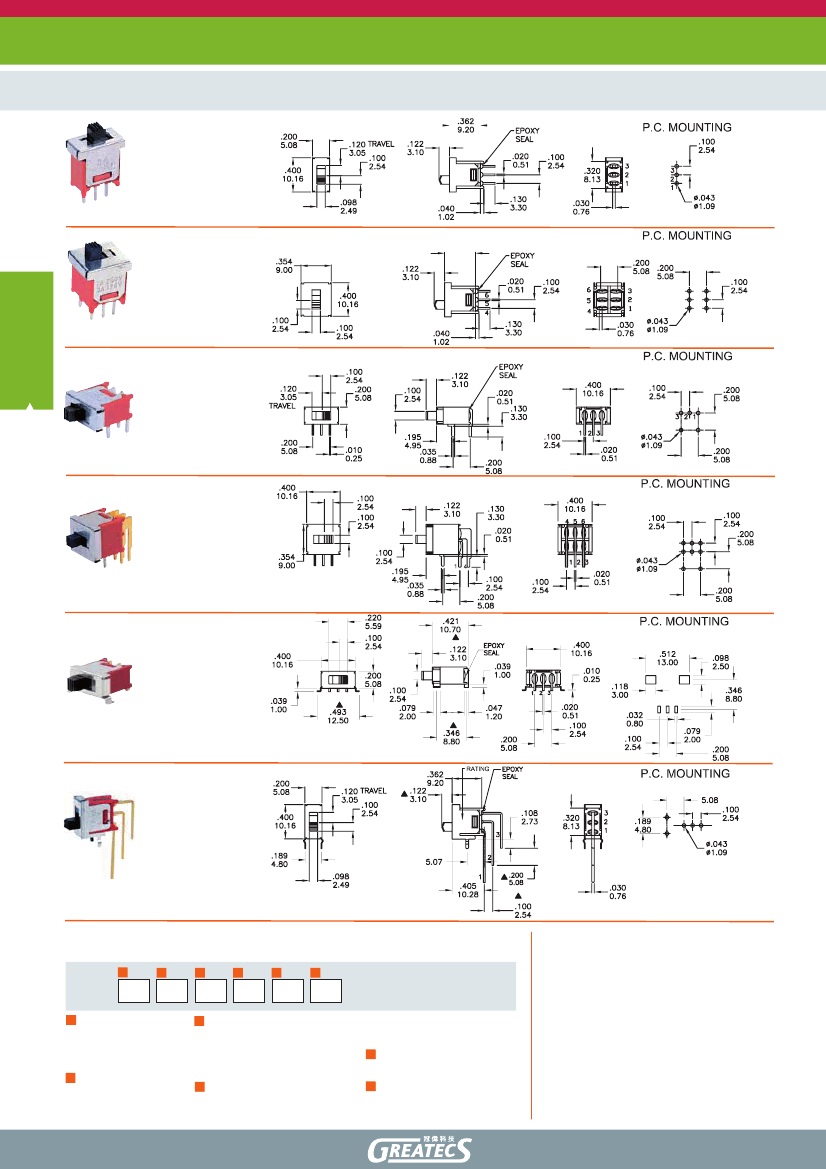

Slide Switches

Sub-Miniature Slide Switches

SB6 Series

SPDT

SB6S1A1T2AGE_

D

Slide Switches

DPDT

SB6D1A1T2AGE_

SPDT

SB6S1A1T6AGE_

DPDT

SB6D1A1T6AGE_

SPDT

SB6S1A1TZAUE_

SPDT

SB6S1A1T7AUE_

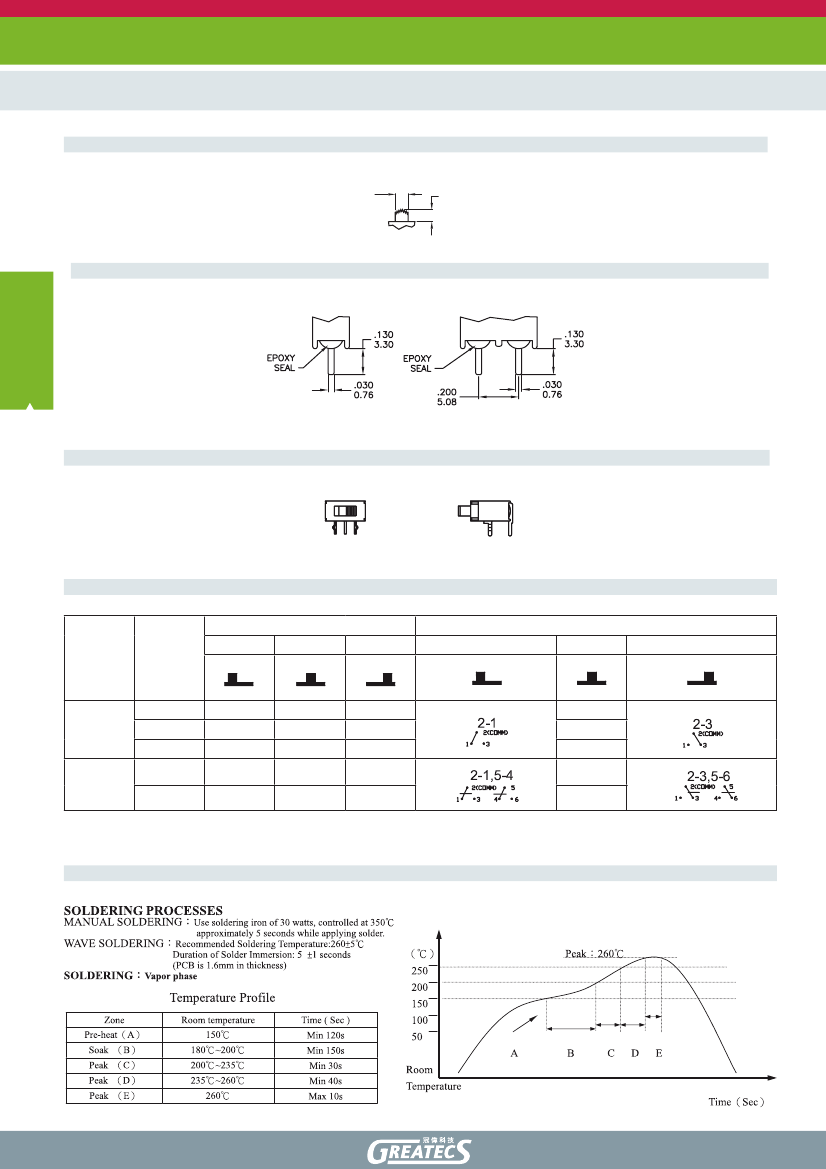

How to order:

1

2

3

4

5

6

General Specifications:

MATERIALS

» Contact: Silver or gold plated

» Terminals: Copper alloy, with silver and gold plated.

MECHANICAL

» Operating Temperature: -30°C to +85°C

» Mechanical Life: 30,000 cycles

CONTACT RATING

» AG, GT, UG & UGT: 3A120VAC/28VDC, 1A250VAC

» AU & UT: 0.4VA max. 20V max. (AC/DC)

ELECTRICAL

» Contact Resistance: 20mΩ max. initial @ 2-4VDC

100mA for silver & gold plated contacts

» Insulation Resistance: 1,000MΩ min.

SB6

S1

S2

S3

D1

D3

A1

1

POLES & SWITCHING:

SP ON-NONE-ON

SP ON-NONE-MOM

SP ON-OFF-ON

DP ON-NONE-ON

DP ON-OFF-ON

ACTUATOR:

3.10 mm high

2

T2

T5

T6

T6N

T7

TZ

AG

AU

UT

3

TERMINALS:

PC Thru-Hole

Wire Wrap

Right Angle PC Thru-Hole

Right Angle Snap-in PC Thru-Hole

Vertical Right Angle, PC thru-Hole

Right Angle, SMT

CONTACT MATERIAL:

Silver

Gold

Gold, tin-lead

GT

UG

UGT

E

N

Silver, tin-lead

Gold over Silver

Gold over Silver, tin-lead

SEAL:

Epoxy (Standard)

No Epoxy

ROHS & LEAD FREE:

RoHS Compliant (Standard)

RoHS Compliant & Lead Free

5

6

4

blank

V

sales@greatecs.com

www.greatecs.com
