DSS6NC52A271T41 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> filter> DSS6NC52A271T41

DSS6NC52A271T41: DescriptionData Line Filter,; CategoryAnalog mixed-signal IC filter; File Size213KB，3 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric View All

DSS6NC52A271T41 Overview

Data Line Filter,

DSS6NC52A271T41 Parametric

Parameter Name	Attribute value
Maker	Murata
Reach Compliance Code	unknown
filter type	DATA LINE FILTER

DSS6NC52A271T41 Preview

Product Search Data Sheet

Note: This datasheet may be out of date.

Please download the latest datasheet of DSS6NC52A271T41# from the official website of Murata Manufacturing

Co., Ltd.

https://www.murata.com/en-global/products/productdetail?partno=DSS6NC52A271T41%23

DSS6NC52A271T41#

“#” indicates a package specification code.

< List of part numbers with package codes >

DSS6NC52A271T41B

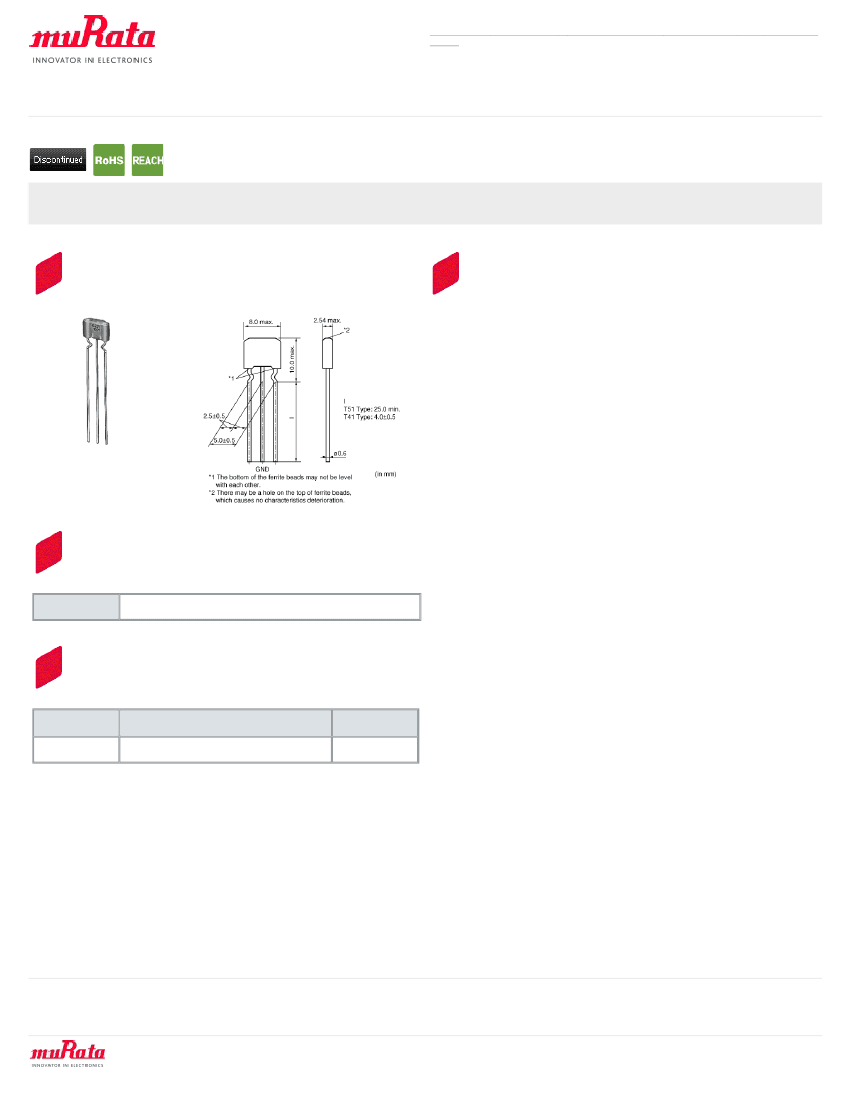

Appearance & Shape

Features

DS_6 is a compact, high performance lead type EMI

suppression filter which can be mounted 2.54mm pitch.

Its three terminal structure enables precise high

frequency performance.

Applications

Other Usage

For general

Packaging Information

Packaging

Specifications

Bulk(Bag)

Minimum

Order Quantity

500

1 of 3

Atten ti o n

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated

：

2019/07/18

Product Search Data Sheet

Note: This datasheet may be out of date.

Please download the latest datasheet of DSS6NC52A271T41# from the official website of Murata Manufacturing

Co., Ltd.

https://www.murata.com/en-global/products/productdetail?partno=DSS6NC52A271T41%23

DSS6NC52A271T41#

Specifications

Shape

Lead

“#” indicates a package specification code.

Length

8.0mm

Length Tolerance

max.

Width

2.54mm

Width Tolerance

max.

Thickness

10.0mm

Thickness Tolerance

max.

Rated Current

Operating Temperature Range

-25

℃

to 85

℃

Mass(typ.)

0.46g

Number of Circuit

Insulation Resistance(min.)

5000MΩ

Rated Voltage

100Vdc

Withstanding Voltage

250Vdc

Capacitance

270pF

Capacitance Tolerance

±20%

Structure/Shape

Small type beads inside(in-crimp)

2 of 3

Atten ti o n

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated

：

2019/07/18

Product Search Data Sheet

Note: This datasheet may be out of date.

Please download the latest datasheet of DSS6NC52A271T41# from the official website of Murata Manufacturing

Co., Ltd.

https://www.murata.com/en-global/products/productdetail?partno=DSS6NC52A271T41%23

DSS6NC52A271T41#

Product Data

“#” indicates a package specification code.

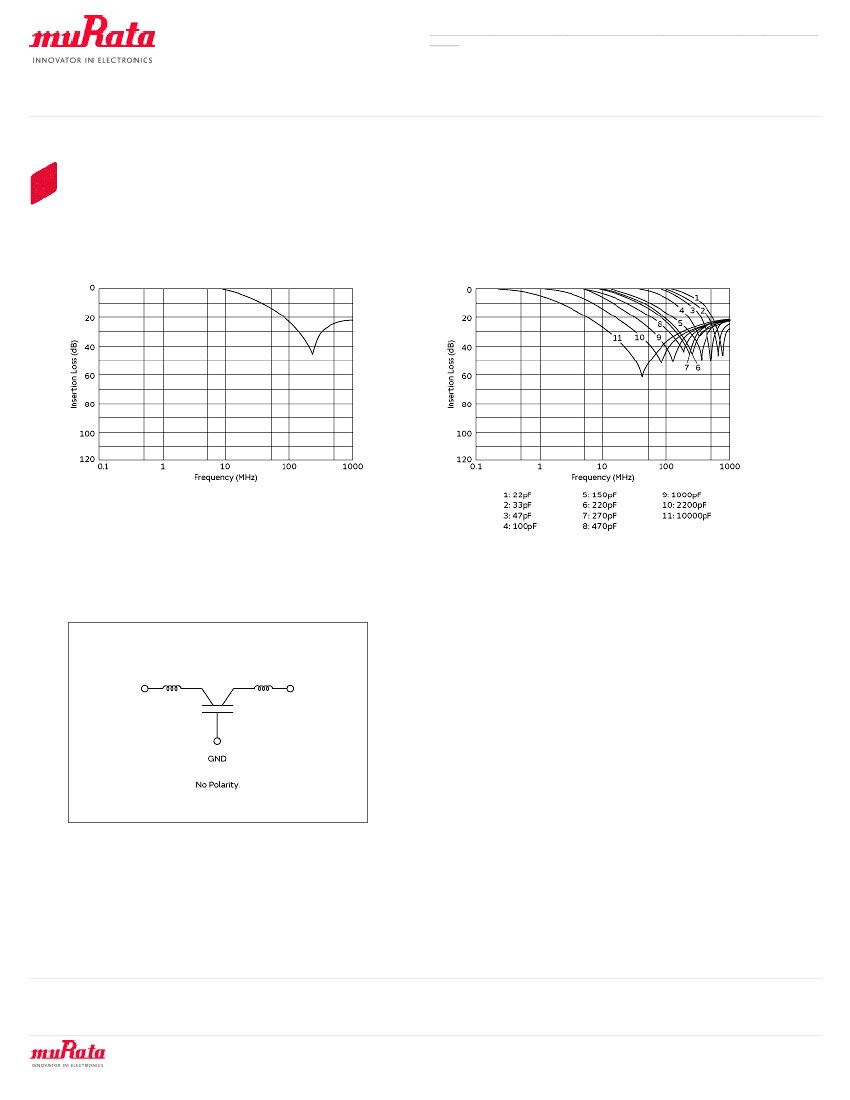

Insertion Loss Characteristics

Insertion Loss Characteristics (Main Items)

Equivalent Circuit

3 of 3

Atten ti o n

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : https://www.murata.com/

Last updated

：

2019/07/18

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
