DB 050110, DB 050180
Vishay Draloric

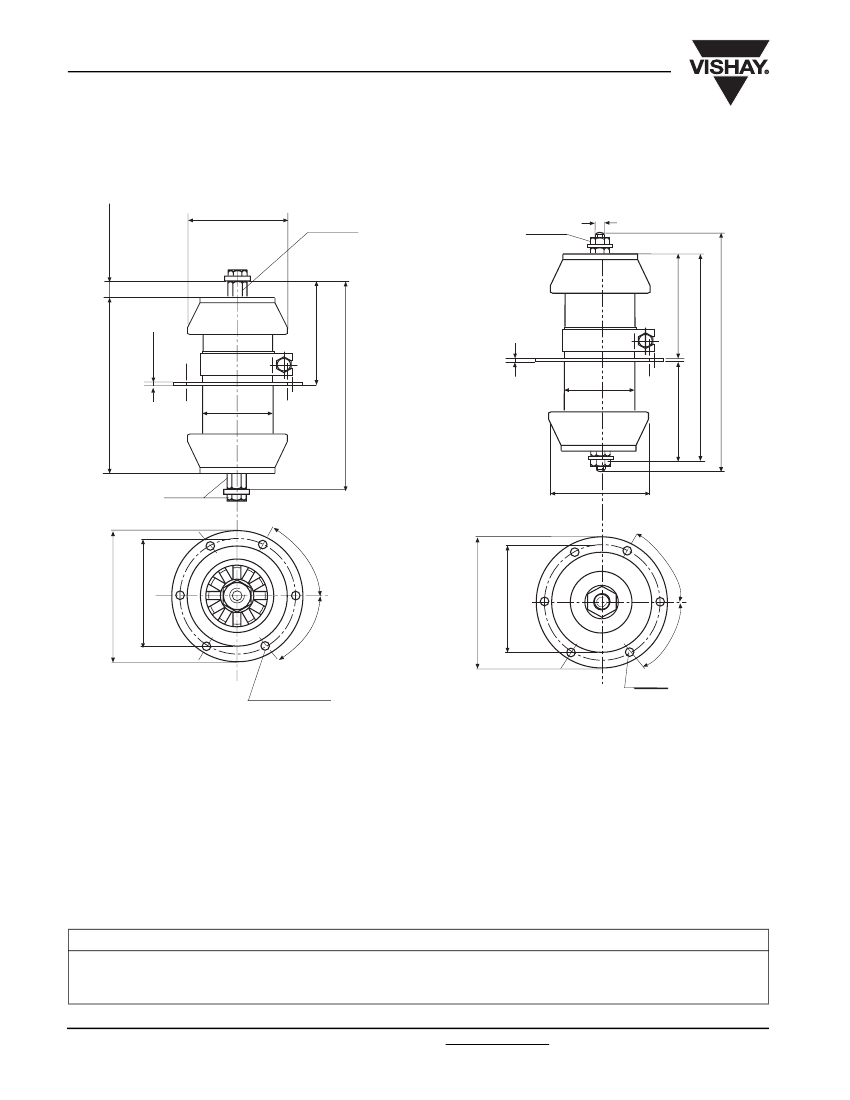

Feed-Through Capacitors with Conductor Rod
DB 050110 15 KV
P
(0.236
+ 0.04
)
Ø 75
(2.953 DIA)
M8 Thread
Both ends
SW 17
(0.551 HEX)
DB 050180 20 KV
P
M10 Thread
(Both ends)
6
+1
64
±
2
(2.520
±
0.08)
=
2
(0.08)
Ø 50
(1.969 DIA)
=
Ø 50
(1.969 DIA)
SW 14
(0.551)
Ø
85
(3.346 DIA)
60°
110
±
0.5
(4.331
±
0.02)
95
±
0.5
(3.74
±
0.02)
(4.331
±
0.02)
(3.74
±
0.02)
60°
110
±
0.5
60°
95
±
0.5
60°
6.3
+ 0.3
Holes
(0.248
+ 0.012
)
6.3
+ 0.3
(0.248
+ 0.012
)
• Dimensions in millimeters (inches)
MATERIAL:
Capacitor elements made from Class 1 ceramic dielectric
with noble metal electrodes.
Connection terminals: Copper/brass, silver plated.
MARKING:
Type designator, Capacitance value and tolerance, Rated
voltage (peak value), Production date code, Ceramic
material code, DRALORIC Logo
FINISH:
Noble metal electrodes completely lacquered. Contoured
rims glazed.
DBF model only has additional moisture protection (silicone
rubber) at both the contoured rims.
ACCESSORIES ADDED:
Hex. nuts/screws and washers.
ORDERING INFORMATION
DB 050180
MODEL
20 KV
P
RATED VOLTAGE
3000
pF
CAPACITANCE VALUE
± 20 %
TOLERANCE
R 230
CERAMIC
www.vishay.com
1
For technical questions contact: powcap@vishay.com
Document Number: 22105
Revision: 21-Feb-02
1
8
0
±
2 (7.0
8
7
±
0.0
8
)
Holes
225
±
2 (
8
.
8
5
8
±
0.0
8
)
110
±
2
(4.331
±
0.08)
(0.08)
2
122
±
2
(4.803
±
0.08)
