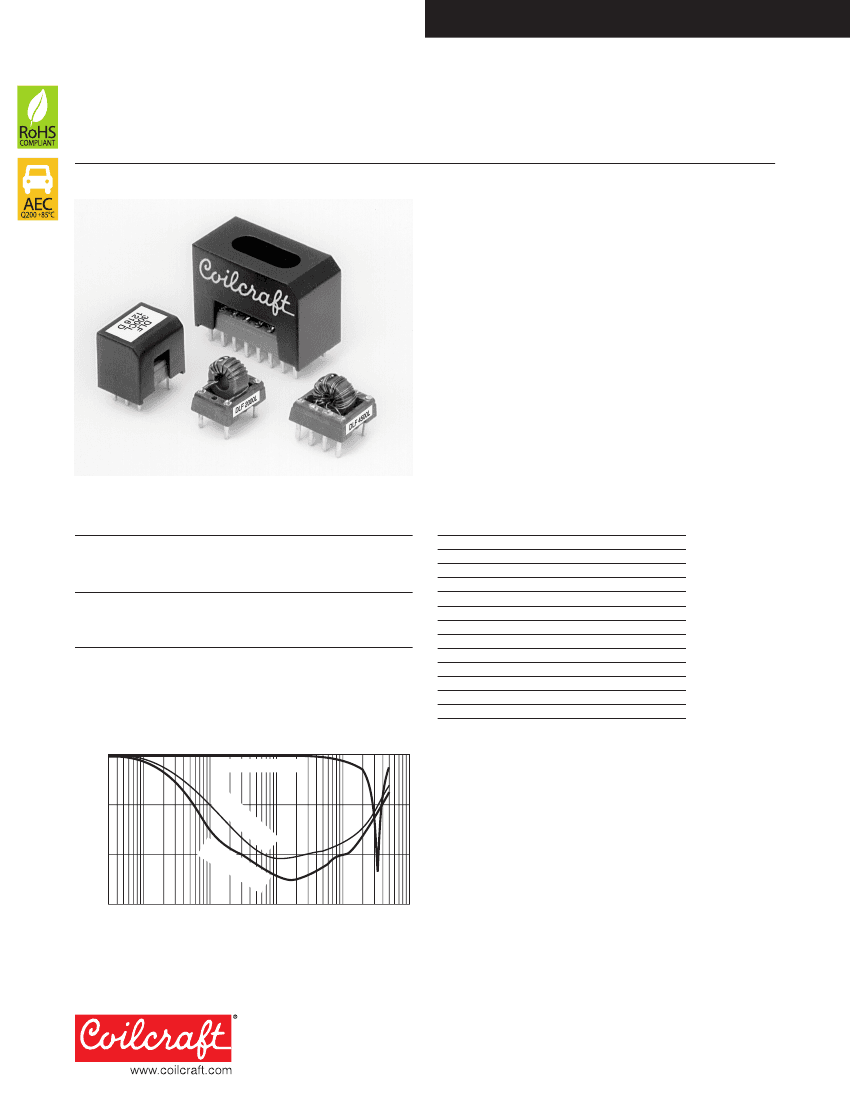

Through Hole Data Line EMI Filters
These filters are designed to virtually eliminate conducted
EMI in data line applications. They provide exceptional
common mode noise reduction from 5 MHz to 300 MHz
while passing signal line data frequencies below 200 MHz
with minimal attenuation.
These low resistance filters feature excellent electrical
isolation, environmental stability and low cost. Optional
covers make them auto insertable. They also meet IEC
695-2-2 needle flame test requirements. There are 8, 4,
3 and 2-line versions with DC current capacity of 100 mA
(DLF x000 series) or 500 mA (DLF x500 series).
Coilcraft
Designer’s Kit D303
contains four samples of
all values shown plus samples of our PDLF and CCDLF
surface mount filters. To order, contact Coilcraft or visit
http://order.coilcraft.com.
Part
number
Lines
DLF 8000L
1
8
DLF 8500L
1
8
DLF 4000L
4
DLF 4500L
4
DLF 3000L
1
3
DLF 3500L
3
DLF 2000L
1
2
DLF 2500L
1
2
Current
DCR
max L / winding
max
Isolation
(mA)
(µH)
(mOhms) (Vrms)
100
28
100
300
500
25
45
300
100
28
100
300
500
24
45
300
100
28
100
300
500
24
45
300
100
28
100
300
500
24
45
300
1. For optional cover add “C” to part number just before the “L”: e.g.
DLF 8500CL. Not available on 3500, 4000 and 4500 parts.
2. Operating temperature range –40°C to +85°C.
3. Electrical specifications at 25°C.
Part number
DLF 2000L
DLF 2000CL
DLF 2500L
DLF 2500CL
DLF 3000L
DLF 3000CL
DLF 3500L
DLF 4000L
DLF 4500L
DLF 8000L
DLF 8000CL
DLF 8500L
DLF 8500CL
Weight typ (g)
0.74
1.32
0.78
1.36
0.83
1.41
0.91
0.95
1.09
1.56
2.70
2.22
3.36
Packaging
74 per tube
64 per tube
74 per tube
64 per tube
74 per tube
64 per tube
74 per tube
55 per tube
55 per tube
27 per tube
27 per tube
25 per tube
25 per tube
Typical Response
(Measured on an HP 8753D network analyzer. Ref: 50 Ohms)
0
Differential Mode
Terminations
Tin-silver over tin over phos bronze
Attenuation (dB)
10
Co
Co
m
DL mo
F nM
x5 o
00 de
20
m
DL mon
F
M
x0 ode
00
30
0.1
1
Frequency (MHz)
10
100
1000
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 149-1
Revised 07/02/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.

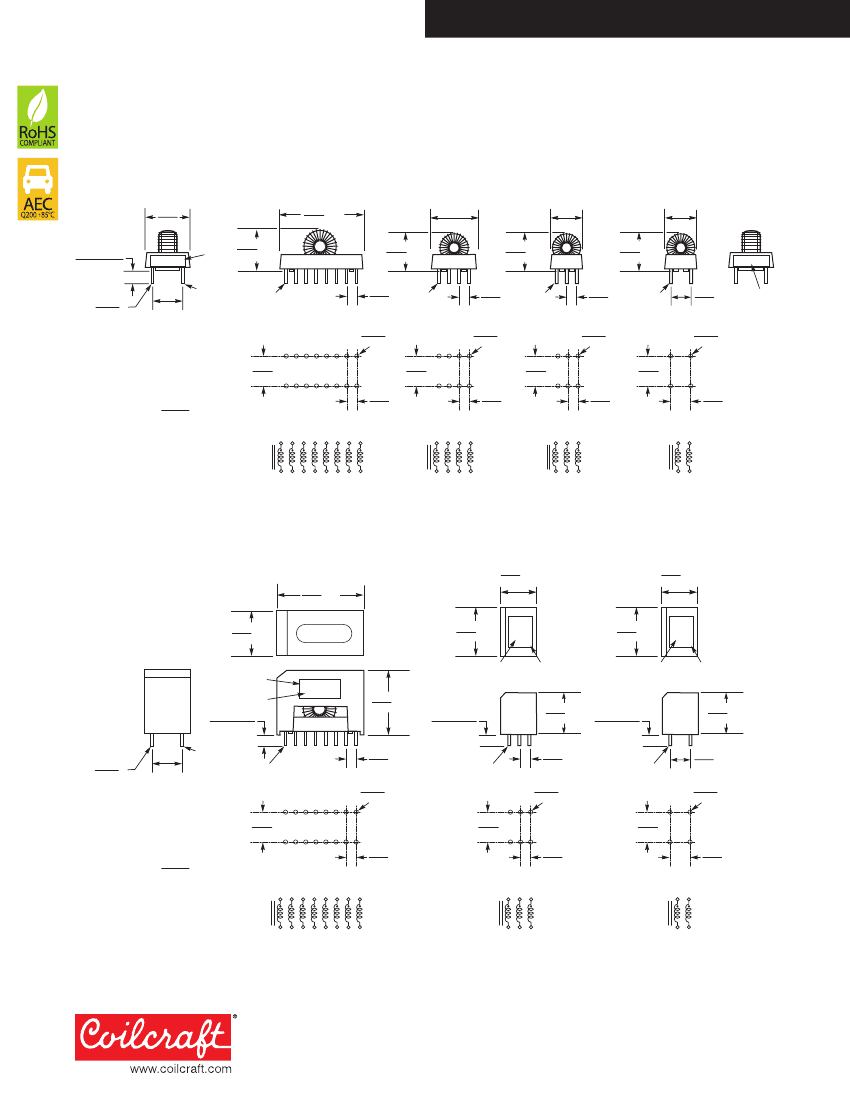

Document 149 -1
Through Hole Data Line EMI Filters
Without Optional Cover
Front
view
0.450
11,43
0.475
Part 12,07 max
number
Pin 1
8 line
0.850
max
21,59
0.400
max
10,16
4 line
0.450
11,43
0.400
max
10,16
3 line
0.350
8,90
0.400
max
10,16
2 line
0.350
8,90
Rear
view
0.125 ±0.020
3,18 ±0,51
DLF xx00L
XXXX Y
0.0315
∅
0,800
0.300
7,62
Pin 1
0.100
2,54
0.04
∅
1,016
Pin 1
0.100
2,54
0.04
∅
1,016
Pin 1
0.100
2,54
0.04
∅
1,016
Pin 1
0.200
5,08
0.04
∅
1,016
Internal
code
16
8
0.300
7,62
6
0.300
7,62
6
0.300
7,62
Recommended
PC Board Layouts
inches
Dimensions are in
mm
0.300
7,62
1
0.100
2,54
1
0.100
2,54
1
0.100
2,54
1
0.200
5,08
6 4
16 15 14 13 12 11 10 9
8 7 6 5
6 5 4
Schematics
1 2 3 4 5 6 7 8
1 2 3 4
1 2 3
1 3
Note: Polarity marking is for reference only. Parts may be inserted into the circuit with polarity reversed without affecting performance.
With Optional Cover
0.455
max
11,56
8 line
0.877
max
22,28
0.650
max
16,51
3 line
0.490
max
12,45
2 line
0.490
max
12,45
DLF
3x00CL
XXXX Y
0.650
max
16,51
Part
number
Internal
code
0.115 ±0.005
2,92 ±0,13
Pin 1
Pin 1
Part
number
DLF8x00CL
XXXX Y
Internal
code
Part
number
0.650
max
16,51
DLF xx00L
0.115 ±0.03
2,92 ±0,076
0.420
max
10,9
DLF
2x00CL
XXXX Y
Internal
code
0.115 ±0.03
2,92 ±0,076
0.420
max
10,9
0.0315
∅
0,800
0.300
7,62
0.100
2,54
0.04
∅
1,016
Pin 1
0.100
2,54
0.04
∅
1,016
Pin 1
0.200
5,08
0.04
∅
1,016
16
6
0.300
7,62
6
0.300
7,62
Recommended
PC Board Layouts
inches
Dimensions are in
mm
0.300
7,62
1
0.100
2,54
1
0.100
2,54
1
0.200
5,08
6 4
16 15 14 13 12 11 10 9
6 5 4
Schematics
1 2 3 4 5 6 7 8
1 2 3
1 3
Note: Polarity marking is for reference only. Parts may be inserted into the circuit with polarity reversed without affecting performance.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 149-2
Revised 07/02/12
© Coilcraft Inc. 2013
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
