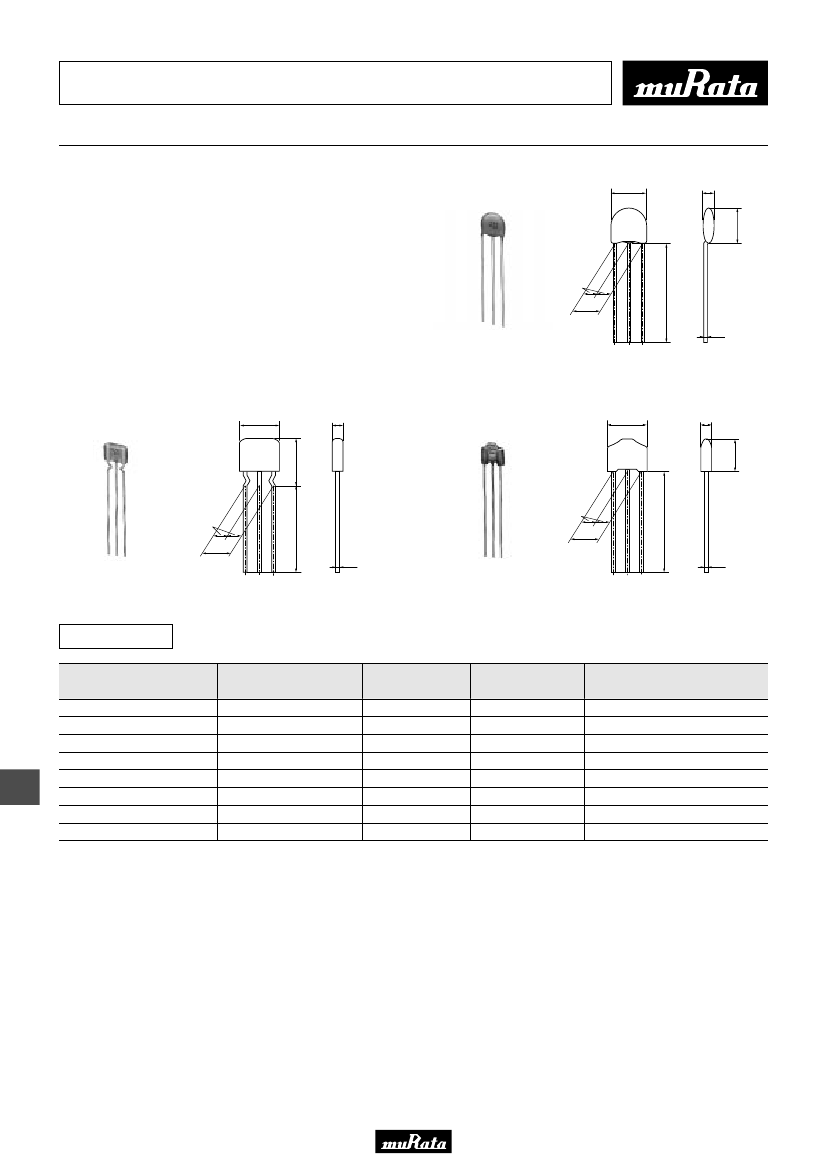

On-Board Type (DC) EMI Suppression Filters (EMIFILr)
Disc Type EMIFILr DSN6/DSS6 Series
s
Features
DS_6 is comnpact, high performance lead type EMI
suppression filter which can be mounted 2.54mm pitch.
Its 3-terminal structure enables nice high
frequency performance.
25.0min
2.5±0.5
5.0±0.5
7.0max
2.54max
DSN6_Q55B Series
ø0.6
8.0max
(in mm)
8.0max
2.54max
5.0±0.5
25.0min
2.5±0.5
8.0max
2.54max
2.5±0.5
5.0±0.5
25.0min
10.0max
DSS6_T55B Series
Incrimp Type
ø0.6
DSS6_Q55B Series
Straight Type
(in mm)
ø0.6
7.0max
(in mm)
DSN6 Series
Part Number
DSN6NC51H220
DSN6NC51H330
DSN6NC51H470
DSN6NC51H101
DSN6NC51H271
DSN6NC51H102
DSN6NC51H222
DSN6NZ81H103
Capacitance
(pF)
22 +20%,-20%
33 +20%,-20%
47 +20%,-20%
100 +20%,-20%
270 +20%,-20%
1000 +20%,-20%
2200 +20%,-20%
10000 +80%,-20%
Rated Voltage
(Vdc)
50
50
50
50
50
50
50
50
Rated Current
(A)
6
6
6
6
6
6
6
6
Operating Temperature Range
(°C)
-25 to 85
-25 to 85
-25 to 85
-25 to 85
-25 to 85
-25 to 85
-25 to 85
-10 to 60
19
Please refer to Part Numbering for Type and Length of Lead.
104
Please read rating and
!CAUTION
(for storage and operating, rating, soldering and mounting, handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage and operating, rating, soldering and mounting, handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore, you are requested to approve our product specification please approve our product specification or transact the approval sheet for product specification before ordering.
This catalog has only typical specifications because there is no space for detailed specifications. Therefore, or to transact the approval sheet for product specificaion before ordering.
C31E8.pdf 02.9.5
s
Equivalent Circuit
s
Insertion Loss Characteristics (Typical)
(50Ω - 50Ω)
0
1
2
20
Insertion Loss (dB)
8
7
6
5
4
3
1 : 22pF
2 : 33pF
3 : 47pF
4 : 100pF
5 : 270pF
6 :1000pF
7 : 2200pF
8 : 10000pF
40
60
80
GND
100
120
0.1
1
10
Frequency (MHz)
100
1000
Built-in Ferrite Beads DSS6 Series Incrimp Type
Part Number
DSS6NC52A220
DSS6NC52A330
DSS6NC52A470
DSS6NC52A101
DSS6NC52A151
DSS6NC52A221
DSS6NC52A271
DSS6NC52A471
DSS6NC52A102
DSS6NE52A222
DSS6NZ82A103
DSS6NF31C223
Capacitance
(pF)
22 +20%,-20%
33 +20%,-20%
47 +20%,-20%
100 +20%,-20%
150 +20%,-20%
220 +20%,-20%
270 +20%,-20%
470 +20%,-20%
1000 +20%,-20%
2200 +80%,-20%
10000 +30%,-30%
22000 +80%,-20%
Rated Voltage
(Vdc)
100
100
100
100
100
100
100
100
100
100
100
16
Rated Current
(A)
6
6
6
6
6
6
6
6
6
6
6
6
Operating Temperature Range
(°C)
-25 to 85
-25 to 85
-25 to 85
-25 to 85
-25 to 85
-25 to 85
-25 to 85
-25 to 85
-25 to 85
-25 to 85
-10 to 60
-25 to 85
Please refer to Part Numbering for Type and Length of Lead.
s
Equivalent Circuit
s
Insertion Loss Characteristics (Typical)
0
1
2
12
11
10
9
8
5
4
3
1 : 22pF
2 : 33pF
3 : 47pF
4 : 100pF
5 : 150pF
6 : 220pF
7 : 270pF
8 : 470pF
9 : 1000pF
10 : 2200pF
11 : 10000pF
12 : 22000pF
20
Insertion Loss (dB)
40
7 6
60
19
80
GND
100
120
0.1
1
10
Frequency (MHz)
100
1000
105
Please read rating and
!CAUTION
(for storage and operating, rating, soldering and mounting, handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage and operating, rating, soldering and mounting, handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore, you are requested to approve our product specification please approve our product specification or transact the approval sheet for product specification before ordering.
This catalog has only typical specifications because there is no space for detailed specifications. Therefore, or to transact the approval sheet for product specificaion before ordering.
C31E8.pdf 02.9.5
Built-in Ferrite Beads DSS6 Series Straight Type
Part Number
DSS6NC52A220
DSS6NC52A330
DSS6NC52A470
DSS6NC52A101
DSS6NC52A151
DSS6NC52A221
DSS6NC52A271
DSS6NC52A471
DSS6NC52A102
DSS6NE52A222
DSS6NZ82A103
DSS6NF31C223
Capacitance
(pF)
22 +20%,-20%
33 +20%,-20%
47 +20%,-20%
100 +20%,-20%
150 +20%,-20%
220 +20%,-20%
270 +20%,-20%
470 +20%,-20%
1000 +20%,-20%
2200 +80%,-20%
10000 +30%,-30%
22000 +80%,-20%
Rated Voltage
(Vdc)
100
100
100
100
100
100
100
100
100
100
100
16
Rated Current
(A)
6
6
6
6
6
6
6
6
6
6
6
6
Operating Temperature Range
(°C)
-25 to 85
-25 to 85
-25 to 85
-25 to 85
-25 to 85
-25 to 85
-25 to 85
-25 to 85
-25 to 85
-25 to 85
-10 to 60
-25 to 85
Please refer to Part Numbering for Type and Length of Lead.
s
Equivalent Circuit
s
Insertion Loss Characteristics (Typical)
(50Ω - 50Ω)
2
20
Insertion Loss (dB)
1
12
11
10
9
8
5 4
3
1 : 22pF
2 : 33pF
3 : 47pF
4 : 100pF
5 : 150pF
6 : 220pF
7 : 270pF
8 : 470pF
9 : 1000pF
10 : 2200pF
11 : 10000pF
12 : 22000pF
0
40
7
6
60
80
GND
100
120
0.1
1
10
Frequency (MHz)
100
1000
19
106
Please read rating and
!CAUTION
(for storage and operating, rating, soldering and mounting, handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage and operating, rating, soldering and mounting, handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore, you are requested to approve our product specification please approve our product specification or transact the approval sheet for product specification before ordering.
This catalog has only typical specifications because there is no space for detailed specifications. Therefore, or to transact the approval sheet for product specificaion before ordering.
C31E8.pdf 02.9.5
o
Part Numbering
the "Global Part Numbers" that have been adopted
and the
(
The structure ofquestions about details, inquire at your usual Muratasince June 2001distributor.meaning of each code are described herein.
)
If you have any
sales office or
Chip EMIFILr Inductor Type
(Global Part Number)
qProduct
ID
Product ID
BL
wType
Code
A
M
eDimension
(LgW)
Code
15
18
2A
21
31
41
Dimension (LgW)
1.0g0.5mm
1.6g0.8mm
2.0g1.0mm
2.0g1.25mm
3.2g1.6mm
4.5g1.6mm
EIA
0402
0603
0804
0805
1206
1806
iNumbers
of Circuit
Code
1
4
rCharacteristics/Applications
Code
*1
AF
AG
AJ
AH
BA
BB
BD
BE
PF
PG
RK
HG
HB
HD
HK
for Power Supplies
for Digital Interface
for GHz Band General Use
for GHz Band High-speed Signal Line
for GHz Band Digital Interface
for High-speed Signal Lines
for General Use
Characteristics/Applications
BLM31/BLM41
BLM15/BLM18/BLM21/BLM31/BLA2A/BLA31
BLM21/BLM31
BLM21
BLM18
BLM15/BLM18/BLM21/BLA2A
BLM15/BLM18/BLM21/BLA31
BLM31
BLM41
BLM18/BLM21/BLM31/BLM41
BLM18/BLM21
BLM18
BLM18
BLM18
Series
Numbers of Circuit
1 Circuit
4 Circuit
Type
Array Type
Monolithic Type
uCategory
Code
N
H
Category
Standard Type
for Heavy-duty
Chip Ferrite Beads
BL
q
M
w
18
e
AG
r
102
t
S
N
1 D
tImpedance
Expressed by three figures. The unit is in ohm (Ω). The first and
second figures are significant digits, and the third figure
expresses the number of zeros which follow the two figures.
yPerformance
Expressed by a letter.
Ex.)
Code
S
Performance
Sn Plating
y u i o
*1 Frequency characteristics is varied with each code.
oPackaging
Code
K
L
B
J
D
C
Packaging
Plastic Taping (ø330mm Reel)
Plastic Taping (ø180mm Reel)
Bulk
Paper Taping (ø330mm Reel)
Paper Taping (ø180mm Reel)
Bulk Case
Series
BLM31/BLM41/BLM21
*1
All series
BLM15/BLM18/BLM21
*2
/BLA31
BLM15/BLM18/BLM21
*2
/BLA2A/BLA31
BLM15/BLM18
*1 BLM21BD222SN1/BLM21BD272SN1 only.
*2 Except BLM21BD222SN1/BLM21BD272SN1
2
Please read rating and
!CAUTION
(for storage and operating, rating, soldering and mounting, handling) in this catalog to prevent smoking and/or burning, etc.
!Note
•Please read rating and
!CAUTION
(for storage and operating, rating, soldering and mounting, handling) in this PDF catalog to prevent smoking and/or burning, etc.
•This catalog has only typical specifications. Therefore, you are requested to approve our product specification please approve our product specification or transact the approval sheet for product specification before ordering.
This catalog has only typical specifications because there is no space for detailed specifications. Therefore, or to transact the approval sheet for product specificaion before ordering.
C31E8.pdf 02.9.5
Chip EMIFILr Capacitor Type
(Global Part Number)
qProduct
ID
Product ID
NF
wStructure
Code
M
eDimension
(LgW)
Code
18
21
3D
41
rFeatures
Code
CC
PC
tCapacitance
Expressed by three figures. The unit is in pico-farad (pF). The first
and second figures are significant digits, and the third figure
expresses the number of zeros which follow the two figures.
