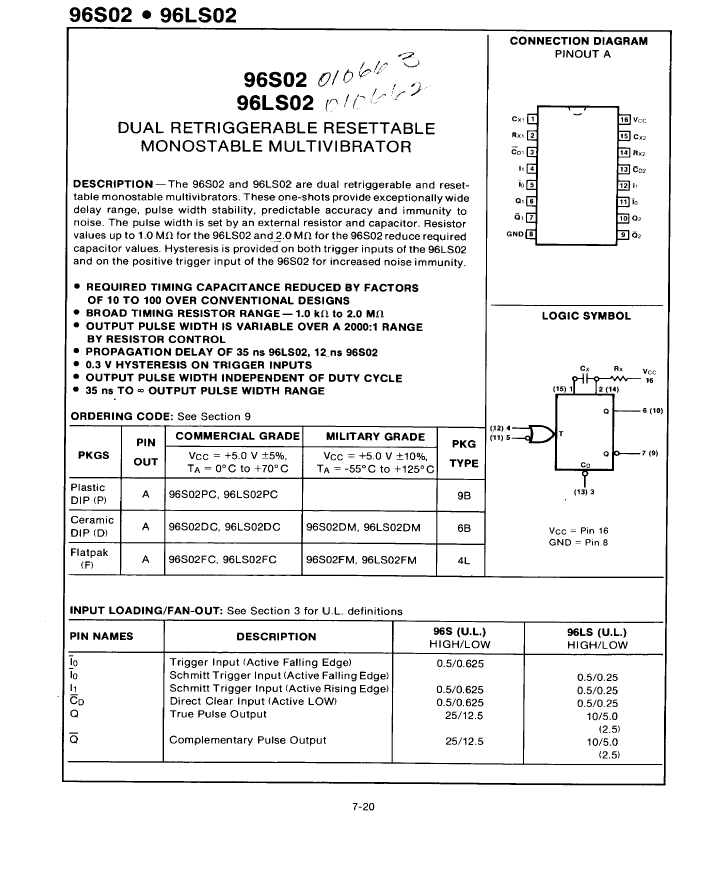

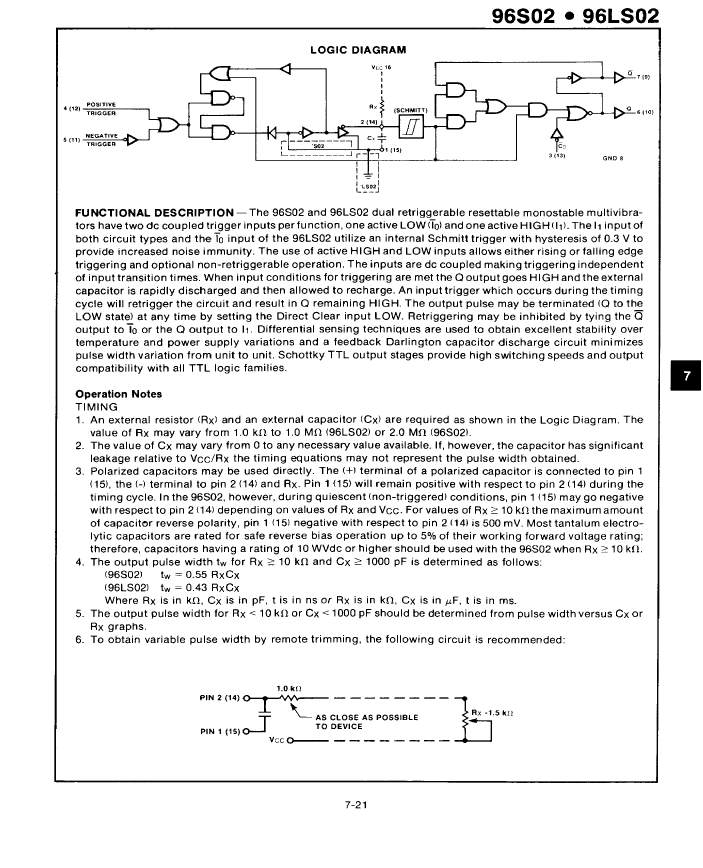

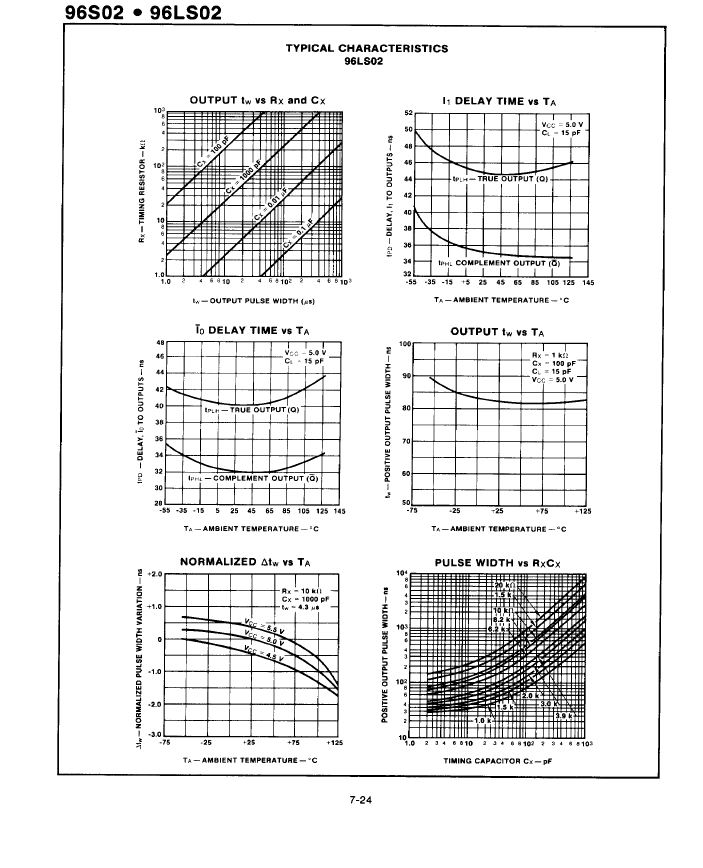

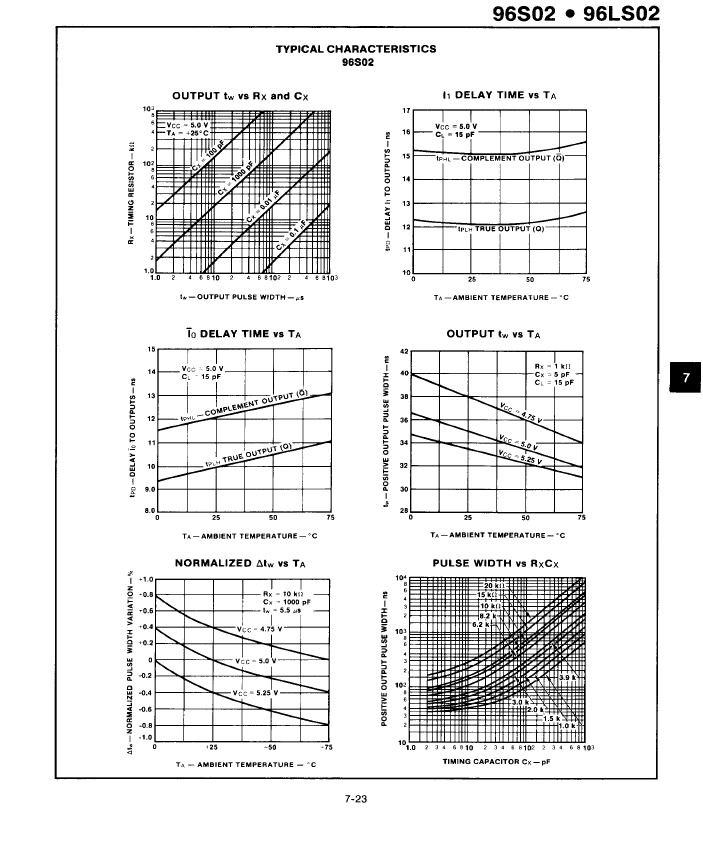

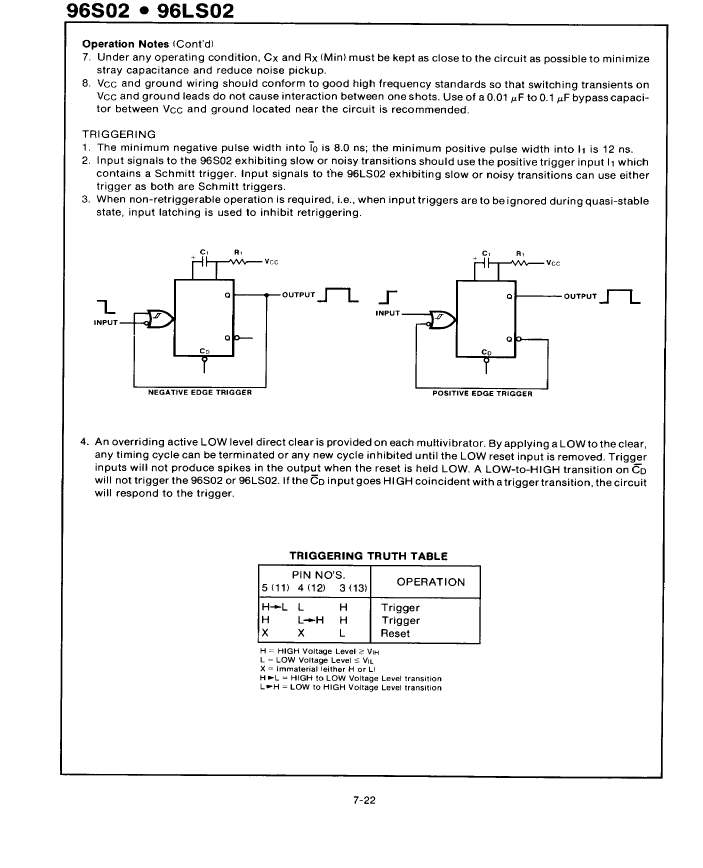

Monostable Multivibrator, TTL, CDFP16,
| Parameter Name | Attribute value |
| Is it lead-free? | Contains lead |
| Is it Rohs certified? | incompatible |
| Maker | Fairchild |
| package instruction | DFP, FL16,.3 |
| Reach Compliance Code | compliant |
| JESD-30 code | R-XDFP-F16 |
| JESD-609 code | e0 |
| Logic integrated circuit type | MONOSTABLE MULTIVIBRATOR |
| Humidity sensitivity level | 2A |
| Number of terminals | 16 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC |
| encapsulated code | DFP |
| Encapsulate equivalent code | FL16,.3 |
| Package shape | RECTANGULAR |
| Package form | FLATPACK |
| Peak Reflow Temperature (Celsius) | 250 |
| power supply | 5 V |
| Certification status | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | TTL |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | 30 |
| 96LS02FM | 96S02DMQB | 96LS02DC | 96LS02PC | 96LS02DM | 96LS02FC | 96S02PC | |
|---|---|---|---|---|---|---|---|
| Description | Monostable Multivibrator, TTL, CDFP16, | Monostable Multivibrator, S Series, 1-Func, TTL, CDIP16, CERAMIC, DIP-16 | Monostable Multivibrator, TTL, CDIP16, | Monostable Multivibrator, TTL, PDIP16, | Monostable Multivibrator, TTL, CDIP16, | Monostable Multivibrator, TTL, CDFP16, | Monostable Multivibrator, TTL, PDIP16, |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild | Fairchild |
| package instruction | DFP, FL16,.3 | DIP, DIP16,.3 | DIP, DIP16,.3 | DIP, DIP16,.3 | DIP, DIP16,.3 | DFP, FL16,.3 | DIP, DIP16,.3 |
| Reach Compliance Code | compliant | unknown | compliant | compliant | compliant | compliant | compliant |
| JESD-30 code | R-XDFP-F16 | R-CDIP-T16 | R-XDIP-T16 | R-PDIP-T16 | R-XDIP-T16 | R-XDFP-F16 | R-PDIP-T16 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| Logic integrated circuit type | MONOSTABLE MULTIVIBRATOR | MONOSTABLE MULTIVIBRATOR | MONOSTABLE MULTIVIBRATOR | MONOSTABLE MULTIVIBRATOR | MONOSTABLE MULTIVIBRATOR | MONOSTABLE MULTIVIBRATOR | MONOSTABLE MULTIVIBRATOR |
| Number of terminals | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 125 °C | 125 °C | 70 °C | 70 °C | 125 °C | 70 °C | 70 °C |
| Package body material | CERAMIC | CERAMIC, METAL-SEALED COFIRED | CERAMIC | PLASTIC/EPOXY | CERAMIC | CERAMIC | PLASTIC/EPOXY |
| encapsulated code | DFP | DIP | DIP | DIP | DIP | DFP | DIP |
| Encapsulate equivalent code | FL16,.3 | DIP16,.3 | DIP16,.3 | DIP16,.3 | DIP16,.3 | FL16,.3 | DIP16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | FLATPACK | IN-LINE | IN-LINE | IN-LINE | IN-LINE | FLATPACK | IN-LINE |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | NO | NO | NO | NO | YES | NO |
| technology | TTL | TTL | TTL | TTL | TTL | TTL | TTL |
| Temperature level | MILITARY | MILITARY | COMMERCIAL | COMMERCIAL | MILITARY | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | FLAT | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE | FLAT | THROUGH-HOLE |
| Terminal pitch | 1.27 mm | 2.54 mm | 2.54 mm | 2.54 mm | 2.54 mm | 1.27 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Is it lead-free? | Contains lead | - | Contains lead | Contains lead | Contains lead | Contains lead | - |
| Humidity sensitivity level | 2A | - | 2A | 2A | 2A | 2A | - |
| Peak Reflow Temperature (Celsius) | 250 | NOT SPECIFIED | 250 | 250 | 250 | 250 | - |
| Maximum time at peak reflow temperature | 30 | NOT SPECIFIED | 30 | 30 | 30 | 30 | - |
