ST1900C52R3L datasheet, PDF - EEWORLD Datasheet

ST1900C52R3L: DescriptionSilicon Controlled Rectifier, 3500A I(T)RMS, 1600000mA I(T), 5200V V(DRM), 5200V V(RRM), 1 Element, RPUK-2; CategoryAnalog mixed-signal IC Trigger device; File Size145KB，7 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/

Download Datasheet Parametric View All

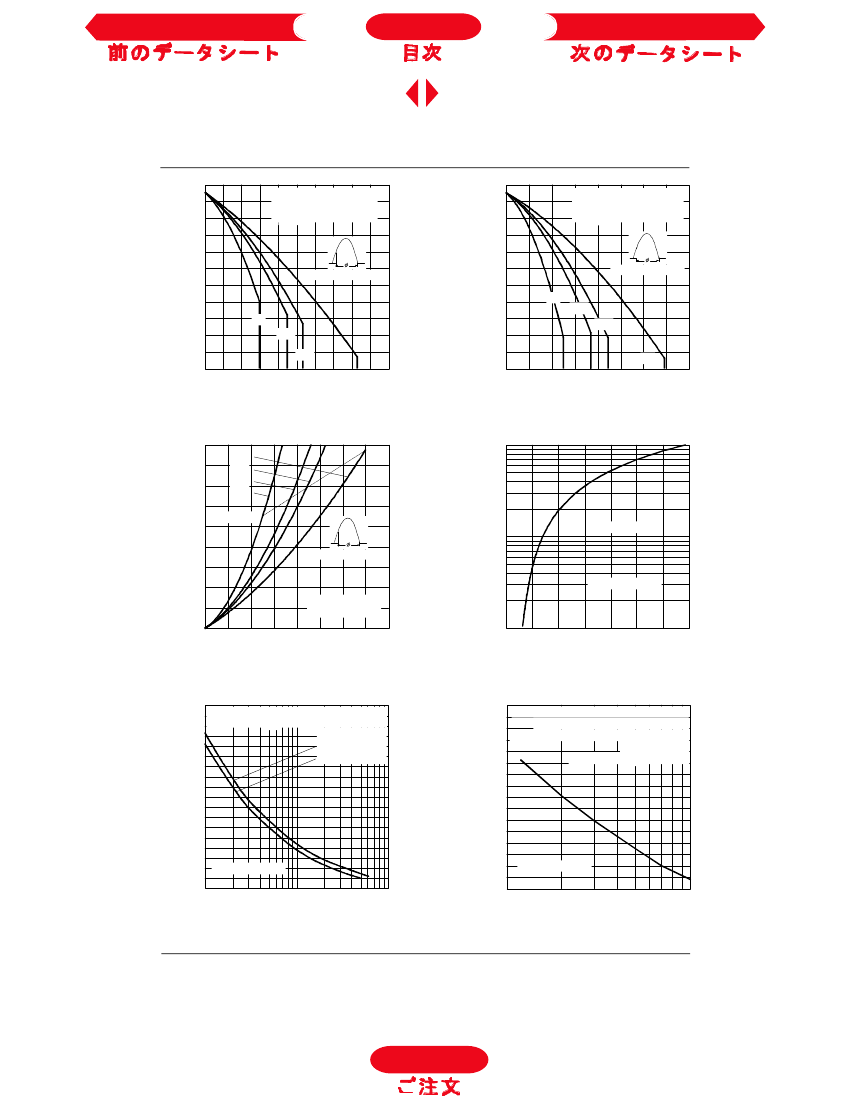

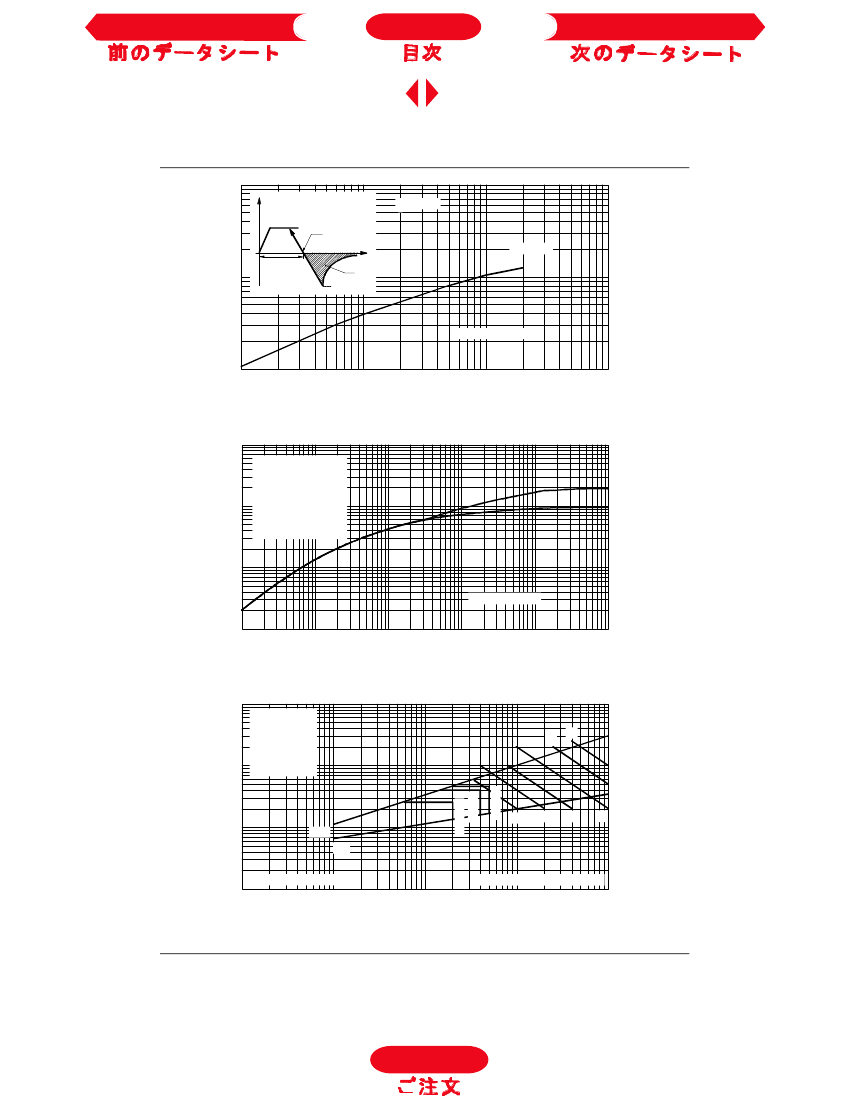

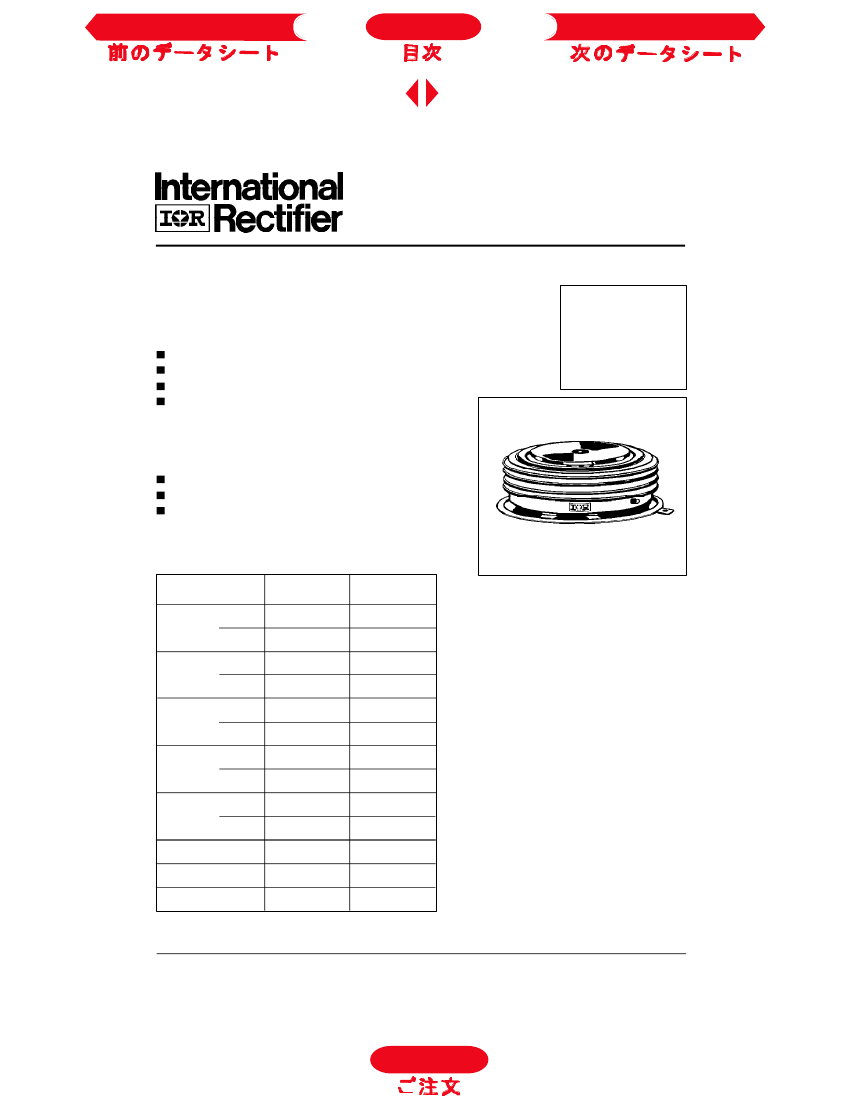

ST1900C52R3L Overview

Silicon Controlled Rectifier, 3500A I(T)RMS, 1600000mA I(T), 5200V V(DRM), 5200V V(RRM), 1 Element, RPUK-2

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	International Rectifier （ Infineon ）
package instruction	DISK BUTTON, O-CEDB-N2
Contacts	2
Reach Compliance Code	compliant
Nominal circuit commutation break time	500 µs
Configuration	SINGLE
Maximum DC gate trigger current	400 mA
Maximum DC gate trigger voltage	4 V
JESD-30 code	O-CEDB-N2
JESD-609 code	e0
Maximum leakage current	250 mA
On-state non-repetitive peak current	28000 A
Number of components	1
Number of terminals	2
Maximum on-state current	1600000 A
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	ROUND
Package form	DISK BUTTON
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum rms on-state current	3500 A
Maximum repetitive peak off-state leakage current	250000 µA
Off-state repetitive peak voltage	5200 V
Repeated peak reverse voltage	5200 V
surface mount	YES
Terminal surface	TIN LEAD
Terminal form	NO LEAD
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger device type	SCR
