SP5502FKGMPAS datasheet, PDF - EEWORLD Datasheet

SP5502FKGMPAS: DescriptionPLL/Frequency Synthesis Circuit, BIPolar, PDSO14; CategoryAnalog mixed-signal IC The signal circuit; File Size201KB，8 Pages; ManufacturerMicrosemi; Websitehttps://www.microsemi.com

Download Datasheet Parametric Compare View All

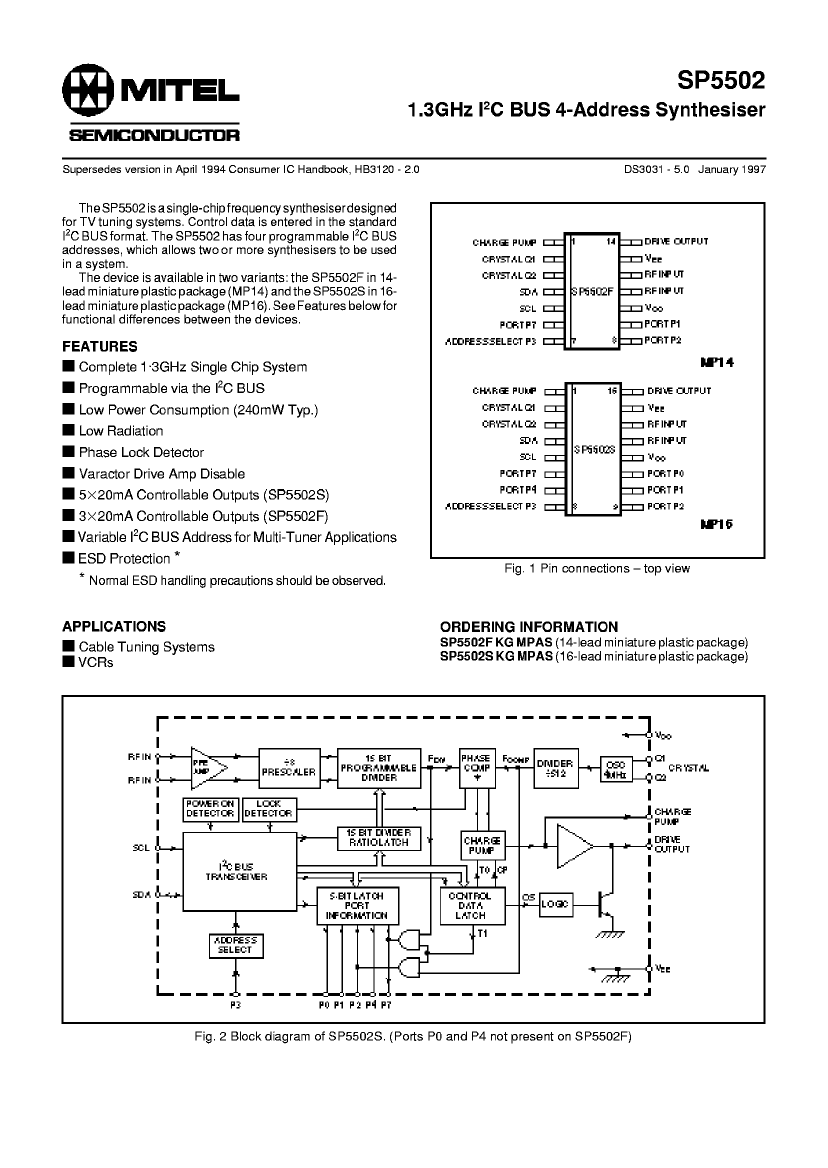

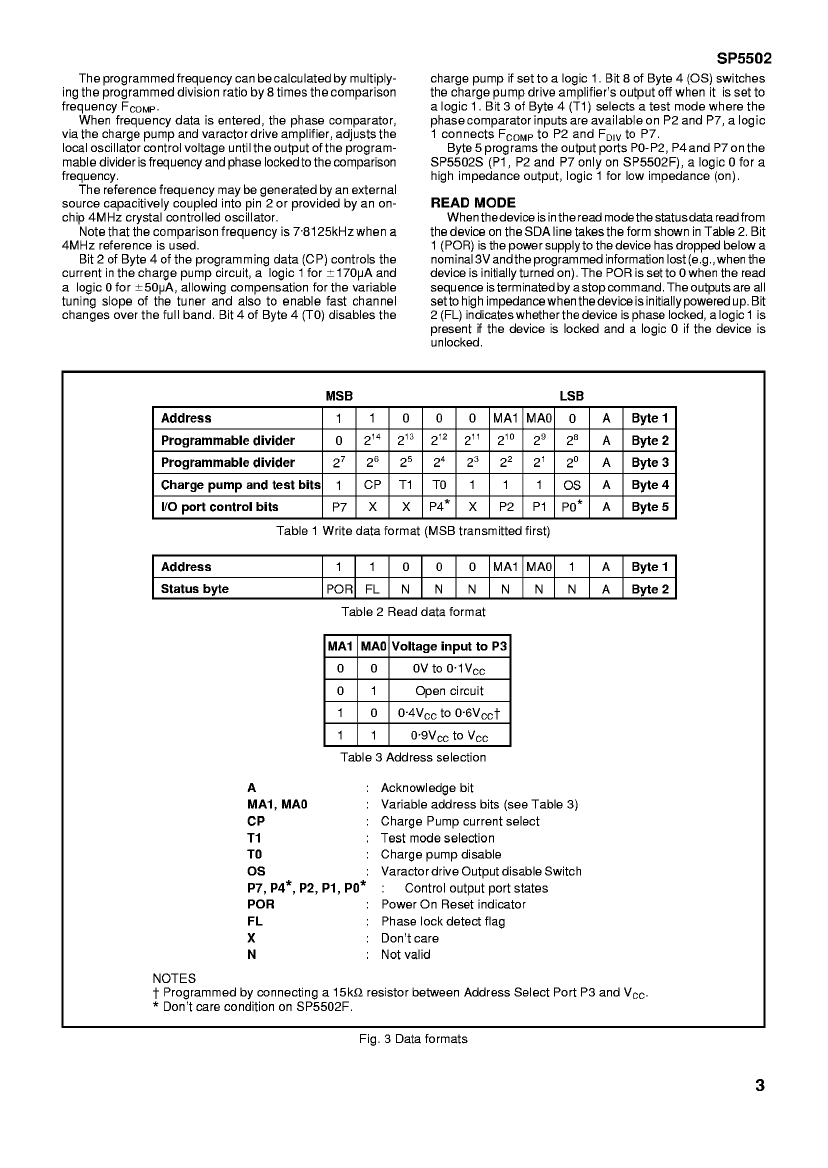

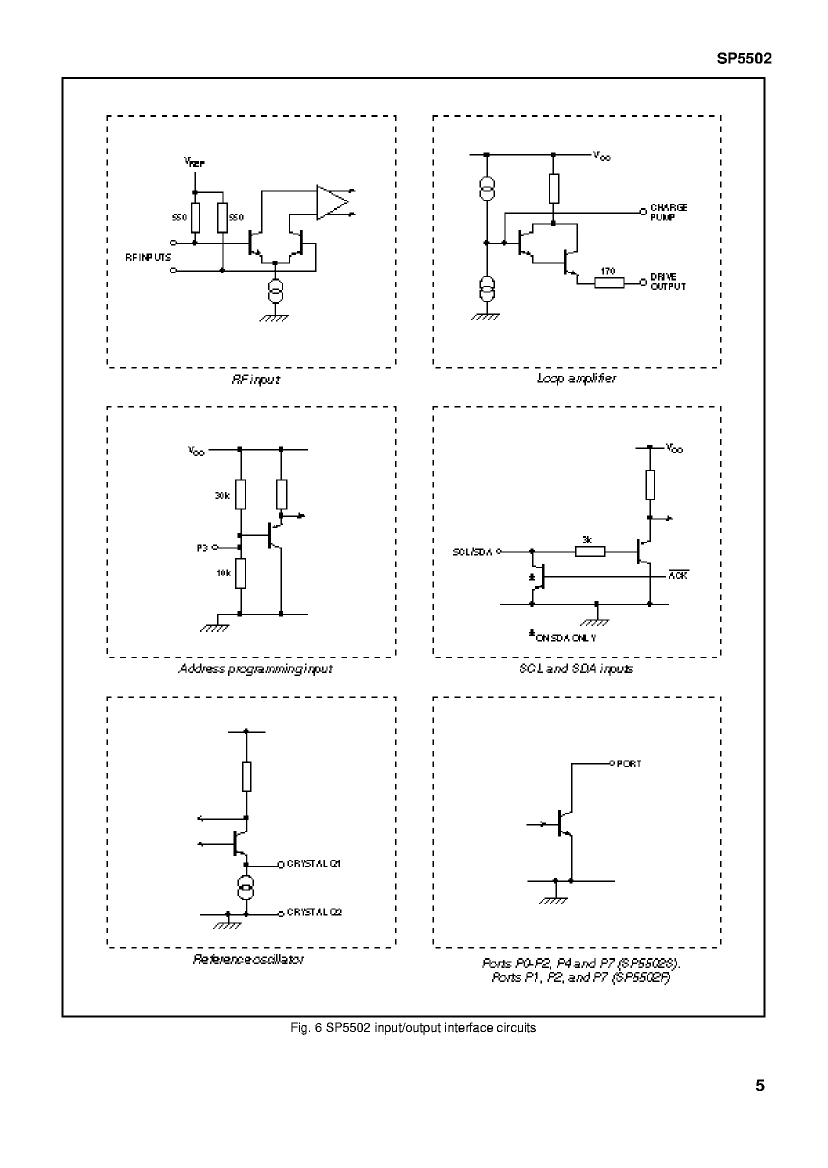

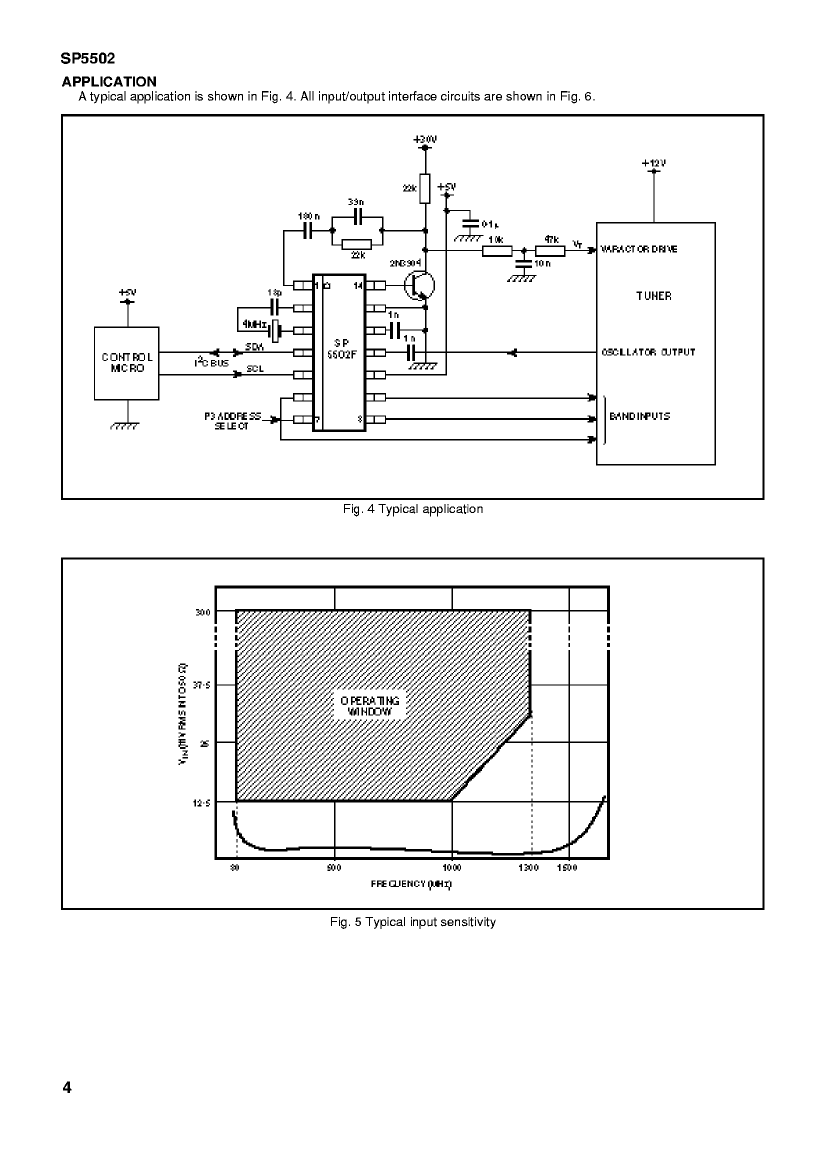

SP5502FKGMPAS Overview

PLL/Frequency Synthesis Circuit, BIPolar, PDSO14

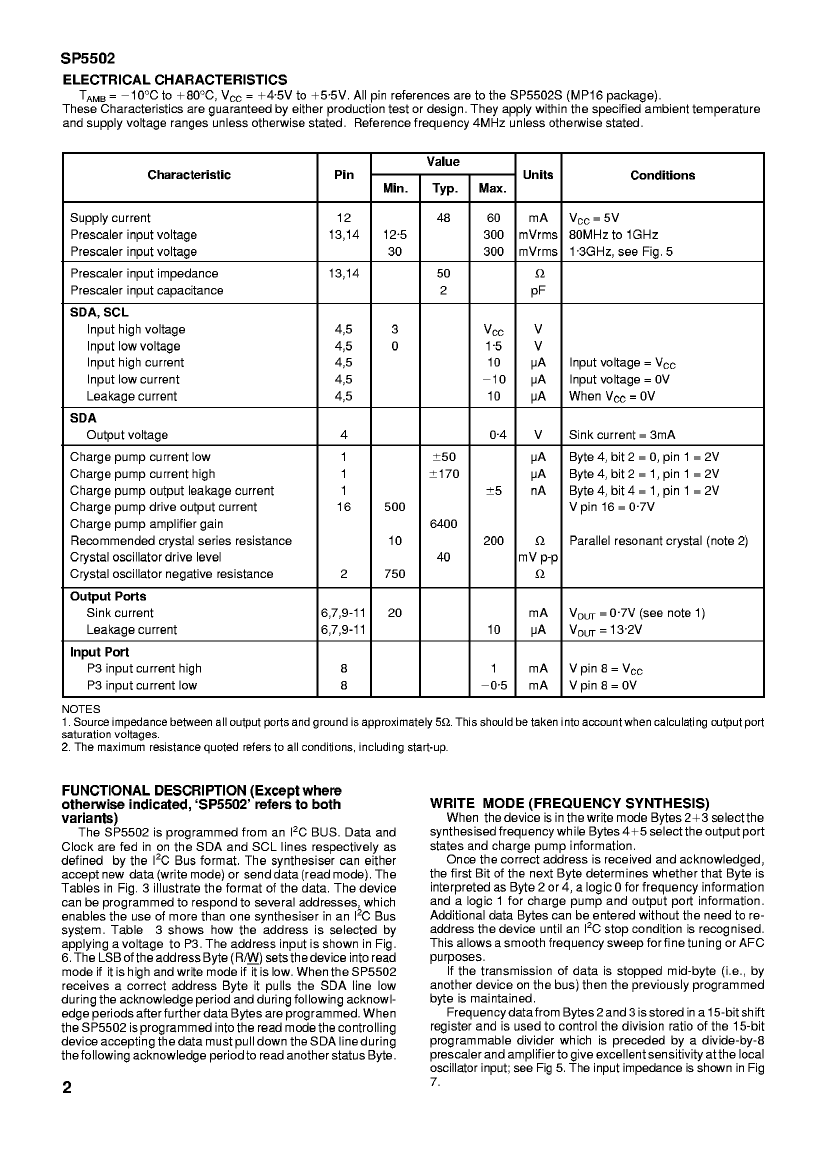

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Microsemi
Parts packaging code	SOIC
package instruction	SOP, SOP14,.25
Contacts	14
Reach Compliance Code	unknown
JESD-30 code	R-PDSO-G14
Number of terminals	14
Maximum operating temperature	80 °C
Minimum operating temperature	-10 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP14,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
power supply	5 V
Certification status	Not Qualified
Maximum supply current (Isup)	60 mA
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL EXTENDED
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL

	SP5502FKGMPAS	SP5502SKGMPAS
Description	PLL/Frequency Synthesis Circuit, BIPolar, PDSO14	PLL/Frequency Synthesis Circuit, BIPolar, PDSO16
Is it Rohs certified?	incompatible	incompatible
Maker	Microsemi	Microsemi
Parts packaging code	SOIC	SOIC
Contacts	14	16
Reach Compliance Code	unknown	unknown
JESD-30 code	R-PDSO-G14	R-PDSO-G16
Number of terminals	14	16
Maximum operating temperature	80 °C	80 °C
Minimum operating temperature	-10 °C	-10 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP
Encapsulate equivalent code	SOP14,.25	SOP16,.25
Package shape	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum supply current (Isup)	60 mA	60 mA
Nominal supply voltage (Vsup)	5 V	5 V
surface mount	YES	YES
technology	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED
Terminal form	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL
