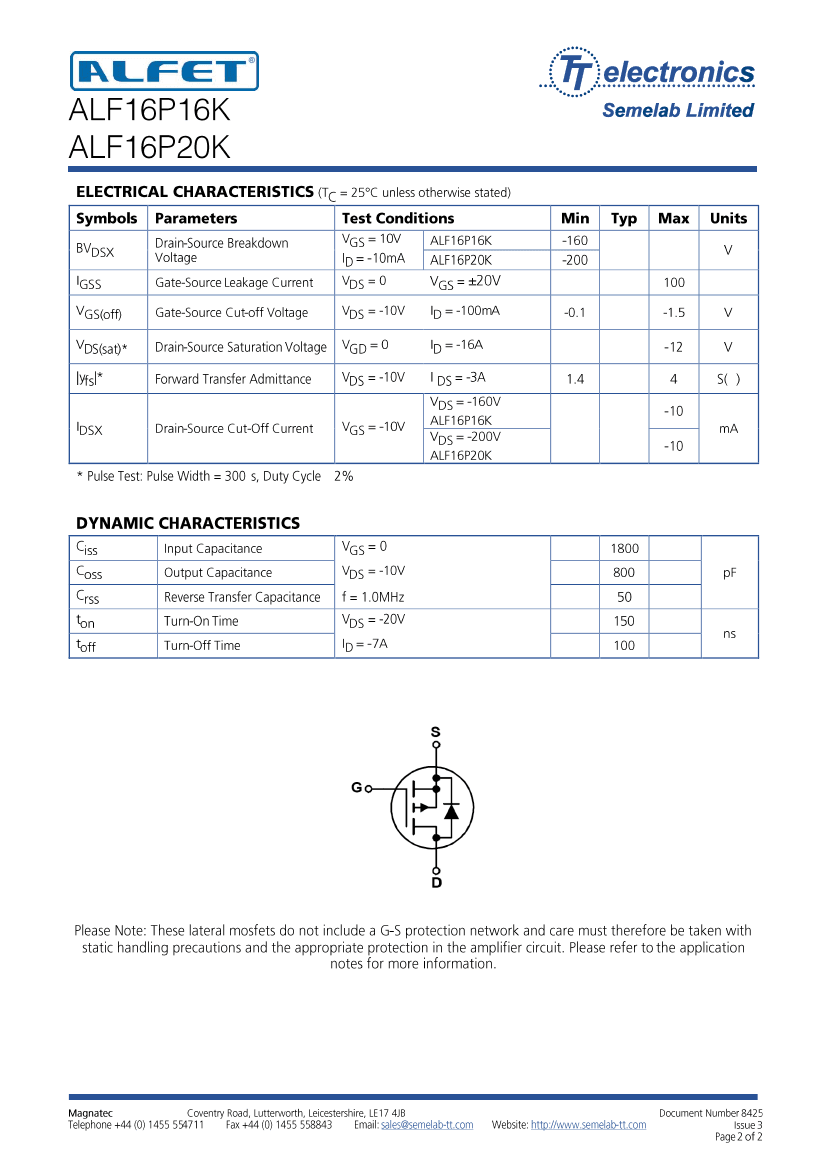

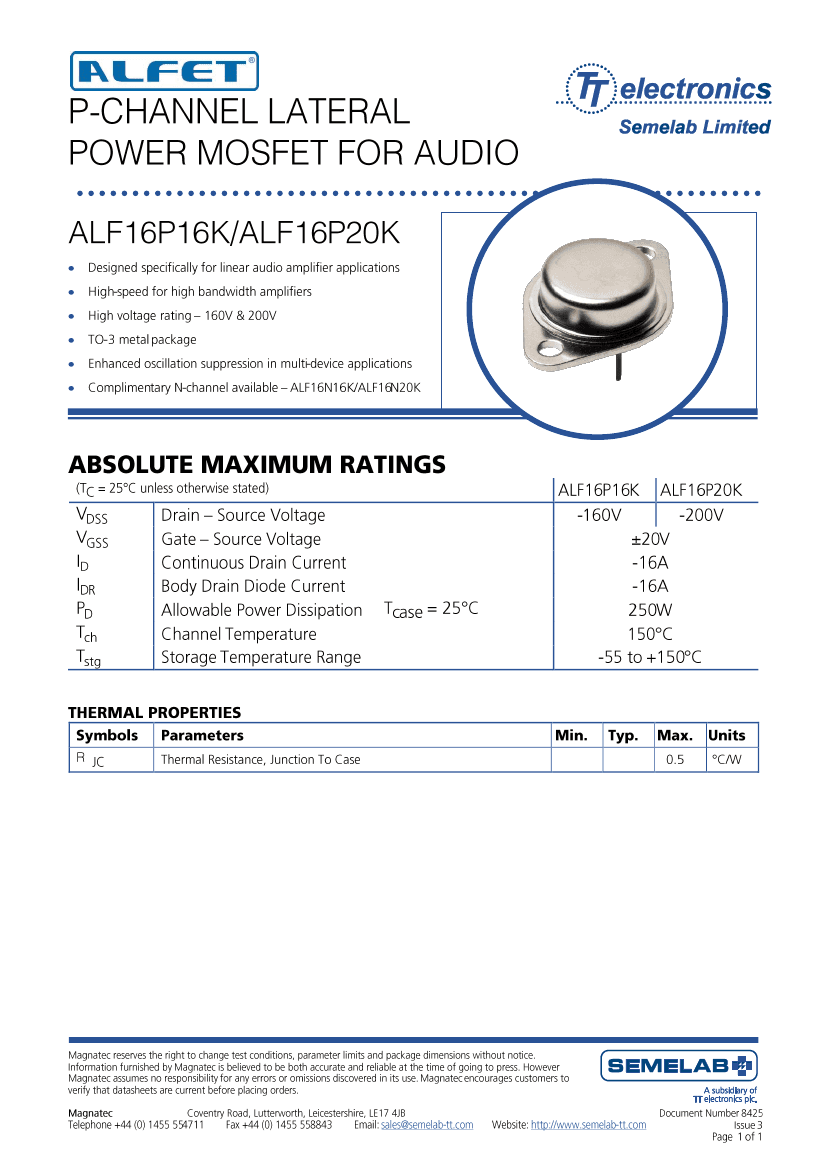

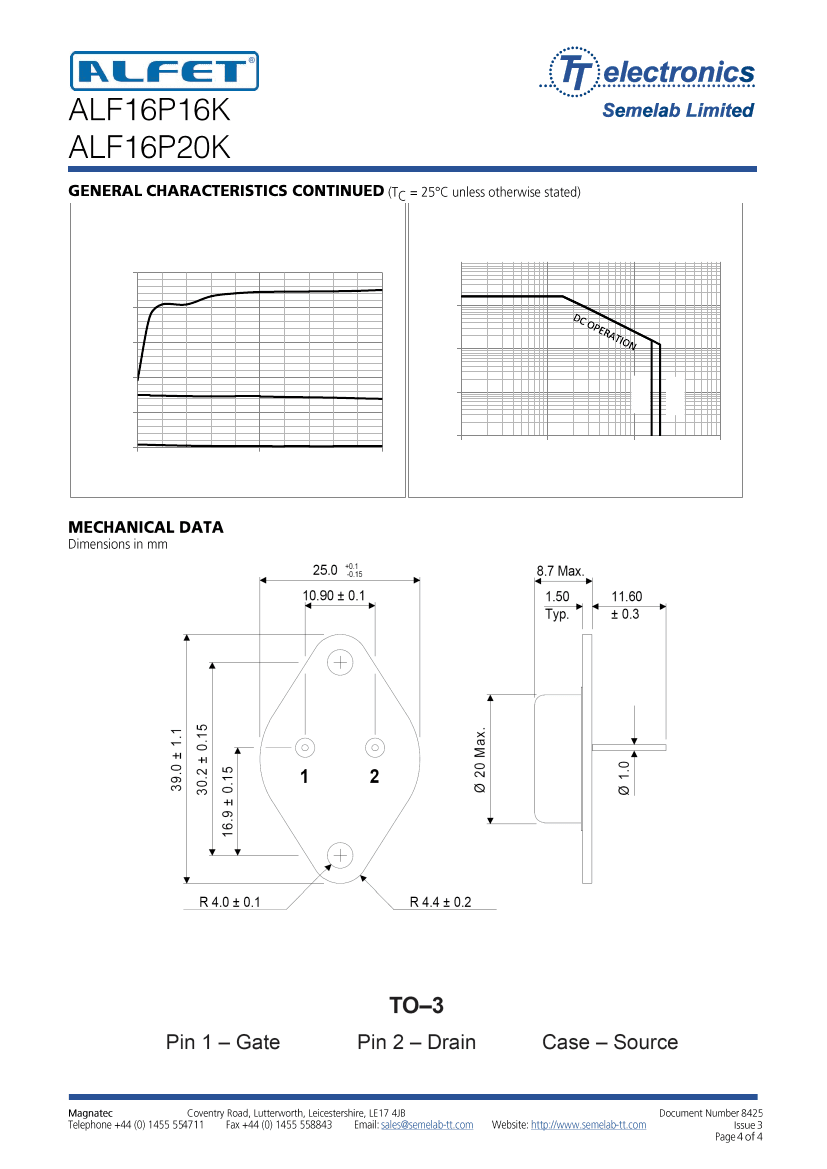

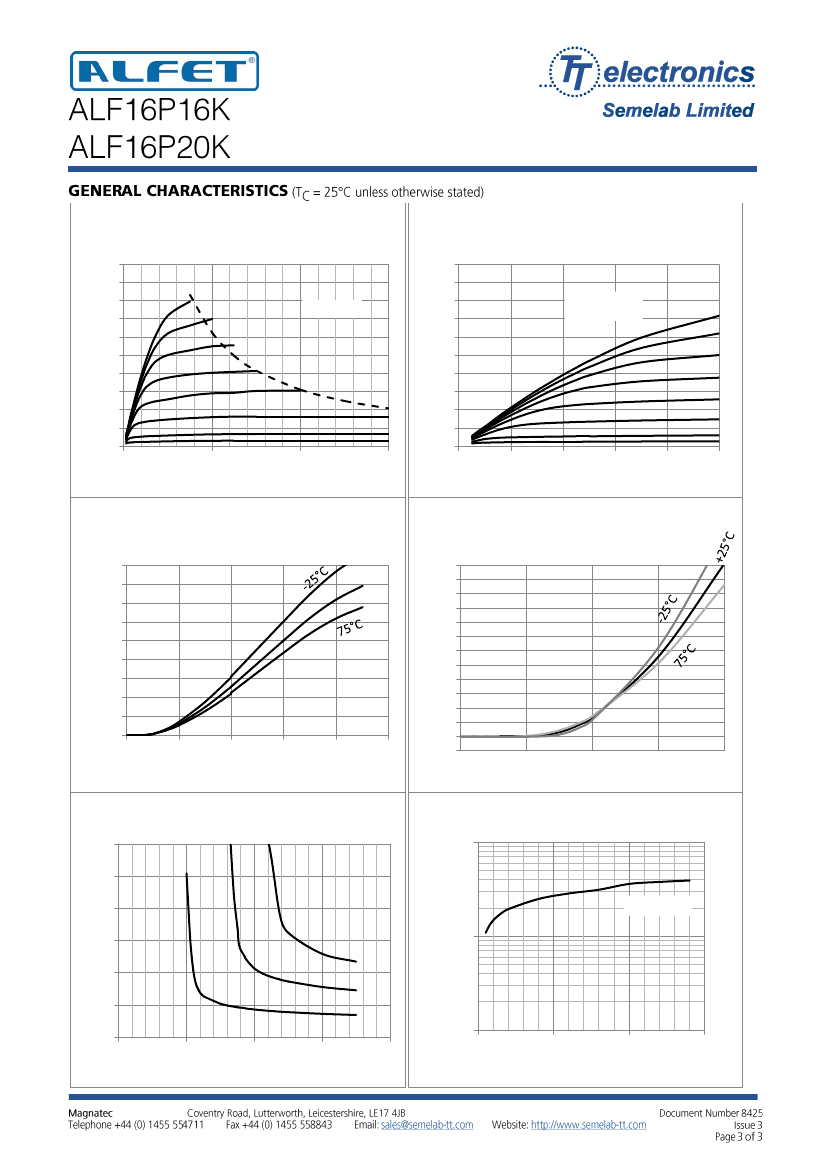

ALF16P16K: Description16A, 160V, P-CHANNEL, Si, POWER, MOSFET, TO-3, METAL PACKAGE-2; CategoryDiscrete semiconductor The transistor; File Size679KB，4 Pages; ManufacturerSEMELAB

Download Datasheet Parametric Compare View All

ALF16P16K Overview

16A, 160V, P-CHANNEL, Si, POWER, MOSFET, TO-3, METAL PACKAGE-2

Parameter Name	Attribute value
Maker	SEMELAB
Parts packaging code	TO-204AA
package instruction	FLANGE MOUNT, O-MBFM-P2
Contacts	2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HIGH VOLTAGE
Shell connection	SOURCE
Configuration	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	160 V
Maximum drain current (ID)	16 A
FET technology	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-3
JESD-30 code	O-MBFM-P2
Number of components	1
Number of terminals	2
Operating mode	ENHANCEMENT MODE
Package body material	METAL
Package shape	ROUND
Package form	FLANGE MOUNT
Polarity/channel type	P-CHANNEL
Certification status	Not Qualified
surface mount	NO
Terminal form	PIN/PEG
Terminal location	BOTTOM
transistor applications	AMPLIFIER
Transistor component materials	SILICON

θ

	ALF16P16K	ALF16P20K
Description	16A, 160V, P-CHANNEL, Si, POWER, MOSFET, TO-3, METAL PACKAGE-2	16A, 200V, P-CHANNEL, Si, POWER, MOSFET, TO-3, METAL PACKAGE-2
Maker	SEMELAB	SEMELAB
Parts packaging code	TO-204AA	TO-204AA
package instruction	FLANGE MOUNT, O-MBFM-P2	FLANGE MOUNT, O-MBFM-P2
Contacts	2	2
Reach Compliance Code	compliant	compliant
ECCN code	EAR99	EAR99
Other features	HIGH VOLTAGE	HIGH VOLTAGE
Shell connection	SOURCE	SOURCE
Configuration	SINGLE WITH BUILT-IN DIODE	SINGLE WITH BUILT-IN DIODE
Minimum drain-source breakdown voltage	160 V	200 V
Maximum drain current (ID)	16 A	16 A
FET technology	METAL-OXIDE SEMICONDUCTOR	METAL-OXIDE SEMICONDUCTOR
JEDEC-95 code	TO-3	TO-3
JESD-30 code	O-MBFM-P2	O-MBFM-P2
Number of components	1	1
Number of terminals	2	2
Operating mode	ENHANCEMENT MODE	ENHANCEMENT MODE
Package body material	METAL	METAL
Package shape	ROUND	ROUND
Package form	FLANGE MOUNT	FLANGE MOUNT
Polarity/channel type	P-CHANNEL	P-CHANNEL
Certification status	Not Qualified	Not Qualified
surface mount	NO	NO
Terminal form	PIN/PEG	PIN/PEG
Terminal location	BOTTOM	BOTTOM
transistor applications	AMPLIFIER	AMPLIFIER
Transistor component materials	SILICON	SILICON
