PMH-2405SH60Z

Description
1 Watt | DC-DC Converter
File Size890KB,5 Pages
ManufacturerMake Power
Websitehttp://www.make-ps.com
Download Datasheet View All

PMH-2405SH60Z Overview

1 Watt | DC-DC Converter

www.make-ps.com
www.make-ps.com
E-mail:info@make-ps.com
E-mail:info@make-ps.com

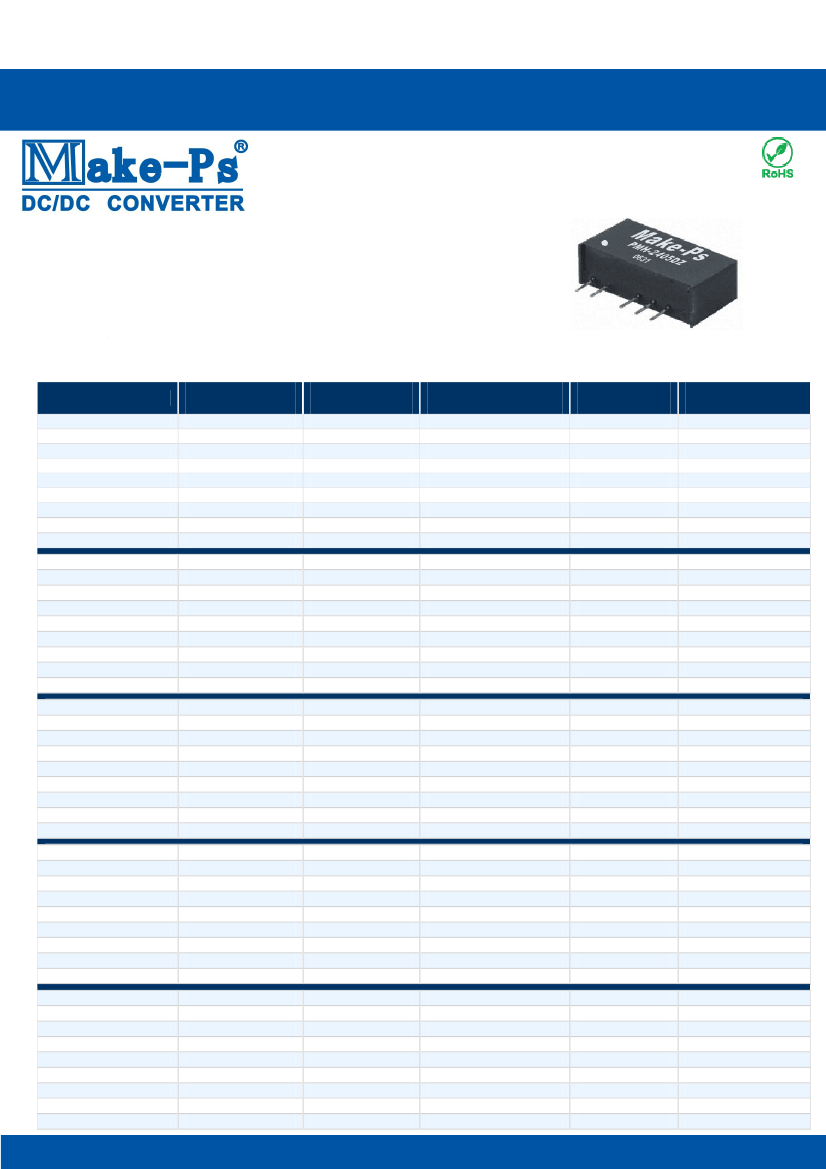

1 Watt | DC-DC Converter
Series PMH-SZ
FEATURES:
RoHS compliant
High efficiency up to 76%
Low profile plastic package

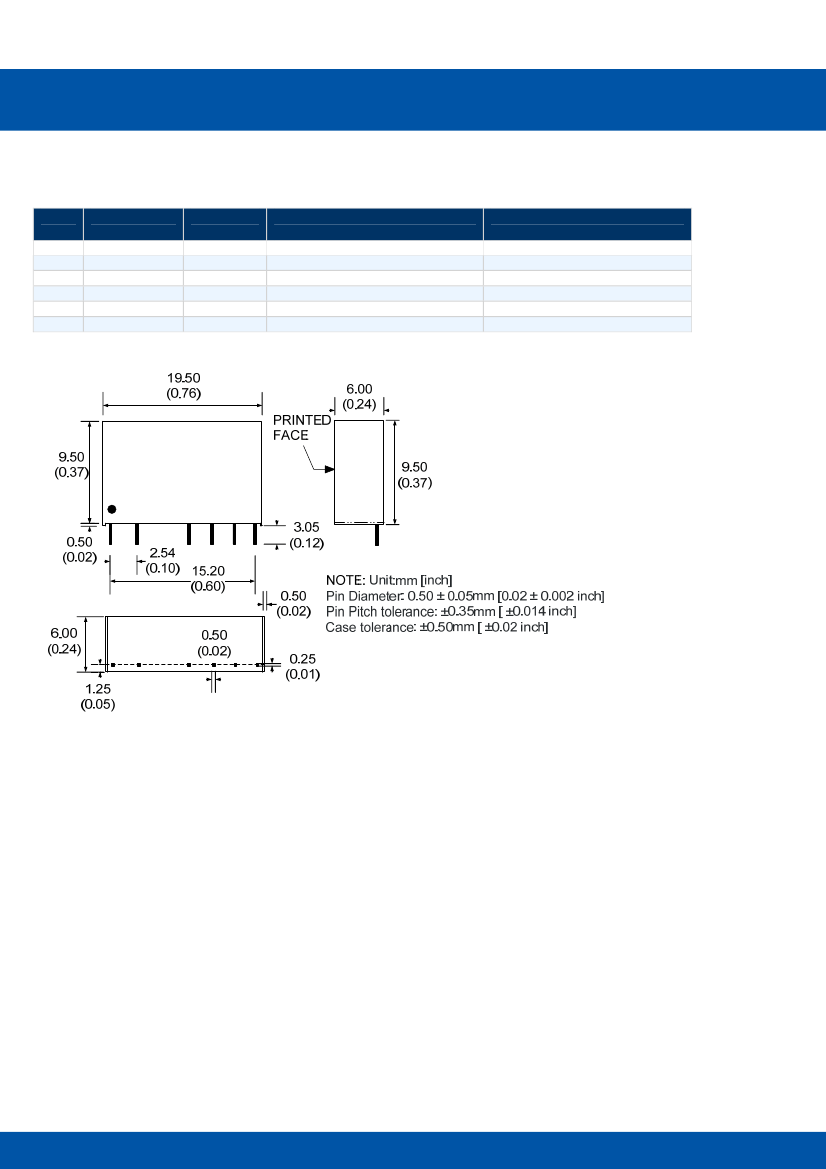

7 pin SIP package
Operating temperature -40
o
C to + 85
o
C
Continuous Short circuit protection
Pin compatible with multiple manufacturers
Input / Output Isolation
1000 to 6000 VDC
Models
Single output
Model
PMH-0505SZ
PMH-0512SZ
PMH-0515SZ
PMH-1205SZ
PMH-1212SZ
PMH-1215SZ
PMH-2405SZ
PMH-2412SZ
PMH-2415SZ
PMH-0505SH30Z
PMH-0512SH30Z
PMH-0515SH30Z
PMH-1205SH30Z
PMH-1212SH30Z
PMH-1215SH30Z
PMH-2405SH30Z
PMH-2412SH30Z
PMH-2415SH30Z
PMH-0505SH40Z
PMH-0512SH40Z
PMH-0515SH40Z
PMH-1205SH40Z
PMH-1212SH40Z
PMH-1215SH40Z
PMH-2405SH40Z
PMH-2412SH40Z
PMH-2415SH40Z
PMH-0505SH52Z
PMH-0512SH52Z
PMH-0515SH52Z
PMH-1205SH52Z
PMH-1212SH52Z
PMH-1215SH52Z
PMH-2405SH52Z
PMH-2412SH52Z
PMH-2415SH52Z
PMH-0505SH60Z
PMH-0512SH60Z
PMH-0515SH60Z
PMH-1205SH60Z
PMH-1212SH60Z
PMH-1215SH60Z
PMH-2405SH60Z
PMH-2412SH60Z
PMH-2415SH60Z
Input Voltage
(V)
4.5-5.5
4.5-5.5
4.5-5.5
10.8-13.2
10.8-13.2
10.8-13.2
21.6-26.4
21.6-26.4
21.6-26.4
4.5-5.5
4.5-5.5
4.5-5.5
10.8-13.2
10.8-13.2
10.8-13.2
21.6-26.4
21.6-26.4
21.6-26.4
4.5-5.5
4.5-5.5
4.5-5.5
10.8-13.2
10.8-13.2
10.8-13.2
21.6-26.4
21.6-26.4
21.6-26.4
4.5-5.5
4.5-5.5
4.5-5.5
10.8-13.2
10.8-13.2
10.8-13.2
21.6-26.4
21.6-26.4
21.6-26.4
4.5-5.5
4.5-5.5
4.5-5.5
10.8-13.2
10.8-13.2
10.8-13.2
21.6-26.4
21.6-26.4
21.6-26.4
Output Voltage
(V)
5
12
15
5
12
15
5
12
15
5
12
15
5
12
15
5
12
15
5
12
15
5
12
15
5
12
15
5
12
15
5
12
15
5
12
15
5
12
15
5
12
15
59
12
15
Output Current max
(mA)
200
83
67
200
83
67
200
83
67
200
83
67
200
83
67
200
83
67
200
83
67
200
83
67
200
83
67
200
83
67
200
83
67
200
83
67
200
83
67
200
83
67
200
83
67
Isolation
(VDC)
1000
1000
1000
1000
1000
1000
1000
1000
1000
3000
3000
3000
3000
3000
3000
3000
3000
3000
4000
4000
4000
4000
4000
4000
4000
4000
4000
5200
5200
5200
5200
5200
5200
5200
5200
5200
6000
6000
6000
6000
6000
6000
6000
6000
6000
Efficiency
71
74
74
72
74
75
73
75
75
71
74
74
72
74
75
73
75
75
71
74
74
72
74
75
73
75
75
71
74
74
72
74
75
73
75
75
71
74
74
72
74
75
73
75
75
1/4
