FREQ1MS210/30/-10+60/12PF/300R datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> FREQ1MS210/30/-10+60/12PF/300R

FREQ1MS210/30/-10+60/12PF/300R: DescriptionParallel - Fundamental Quartz Crystal, 3.2MHz Min, 3.4MHz Max, ROHS COMPLIANT, HERMETIC, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size258KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/; Environmental Compliance

Download Datasheet Parametric View All

FREQ1MS210/30/-10+60/12PF/300R Overview

Parallel - Fundamental Quartz Crystal, 3.2MHz Min, 3.4MHz Max, ROHS COMPLIANT, HERMETIC, SMD, 4 PIN

FREQ1MS210/30/-10+60/12PF/300R Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Euroquartz
package instruction	ROHS COMPLIANT, HERMETIC, SMD, 4 PIN
Reach Compliance Code	compliant
Other features	AT-CUT CRYSTAL; TAPE AND REEL
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	500 µW
frequency stability	0.003%
frequency tolerance	10 ppm
JESD-609 code	e4
load capacitance	12 pF
Installation features	SURFACE MOUNT
Maximum operating frequency	3.4 MHz
Minimum operating frequency	3.2 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L10.7XB4.7XH2.0 (mm)/L0.421XB0.185XH0.079 (inch)
Series resistance	300 Ω
surface mount	YES
Terminal surface	Gold (Au)

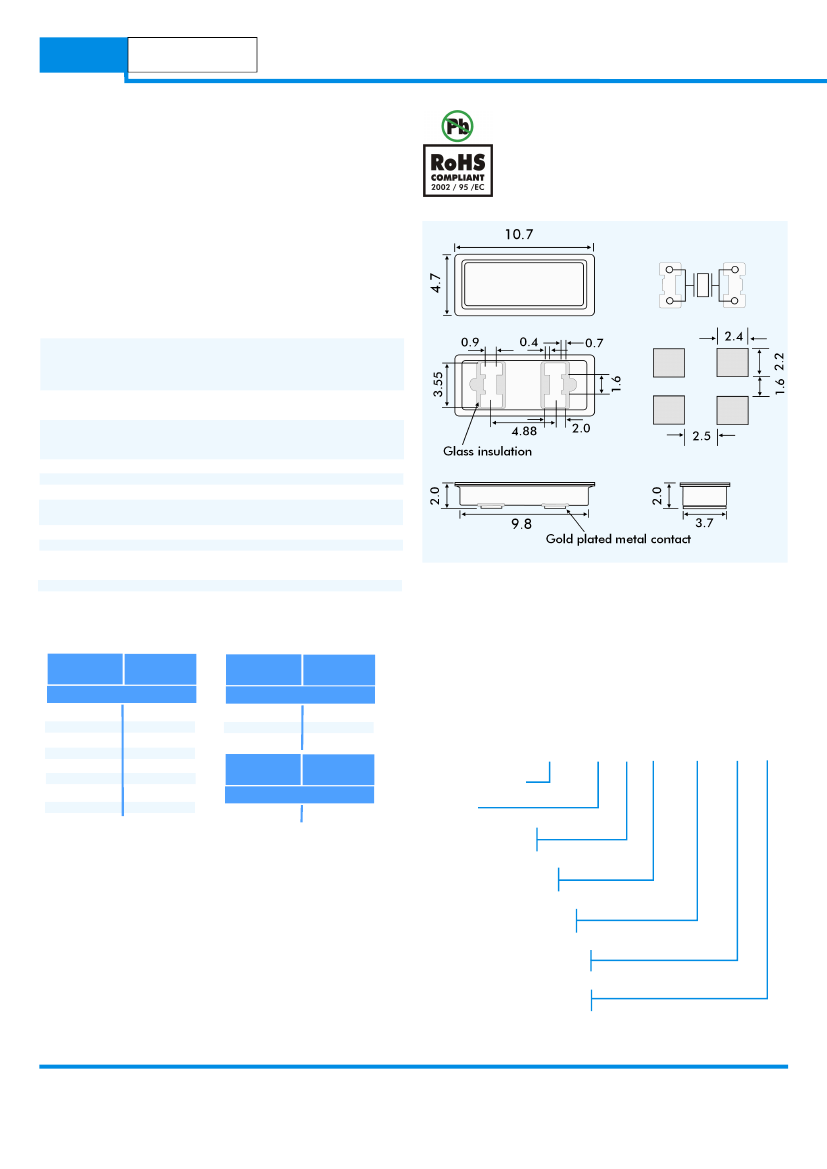

Preview

Download Datasheet

View All

EURO

QUARTZ

Low height SMD package for low frequencies

Frequency range 3.2MHz to 70.0MHZ

Fully RoHS compliant

Standard EIA tape and reel

MS2 CRYSTALS

10.7mm x 4.7mm x 2.0mm SMD

DESCRIPTION

The MS2 crystal provides an ideal source of low frequency clock

signals (under 10MHz) in a low-profile SMD package height of

2.0mm. The crystal features a glass to metal substrate and resistance-

welded metal lid offering enhanced hermetic properties. Premium

grade AT-strip crystal plate is mounted at both ends for high shock

and low g sensitivity.

SPECIFICATION

Frequency Range

AT-Cut Fundamental:

AT-Cut 3rd Overtone:

BT-Cut Fundamental:

Calibration Tolerance at 25ºC*:

Frequency stability

AT-Cut:

BT-Cut:

Storage Temperature:

Equivalent Series Resistance:

Shunt Capacitance (C0):

Load Capacitance (CL):

Ageing:

Drive level:

Reflow Soldering:

Packaging:

3.2MHz to 30.0MHz

27.0MHz to 70.0MHz

24.0MHz to 48.0MHz

from ±10ppm at 25°C

(±30ppm standard)

±30ppm over-10° to +60°C

±100ppm over -10° to +60°C

-40°~+85°C

See table

7pF maximum

Series or from 10pF to 32pF

(Customer specified CL)

<±5ppm per year at +25°C

0.5mW maximum

10s maximum at 260°C twice

or 180s at 230°C, once.

24mm EIA tape and reel, 1k per.

OUTLINE & DIMENSIONS

EQUIVALENT SERIES RESISTANCE

Frequency

Range MHz

3.2~3.4

3.5~4.0

4.1~4.9

5.0~5.9

6.0~8.9

9.0~9.9

10.0~12.9

13.0~30.0

ESR

Ohms Max.

300

150

120

100

Frequency

Range MHz

25.0~30.0

30.0~50.0

50.0~70.0

Frequency

Range MHz

24.0~40.0

ESR

Ohms Max.

PART NUMBER GENERATION

Part numbers for MS2 crystals are generated as follows:

Example:

150

100

ESR

Ohms Max.

AT-Cut Fundamental

AT-Cut 3rd Overtone

3.2000MHz MS2 30/30/-10+60/12pF/60R

Nominal Frequency

Package

Calibration tolerance

at 25°C (±ppm)

Temperature Stability

over temp. range (±ppm)

Operating Temp. Range (°C)

(Lower and upper limits)

Load Capacitance

(Either SR for series or CL in pF)

Equivalent Series Resistance

(When special value is required)

BTCut Fundamental

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 Email: info@euroquartz.co.uk www.euroquartz.co.uk
