NCP700B datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> NCP700B

NCP700B: Description3 V FIXED POSITIVE LDO REGULATOR, 0.19 V DROPOUT, PDSO6; Categorysemiconductor Power management; File Size615KB，21 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric View All

NCP700B Overview

3 V FIXED POSITIVE LDO REGULATOR, 0.19 V DROPOUT, PDSO6

NCP700B Parametric

Parameter Name	Attribute value
Number of functions	1
Number of terminals	6
Maximum output voltage	3.08 V
Minimum output voltage	2.92 V
Maximum input voltage	5.5 V
Minimum input voltage	2.5 V
Processing package description	1.50 X 1.50 MM, 0.50 MM PITCH, LEAD FREE, WDFN-6
Lead-free	Yes
EU RoHS regulations	Yes
China RoHS regulations	Yes
state	ACTIVE
Craftsmanship	BICMOS
packaging shape	SQUARE
Package Size	SMALL OUTLINE, VERY THIN PROFILE
surface mount	Yes
Terminal form	NO LEAD
Terminal spacing	0.5000 mm
terminal coating	NICKEL PALLADIUM GOLD
Terminal location	DUAL
Packaging Materials	PLASTIC/EPOXY
Maximum voltage difference	0.1900 V
Adjustment type	FIXED POSITIVE LDO REGULATOR
Rated output voltage	3 V

Preview

Download Datasheet

View All

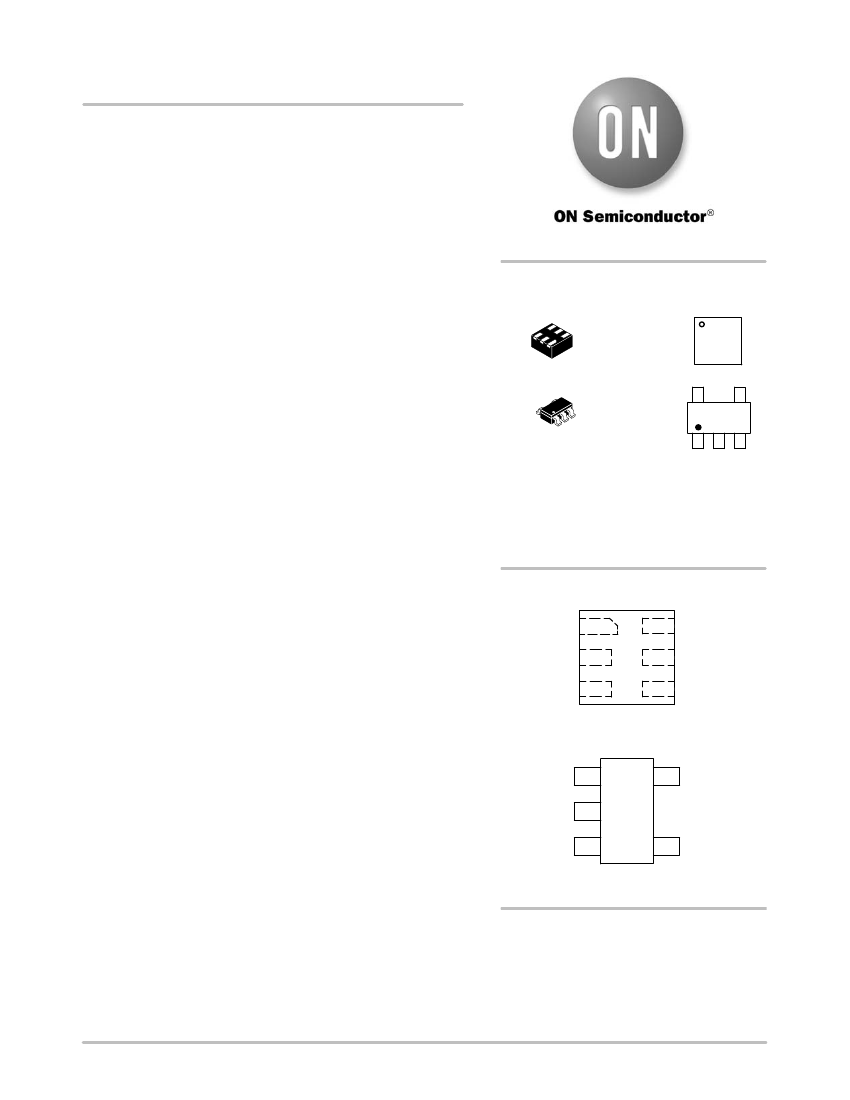

NCP700B

200 mA, Ultra Low Noise,

High PSRR, BiCMOS RF LDO

Regulator

Noise sensitive RF applications such as Power Amplifiers in cell

phones and precision instrumentation require very clean power

supplies. The NCP700B is 200 mA LDO that provides the engineer

with a very stable, accurate voltage with ultra low noise and very high

Power Supply Rejection Ratio (PSRR) suitable for RF applications. In

order to optimize performance for battery operated portable

applications, the NCP700B employs an advanced BiCMOS process to

combine the benefits of low noise and superior dynamic performance

of bipolar elements with very low ground current consumption at full

loads offered by CMOS.

Furthermore, in order to provide a small footprint for space

constrained applications, the NCP700B is stable with small, low value

capacitors and is available in a very small WDFN6 1.5 mm x 1.5 mm

and TSOP−5 package.

Features

♦

http://onsemi.com

MARKING

DIAGRAM

WDFN6

CASE 511BJ

TSOP−5

SN SUFFIX

CASE 483

XXXAYW

•

Output Voltage Options:

•

1.8 V, 2.5 V, 2.8 V, 3.0 V, 3.3 V

♦

Contact Factory for Other Voltage Options

Excellent Line and Load Regulation

Ultra Low Noise (typ. 10

mVrms)

Very High PSRR (typ 82 dB @ 1 kHz)

Stable with Ceramic Output Capacitors as low as 1

Very Low Ground Current (typ. 70

@ no load)

Low Disable Mode Current (max. 1

mA)

Active Discharge Circuit

Current Limit Protection

Thermal Shutdown Protection

These are Pb−Free Devices

Smartphones / PDAs / Palmtops / GPS

Cellular Telephones (Power Amplifier)

Noise Sensitive Applications (RF, Video, Audio)

Analog Power Supplies

Battery Supplied Devices

X, XXX = Specific Device Code

= Date Code

= Assembly Location

= Year

= Work Week

= Pb−Free Package

PIN CONNECTIONS

GND

OUT

(Top View)

BYP

Applications

GND

(Top View)

BYP

OUT

ORDERING INFORMATION

See detailed ordering and shipping information in the package

dimensions section on page 19 of this data sheet.

Semiconductor Components Industries, LLC, 2013

April, 2013

−

Rev. 2

Publication Order Number:

NCP700B/D
