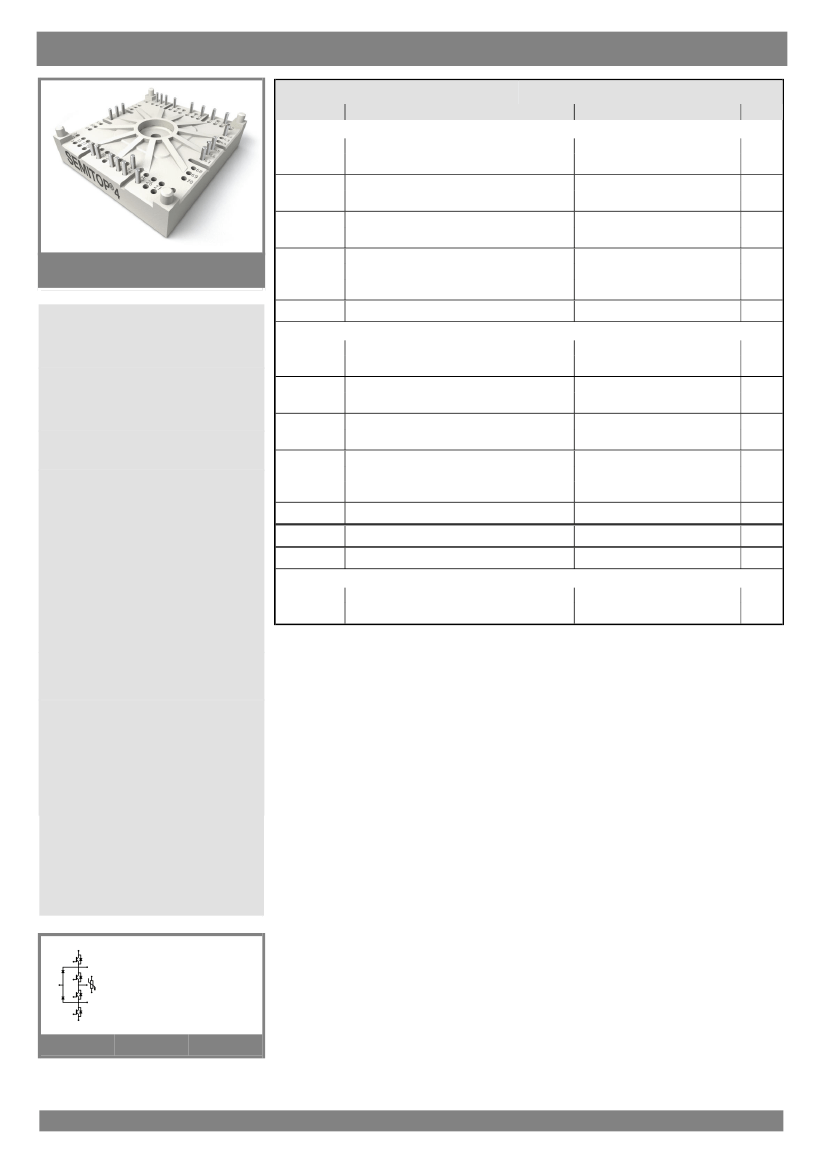

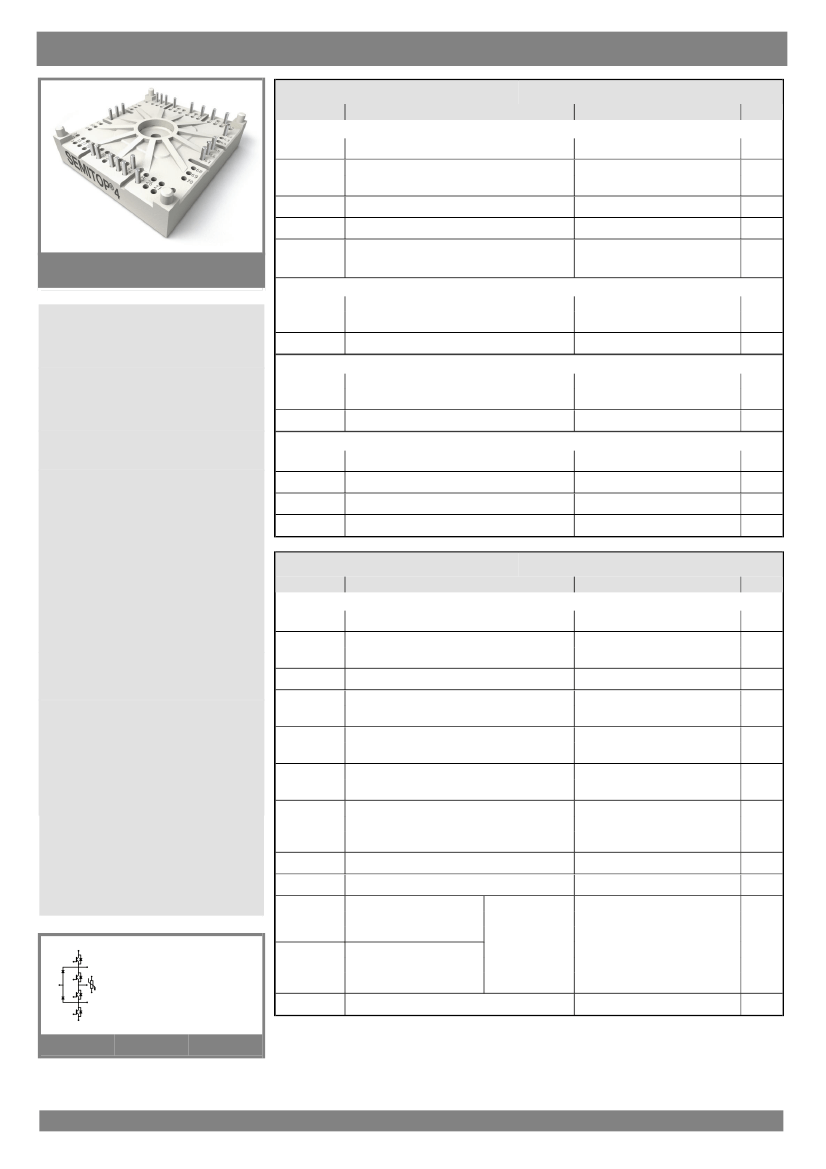

IGBT Module

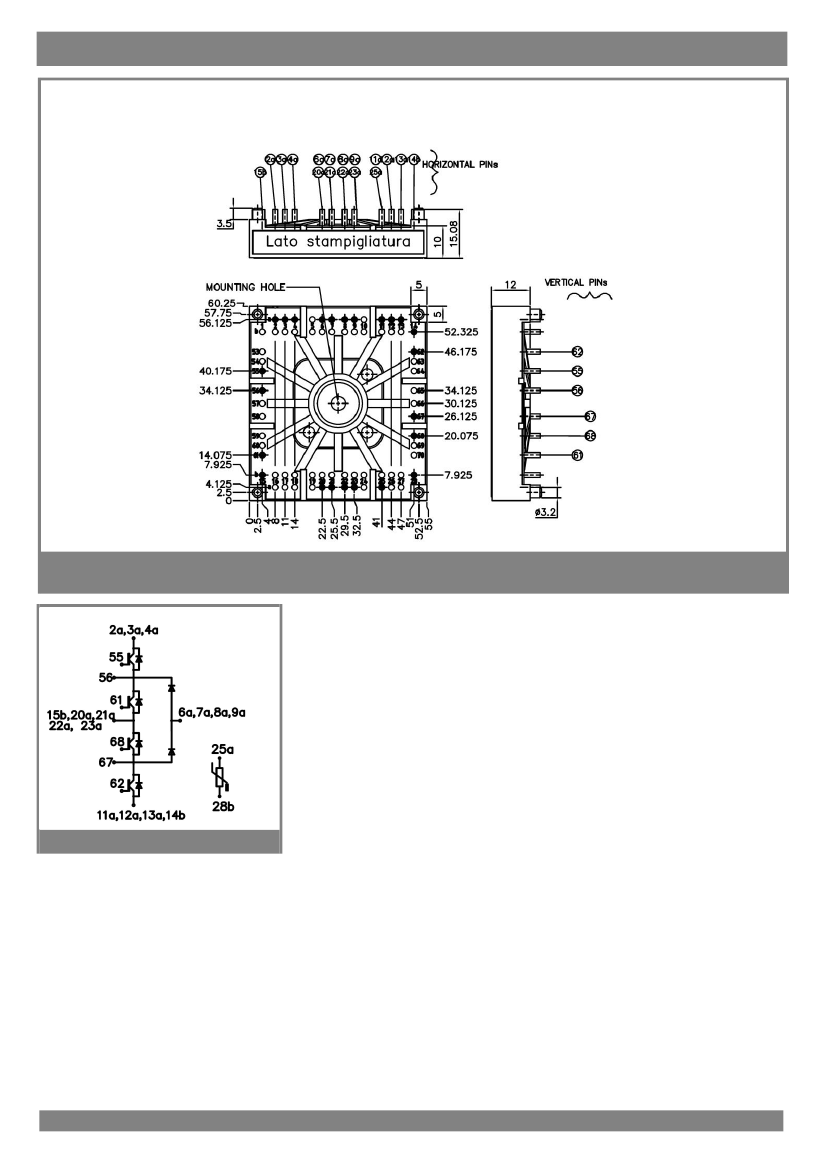

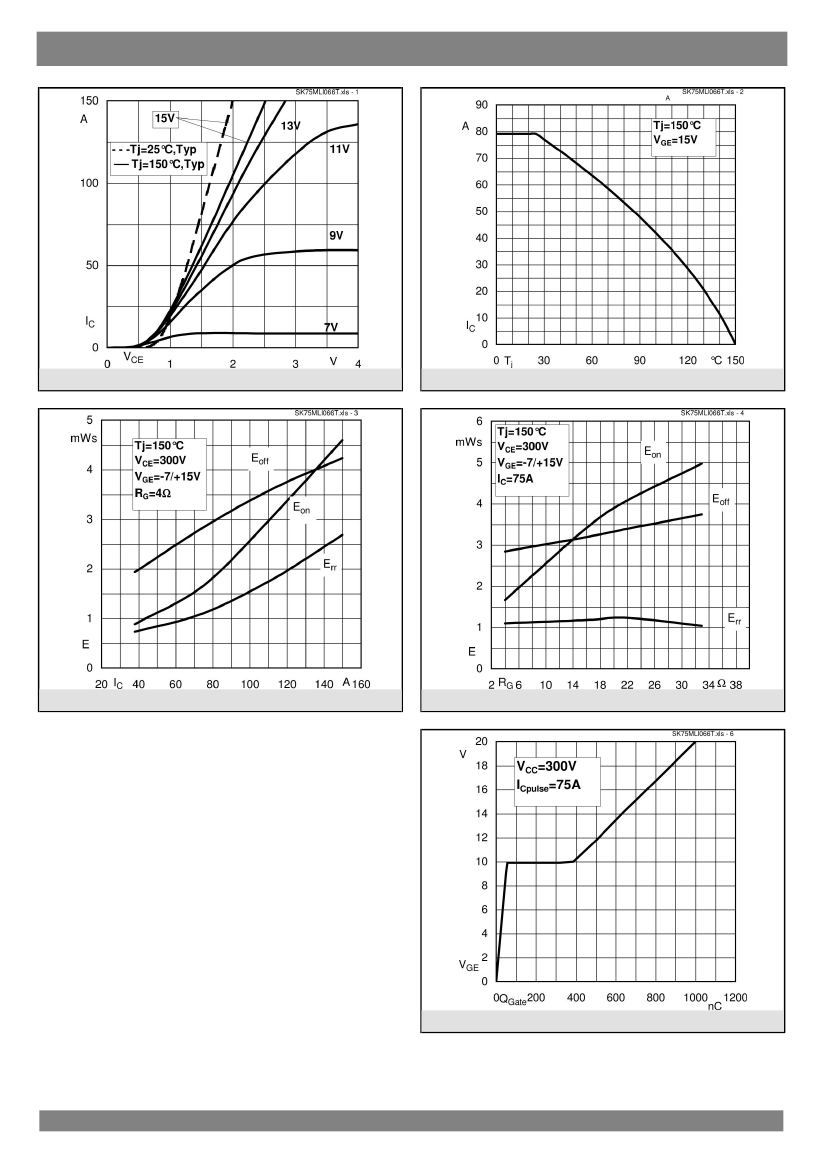

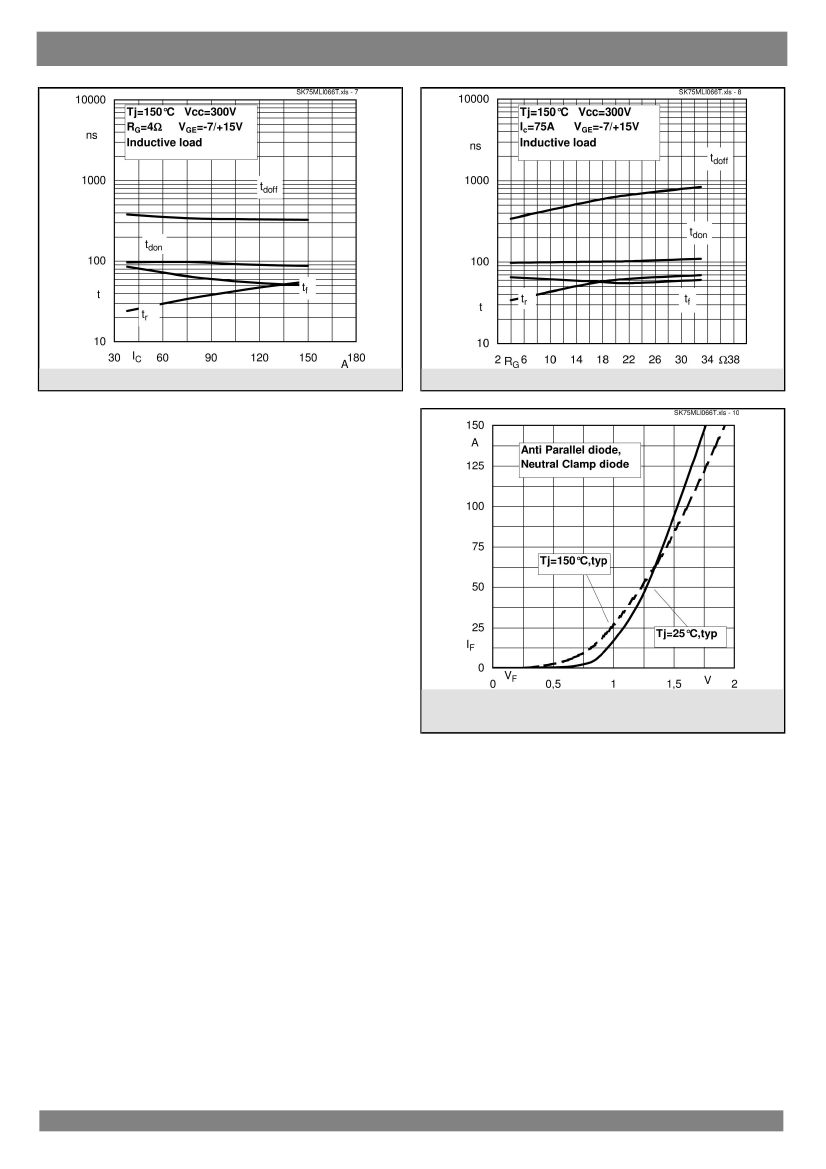

| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| package instruction | FLANGE MOUNT, R-XUFM-X24 |
| Contacts | 24 |
| Manufacturer packaging code | CASE T 88 |
| Reach Compliance Code | compli |
| ECCN code | EAR99 |
| Is Samacsys | N |
| Other features | UL RECOGNIZED |
| Shell connection | ISOLATED |
| Maximum collector current (IC) | 83 A |
| Collector-emitter maximum voltage | 600 V |
| Configuration | COMPLEX |
| Gate-emitter maximum voltage | 20 V |
| JESD-30 code | R-XUFM-X24 |
| Number of components | 4 |
| Number of terminals | 24 |
| Maximum operating temperature | 175 °C |
| Package body material | UNSPECIFIED |
| Package shape | RECTANGULAR |
| Package form | FLANGE MOUNT |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Polarity/channel type | N-CHANNEL |
| Certification status | Not Qualified |
| surface mount | NO |
| Terminal form | UNSPECIFIED |
| Terminal location | UPPER |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| transistor applications | POWER CONTROL |
| Transistor component materials | SILICON |
| Nominal off time (toff) | 505 ns |
| Nominal on time (ton) | 171 ns |
| VCEsat-Max | 1.85 V |
| Base Number Matches | 1 |
