T496C685K025ATE6007280 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> T496C685K025ATE6007280

T496C685K025ATE6007280: DescriptionTantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 10% +Tol, 10% -Tol, 6.8uF, Surface Mount, 2312, CHIP; CategoryPassive components capacitor; File Size1MB，20 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com; Environmental Compliance

Download Datasheet Parametric View All

T496C685K025ATE6007280 Overview

Tantalum Capacitor, Polarized, Tantalum (dry/solid), 25V, 10% +Tol, 10% -Tol, 6.8uF, Surface Mount, 2312, CHIP

T496C685K025ATE6007280 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	KEMET
package instruction	CHIP
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	ESR AND RIPPLE CURRENT IS MEASURED AT 100KHZ
capacitance	6.8 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
ESR	600 mΩ
high	2.5 mm
JESD-609 code	e3
leakage current	0.0017 mA
length	6 mm
Installation features	SURFACE MOUNT
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, Embossed Plastic, 13 Inch
polarity	POLARIZED
positive tolerance	10%
Rated (DC) voltage (URdc)	25 V
ripple current	171 mA
size code	2413
surface mount	YES
Delta tangent	0.06
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	J BEND
width	3.2 mm

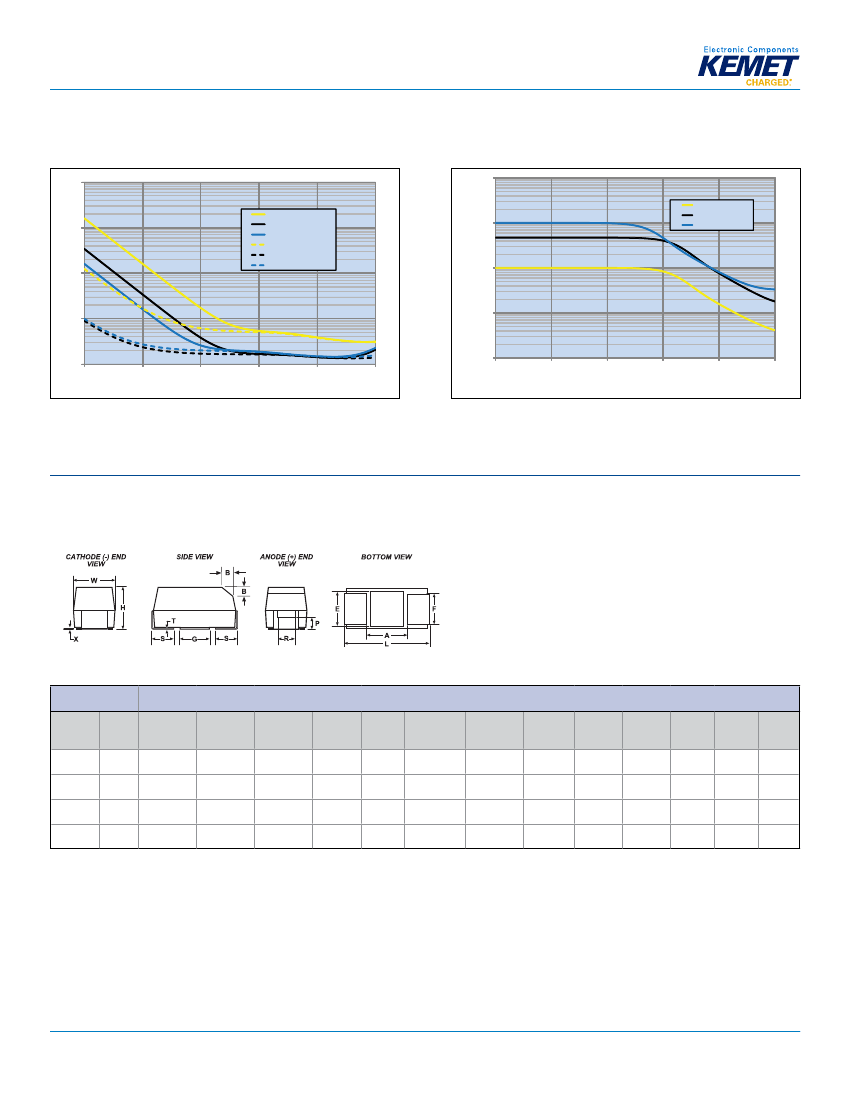

Preview

Download Datasheet

View All

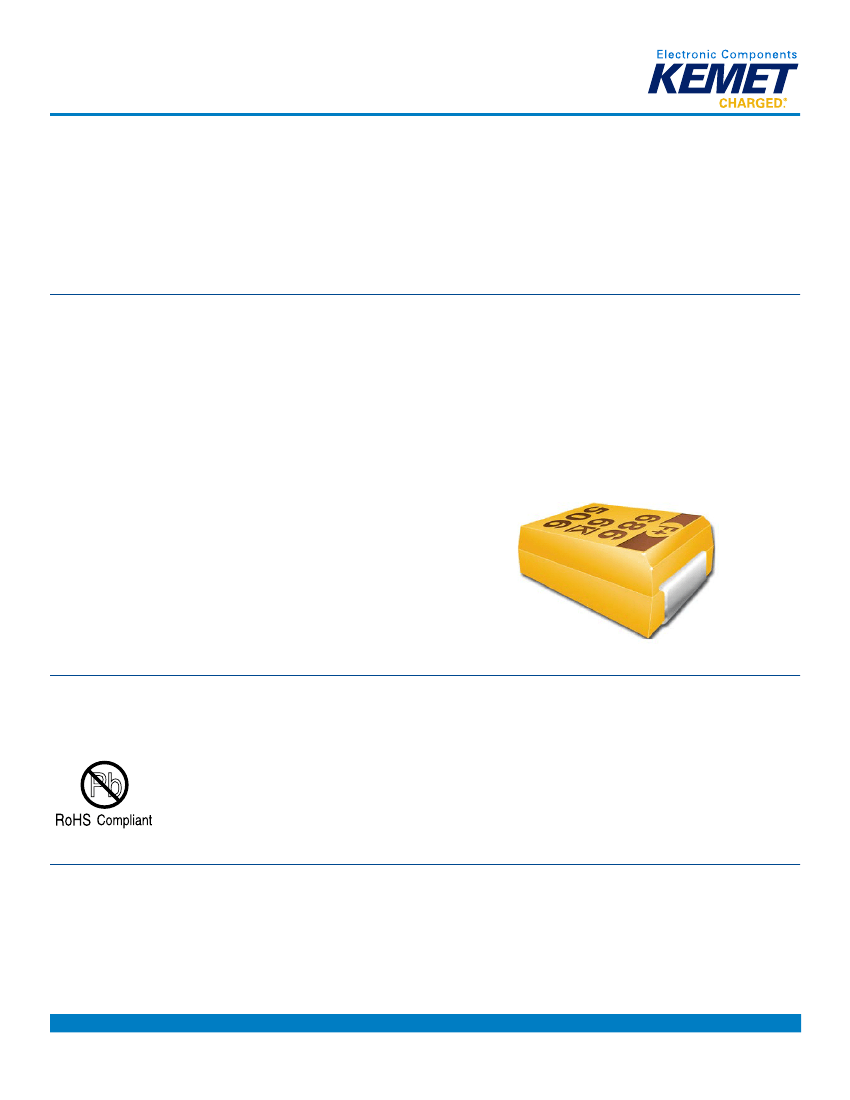

Fused MnO

Tantalum Surface Mount Capacitors

T496 Fused MnO

Series

Overview

Applications

Typical applications include decoupling and filtering in computing

and telecommunications end applications, such as high-end

servers requiring built-in fuse capability.

The T496 Series of tantalum chip capacitors offers a “fail safe”

design. The built-in fuse element offers excellent protection from

damaging short circuit conditions in applications where damaging

high fault currents exist. Protection from costly circuit damage

due to reversed installation is offered with this device.

Benefits

•

Meets or exceeds EIA Standard 535BAAC

Approved to DSCC drawing 04053

Patented fuse assembly

Optional gold-plated terminations

Built-in fuse protects against short circuit mode

100% surge current test on C, D, and X sizes

Halogen-free epoxy

Capacitance values of 0.15 μF to 330 μF

Tolerances of ±10% and ±20%

Voltage rating of 4 – 50 VDC

Fuse activation, 25˚C: within 1 second at fault currents

of 4 amps and higher

• Continuous current capability: 0.75 amps

• Post actuation resistance, 25˚C: 10 MΩ, minimum

• Test tabs on side of case bypass the capacitor element to allow

direct testing of the fuse assembly

• RoHS Compliant and lead-free terminations

• Operating temperature range of -55˚C to +125˚C

Environmental Compliance

RoHS Compliant (6/6) according to Directive 2002/95/EC when ordered with 100% Sn solder.

SPICE

For a detailed analysis of specific part numbers, please visit www.kemet.com for a free download of KEMET's SPICE software.

The KEMET SPICE program is freeware intended to aid design engineers in analyzing the performance of these capacitors over

frequency, temperature, ripple, and DC bias conditions.

One world. One KEMET

T2010_T496 • 7/19/2013
