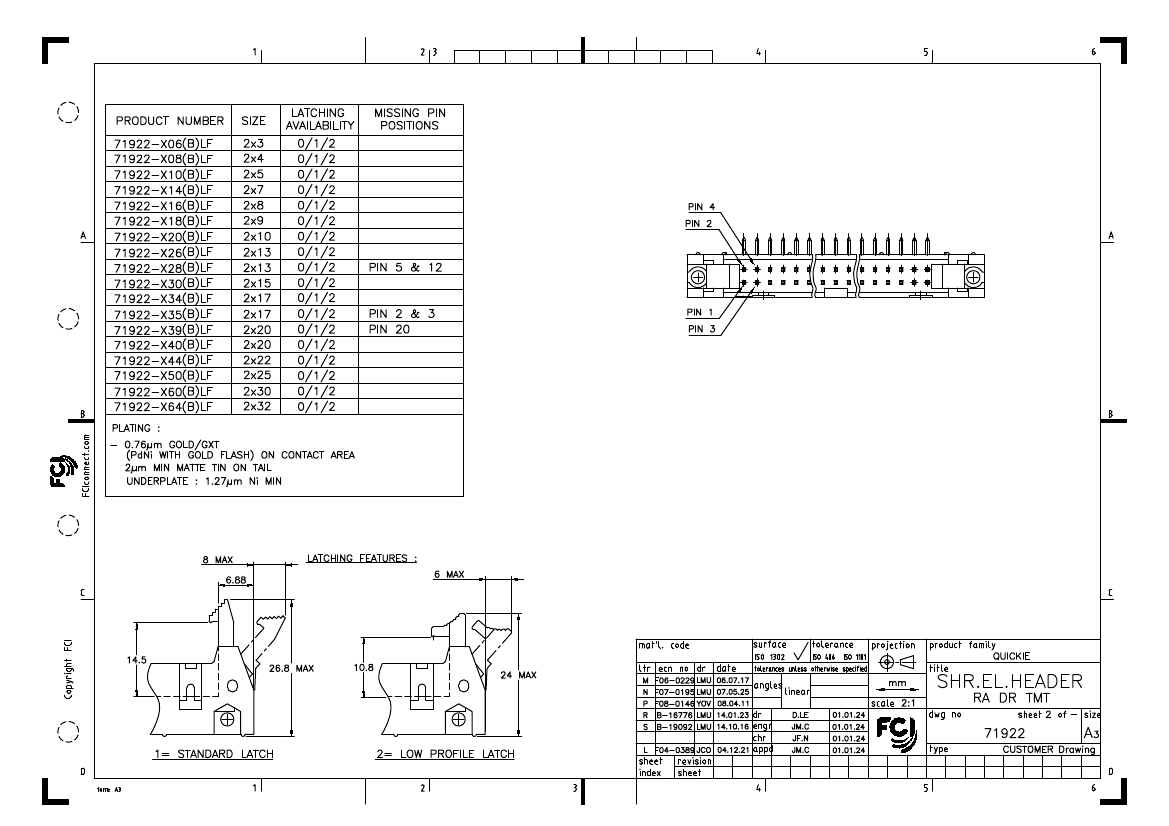

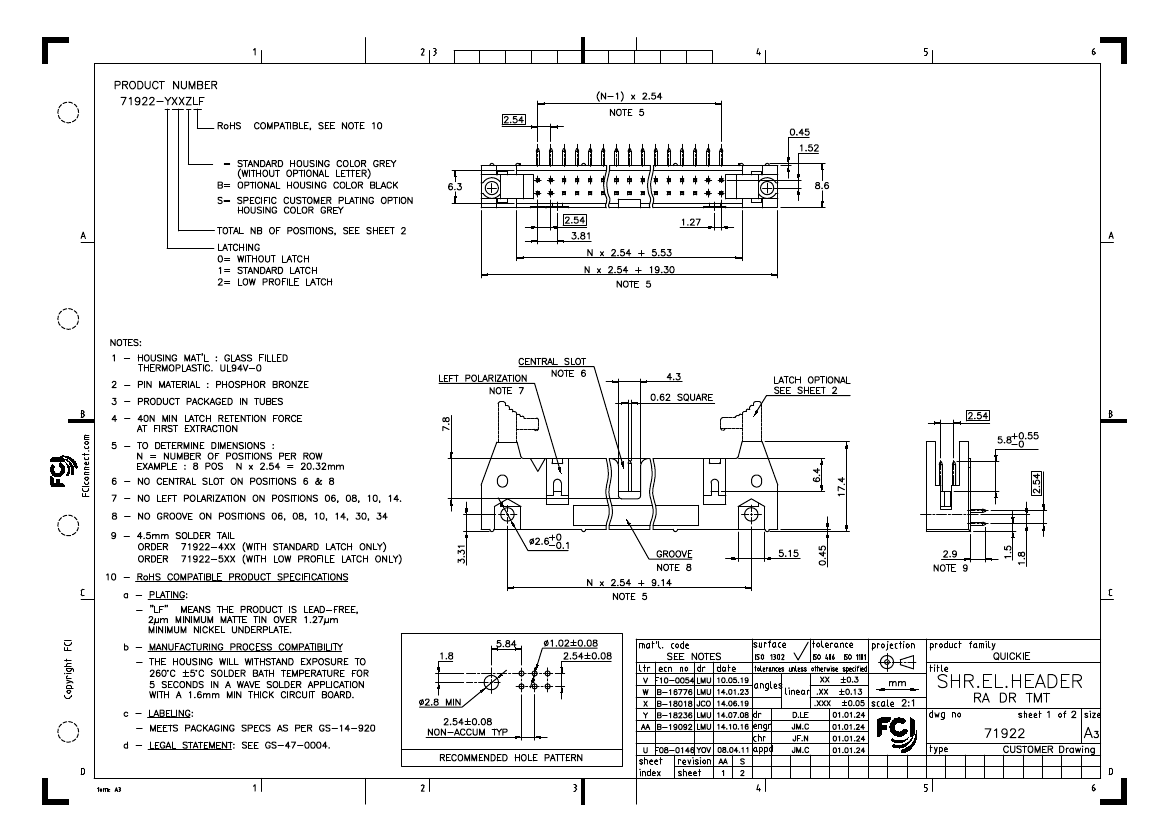

71922-026BLF: DescriptionBoard Connector, 26 Contact(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,; CategoryThe connector The connector; File Size151KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

71922-026BLF Overview

Board Connector, 26 Contact(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Black Insulator, Receptacle,

Parameter Name	Attribute value
Objectid	1840260631
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
body width	0.339 inch
subject depth	0.685 inch
body length	3.36 inch
Connector type	BOARD CONNECTOR
Contact completed and terminated	TIN OVER NICKEL
Contact point gender	MALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact style	SQ PIN-SKT
Dielectric withstand voltage	707VAC V
Filter function	NO
Insulation resistance	105000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYETHYLENE
JESD-609 code	e3
Plug contact pitch	0.1 inch
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact row spacing	2.54 mm
Plating thickness	30u inch
Rated current (signal)	3 A
Guideline	UL
Terminal length	0.114 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	26
UL Flammability Code	94V-0

PDS: Rev :AA

STATUS:Released

Printed: Oct 23, 2014
