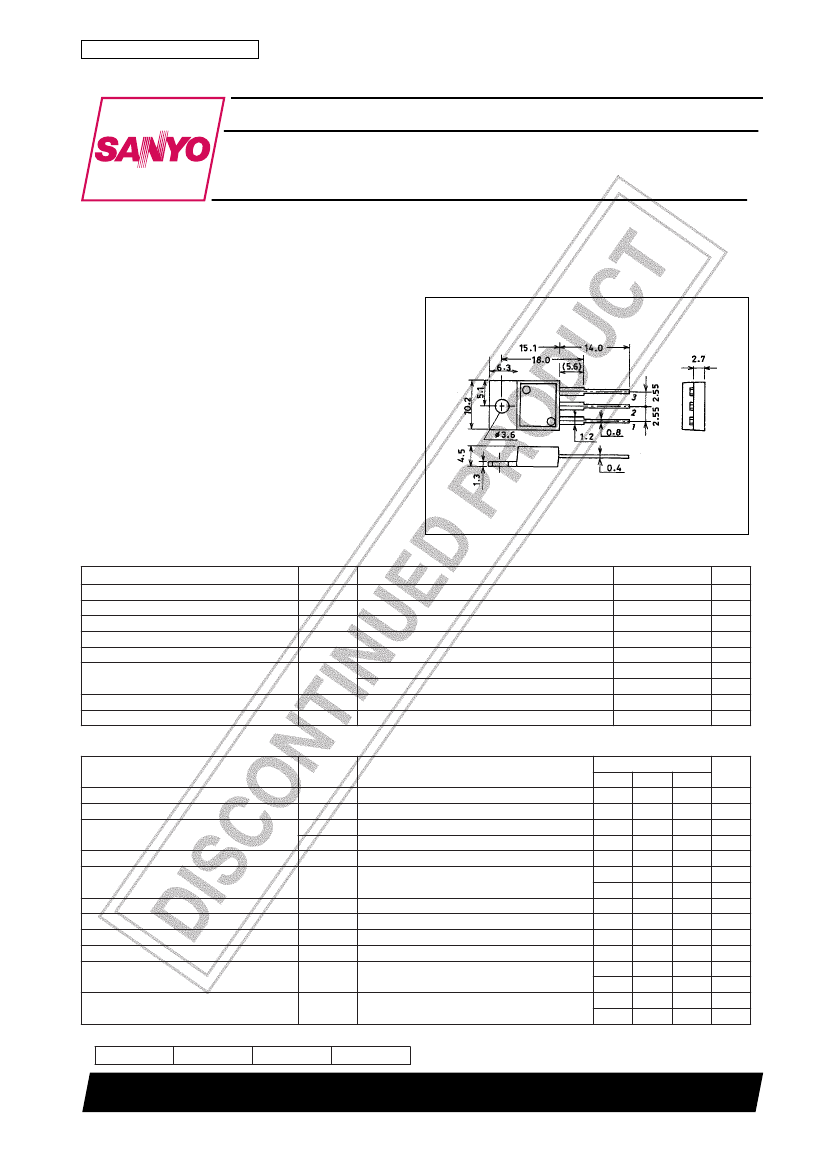

Ordering number:EN2526
PNP/NPN Epitaxial Planar Silicon Transistors
2SA1474/2SC3780
Ultrahigh-Definition CRT Display
Video Output Applications
Applications
· Video Output.
· Color TV chroma output.
· Wide-band amp.
Package Dimensions
unit:mm
2010C
[2SA1474/2SC3780]
Features
· High f
T
(f
T
typ=800MHz).
· Small reverse transfer capacitance and excellent high
frequency characteristic
: C
re
=3.0pF (NPN), 4.7pF (PNP).
· Complementary PNP and NPN types.
· Adoption of FBET process.
( ) : 2SA1474
JEDEC : TO-220AB
EIAJ : SC-46
Specifications
Absolute Maximum Ratings
at Ta = 25˚C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Peak Collector Current
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
VCBO
VCEO
VEBO
IC
ICP
PC
Conditions
E : Emitter
C : Collector
B : Base
Ratings
(–)80
(–)60
(–)4
(–)800
(–)1
1.5
Unit
V
V
V
mA
A
W
W
Tc=50˚C
Tj
Tstg
15
150
–55 to +150
˚C
˚C
Electrical Characteristics
at Ta = 25˚C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Collector-to-Emitter Saturation Voltage
Base-to-Emitter Saturation Voltage
Collector-to-Base Breakdown Voltage
Collector-to-Emitter Breakdown Voltage
Emitter-to-Base Breakdown Votage
Output Capacitance
Reverse Transfer Capacitance
Symbol
ICBO
IEBO
hFE1
hFE2
fT
VCE(sat)
VCB=(–)60V, IE=0
VEB=(–)2V, IC=0
VCE=(–)10V, IC=(–)50mA
VCE=(–)10V, IC=(–)400mA
VCE=(–)10V, IC=(–)100mA
IC=(–)100mA, IB=(–)10mA
40*
20
800
0.6
(–0.8)
VBE(sat) IC=(–)100mA, IB=(–)10MA
V(BR)CBO IC=(–)10µA, IE=0
V(BR)CEO IC=(–)1mA, RBE=∞
V(BR)EBO
Cob
Cre
IE=(–)100µA, IC=0
VCB=(–)30V, f=1MHz
VCB=(–)30V, f=1MHz
(–)1.0
(–)80
(–)60
(–)4
3.5
(5.3)
3.0
(4.7)
MHz
V
V
V
V
V
V
pF
pF
pF
pF
Conditions
Ratings
min
typ
max
(–)0.1
(–)1.0
320*
Unit
µA
µA
*: The 2SA1474/2SC3780 are classified by 50mA h
FE
as follows :
40
C
80
60
D
120
100
E
200
160
F
320
