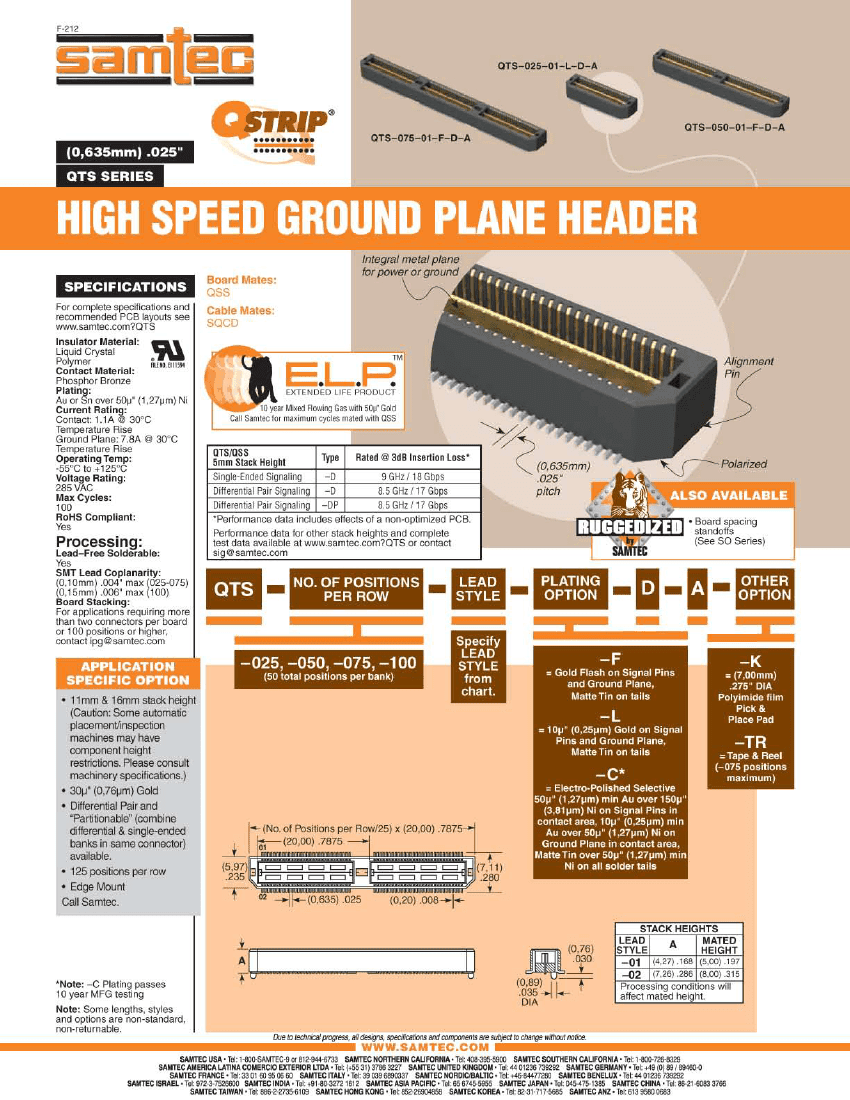

Board Connector, 200 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Plug
| Parameter Name | Attribute value |
| Is it Rohs certified? | conform to |
| Maker | SAMTEC |
| Reach Compliance Code | compliant |
| ECCN code | EAR99 |
| Factory Lead Time | 2 weeks |
| Other features | ROHS COMPLIANT |
| Board mount options | POLARIZATION POST |
| body width | 0.235 inch |
| subject depth | 0.286 inch |
| body length | 3.149 inch |
| Body/casing type | PLUG |
| Connector type | BOARD CONNECTOR |
| Contact to complete cooperation | AU ON NI |
| Contact completed and terminated | GOLD FLASH |
| Contact point gender | FEMALE |
| Contact material | PHOSPHOR BRONZE |
| contact mode | RECTANGULAR |
| Contact style | SQ PIN-SKT |
| Dielectric withstand voltage | 938VAC V |
| Durability | 1000 Cycles |
| Insulation resistance | 5000000000 Ω |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) |
| Manufacturer's serial number | QTS |
| Plug contact pitch | 0.025 inch |
| Installation option 1 | LOCKING |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| PCB contact pattern | RECTANGULAR |
| PCB contact row spacing | 6.096 mm |
| Plating thickness | FLASH inch |
| polarization key | ENDS |
| Rated current (signal) | 1.1 A |
| reliability | COMMERCIAL |
| Terminal pitch | 0.635 mm |
| Termination type | SURFACE MOUNT |
| Total number of contacts | 200 |
| QTS-100-02-F-D-A-K | QTS-100-01-F-D-A-K | QTS-100-02-L-D-A-K | QTS-100-01-L-D-A-K | QTS-100-01-C-D-A-K | QTS-100-02-C-D-A-K | |
|---|---|---|---|---|---|---|
| Description | Board Connector, 200 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Plug | Board Connector, 200 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Plug | Board Connector, 200 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Plug | Board Connector, 200 Contact(s), 2 Row(s), Female, Straight, 0.025 inch Pitch, Surface Mount Terminal, Locking, Plug | Board Connector | Board Connector |
| Is it Rohs certified? | conform to | conform to | conform to | conform to | conform to | conform to |
| Maker | SAMTEC | SAMTEC | SAMTEC | SAMTEC | SAMTEC | SAMTEC |
| Reach Compliance Code | compliant | compliant | compliant | compliant | compliant | compliant |
| Factory Lead Time | 2 weeks | 2 weeks | 2 weeks | 2 weeks | 2 weeks | 2 weeks |
| Connector type | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR | BOARD CONNECTOR |
| Manufacturer's serial number | QTS | QTS | QTS | QTS | QTS | QTS |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | - | - |
| Other features | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | ROHS COMPLIANT | - | - |
| Board mount options | POLARIZATION POST | POLARIZATION POST | POLARIZATION POST | POLARIZATION POST | - | - |
| body width | 0.235 inch | 0.235 inch | 0.235 inch | 0.235 inch | - | - |
| subject depth | 0.286 inch | 0.168 inch | 0.286 inch | 0.168 inch | - | - |
| body length | 3.149 inch | 3.149 inch | 3.149 inch | 3.149 inch | - | - |
| Body/casing type | PLUG | PLUG | PLUG | PLUG | - | - |
| Contact to complete cooperation | AU ON NI | AU ON NI | AU ON NI | AU ON NI | - | - |
| Contact completed and terminated | GOLD FLASH | GOLD FLASH | GOLD FLASH | GOLD FLASH | - | - |
| Contact point gender | FEMALE | FEMALE | FEMALE | FEMALE | - | - |
| Contact material | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | PHOSPHOR BRONZE | - | - |
| contact mode | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | - |
| Contact style | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | SQ PIN-SKT | - | - |
| Dielectric withstand voltage | 938VAC V | 938VAC V | 938VAC V | 938VAC V | - | - |
| Durability | 1000 Cycles | 1000 Cycles | 1000 Cycles | 1000 Cycles | - | - |
| Insulation resistance | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | 5000000000 Ω | - | - |
| insulator material | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | LIQUID CRYSTAL POLYMER (LCP) | - | - |
| Plug contact pitch | 0.025 inch | 0.025 inch | 0.025 inch | 0.025 inch | - | - |
| Installation option 1 | LOCKING | LOCKING | LOCKING | LOCKING | - | - |
| Installation method | STRAIGHT | STRAIGHT | STRAIGHT | STRAIGHT | - | - |
| Installation type | BOARD | BOARD | BOARD | BOARD | - | - |
| Number of connectors | ONE | ONE | ONE | ONE | - | - |
| PCB row number | 2 | 2 | 2 | 2 | - | - |
| Number of rows loaded | 2 | 2 | 2 | 2 | - | - |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C | 125 °C | - | - |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C | -55 °C | - | - |
| PCB contact pattern | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | - | - |
| PCB contact row spacing | 6.096 mm | 6.096 mm | 6.096 mm | 6.096 mm | - | - |
| Plating thickness | FLASH inch | FLASH inch | 10u inch | 10u inch | - | - |
| polarization key | ENDS | ENDS | ENDS | ENDS | - | - |
| Rated current (signal) | 1.1 A | 1.1 A | 1.1 A | 1.1 A | - | - |
| reliability | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | - | - |
| Terminal pitch | 0.635 mm | 0.635 mm | 0.635 mm | 0.635 mm | - | - |
| Termination type | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | SURFACE MOUNT | - | - |
| Total number of contacts | 200 | 200 | 200 | 200 | - | - |
