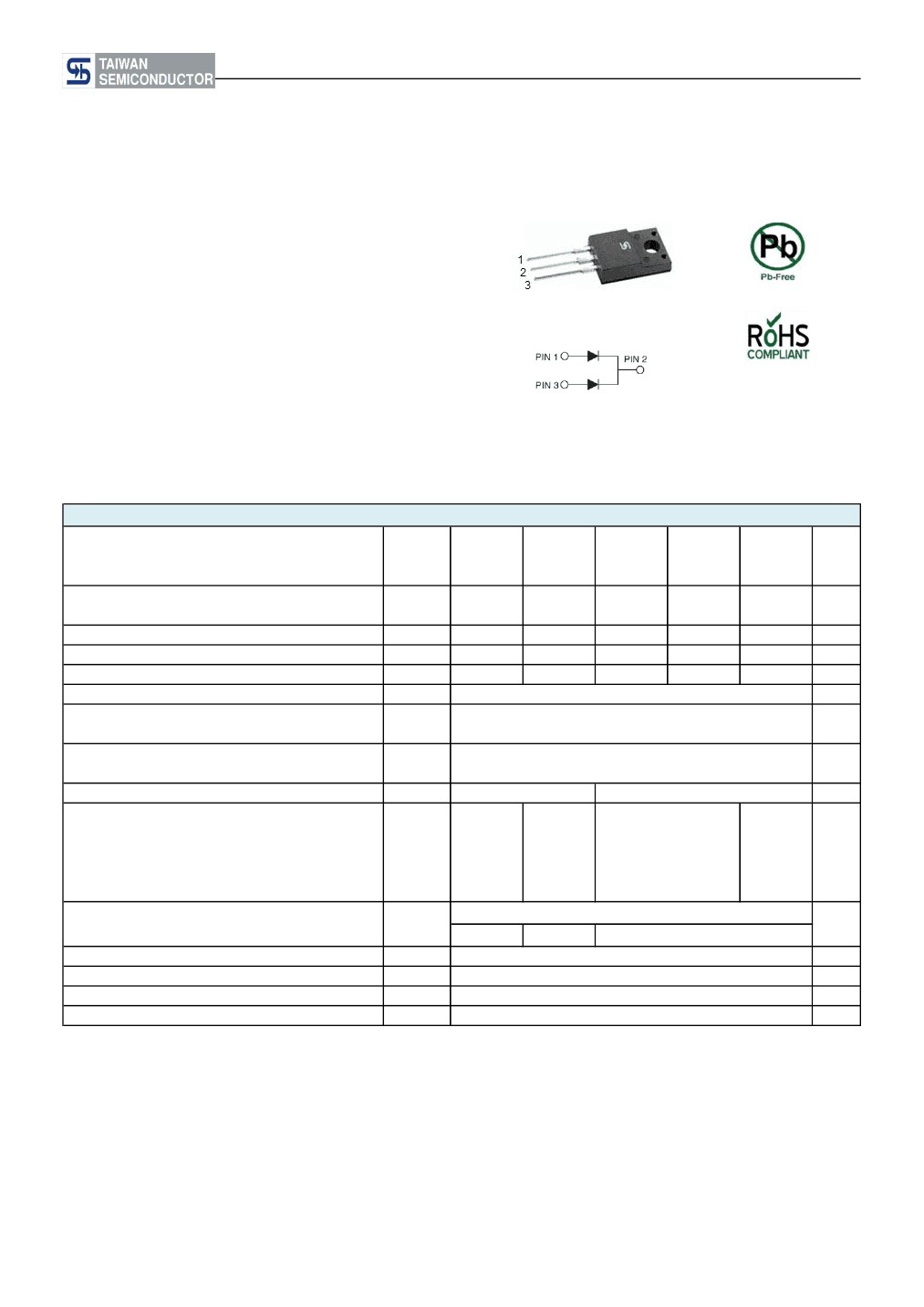

MBRF3045CT-Y thru MBRF30150CT-Y
Taiwan Semiconductor
CREAT BY ART
FEATURES
- Low power loss, high efficiency
- Guardring for overvoltage protection
- High surge current capability
- Compliant to RoHS Directive 2011/65/EU and
in accordance to WEEE 2002/96/EC
- Halogen-free according to IEC 61249-2-21 definition
Dual Common Cathode Schottky Rectifier
MECHANICAL DATA
Case:
ITO-220AB
Molding compound, UL flammability classification rating 94V-0
Base P/N with suffix "G" on packing code - green compound (halogen-free)
Terminal:
Matte tin plated leads, solderable per JESD22-B102
Meet JESD 201 class 1A whisker test
Polarity:
As marked
Mounting torque:
5 in-lbs maximum
Weight:
1.7 g (approximately)
ITO-220AB
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
(T
A
=25℃ unless otherwise noted)
MBRF
PARAMETER
SYMBOL
3045
CT-Y
Marking code
Maximum repetitive peak reverse voltage
Maximum RMS voltage
Maximum DC blocking voltage
Maximum average forward rectified current
Peak repetitive forward current
(Rated VR, Square wave, 20KHz)
Peak forward surge current, 8.3 ms single half
sine-wave superimposed on rated load
Peak repetitive reverse surge current (Note 1)
Maximum instantaneous forward voltage (Note 2)
I
F
=15A, T
J
=25℃
I
F
=15A, T
J
=125℃
I
F
=30A, T
J
=25℃
I
F
=30A, T
J
=125℃
Maximum reverse current @ rated VR
Voltage rate of change (Rated V
R
)
Typical thermal resistance
Operating junction temperature range
Storage temperature range
Note 1: tp = 2.0
μs,
1.0KHz
Note 2: Pulse test with PW=300μs, 1% duty cycle
T
J
=25
℃
T
J
=125
℃
V
RRM
V
RMS
V
DC
I
F(AV)
I
FRM
I
FSM
I
RRM
0.70
V
F
0.60
0.82
0.73
I
R
dV/dt
R
θJC
T
J
T
STG
20
1
0.75
0.65
0.90
0.78
0.2
15
10000
4
- 55 to +150
- 55 to +150
10
0.84
0.70
0.94
0.82
MBRF
3045CT
45
31
45
MBRF
3060
CT-Y
MBRF
3060CT
60
42
60
MBRF
3080
CT-Y
MBRF
3080CT
80
56
80
30
30
200
0.5
0.95
0.80
1.05
0.92
mA
V/μs
O
MBRF
30100
CT-Y
MBRF
30100CT
100
70
100
MBRF
30150
CT-Y
MBRF
30150CT
150
105
150
V
V
V
A
A
A
A
UNIT
V
C/W
O
O
C
C
Document Number: DS_D1405039
Version: B14
MBRF3045CT-Y thru MBRF30150CT-Y
Taiwan Semiconductor

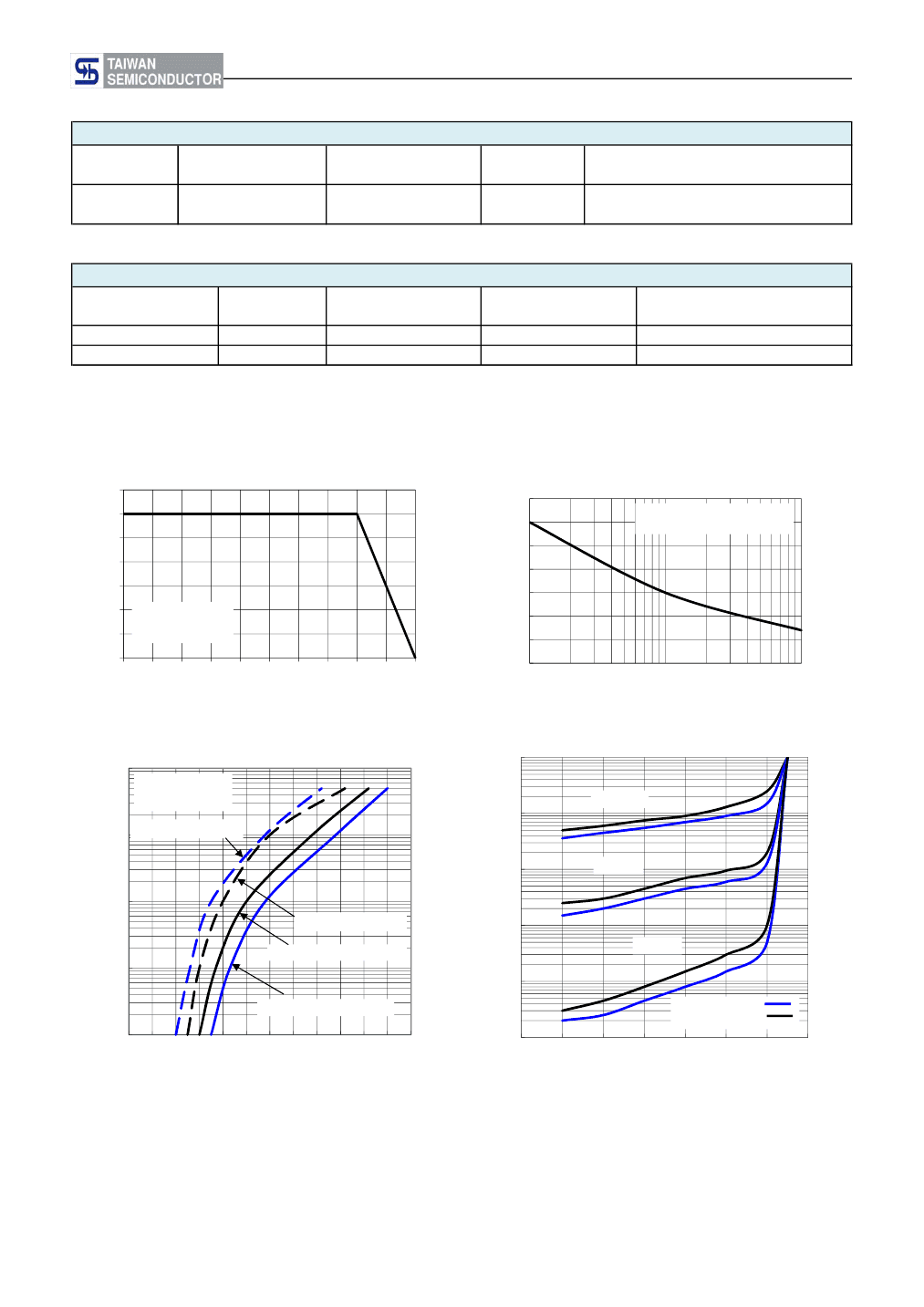

ORDERING INFORMATION
PART NO.
MBRF30xxCT-Y
(Note 1)
PACKING CODE
GREEN COMPOUND
CODE
C0
Suffix "G"
ITO-220AB
50 / Tube
PACKAGE
PACKING
Note 1: "xx" defines voltage from 45V (MBRF3045CT-Y) to 150V (MBRF30150CT-Y)
EXAMPLE
PREFERRED P/N
MBRF3060CT-Y C0
MBRF3060CT-Y C0G
PART NO.
MBRF3060CT-Y
MBRF3060CT-Y
PACKING CODE
C0
C0
G
Green compound
GREEN COMPOUND
CODE
DESCRIPTION
RATINGS AND CHARACTERISTICS CURVES
(TA=25℃ unless otherwise noted)
FIG.1 FORWARD CURRENT DERATING CURVE
35
30
AVERAGE FORWARD
A
CURRENT (A)
25
20
15
10
5
0
50
60
70
80
90
100
110
120
(
o
C)
130
140
150
CASE TEMPERATURE
RESISTIVE OR
INDUCTIVELOAD
WITH HEATSINK
PEAK FORWARD SURGE CURRENT (A)
225
200
175
150
125
100
75
50
1
FIG. 2 MAXIMUM NON-REPETITIVE FORWARD SURGE
CURRENT PER LEG
8.3ms Single Half Sine Wave
JEDEC Method
10
NUMBER OF CYCLES AT 60 Hz
100
FIG. 3 TYPICAL FORWARD CHARACTERISTICS
PER LEG
100
Pulse Width=300μs
1% Duty Cycle
INSTANTANEOUS FORWARD CURRENT (A)
MBRF3045CT-Y
INSTANTANEOUS REVERSE CURRENT (mA)
100
FIG. 4 TYPICAL REVERSE CHARACTERISTICS
PER LEG
TJ=125℃
10
10
1
TJ=75℃
1
MBRF3060CT-Y
MBRF3080CT-Y -100CT-Y
0.1
0.1
TJ=25℃
0.01
45CT-Y
60CT-Y - 150CT-Y
0.001
0
20
40
60
80
100
120
140
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
MBRF30150CT-Y
0.01
0
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9
FORWARD VOLTAGE (V)
1
1.1 1.2
Document Number: DS_D1405039
Version: B14
MBRF3045CT-Y thru MBRF30150CT-Y
Taiwan Semiconductor
FIG. 5 TYPICAL JUNCTION CAPACITANCE
PER LEG
45CT-Y
60CT-Y
80CT-Y - 150CT-Y
f=1.0MHz
Vsig=50mVp-p
FIG. 6 TYPICAL TRANSIENT THERMAL IMPEDANCE
PER LEG
10000
JUNCTION CAPACITANCE (pF)
A
100
TRANSIENT THERMAL
IMPEDANCE (℃/W)
10
1000
1
100
0.1
1
10
100
REVERSE VOLTAGE (V)
0.1
0.01
0.1
1
T-PULSE DURATION(s)
10
100

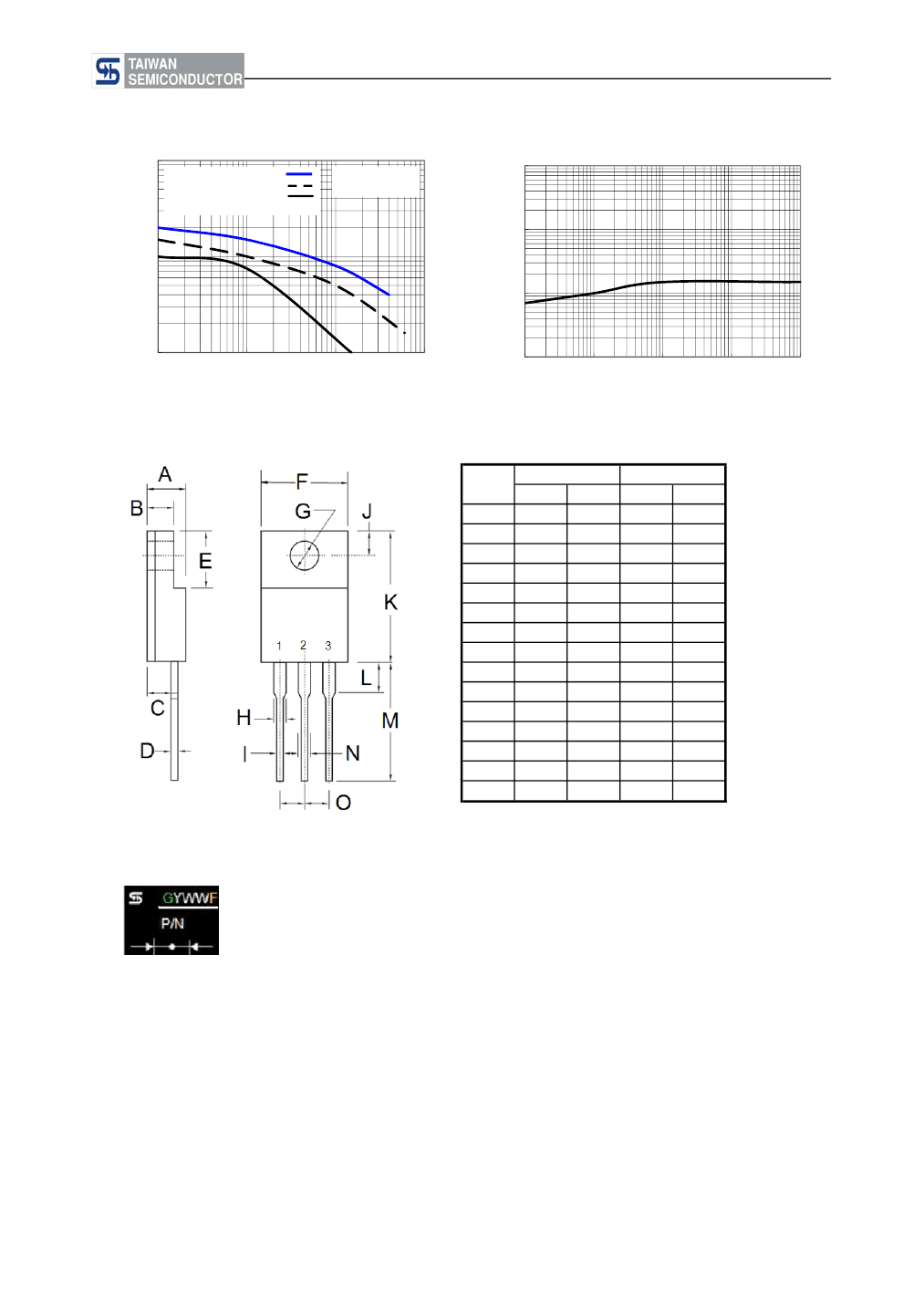

PACKAGE OUTLINE DIMENSIONS
Unit (mm)
Min
4.30
2.50
2.30
0.46
6.30
9.60
3.00
0.95
0.50
2.40
14.80
-
12.60
-
2.41
Max
4.70
3.16
2.96
0.76
6.90
10.30
3.40
1.45
0.90
3.20
15.50
4.10
13.80
1.80
2.67
Unit (inch)
Min
0.169
0.098
0.091
0.018
0.248
0.378
0.118
0.037
0.020
0.094
0.583
-
0.496
-
0.095
Max
0.185
0.124
0.117
0.030
0.272
0.406
0.134
0.057
0.035
0.126
0.610
0.161
0.543
0.071
0.105
DIM.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
MARKING DIAGRAM
P/N
G
YWW
F
= Marking Code
= Green Compound
= Date Code
= Factory Code
