MBRF30150CT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MBRF30150CT

MBRF30150CT: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 150V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN; CategoryDiscrete semiconductor diode; File Size300KB，3 Pages; ManufacturerViking Tech Corp

Download Datasheet Parametric Compare View All

MBRF30150CT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MBRF30150CT	-	-	View	Buy Now

MBRF30150CT Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 150V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN

MBRF30150CT Parametric

Parameter Name	Attribute value
Maker	Viking Tech Corp
package instruction	ITO-220AB, 3 PIN
Reach Compliance Code	unknown
Other features	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V
JEDEC-95 code	TO-220AB
JESD-30 code	R-PSFM-T3
Maximum non-repetitive peak forward current	200 A
Number of components	2
Phase	1
Number of terminals	3
Maximum operating temperature	150 °C
Minimum operating temperature	-50 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Maximum repetitive peak reverse voltage	150 V
Maximum reverse current	100 µA
surface mount	NO
technology	SCHOTTKY
Terminal form	THROUGH-HOLE
Terminal location	SINGLE

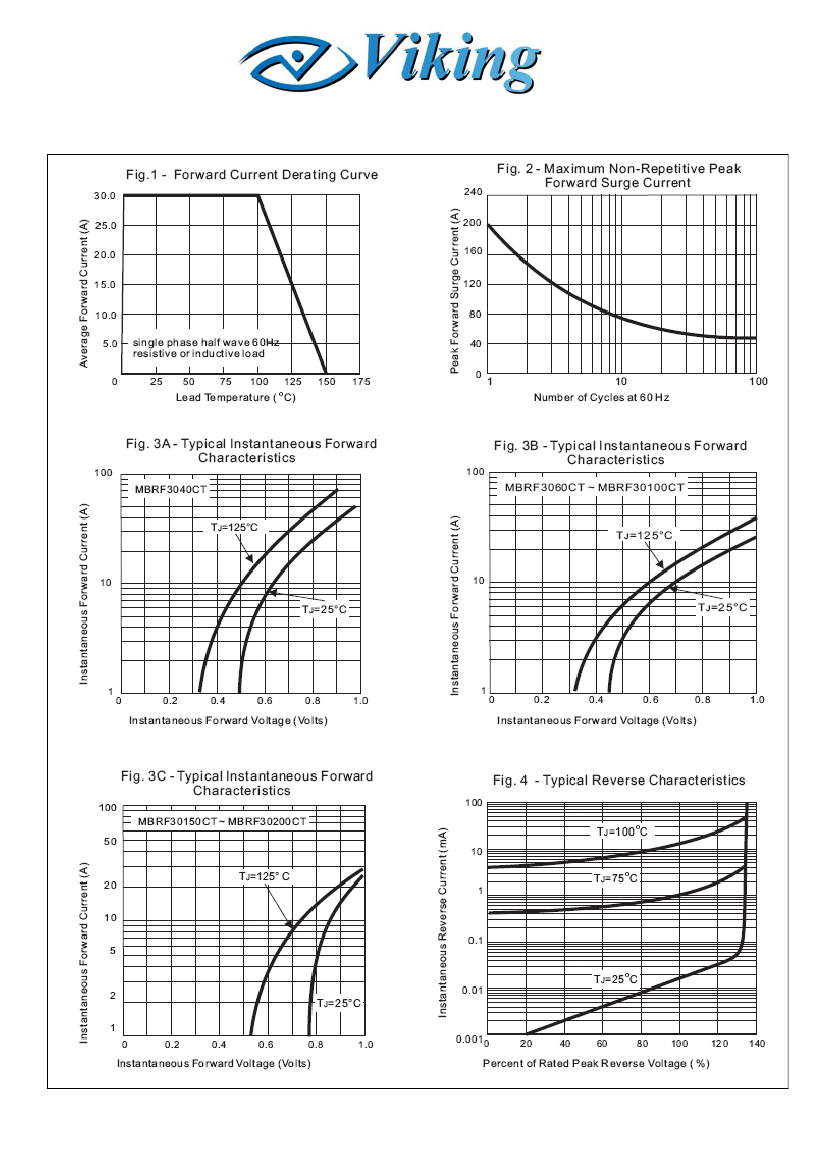

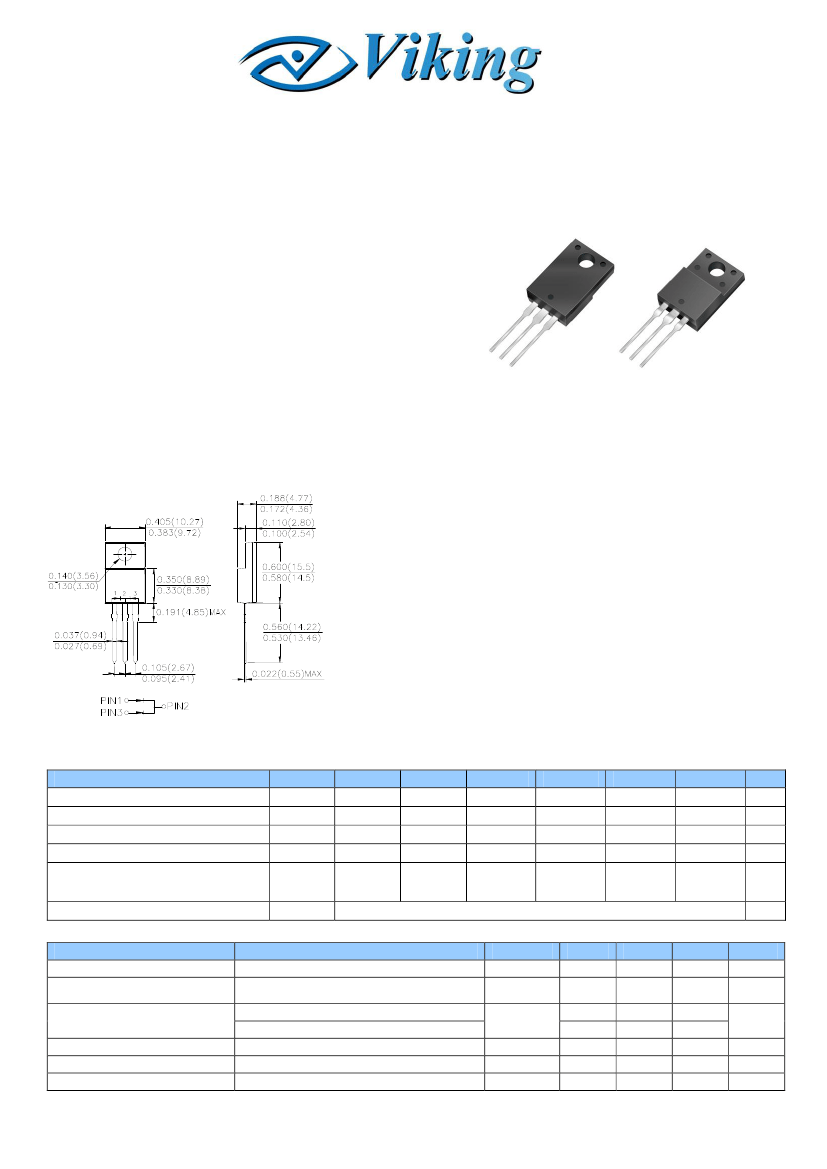

Preview

Download Datasheet

View All

Data Sheet

Customer：

Product :

Part No.:

High Power

Schottky Diode

MBRF3040CT/MBRF3060CT/MBRF30100CT/MBRF30150CT

MBRF30200CT/MBRF30250CT

11-Jan-11

REV.A

Issued Date:

Edition :

VIKING TECH CORPORATION

光頡科技股½有限公司

No.70, Kuanfu N. Rad.,

Hsin Chu Industrial Park,

Hukou Hsiang, Hsin Chu Hsien,

303, Taiwan

TEL:886-3-5972931

FAX:886-3-5972935•886-3-5973494

E-mail:sales@viking.com.tw

VIKING TECH CORPORATION KAOHSIUNG BRANCH

光頡科技股½有限公司高雄分公司

No.248-3, Sin-Sheng Rd., Cian-Jhen Dist., Kaohsiung,

806, Taiwan

WUXI TMTEC CO., LTD.

無錫泰銘電子有限公司

No.1A,(Xixia Road),Machinery & Industry Park,

National Hi-Tech Industrial Development Zone of

Wuxi, Wuxi, Jiangsu Province, China

Zip Code:214028

TEL:86-510-85203339

FAX:86-510-85203667•86-510-85203977

E-mail:wuxisales@tmtec.com.tw

TEL:886-7-8217999

FAX:886-7-8228229

E-mail:sales@viking.com.tw

Produced by

(QC)

11-Jan-11

Checked

(QC)

11-Jan-11

Approved by

(QC)

11-Jan-11

Prepared by

(Sales)

11-Jan-11

Accepted by

(Customer)

Kris

Ann

J.C Liu

Tel: +886-3-597-2931／Fax: +886-3-597-2935

70, Kuanfu N Road, HsinChu Industrial Park, 303 Taiwan, ROC

MBRF30150CT Related Products

	MBRF30150CT	MBRF30200CT	3-1393104-7	MBRF30100CT	MBRF3060CT	MBRF30250CT
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 150V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 200V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN	Octal type termination for quick installation	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 100V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 60V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 250V V(RRM), Silicon, TO-220AB, ITO-220AB, 3 PIN
Maker	Viking Tech Corp	-	-	Viking Tech Corp	Viking Tech Corp	Viking Tech Corp
package instruction	ITO-220AB, 3 PIN	ITO-220AB, 3 PIN	-	ITO-220AB, 3 PIN	ITO-220AB, 3 PIN	ITO-220AB, 3 PIN
Reach Compliance Code	unknown	unknown	-	unknown	unknown	unknow
Other features	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	-	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS	FREE WHEELING DIODE, LOW POWER LOSS
application	EFFICIENCY	EFFICIENCY	-	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	ISOLATED	ISOLATED	-	ISOLATED	ISOLATED	ISOLATED
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	-	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	-	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	-	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	1 V	-	0.95 V	0.95 V	0.95 V
JEDEC-95 code	TO-220AB	TO-220AB	-	TO-220AB	TO-220AB	TO-220AB
JESD-30 code	R-PSFM-T3	R-PSFM-T3	-	R-PSFM-T3	R-PSFM-T3	R-PSFM-T3
Maximum non-repetitive peak forward current	200 A	200 A	-	200 A	200 A	200 A
Number of components	2	2	-	2	2	2
Phase	1	1	-	1	1	1
Number of terminals	3	3	-	3	3	3
Maximum operating temperature	150 °C	150 °C	-	150 °C	150 °C	150 °C
Minimum operating temperature	-50 °C	-50 °C	-	-50 °C	-50 °C	-50 °C
Maximum output current	15 A	15 A	-	15 A	15 A	15 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	-	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	-	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Maximum repetitive peak reverse voltage	150 V	200 V	-	100 V	60 V	250 V
Maximum reverse current	100 µA	100 µA	-	100 µA	100 µA	100 µA
surface mount	NO	NO	-	NO	NO	NO
technology	SCHOTTKY	SCHOTTKY	-	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal form	THROUGH-HOLE	THROUGH-HOLE	-	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal location	SINGLE	SINGLE	-	SINGLE	SINGLE	SINGLE
