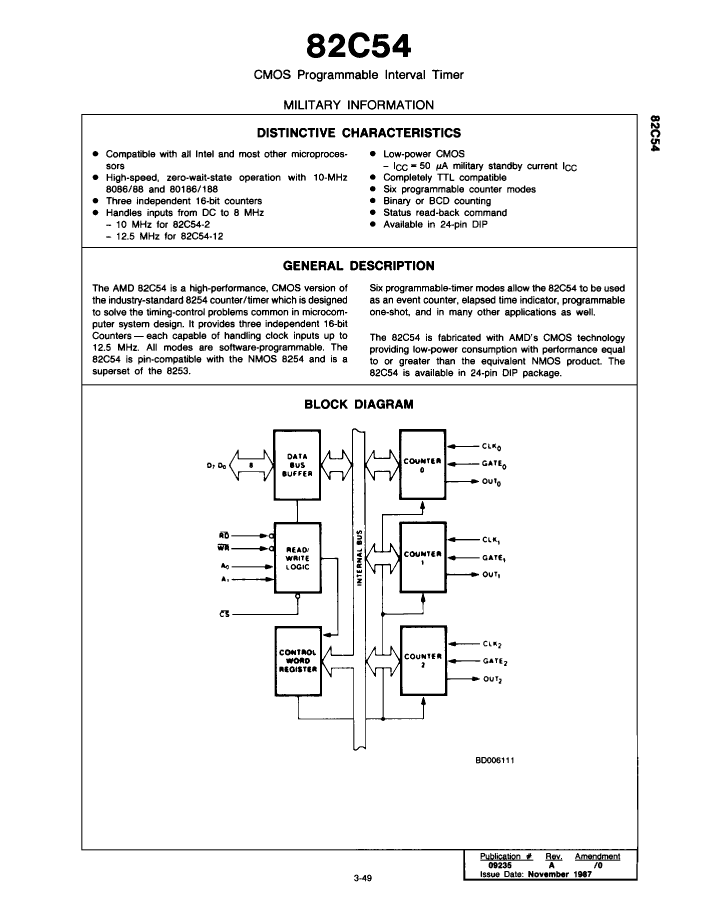

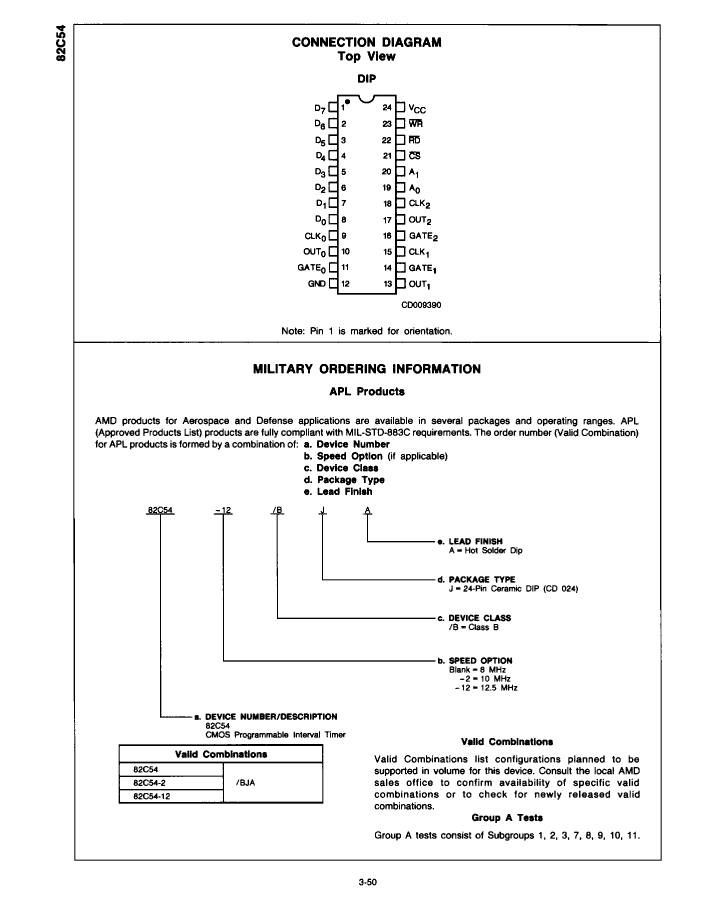

Programmable Timer, 3 Timer(s), CMOS, CDIP24, CERAMIC, DIP-24

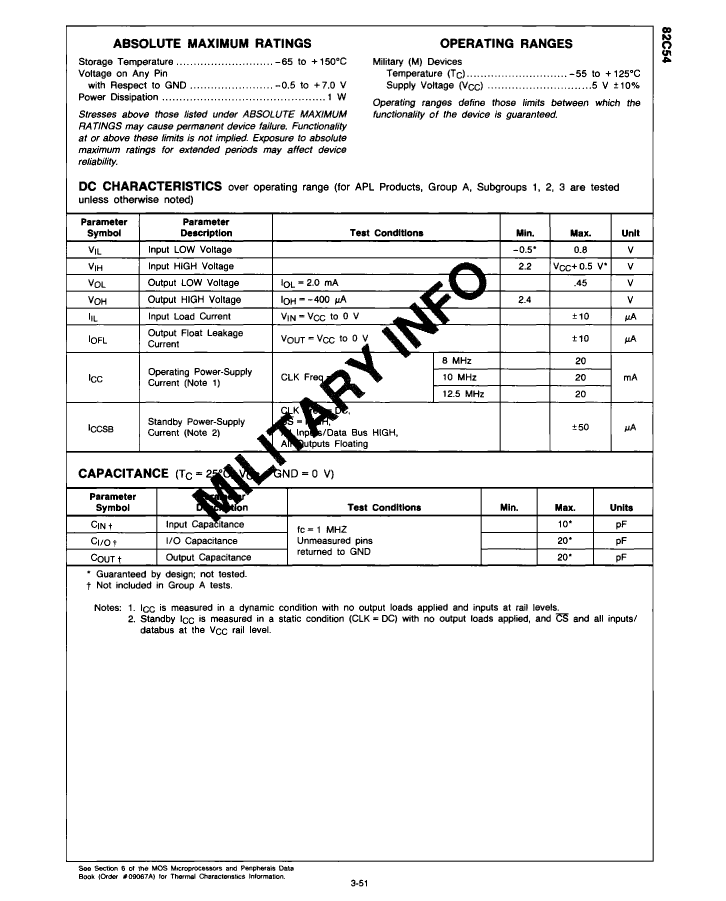

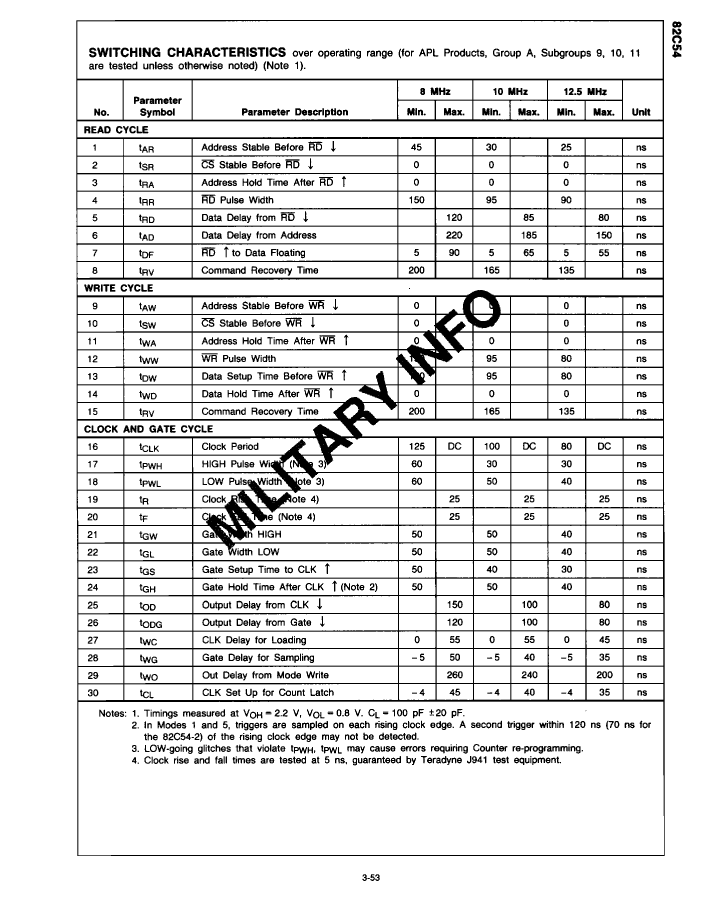

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | AMD |
| Parts packaging code | DIP |
| package instruction | DIP, |
| Contacts | 24 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Bus compatibility | 8086; 8088; 80186; 80188 |
| External data bus width | 8 |
| Information access methods | PARALLEL, DIRECT ADDRESS |
| JESD-30 code | R-GDIP-T24 |
| JESD-609 code | e0 |
| length | 32.0675 mm |
| Number of digits | 16 |
| Number of terminals | 24 |
| Number of timers | 3 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| Certification status | Not Qualified |
| Maximum seat height | 5.588 mm |
| Maximum slew rate | 20 mA |
| Maximum supply voltage | 5.5 V |
| Minimum supply voltage | 4.5 V |
| Nominal supply voltage | 5 V |
| surface mount | NO |
| technology | CMOS |
| Temperature level | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| width | 15.24 mm |
| uPs/uCs/peripheral integrated circuit type | TIMER, PROGRAMMABLE |
| 82C54-2/BJA | 82C54-12/BJA | 82C54/BJA | |
|---|---|---|---|
| Description | Programmable Timer, 3 Timer(s), CMOS, CDIP24, CERAMIC, DIP-24 | Programmable Timer, 3 Timer(s), CMOS, CDIP24, CERAMIC, DIP-24 | Programmable Timer, 3 Timer(s), CMOS, CDIP24, CERAMIC, DIP-24 |
| Is it Rohs certified? | incompatible | incompatible | incompatible |
| Parts packaging code | DIP | DIP | DIP |
| package instruction | DIP, | DIP, | DIP, |
| Contacts | 24 | 24 | 24 |
| Reach Compliance Code | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 |
| Bus compatibility | 8086; 8088; 80186; 80188 | 8086; 8088; 80186; 80188 | 8086; 8088; 80186; 80188 |
| External data bus width | 8 | 8 | 8 |
| Information access methods | PARALLEL, DIRECT ADDRESS | PARALLEL, DIRECT ADDRESS | PARALLEL, DIRECT ADDRESS |
| JESD-30 code | R-GDIP-T24 | R-GDIP-T24 | R-GDIP-T24 |
| JESD-609 code | e0 | e0 | e0 |
| length | 32.0675 mm | 32.0675 mm | 32.0675 mm |
| Number of digits | 16 | 16 | 16 |
| Number of terminals | 24 | 24 | 24 |
| Number of timers | 3 | 3 | 3 |
| Maximum operating temperature | 125 °C | 125 °C | 125 °C |
| Minimum operating temperature | -55 °C | -55 °C | -55 °C |
| Package body material | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | DIP | DIP |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| Certification status | Not Qualified | Not Qualified | Not Qualified |
| Maximum seat height | 5.588 mm | 5.588 mm | 5.588 mm |
| Maximum slew rate | 20 mA | 20 mA | 20 mA |
| Maximum supply voltage | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage | 5 V | 5 V | 5 V |
| surface mount | NO | NO | NO |
| technology | CMOS | CMOS | CMOS |
| Temperature level | MILITARY | MILITARY | MILITARY |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | THROUGH-HOLE |
| Terminal pitch | 2.54 mm | 2.54 mm | 2.54 mm |
| Terminal location | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| width | 15.24 mm | 15.24 mm | 15.24 mm |
| uPs/uCs/peripheral integrated circuit type | TIMER, PROGRAMMABLE | TIMER, PROGRAMMABLE | TIMER, PROGRAMMABLE |
| Maker | AMD | AMD | - |
| Base Number Matches | - | 1 | 1 |
