BYD77E datasheet, PDF - EEWORLD Datasheet

BYD77E: DescriptionRectifier Diode, 1 Element, 1.8A, 250V V(RRM),; CategoryDiscrete semiconductor diode; File Size126KB，3 Pages; ManufacturerNorth American Philips Discrete Products Div

Download Datasheet Parametric Compare View All

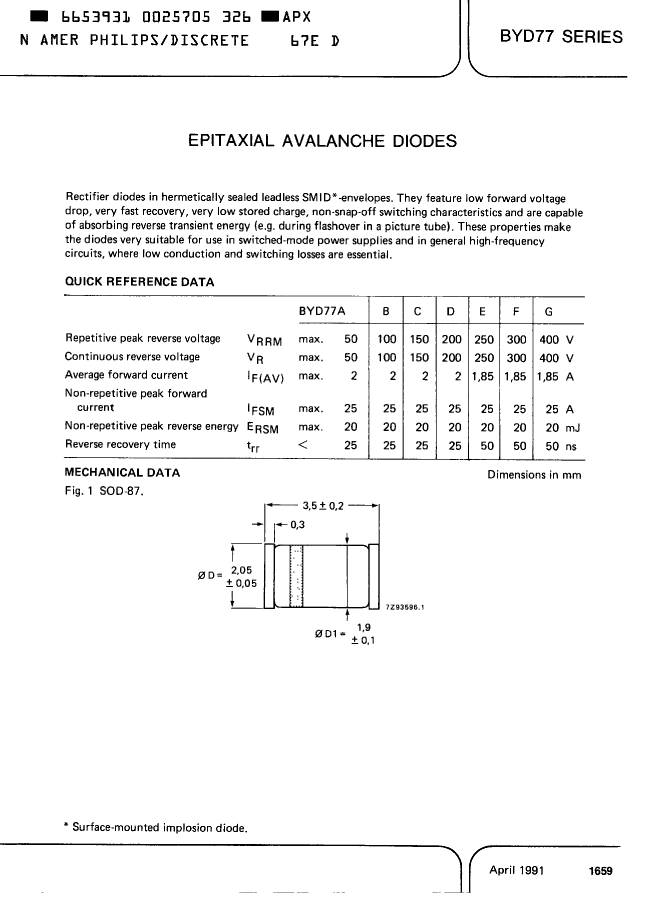

BYD77E Overview

Rectifier Diode, 1 Element, 1.8A, 250V V(RRM),

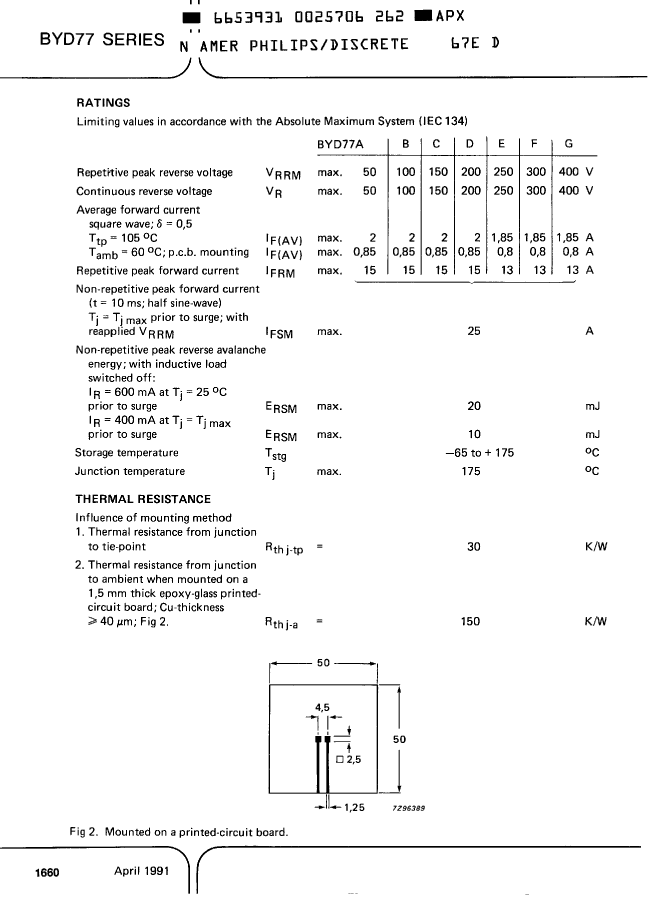

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	North American Philips Discrete Products Div
Reach Compliance Code	unknown
Configuration	SINGLE
Diode type	RECTIFIER DIODE

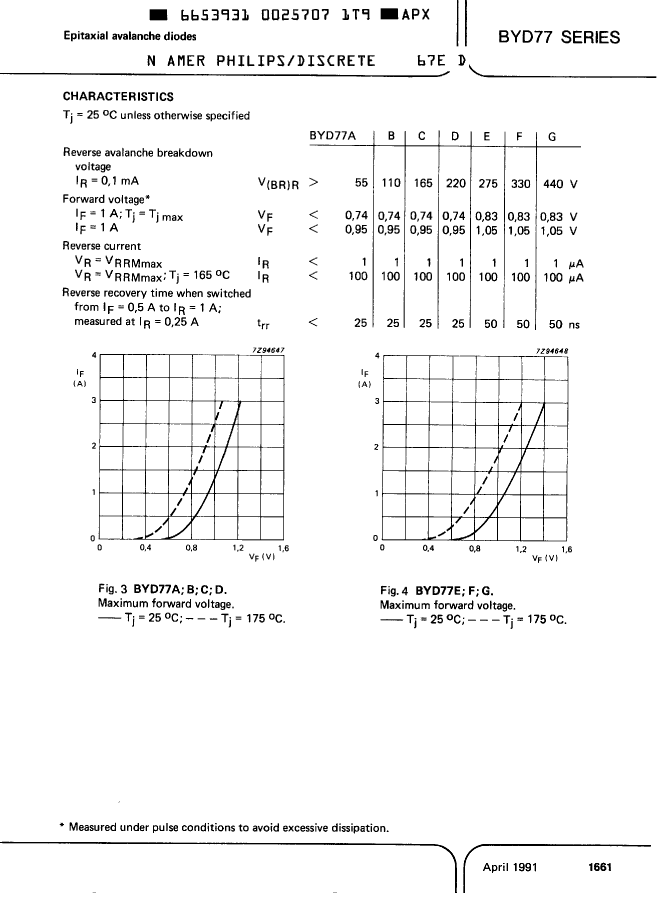

Maximum forward voltage (VF)	1 V
JESD-609 code	e0
Maximum non-repetitive peak forward current	25 A
Number of components	1
Maximum operating temperature	175 °C
Maximum output current	1.8 A
Maximum repetitive peak reverse voltage	250 V
Maximum reverse recovery time	0.05 µs
surface mount	YES
Terminal surface	Tin/Lead (Sn/Pb)

	BYD77E	BYD77D	BYD77C	BYD77F	BYD77G
Description	Rectifier Diode, 1 Element, 1.8A, 250V V(RRM),	Rectifier Diode, 1 Element, 1.8A, 200V V(RRM),	Rectifier Diode, 1 Element, 1.8A, 150V V(RRM),	Rectifier Diode, 1 Element, 1.8A, 300V V(RRM),	Rectifier Diode, 1 Element, 1.8A, 400V V(RRM),
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1 V	0.95 V	0.98 V	1 V	1 V
JESD-609 code	e0	e0	e0	e0	e0
Maximum non-repetitive peak forward current	25 A	25 A	25 A	25 A	25 A
Number of components	1	1	1	1	1
Maximum operating temperature	175 °C	175 °C	175 °C	175 °C	175 °C
Maximum output current	1.8 A	1.8 A	1.8 A	1.8 A	1.8 A
Maximum repetitive peak reverse voltage	250 V	200 V	150 V	300 V	400 V
Maximum reverse recovery time	0.05 µs	0.025 µs	0.025 µs	0.05 µs	0.05 µs
surface mount	YES	YES	YES	YES	YES
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Maker	North American Philips Discrete Products Div	-	-	North American Philips Discrete Products Div	North American Philips Discrete Products Div
