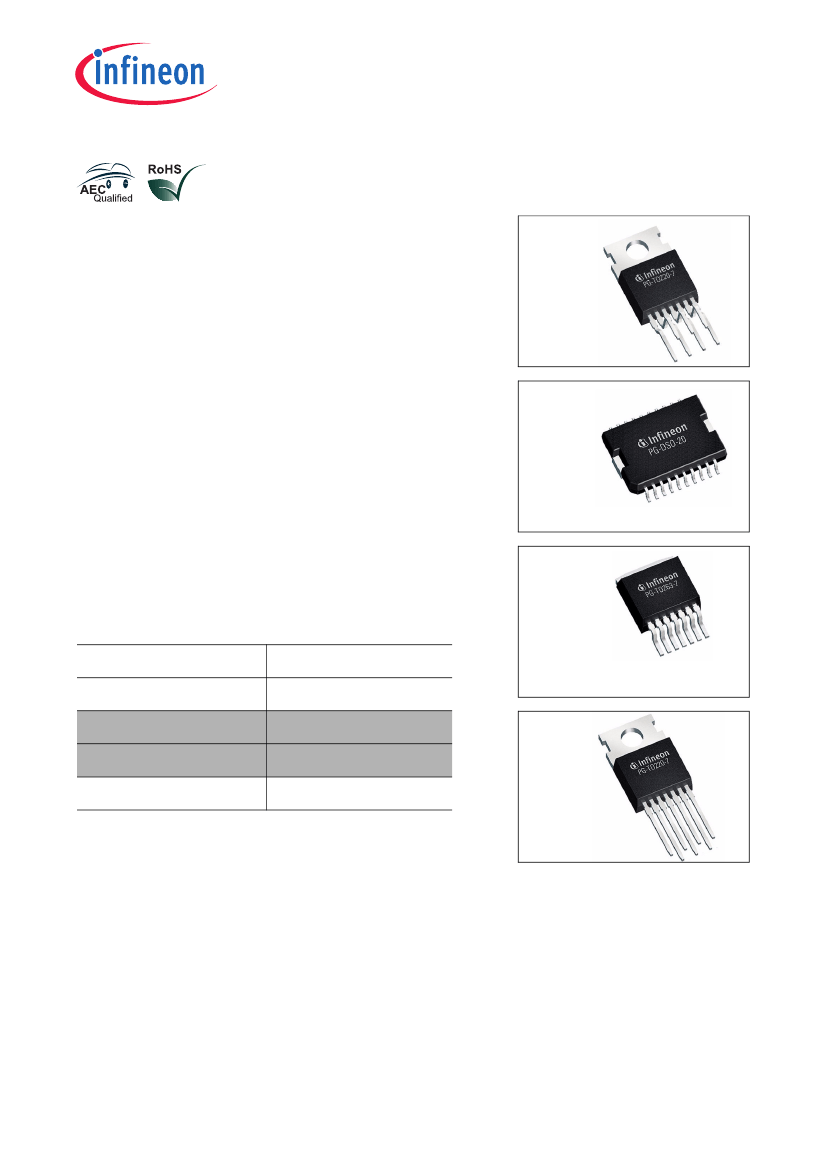

5-A H-Bridge for DC-Motor Applications

TLE 5205-2

1.1

•

Overview

Features

Delivers up to 5 A continuous 6 A peak current

Optimized for DC motor management applications

Operates at supply voltages up to 40 V

Very low

DS ON

; typ. 200 mΩ @ 25

°C

per switch

Output full short circuit protected

Overtemperature protection with hysteresis

and diagnosis

Short circuit and open load diagnosis

with open drain error flag

Undervoltage lockout

CMOS/TTL compatible inputs with hysteresis

No crossover current

Internal freewheeling diodes

Wide temperature range;

−

°C

< 150

°C

Green Product (RoHS compliant)

AEC Qualified

Package

PG-TO220-7-11

PG-DSO-20-37

PG-TO263-7-1

PG-TO220-7-12

PG-TO220-7-11

PG-DSO-20-37

Type

TLE 5205-2

TLE 5205-2GP

TLE 5205-2G

TLE 5205-2S

Description

PG-TO263-7-1

PG-TO220-7-12

The TLE 5205-2 is an integrated power H-bridge with DMOS output stages for driving

DC-Motors. The part is built using the Infineon multi-technology process SPT

which

allows bipolar and CMOS control circuitry plus DMOS power devices to exist on the

same monolithic structure.

Operation modes forward (cw), reverse (ccw), brake and high impedance are invoked

from just two control pins with TTL/CMOS compatible levels. The combination of an

extremely low

DS ON

and the use of a power IC package with low thermal resistance and

high thermal capacity helps to minimize system power dissipation. A blocking capacitor

at the supply voltage is the only external circuitry due to the integrated freewheeling

diodes.

Data Sheet

Rev. 1.1, 2007-07-31
