S87C562-4A68 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> S87C562-4A68

S87C562-4A68: DescriptionIC 8-BIT, OTPROM, 16 MHz, MICROCONTROLLER, PQCC68, Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size369KB，13 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

S87C562-4A68 Overview

IC 8-BIT, OTPROM, 16 MHz, MICROCONTROLLER, PQCC68, Microcontroller

S87C562-4A68 Parametric

Parameter Name	Attribute value
Maker	NXP
Parts packaging code	QFN
package instruction	QCCJ,
Contacts	68
Reach Compliance Code	unknown
Has ADC	YES
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQCC-J68
length	24.2316 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of I/O lines	48
Number of serial I/Os	1
Number of terminals	68
Number of timers	3
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	70 °C
Minimum operating temperature
PWM channel	YES
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Certification status	Not Qualified
RAM (number of words)	256
rom(word)	8192
ROM programmability	OTPROM
Maximum seat height	4.57 mm
speed	16 MHz
Maximum slew rate	45 mA
Maximum supply voltage	6 V
Minimum supply voltage	4 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	24.2316 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

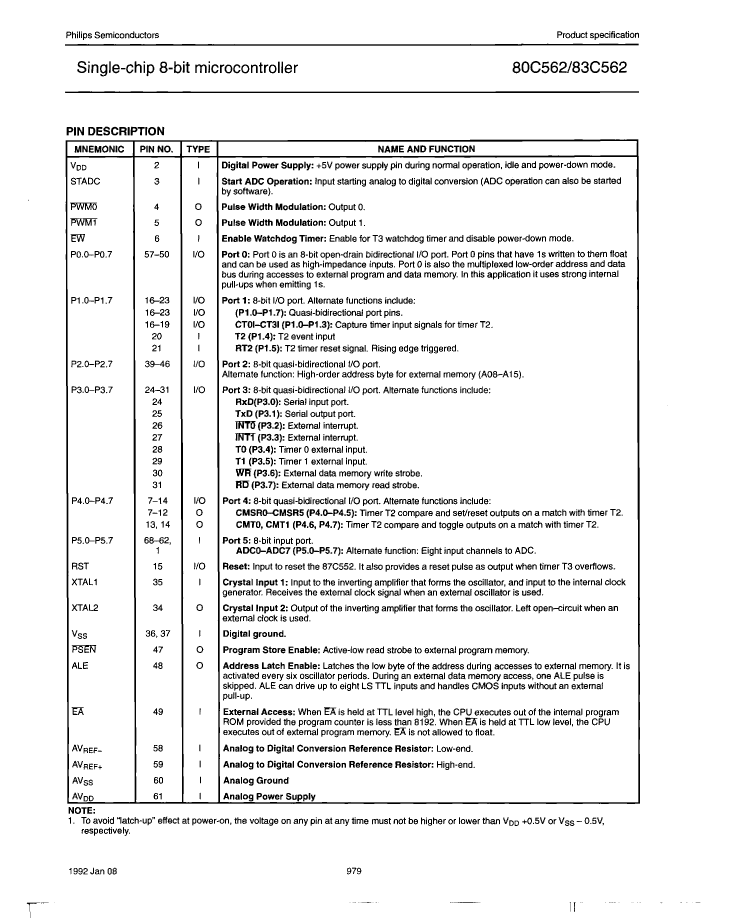

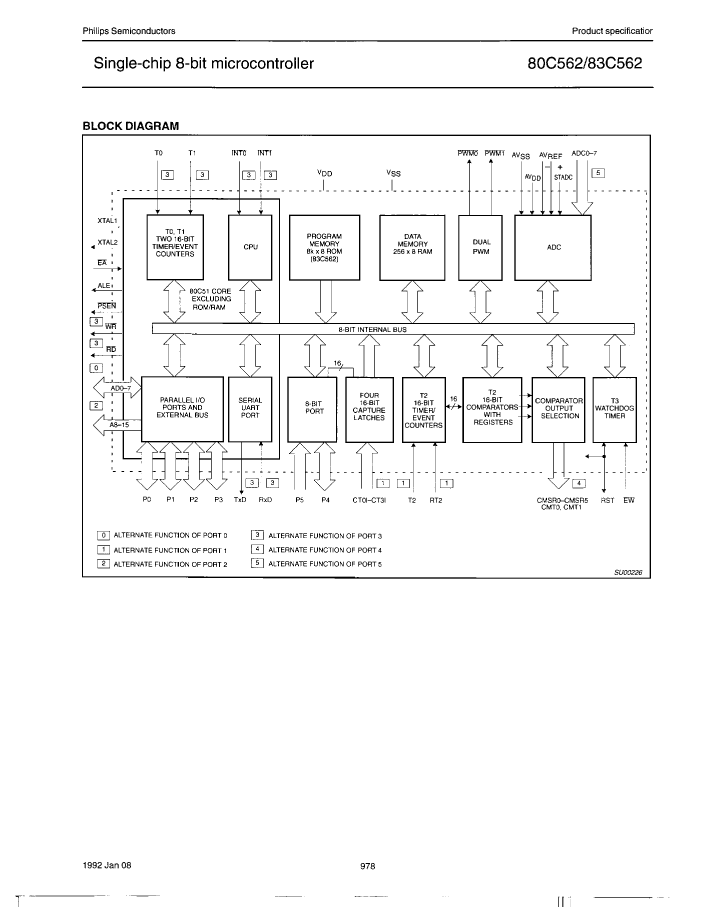

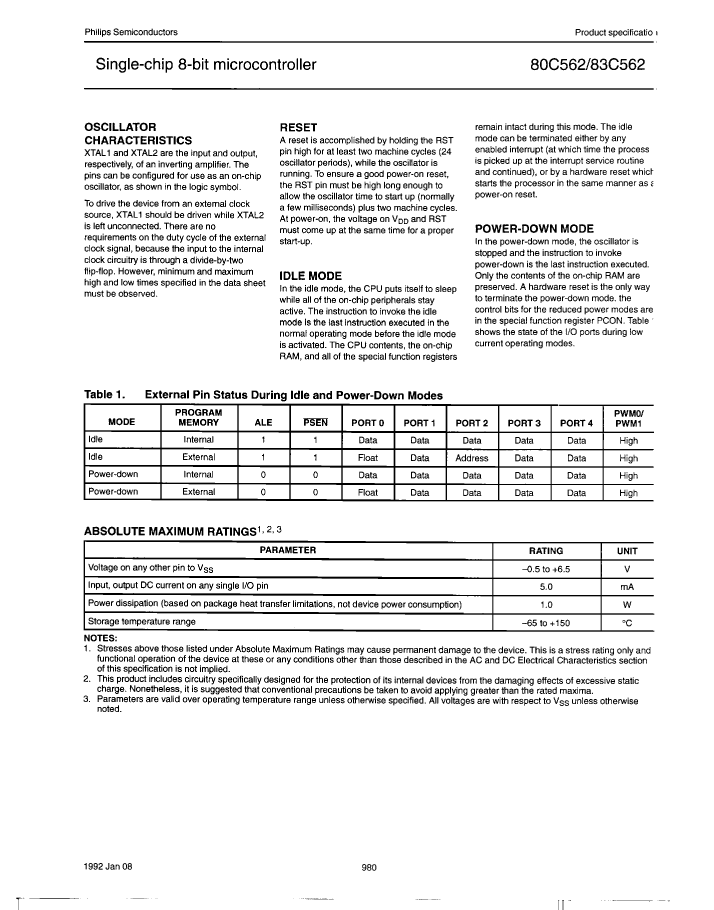

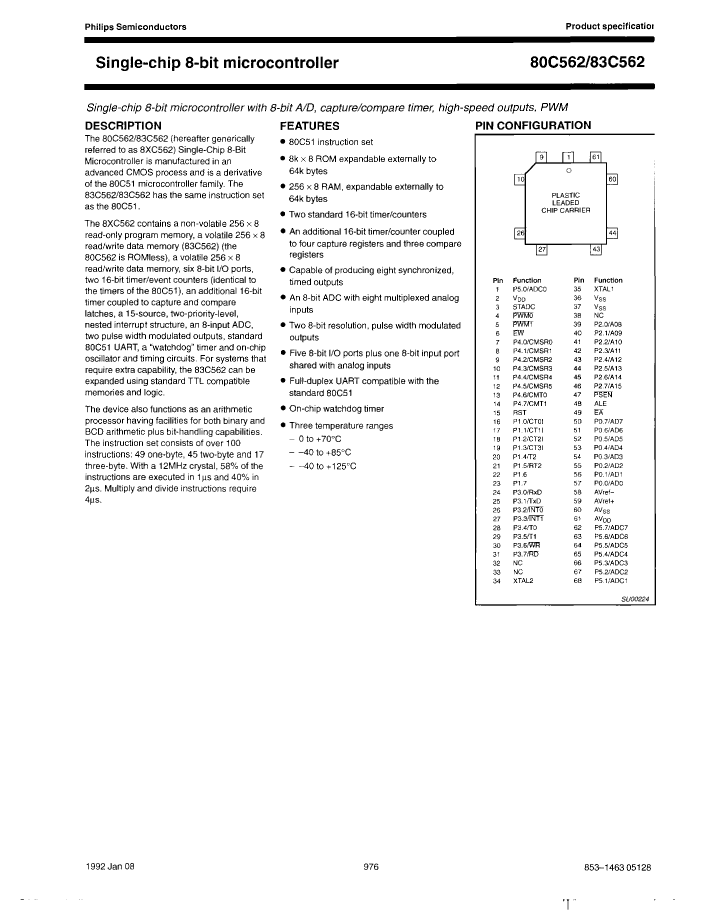

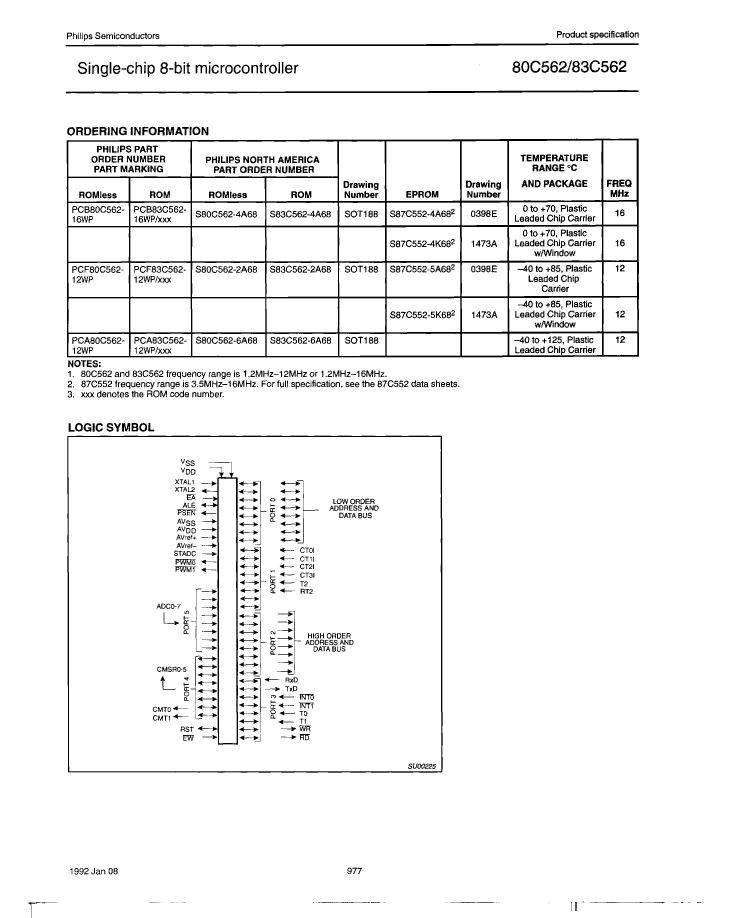

Preview

Download Datasheet

View All

S87C562-4A68 Related Products

	S87C562-4A68	PCA83C562-12WP	S87C562-5K68	S87C562-5A68	S87C562-4K68	PCF83C562-12WP	PCB83C562-16WP
Description	IC 8-BIT, OTPROM, 16 MHz, MICROCONTROLLER, PQCC68, Microcontroller	IC 8-BIT, MROM, 12 MHz, MICROCONTROLLER, PQCC68, Microcontroller	IC 8-BIT, UVPROM, 12 MHz, MICROCONTROLLER, CQCC68, Microcontroller	IC 8-BIT, OTPROM, 12 MHz, MICROCONTROLLER, PQCC68, Microcontroller	IC 8-BIT, UVPROM, 16 MHz, MICROCONTROLLER, CQCC68, Microcontroller	IC 8-BIT, MROM, 12 MHz, MICROCONTROLLER, PQCC68, Microcontroller	IC 8-BIT, MROM, 16 MHz, MICROCONTROLLER, PQCC68, Microcontroller
Parts packaging code	QFN	QFN	QFN	QFN	QFN	QFN	QFN
Contacts	68	68	68	68	68	68	68
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Has ADC	YES	YES	YES	YES	YES	YES	YES
Address bus width	16	16	16	16	16	16	16
bit size	8	8	8	8	8	8	8
boundary scan	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	16 MHz	12 MHz	12 MHz	12 MHz	16 MHz	12 MHz	16 MHz
DAC channel	NO	NO	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8	8	8
Format	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT	FIXED POINT
Integrated cache	NO	NO	NO	NO	NO	NO	NO
JESD-30 code	S-PQCC-J68	S-PQCC-J68	S-GQCC-J68	S-PQCC-J68	S-GQCC-J68	S-PQCC-J68	S-PQCC-J68
length	24.2316 mm	24.2316 mm	24.065 mm	24.2316 mm	24.065 mm	24.2316 mm	24.2316 mm
low power mode	YES	YES	YES	YES	YES	YES	YES
Number of external interrupt devices	2	2	2	2	2	2	2
Number of I/O lines	48	48	48	48	48	48	48
Number of serial I/Os	1	1	1	1	1	1	1
Number of terminals	68	68	68	68	68	68	68
Number of timers	3	3	3	3	3	3	3
On-chip data RAM width	8	8	8	8	8	8	8
On-chip program ROM width	8	8	8	8	8	8	8
Maximum operating temperature	70 °C	125 °C	85 °C	85 °C	70 °C	85 °C	70 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-	-40 °C	-
PWM channel	YES	YES	YES	YES	YES	YES	YES
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ	WQCCJ	QCCJ	WQCCJ	QCCJ	QCCJ
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER, WINDOW	CHIP CARRIER	CHIP CARRIER, WINDOW	CHIP CARRIER	CHIP CARRIER
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (number of words)	256	256	256	256	256	256	256
rom(word)	8192	8192	8192	8192	8192	8192	8192
ROM programmability	OTPROM	MROM	UVPROM	OTPROM	UVPROM	MROM	MROM
Maximum seat height	4.57 mm	4.57 mm	4.83 mm	4.57 mm	4.83 mm	4.57 mm	4.57 mm
speed	16 MHz	12 MHz	12 MHz	12 MHz	16 MHz	12 MHz	16 MHz
Maximum slew rate	45 mA	30 mA	34 mA	34 mA	45 mA	34 mA	45 mA
Maximum supply voltage	6 V	5.5 V	6 V	6 V	6 V	6 V	6 V
Minimum supply voltage	4 V	4.5 V	4 V	4 V	4 V	4 V	4 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	AUTOMOTIVE	INDUSTRIAL	INDUSTRIAL	COMMERCIAL	INDUSTRIAL	COMMERCIAL
Terminal form	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD	QUAD
width	24.2316 mm	24.2316 mm	24.065 mm	24.2316 mm	24.065 mm	24.2316 mm	24.2316 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	NXP	-	NXP	NXP	NXP	NXP	NXP
package instruction	QCCJ,	-	WQCCJ,	QCCJ,	WQCCJ,	-	-
