80C51BH-16/BUA datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 80C51BH-16/BUA

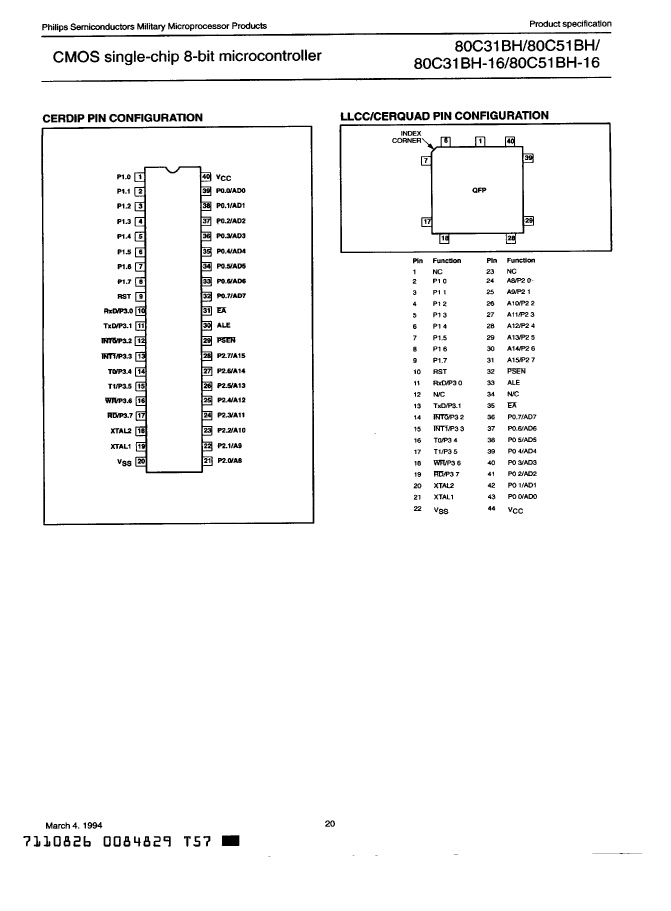

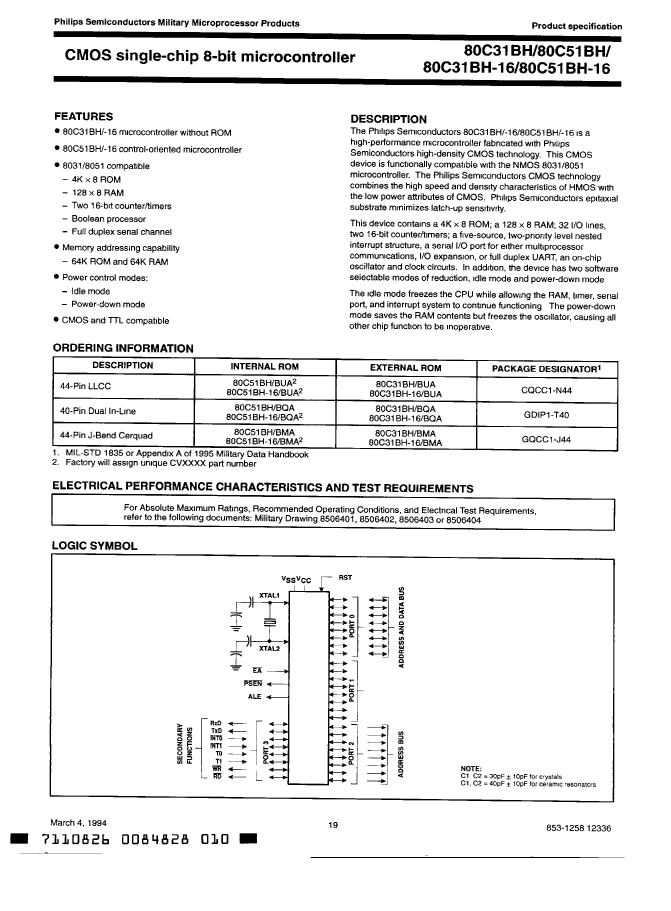

Preview

80C51BH-16/BUA: DescriptionMicrocontroller, 8-Bit, MROM, 8051 CPU, 16MHz, CMOS, CQCC44,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size60KB，2 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

80C51BH-16/BUA Overview

Microcontroller, 8-Bit, MROM, 8051 CPU, 16MHz, CMOS, CQCC44,

80C51BH-16/BUA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	QCCN, LCC44,.65SQ
Reach Compliance Code	unknown
bit size	8
CPU series	8051
JESD-30 code	S-XQCC-N44
JESD-609 code	e0
Number of terminals	44
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC44,.65SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	128
rom(word)	4096
ROM programmability	MROM
Filter level	38535Q/M;38534H;883B
speed	16 MHz
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

80C51BH-16/BUA Related Products

	80C51BH-16/BUA	80C51BH/BUA	80C31BH-16/BUA	80C51BH/BQA	80C31BH/BUA	80C31BH/BQA	80C51BH-16/BQA	80C31BH-16/BQA
Description	Microcontroller, 8-Bit, MROM, 8051 CPU, 16MHz, CMOS, CQCC44,	Microcontroller, 8-Bit, MROM, 8051 CPU, 12MHz, CMOS, CQCC44,	Microcontroller, 8-Bit, 8051 CPU, 16MHz, CMOS, CQCC44,	Microcontroller, 8-Bit, MROM, 8051 CPU, 12MHz, CMOS, CDIP40,	Microcontroller, 8-Bit, 8051 CPU, 12MHz, CMOS, CQCC44,	Microcontroller, 8-Bit, 8051 CPU, 12MHz, CMOS, CDIP40,	Microcontroller, 8-Bit, MROM, 8051 CPU, 16MHz, CMOS, CDIP40,	Microcontroller, 8-Bit, 8051 CPU, 16MHz, CMOS, CDIP40,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	QCCN, LCC44,.65SQ	QCCN, LCC44,.65SQ	QCCN, LCC44,.65SQ	DIP, DIP40,.6	QCCN, LCC44,.65SQ	DIP, DIP40,.6	DIP, DIP40,.6	DIP, DIP40,.6
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
bit size	8	8	8	8	8	8	8	8
CPU series	8051	8051	8051	8051	8051	8051	8051	8051
JESD-30 code	S-XQCC-N44	S-XQCC-N44	S-XQCC-N44	R-XDIP-T40	S-XQCC-N44	R-XDIP-T40	R-XDIP-T40	R-XDIP-T40
JESD-609 code	e0	e0	e0	e0	e0	e0	e0	e0
Number of terminals	44	44	44	40	44	40	40	40
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	QCCN	QCCN	QCCN	DIP	QCCN	DIP	DIP	DIP
Encapsulate equivalent code	LCC44,.65SQ	LCC44,.65SQ	LCC44,.65SQ	DIP40,.6	LCC44,.65SQ	DIP40,.6	DIP40,.6	DIP40,.6
Package shape	SQUARE	SQUARE	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	128	128	128	128	128	128	128	128
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
speed	16 MHz	12 MHz	16 MHz	12 MHz	12 MHz	12 MHz	16 MHz	16 MHz
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	YES	YES	NO	YES	NO	NO	NO
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	NO LEAD	NO LEAD	THROUGH-HOLE	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	2.54 mm	1.27 mm	2.54 mm	2.54 mm	2.54 mm
Terminal location	QUAD	QUAD	QUAD	DUAL	QUAD	DUAL	DUAL	DUAL
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	-
Base Number Matches	-	1	1	1	1	1	1	1
