87C52-16/BQA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> 87C52-16/BQA

87C52-16/BQA: DescriptionMicrocontroller, 8-Bit, UVPROM, 8051 CPU, 16MHz, CMOS, CDIP40,; CategoryThe embedded processor and controller Microcontrollers and processors; File Size465KB，15 Pages; ManufacturerPhilips Semiconductors (NXP Semiconductors N.V.); Websitehttps://www.nxp.com/

Download Datasheet Parametric Compare View All

87C52-16/BQA Overview

Microcontroller, 8-Bit, UVPROM, 8051 CPU, 16MHz, CMOS, CDIP40,

87C52-16/BQA Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP40,.6
Reach Compliance Code	unknown
bit size	8
CPU series	8051
JESD-30 code	R-XDIP-T40
JESD-609 code	e0
Number of terminals	40
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP40,.6
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Certification status	Not Qualified
RAM (bytes)	256
rom(word)	8192
ROM programmability	UVPROM
Filter level	38535Q/M;38534H;883B
speed	16 MHz
Maximum slew rate	39 mA
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

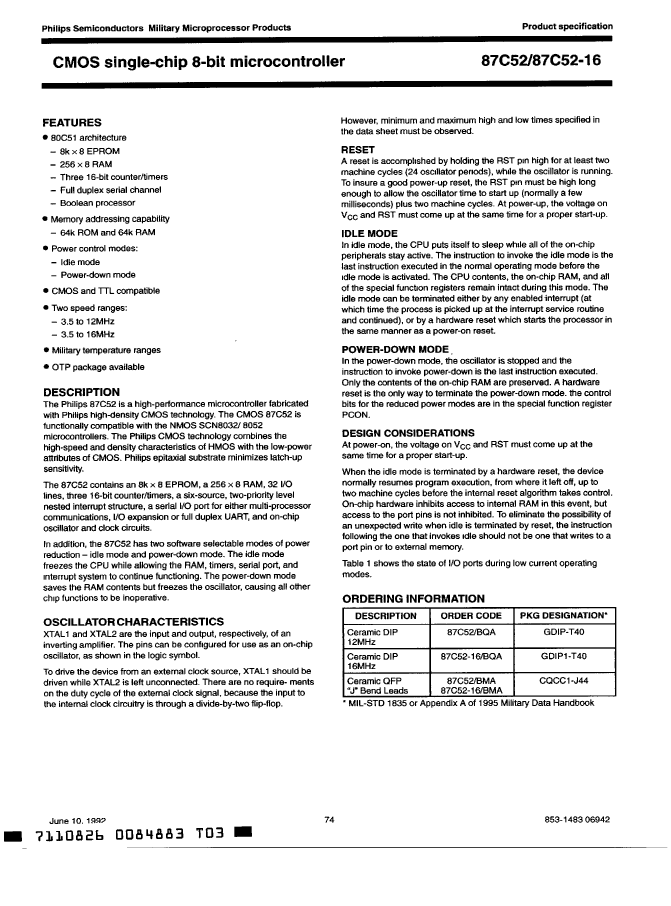

Preview

Download Datasheet

View All

This Material Copyrighted By Its Respective Manufacturer

87C52-16/BQA Related Products

	87C52-16/BQA	87C52/BMA	87C52-16/BMA	87C52/BQA
Description	Microcontroller, 8-Bit, UVPROM, 8051 CPU, 16MHz, CMOS, CDIP40,	Microcontroller, 8-Bit, UVPROM, 8051 CPU, 12MHz, CMOS, CQCC44,	Microcontroller, 8-Bit, UVPROM, 8051 CPU, 16MHz, CMOS, CQCC44,	Microcontroller, 8-Bit, UVPROM, 8051 CPU, 12MHz, CMOS, CDIP40,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible
Maker	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)	Philips Semiconductors (NXP Semiconductors N.V.)
package instruction	DIP, DIP40,.6	QCCJ, LDCC44,.7SQ	QCCJ, LDCC44,.7SQ	DIP, DIP40,.6
Reach Compliance Code	unknown	unknown	unknown	unknown
bit size	8	8	8	8
CPU series	8051	8051	8051	8051
JESD-30 code	R-XDIP-T40	S-XQCC-J44	S-XQCC-J44	R-XDIP-T40
JESD-609 code	e0	e0	e0	e0
Number of terminals	40	44	44	40
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	QCCJ	QCCJ	DIP
Encapsulate equivalent code	DIP40,.6	LDCC44,.7SQ	LDCC44,.7SQ	DIP40,.6
Package shape	RECTANGULAR	SQUARE	SQUARE	RECTANGULAR
Package form	IN-LINE	CHIP CARRIER	CHIP CARRIER	IN-LINE
power supply	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified
RAM (bytes)	256	256	256	256
rom(word)	8192	8192	8192	8192
ROM programmability	UVPROM	UVPROM	UVPROM	UVPROM
Filter level	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B
speed	16 MHz	12 MHz	16 MHz	12 MHz
Maximum slew rate	39 mA	35 mA	39 mA	35 mA
Nominal supply voltage	5 V	5 V	5 V	5 V
surface mount	NO	YES	YES	NO
technology	CMOS	CMOS	CMOS	CMOS
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	J BEND	J BEND	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm
Terminal location	DUAL	QUAD	QUAD	DUAL
Base Number Matches	-	1	1	1
