CN647TR: DescriptionRectifier Diode, 1 Element, 0.4A, Silicon, DO-41, DO-41SP, 2 PIN; CategoryDiscrete semiconductor diode; File Size70KB，2 Pages; ManufacturerCentral Semiconductor

Download Datasheet Parametric View All

CN647TR Overview

Rectifier Diode, 1 Element, 0.4A, Silicon, DO-41, DO-41SP, 2 PIN

CN647TR Parametric

Parameter Name	Attribute value
Maker	Central Semiconductor
Parts packaging code	DO-41
package instruction	O-XALF-W2
Contacts	2
Reach Compliance Code	unknown
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	DO-41
JESD-30 code	O-XALF-W2
JESD-609 code	e0
Number of components	1
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-65 °C
Maximum output current	0.4 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	LONG FORM
Maximum power dissipation	0.6 W
Certification status	Not Qualified
surface mount	NO
Terminal surface	TIN LEAD
Terminal form	WIRE
Terminal location	AXIAL

Preview

Download Datasheet

View All

DATA SHEET

CN645 THRU CN649

GLASS PASSIVATED JUNCTION

GENERAL PURPOSE DIODE

DO-41SP CASE

DESCRIPTION

The CENTRAL SEMICONDUCTOR CN645 Series types are Glass Passivated Junction general-purpose diodes, which are

well constructed, highly reliable components designed for use in all types of commercial, industrial, entertainment, computer

and automotive applications.

MAXIMUM RATINGS (TA=25°C unless otherwise noted)

SYMBOL

Peak Working Reverse Voltage

VRWM

Average Forward Current

IO

Average Forward Current (TA=150°C)

IO

Peak Forward Surge Current

IFSM

Power Dissipation

PD

Operating and Storage

Junction Temperature

TJ,Tstg

CN645 CN646 CN647 CN648 CN649

225

300

400

500

600

400

150

3.0

600

-65 to 150

UNITS

V

mA

A

mW

°C

ELECTRICAL CHARACTERISTICS (TA=25°C unless otherwise noted)

CN645

CN646

SYMBOL

TEST CONDITIONS

MIN MAX MIN MAX

VBR

IR=100µA, TA=100°C

275

360

IR

VR=RATED VRWM, TA=100°C

15

IR

VR=RATED VRWM

0.2

VF

IF=400mA

1.0

CT

VR=12V, f=1.0MHz

11 TYP

CN647

MIN MAX

480

20

0.2

1.0

11 TYP

CN648

MIN MAX

600

20

0.2

1.0

11 TYP

CN649

MIN MAX

720

25

0.2

1.0

11 TYP

UNITS

V

µA

V

pF

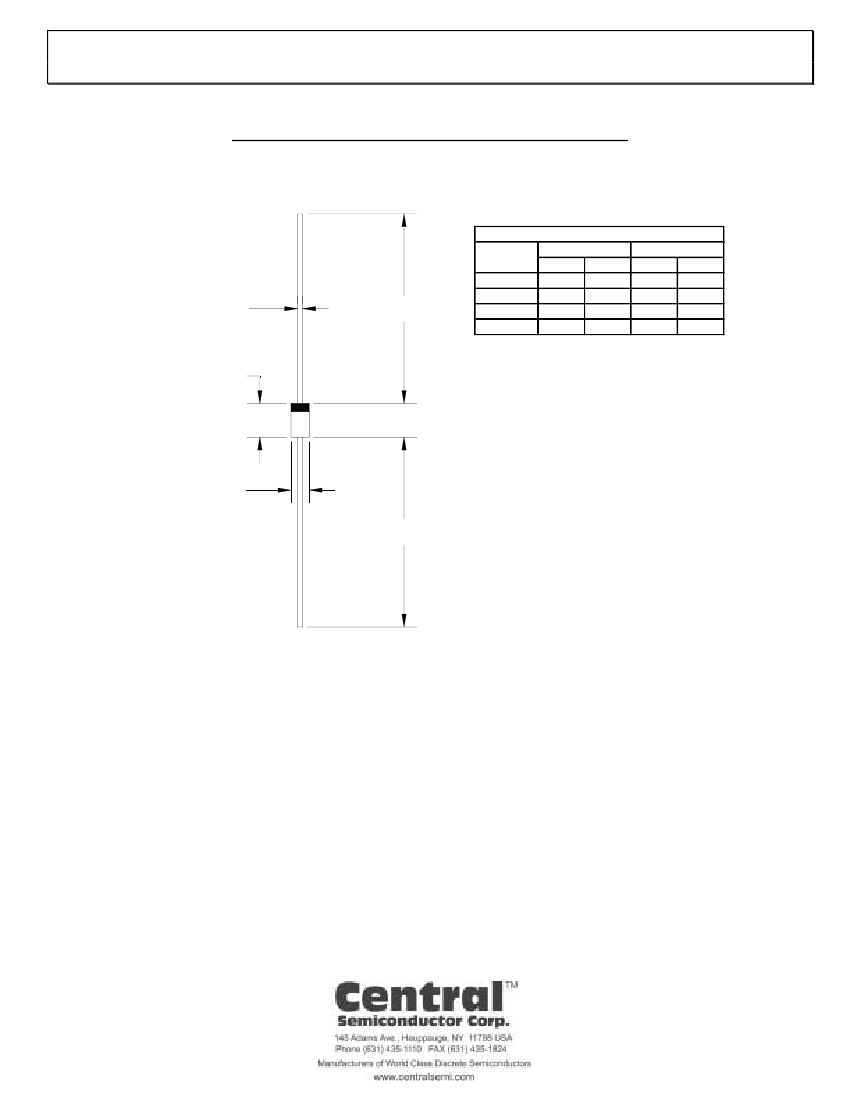

(SEE REVERSE SIDE)
