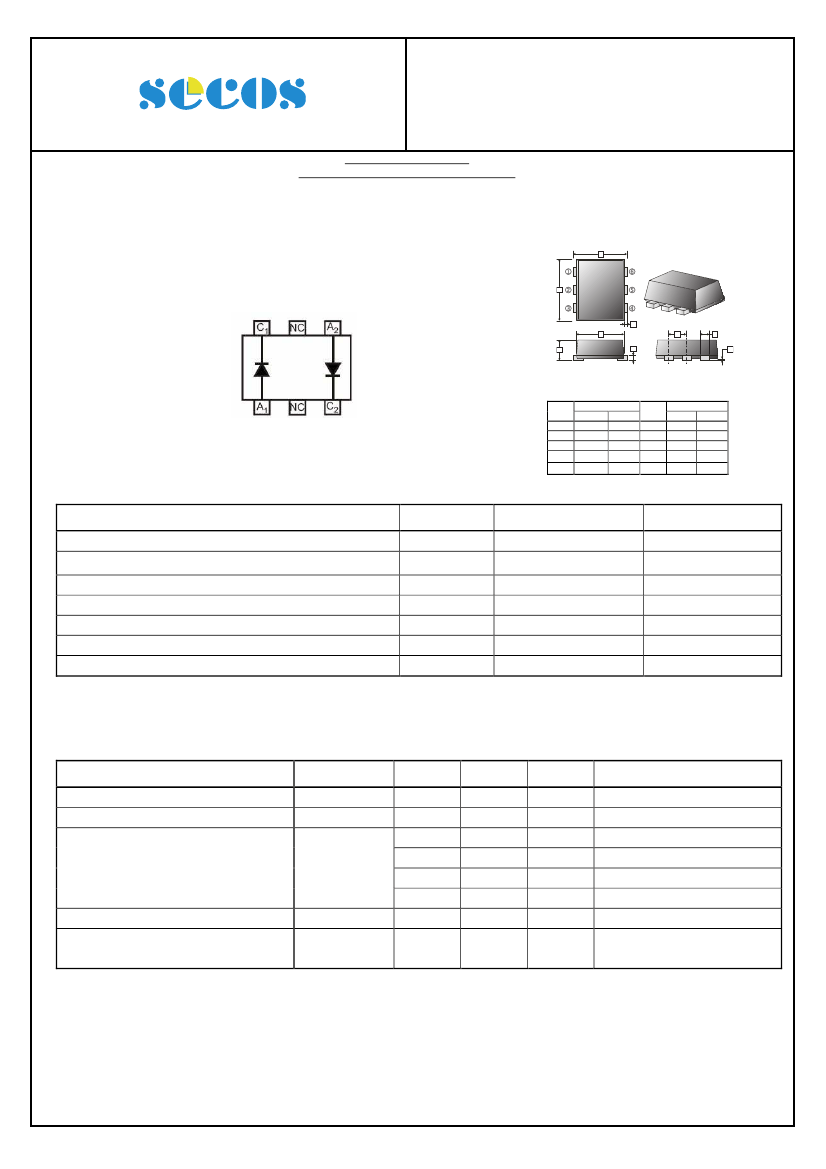

BAT54Z
Elektronische Bauelemente
VOLTAGE 30 V, 200 mA
Small Signal Schottky Diode
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
SOT-563
FEATURES
A
Surface mount schottky barrier diode arrays.
B
MARKING
KAV
C
J
D
F
G
H
E
REF.
A
B
C
D
E
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25
°
C ambient temperature unless otherwise specified.
TYPE NUMBER
Peak Repetitive Peak Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
Average Rectified Output Current
Power Dissipation
Thermal Resistance Junction to Ambient Air
Storage Temperature
Millimeter
Min.
Max.
1.50
1.70
1.50
1.70
0.525
0.60
1.10
1.30
-
0.05
REF.
F
G
H
J
Millimeter
Min.
Max.
0.09
0.16
0.45
0.55
0.17
0.27
0.10
0.30
SYMBOL
V
RRM
V
RWM
V
R
I
O
P
D
R
θJA
T
STG
VALUE
30
30
30
200
150
833
-65~125
UNIT
V
V
V
mA
mW
°
C/W
°
C
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25
°
C ambient temperature unless otherwise specified.
PARAMETER
Reverse Breakdown Voltage
Reverse Voltage Leakage Current
SYMBOL
V
(BR)R
I
R
MIN
30
MAX
2
320
400
500
1000
10
5
UNIT
V
µA
mV
mV
mV
mV
pF
nS
TEST CONDITION
I
R
= 100µA
V
R
=25V
I
F
=1mA
I
F
=10mA
I
F
=30mA
I
F
=100mA
V
R
=1V, f=1MHz
I
F
=10mA,I
R
=10mA~1mA,
R
L
=100
Forward Voltage
V
F
Total Capacitance
Reverse Recovery Time
C
T
t
rr
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
17-Nov-2009 Rev. A
Page 1 of 2
BAT54Z
Elektronische Bauelemente
VOLTAGE 30 V, 200 mA
Small Signal Schottky Diode

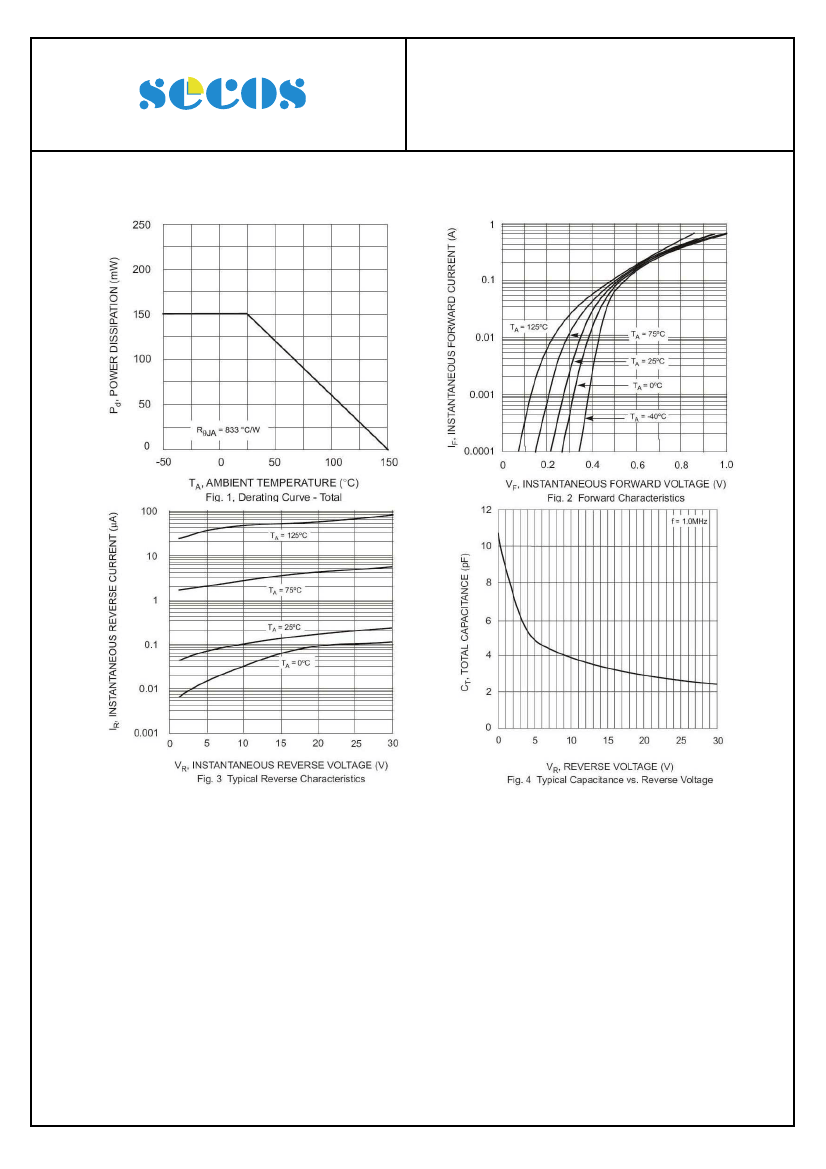

RATINGS AND CHARACTERISTIC CURVES
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
17-Nov-2009 Rev. A
Page 2 of 2
