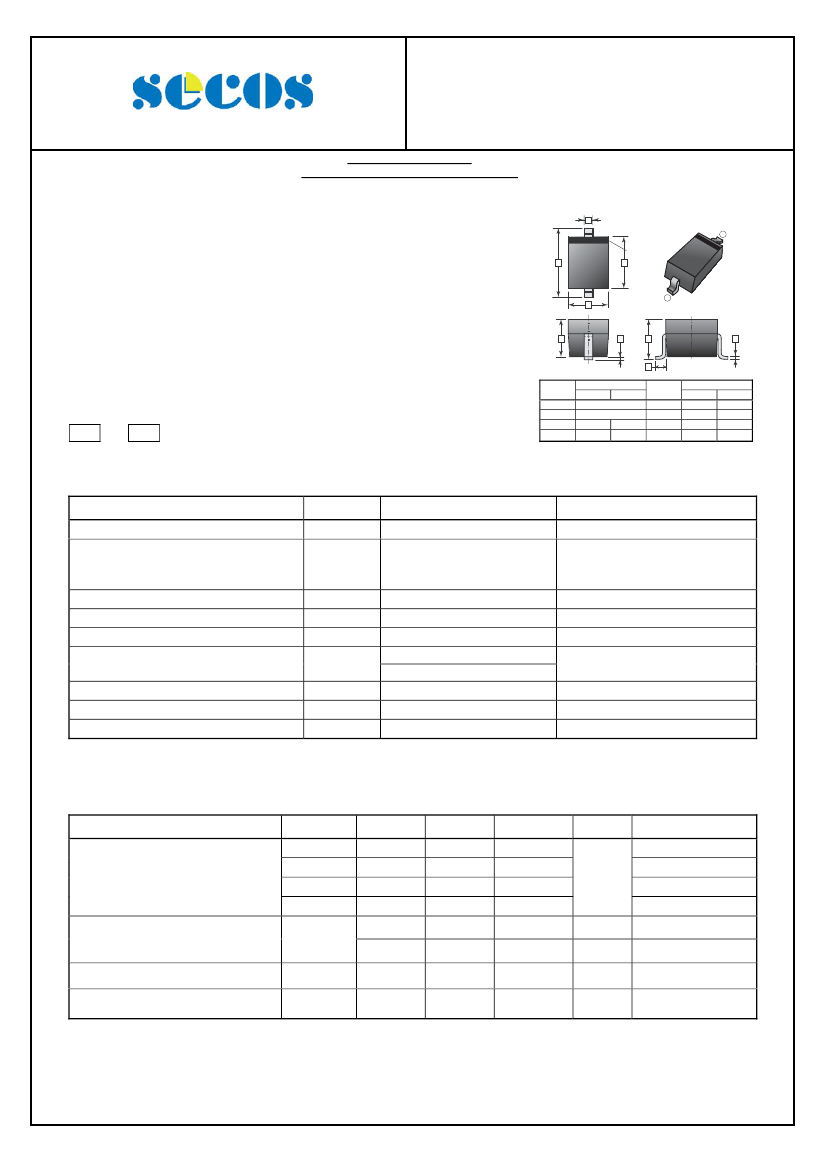

BAS16H

Elektronische Bauelemente

Surface Mount Small Signal Switching Diode

RoHS Compliant Product

A suffix of “-C” specifies halogen & lead-free

SOD-323

D

DESCRIPTION



1

Fast Switching Speed

Surface Mount Package Ideally Suited for Automatic Insertion

For General Purpose Switching Applications

High Conductance

Cathode Band

H

G

2

F

C

B

A

E

J

REF.

MARKING

T6

or

T4

A

B

C

D

Millimeter

Min.

Max.

1.05 REF.

0.20 REF.

0.80

1.00

0.25

0.40

REF.

E

F

G

H

Millimeter

Min.

Max.

0.080

0.180

1.15

1.45

1.60

1.80

2.30

2.70

MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS

(Single Diode @ T

A

= 25°C)

Parameter

Non-Repetitive Peak Reverse Voltage

Peak Repetitive Peak Reverse Voltage

Working Peak Reverse Voltage

DC Blocking Voltage

RMS Reverse Voltage

Forward Continuous Current

Average Rectified Output Current

Peak Forward Surge Current @=1.0μs

@=1.0s

Power Dissipation

Thermal Resistance Junction to Ambient

Junction, Storage Temperature

Symbol

V

RM

V

RRM

V

RWM

V

R

V

R(RMS)

I

FM

I

O

I

FSM

P

D

R

θJA

T

J

, T

STG

Ratings

100

75

53

300

150

2.0

1.0

200

625

125, -65 ~ +150

Unit

V

mA

A

mW

°C

/ W

°C

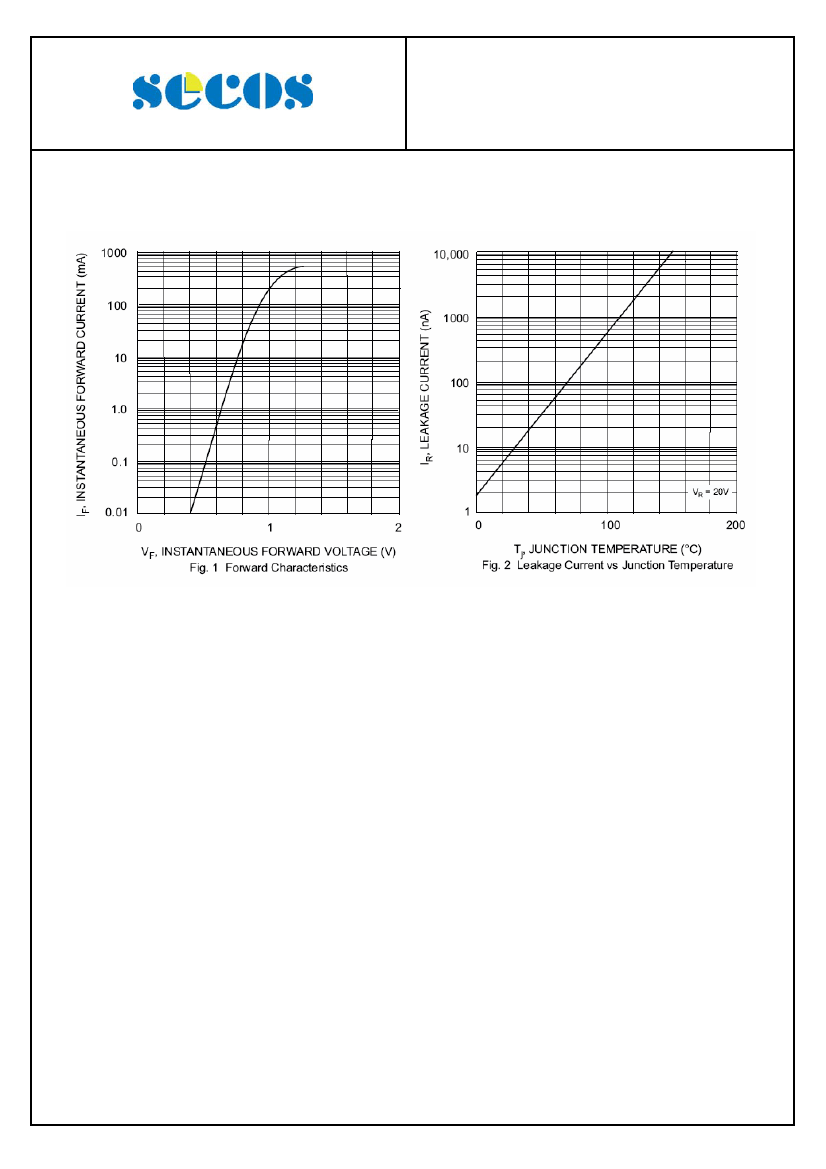

ELECTRICAL CHARACTERISTICS

(at T

A

= 25°C unless otherwise specified)

Parameters

Forward Voltage

Symbol

V

F1

V

F2

V

F3

V

F4

Min.

-

Typ.

-

Max.

0.715

0.855

1.0

1.25

1

25

2

4

Unit

V

Test Conditions

I

F

= 1mA

I

F

= 10mA

I

F

= 50mA

I

F

= 150mA

V

R

= 75V

V

R

= 20V

V

R

= 0V, f=1MHz

I

F

= I

R

= 10 mA,

I

RR

=0.1xI

R

, R

L

=100

Reverse Voltage Leakage Current

Capacitance between terminals

Reverse Recovery Time

I

R

C

T

t

RR

μA

nA

pF

nS

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

18-May-2010 Rev. A

Page 1 of 2
