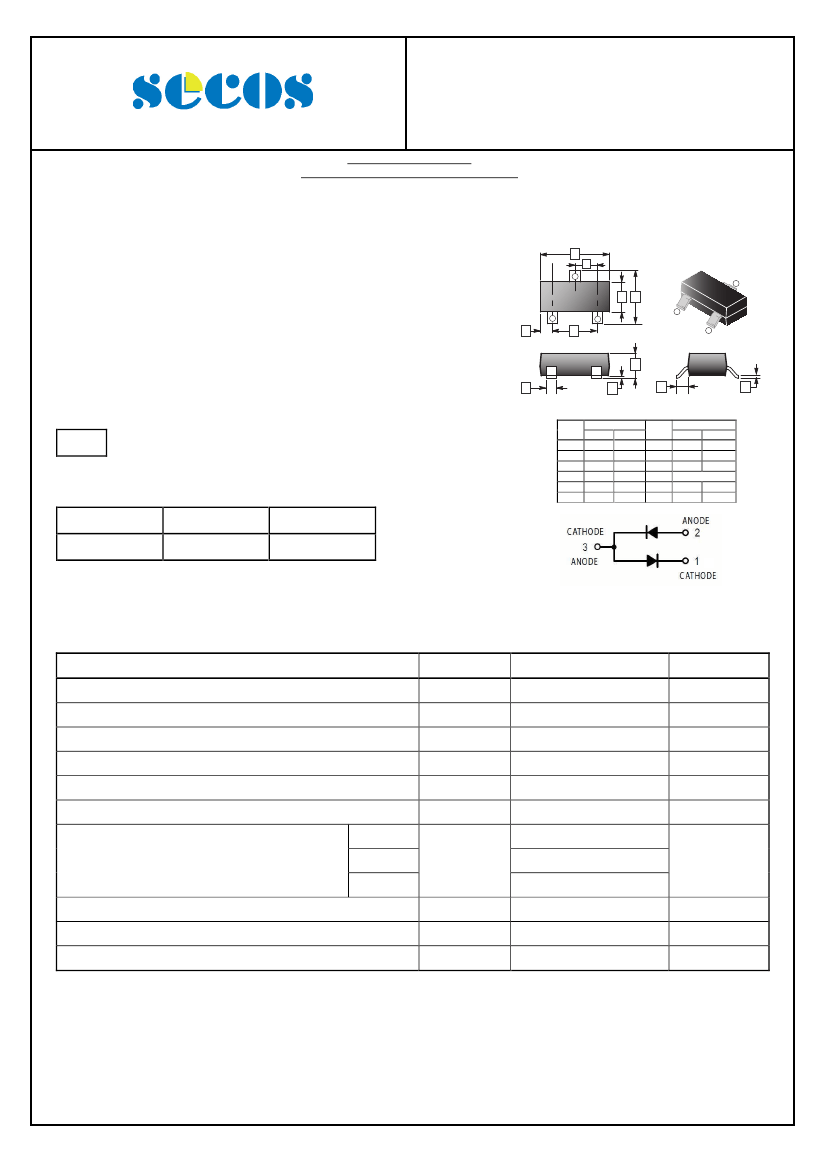

BAV89
Elektronische Bauelemente
0.715 A , 70 V
Surface Mount Switching Diode
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
FEATURES
Fast switching speed Max:4ns.
High conductance.
Connected in series.
Surface mount package ideally suited for
automatic insertion.
1
SOT-23
A
L
3
3
Top View
2
C B
1
2
K
E
D
APPLICATIONS
High-speed switching in thick and thin-film circuits.
F
G
Millimeter
Min.
Max.
2.70
3.04
2.10
2.80
1.20
1.60
0.89
1.40
1.78
2.04
0.30
0.50
H
J
MARKING
REF.
REF.
G
H
J
K
L
F7
PACKAGE INFORMATION
Package
SOT-23
MPQ
3K
Leader Size
7 inch
A
B
C
D
E
F
Millimeter
Min.
Max.
-
0.18
0.40
0.60
0.08
0.20
0.6 REF.
0.85
1.15
ABSOLUTE MAXIMUM RATINGS
(T
A
= 25°C unless otherwise specified)
Parameter
Reverse voltage
Forward current
Peak forward surge current
Maximum Recurrent Peak Reverse Voltage
Maximum Average Forward Rectified Current
Repetitive Peak Reverse current
t=1.0µs
Peak Forward Surge Current 8.3 ms Single Half
Sine-Wave Super Imposed on Rated Load (JEDEC t=1.0ms
Method)
t=1.0s
Power dissipation
Typical Thermal Resistance
Operating and storage temperature range
Symbol
V
R
I
F
I
FM
V
RRM
I
F(AV)
I
FRM
Value
70
215
500
70
715
450
2.0
Unit
V
mA
mA
V
mA
mA
I
FSM
1.0
0.5
A
Pd
R
θJA
T
J
,T
STG
225
556
-65~150
mW
° /W
C
°
C
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
23-Jun-2011 Rev. A
Page 1 of 2
BAV89
Elektronische Bauelemente
0.715 A , 70 V
Surface Mount Switching Diode
ELECTRICAL CHARACTERISTICS
(T
A
= 25°C unless otherwise specified)
Parameter
Reverse Breakdown Voltage
Symbol
V
(BR)R
V
F1
V
F2
V
F3
V
F4
I
R1
I
R2
I
R3
I
R4
C
D
T
RR
Min.
75
-
-
-
-
-
Typ.
-
-
-
-
-
-
Max.
-
0.715
0.855
1
1.25
0.025
2.5
30
50
Unit
V
Test Condition
I
R
=2.5µA
I
F
=1mA
I
F
=10mA
I
F
=50mA
I
F
=150mA
V
R
=20V
V
R
=75V
V
R
=25V T
j
=150°
C
V
R
=75V T
j
=150°
C
V
R
=0 , f = 1MHz
I
F
=I
R
=10mA,
I
RR
=0.1 x I
R
, R
L
=100
Forward Voltage
V
Reverse Voltage Leakage Current
µA
Diode Capacitance
Reverse Recovery Time
-
-
-
-
2.0
4.0
pF
nS

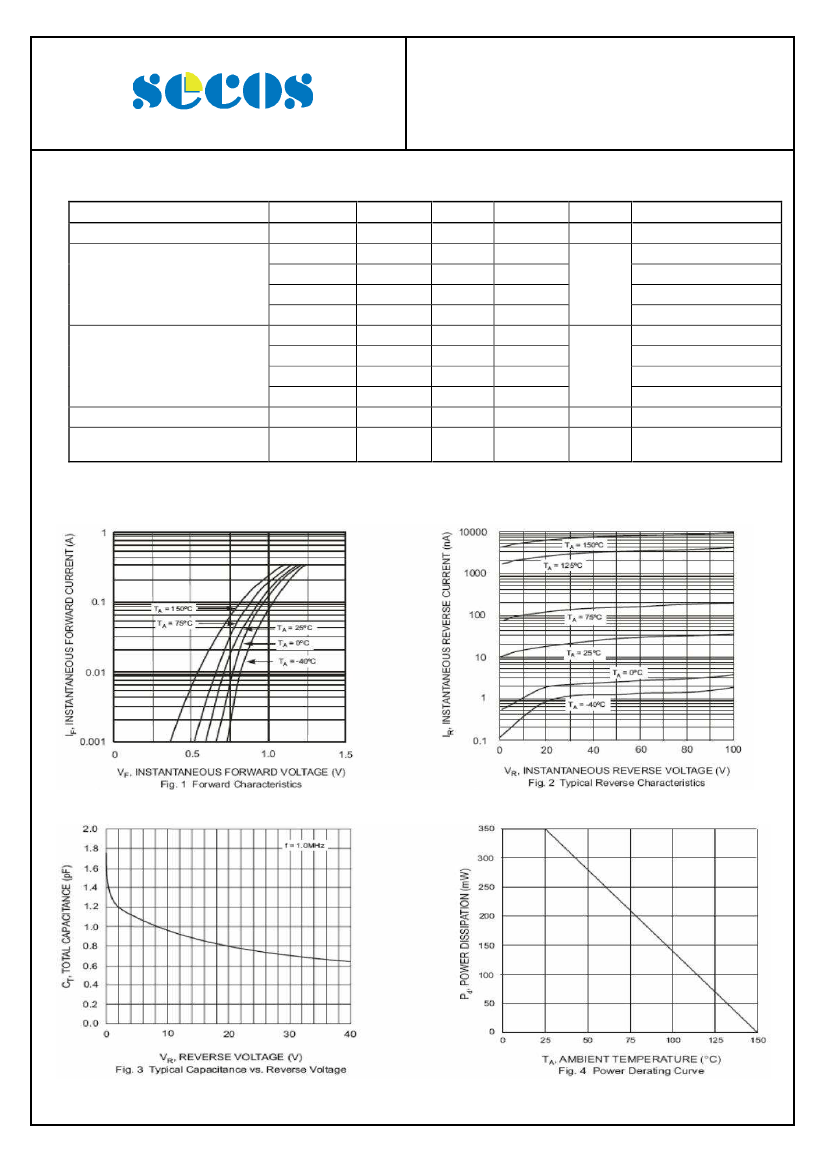

RATINGS AND CHARACTERISTIC CURVES
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
23-Jun-2011 Rev. A
Page 2 of 2
This datasheet has been downloaded from:
www.EEworld.com.cn
Free Download
Daily Updated Database
100% Free Datasheet Search Site
100% Free IC Replacement Search Site
Convenient Electronic Dictionary
Fast Search System
www.EEworld.com.cn
All Datasheets Cannot Be Modified Without Permission
Copyright © Each Manufacturing Company
