BC847AW datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> The transistor> BC847AW

BC847AW: Description100 mA, 65 V, NPN, Si, SMALL SIGNAL TRANSISTOR; CategoryDiscrete semiconductor The transistor; File Size908KB，5 Pages; ManufacturerSECOS; Websitehttp://www.secosgmbh.com/

Download Datasheet Parametric Compare View All

BC847AW Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	BC847AW	-	-	View	Buy Now

BC847AW Overview

100 mA, 65 V, NPN, Si, SMALL SIGNAL TRANSISTOR

BC847AW Parametric

Parameter Name	Attribute value
Maker	SECOS
Reach Compliance Code	compli

Preview

Download Datasheet

View All

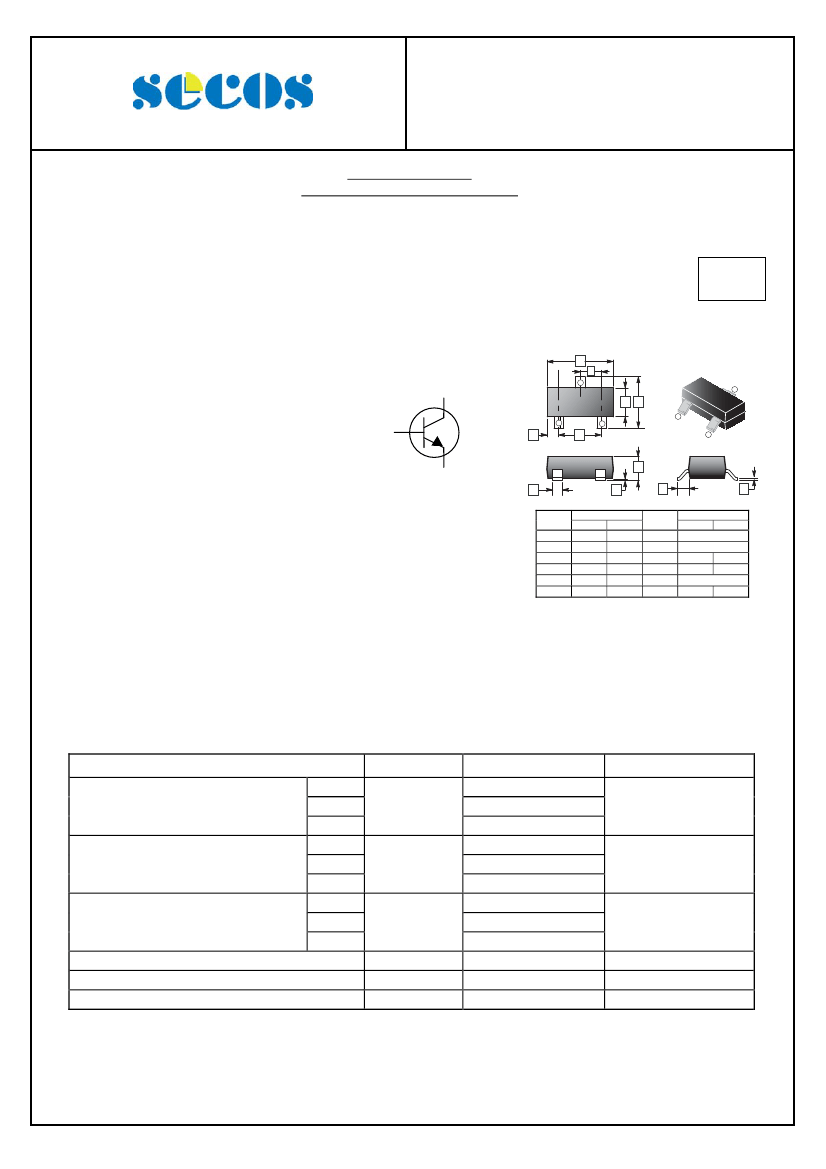

Elektronische Bauelemente

BC846AW,BW

BC847AW, BW, CW

BC848AW, BW, CW

NPN Plastic Encapsulate Transistor

RoHS Compliant Product

A suffix of “-C” specifies halogen & lead-free

FEATURES



Ideally suited for automatic insertion

For Switching and AF Amplifier Applications

Base

Emitter

Collector

SOT-323

Collector

MARKING

BC846AW=1A;BC846BW=1B;

BC847AW=1E;BC847BW=1F;BC847CW=1G;

BC848AW=1J;BC848BW=1K;BC848CW=1L



Top View

C B



Base



Emitter

REF.

Millimeter

Min.

Max.

1.80

2.20

1.80

2.45

1.15

1.35

0.80

1.10

1.20

1.40

0.20

0.40

REF.

Millimeter

Min.

Max.

0.100 REF.

0.525 REF.

0.08

0.25

0.650 TYP.

ABSOLUTE MAXIMUM RATINGS ( T

= 25°C unless otherwise noted )

PARAMETER

BC846W

Collector to Base Voltage

BC847W

BC848W

BC846W

Collector to Emitter Voltage

BC847W

BC848W

BC846W

Emitter to Base Voltage

Collector Current - Continuous

Collector Power Dissipation

Junction, Storage Temperature

BC847W

BC848W

, T

STG

EBO

CEO

CBO

SYMBOL

RATINGS

0.1

150

150, -55 ~ 150

UNIT

℃

24-Mar-2010 Rev. A

Page 1 of 4

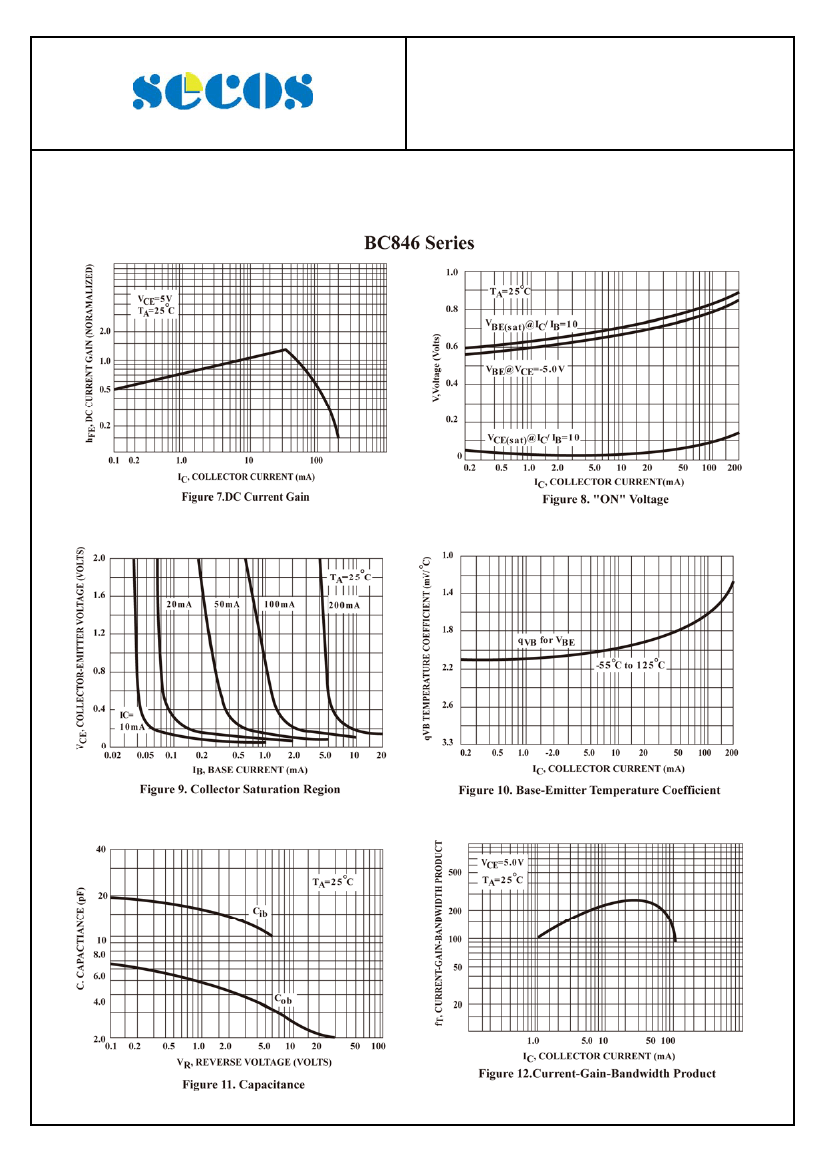

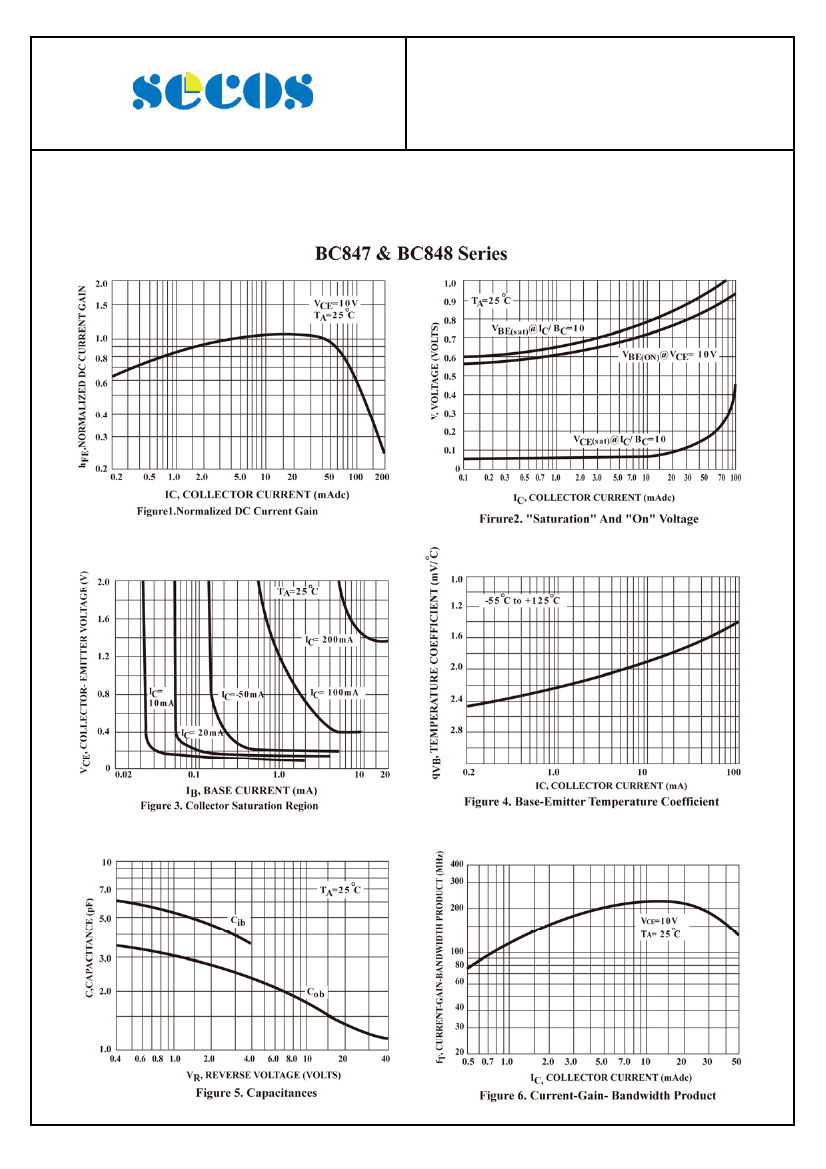

BC847AW Related Products

	BC847AW	BC846AW	BC846BW	BC847CW	BC848BW	BC848AW	BC848CW	BC847BW
Description	100 mA, 65 V, NPN, Si, SMALL SIGNAL TRANSISTOR	100 mA, 65 V, NPN, Si, SMALL SIGNAL TRANSISTOR	100 mA, 65 V, NPN, Si, SMALL SIGNAL TRANSISTOR	100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR	100 mA, 65 V, NPN, Si, SMALL SIGNAL TRANSISTOR	100 mA, 65 V, NPN, Si, SMALL SIGNAL TRANSISTOR	100 mA, 65 V, NPN, Si, SMALL SIGNAL TRANSISTOR	100 mA, 45 V, NPN, Si, SMALL SIGNAL TRANSISTOR
Maker	SECOS	SECOS	SECOS	SECOS	SECOS	SECOS	SECOS	SECOS
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compliant	compli
