RP201N261B-TR-F

Description
Fixed Positive LDO Regulator, 2.6V, 0.18V Dropout, CMOS, PDSO5, LEAD FREE, SOT-23, 5 PIN
CategoryPower/power management    The power supply circuit
File Size336KB,2 Pages
ManufacturerRICOH Electronic Devices Co., Ltd.
Environmental Compliance
Download Datasheet Parametric View All

RP201N261B-TR-F Overview

Fixed Positive LDO Regulator, 2.6V, 0.18V Dropout, CMOS, PDSO5, LEAD FREE, SOT-23, 5 PIN

RP201N261B-TR-F Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerRICOH Electronic Devices Co., Ltd.
Parts packaging codeSOT-23
package instructionLEAD FREE, SOT-23, 5 PIN
Contacts5
Reach Compliance Codeunknown
ECCN codeEAR99
Maximum drop-back voltage 10.18 V
Maximum input voltage5.25 V
Minimum input voltage1.4 V
JESD-30 codeR-PDSO-G5
JESD-609 codee6/e2
length2.9 mm
Number of functions1
Number of terminals5
Maximum output current 10.15 A
Maximum output voltage 12.626 V
Minimum output voltage 12.574 V
Nominal output voltage 12.6 V
Package body materialPLASTIC/EPOXY
encapsulated codeLSSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE, LOW PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Regulator typeFIXED POSITIVE SINGLE OUTPUT LDO REGULATOR
Maximum seat height1.3 mm
surface mountYES
technologyCMOS
Terminal surfaceTIN BISMUTH/TIN SILVER
Terminal formGULL WING
Terminal pitch0.95 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
width1.6 mm

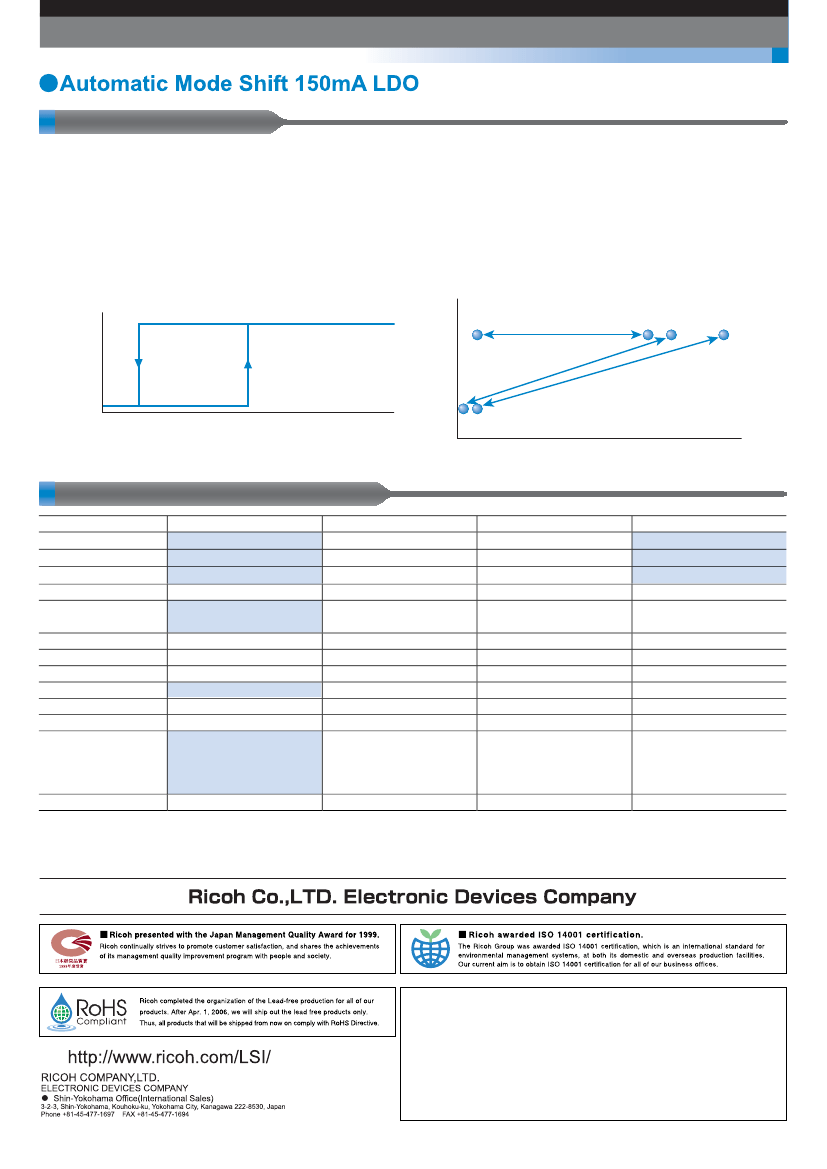

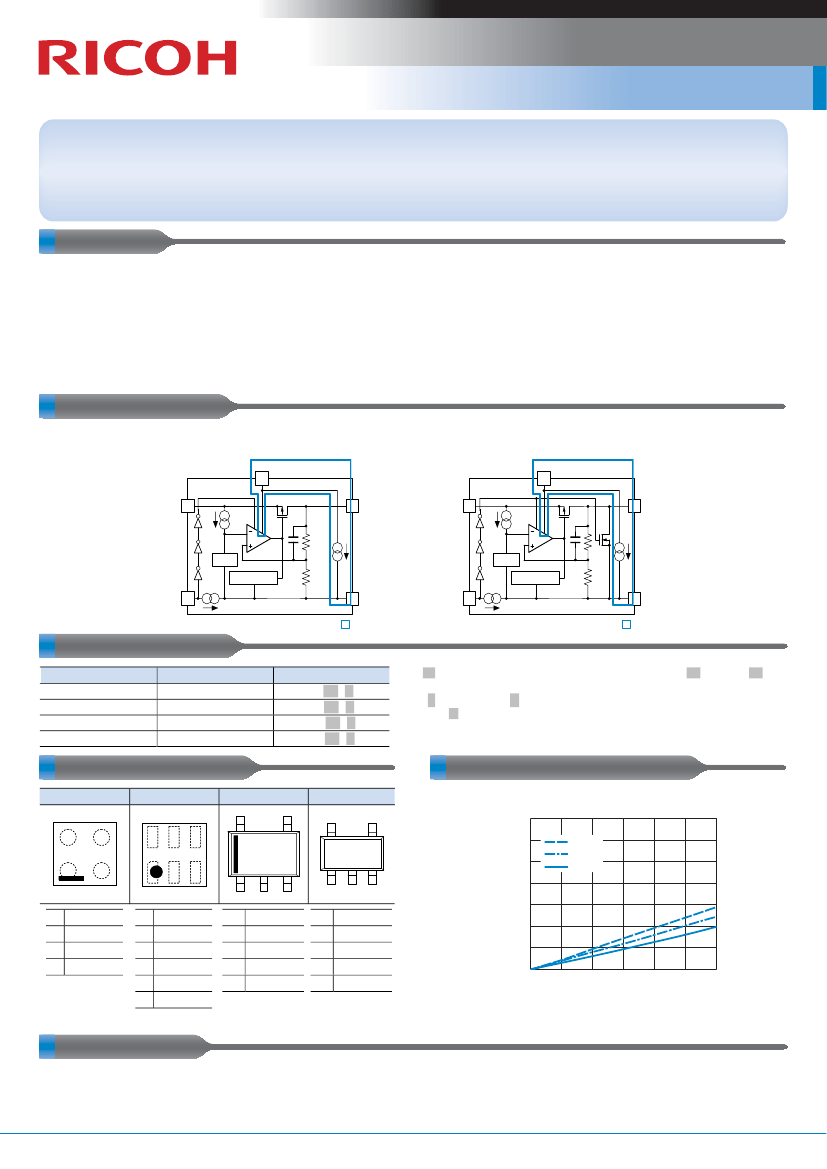

RP201x Series
Automatic Mode Shift 150mA LDO
The RP201x Series are CMOS-based automatic mode shift LDO regulators featuring 150mA output. In auto switching mode, the
operation can switch automatically to fast response mode or low power mode of the ECO function according to output current.
(Automatic switching to fast response mode under I
OUT
>8mA conditions or to low power mode under I
OUT
<1mA conditions.) In lower
power mode, supply current is as low as 1μA. In fast response mode, ripple rejection is 70dB and noise is low. By inputting control
signal into the AE pin, the mode of the regulator can be fixed with fast response mode. In addition to SOT-23-5 and SC-88A packages,
a 0.69mm square WLCSP-4-P5 package and a 1.2mm square DFN(PLP)1212-6 are also available.
FEATURES
Supply Current (I
SS2
) ··················· Typ. 55μA (Fast mode, V
IN
=SET V
OUT
+1V)
Supply Current (I
SS1
) ··················· Typ. 1.5μA (Low power mode, same as above, V
OUT
=2.8V)
Standby Current (I
standby
) ············· Typ. 0.1μA (Same as above, CE="L")
Dropout Voltage (V
DIF
) ················ Typ. 0.12V (I
OUT
=150mA, V
OUT
=2.8V)
Ripple Rejection (RR)················· Typ. 70dB (Fast mode, f=1kHz)
Input Voltage Range (V
IN
) ··········· 1.4V to 5.25V
Output Voltage Range (V
OUT
)······ 0.8V to 4.0V (internally fixed)
Output Voltage Accuracy ············
±
1%
Temp. coeff. of Output Voltage ·······Typ.
±
50ppm/°C
Line Regulation·······························Typ. 0.02%/V (Fast mode)
Fold-back Protection Circuit ···········Current limit Typ. 50mA
Auto-Discharge function ·················D Version
Packages ········································WLCSP-4-P5, DFN(PLP)1212-6,
SC-88A, SOT-23-5
Ceramic capacitor can be used. ·····1μF or more
(The above shows specification at Topt=25°C. Design assurance value at -40°C
<
Topt
<
85°C is also available. For details, please refer to the datasheet.)
=
=
BLOCK DIAGRAMS
RP201xxxxB
(Without Auto-Discharge function)
AE
RP201xxxxD
(With Auto-Discharge function)
AE
V
DD
V
OUT
V
DD
V
OUT
Vref
Current Limit
Vref
Current Limit
CE
GND
CE
GND
WLCSP-4-P5 type does not have
.
WLCSP-4-P5 type does not have
.
SELECTION GUIDES
Package
WLCSP-4-P5
DFN(PLP)1212-6
SC-88A
SOT-23-5
Quantity per Reel
5,000 pcs
5,000 pcs
3,000 pcs
3,000 pcs
Part No.
RP201Z.xx.1.
-TR-F
RP201K.xx.1.
-TR
RP201Q.xx.2.
-TR-F
RP201N.xx.1.
-TR-F
.xx.
: Specify the output voltage within the range 0.8V (.08.) to 4.0V (.40.)
in 0.1V steps.
: Select from (.B.) without auto-discharge function or
.∗
(.D.) with auto-discharge function
PACKAGES (Top View)
WLCSP-4-P5 DFN(PLP)1212-6
4
3
6
5
4
TYPICAL CHARACTERISTIC
SOT-23-5
5
4
SC-88A
5
4
RP201x26xx Dropout Voltage vs. Output Current
350
Dropout Voltage V
DIF
(mV)
300
250
200
150
100
50
0
0
85°C
25°C
-40°C
1
2
1
2
3
1
1
2
3
2
3
1
2
3
4
V
DD
CE
GND
V
OUT
1
2
3
4
5
6
AE
GND
CE
V
DD
NC
V
OUT
1
2
3
4
5
AE
GND
V
OUT
V
DD
CE
1
2
3
4
5
V
DD
GND
CE
AE
V
OUT
25
50
75
100 125
Output Current I
OUT
(mA)
150
∗)
WLCSP-4-P5 does not have AE pin.
APPLICATIONS
Power source for hand-held communication equipment, camera and VCRs
Power source for home appliances and digital home appliance
Power source for battery-powered equipment
No.EK-234-091101
150mA CMOS LDO Regulator
