LT1013AMJ8/883B datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LT1013AMJ8/883B

LT1013AMJ8/883B: DescriptionIC DUAL OP-AMP, 300 uV OFFSET-MAX, CDIP8, CERDIP-8, Operational Amplifier; CategoryAnalog mixed-signal IC Amplifier circuit; File Size781KB，19 Pages; ManufacturerLinear ( ADI ); Websitehttp://www.analog.com/cn/index.html

Download Datasheet Parametric Compare View All

LT1013AMJ8/883B Overview

IC DUAL OP-AMP, 300 uV OFFSET-MAX, CDIP8, CERDIP-8, Operational Amplifier

LT1013AMJ8/883B Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Linear ( ADI )
Parts packaging code	DIP
package instruction	DIP,
Contacts	8
Reach Compliance Code	compliant
ECCN code	EAR99
Amplifier type	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.03 µA
Nominal Common Mode Rejection Ratio	114 dB
Maximum input offset voltage	300 µV
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
Negative supply voltage upper limit	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V
Number of functions	2
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	5.08 mm
Nominal slew rate	0.4 V/us
Supply voltage upper limit	22 V
Nominal supply voltage (Vsup)	15 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	TIN LEAD
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

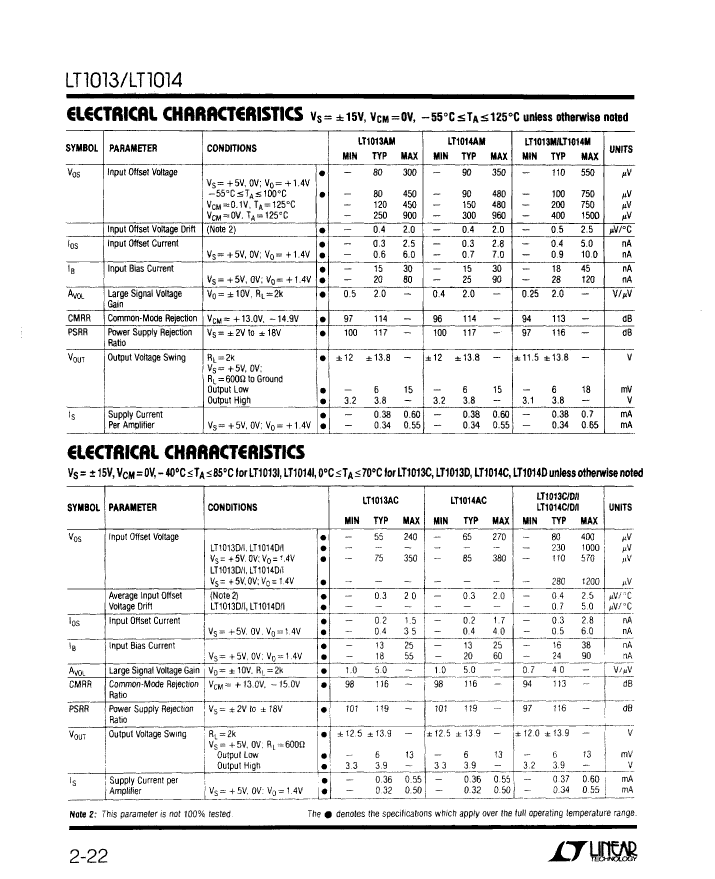

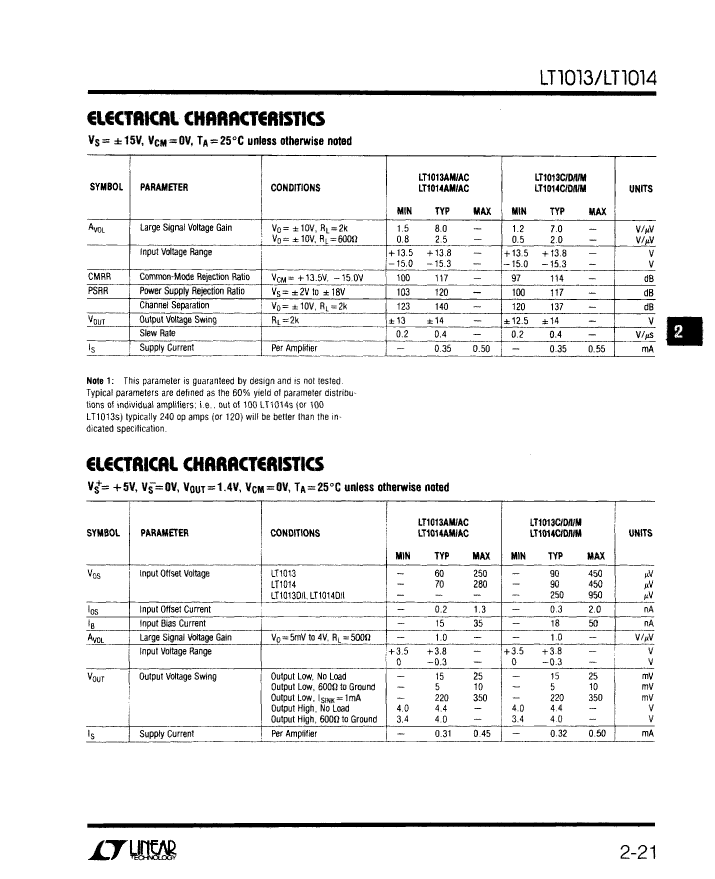

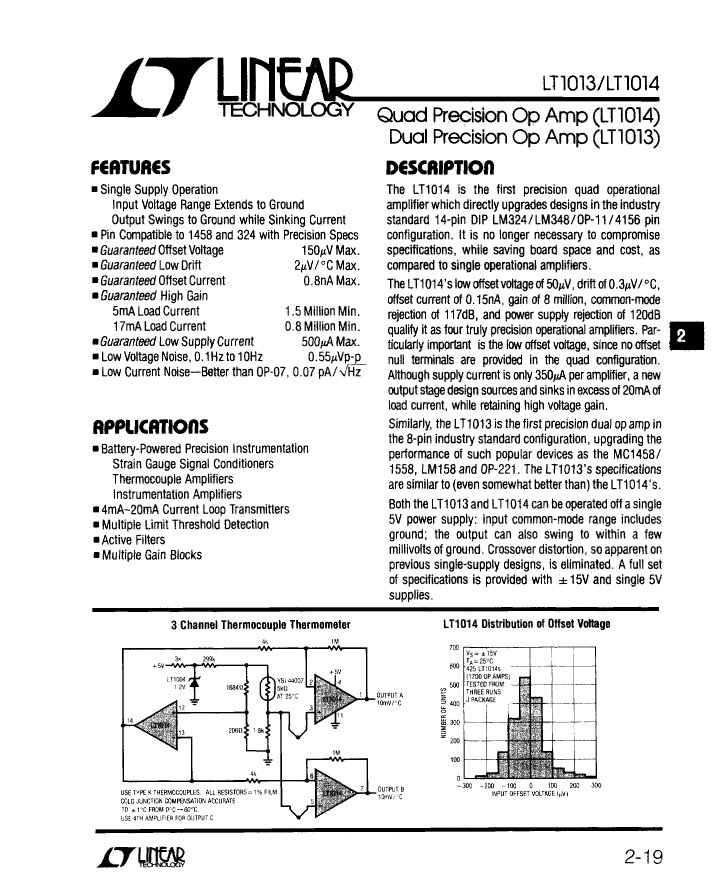

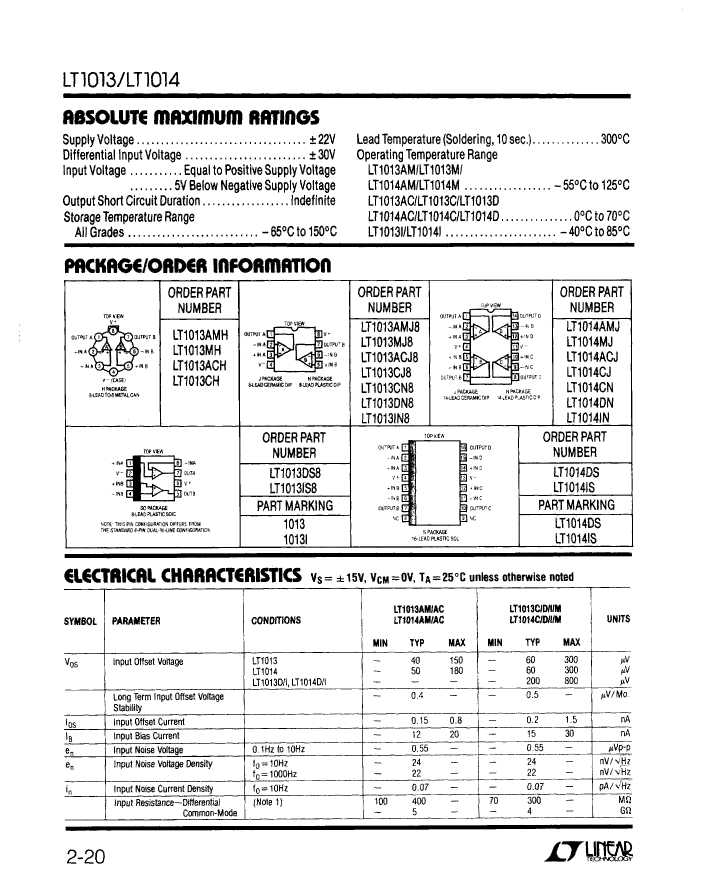

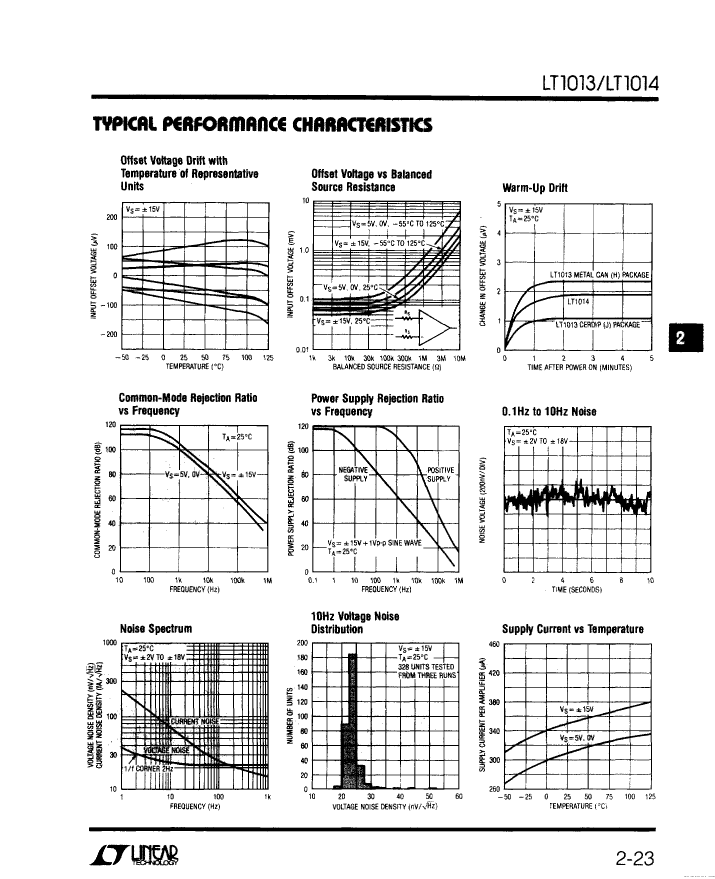

Preview

Download Datasheet

View All

LT1013AMJ8/883B Related Products

	LT1013AMJ8/883B	LT1013AMH/883B	LT1014AMJ/883B	LT1014MJ/883B	LT1013MJ8/883B	LT1013MH/883B
Description	IC DUAL OP-AMP, 300 uV OFFSET-MAX, CDIP8, CERDIP-8, Operational Amplifier	IC DUAL OP-AMP, 300 uV OFFSET-MAX, MBCY8, METAL CAN, TO-5, 8 PIN, Operational Amplifier	IC QUAD OP-AMP, 350 uV OFFSET-MAX, CDIP14, CERDIP-14, Operational Amplifier	IC QUAD OP-AMP, 550 uV OFFSET-MAX, CDIP14, CERDIP-14, Operational Amplifier	IC DUAL OP-AMP, 550 uV OFFSET-MAX, CDIP8, CERDIP-8, Operational Amplifier	IC DUAL OP-AMP, 550 uV OFFSET-MAX, MBCY8, METAL CAN, TO-5, 8 PIN, Operational Amplifier
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )	Linear ( ADI )
Parts packaging code	DIP	TO-5	DIP	DIP	DIP	TO-5
package instruction	DIP,	METAL CAN, TO-5, 8 PIN	DIP,	DIP,	DIP,	TO-5,
Contacts	8	8	14	14	8	8
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER	OPERATIONAL AMPLIFIER
Maximum average bias current (IIB)	0.03 µA	0.03 µA	0.03 µA	0.045 µA	0.045 µA	0.045 µA
Nominal Common Mode Rejection Ratio	114 dB	114 dB	114 dB	113 dB	113 dB	113 dB
Maximum input offset voltage	300 µV	300 µV	350 µV	550 µV	550 µV	550 µV
JESD-30 code	R-GDIP-T8	O-MBCY-W8	R-GDIP-T14	R-GDIP-T14	R-GDIP-T8	O-MBCY-W8
JESD-609 code	e0	e0	e0	e0	e0	e0
Negative supply voltage upper limit	-22 V	-22 V	-22 V	-22 V	-22 V	-22 V
Nominal Negative Supply Voltage (Vsup)	-15 V	-15 V	-15 V	-15 V	-15 V	-15 V
Number of functions	2	2	4	4	2	2
Number of terminals	8	8	14	14	8	8
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package body material	CERAMIC, GLASS-SEALED	METAL	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED	METAL
encapsulated code	DIP	TO-5	DIP	DIP	DIP	TO-5
Package shape	RECTANGULAR	ROUND	RECTANGULAR	RECTANGULAR	RECTANGULAR	ROUND
Package form	IN-LINE	CYLINDRICAL	IN-LINE	IN-LINE	IN-LINE	CYLINDRICAL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal slew rate	0.4 V/us	0.4 V/us	0.4 V/us	0.4 V/us	0.4 V/us	0.4 V/us
Supply voltage upper limit	22 V	22 V	22 V	22 V	22 V	22 V
Nominal supply voltage (Vsup)	15 V	15 V	15 V	15 V	15 V	15 V
surface mount	NO	NO	NO	NO	NO	NO
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal surface	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD	TIN LEAD
Terminal form	THROUGH-HOLE	WIRE	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE	WIRE
Terminal location	DUAL	BOTTOM	DUAL	DUAL	DUAL	BOTTOM
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Maximum seat height	5.08 mm	-	5.08 mm	5.08 mm	5.08 mm	-
Terminal pitch	2.54 mm	-	2.54 mm	2.54 mm	2.54 mm	-
width	7.62 mm	-	7.62 mm	7.62 mm	7.62 mm	-
