LT1016MJ8 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LT1016MJ8

LT1016MJ8: DescriptionComparator, 1 Func, 3000uV Offset-Max, 10ns Response Time, BIPolar, CDIP8, CERDIP-8; CategoryAnalog mixed-signal IC Amplifier circuit; File Size136KB，4 Pages; ManufacturerMaxim; Websitehttps://www.maximintegrated.com/en.html

Download Datasheet Parametric Compare View All

LT1016MJ8 Overview

Comparator, 1 Func, 3000uV Offset-Max, 10ns Response Time, BIPolar, CDIP8, CERDIP-8

LT1016MJ8 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Maxim
Parts packaging code	DIP
package instruction	CERDIP-8
Contacts	8
Reach Compliance Code	not_compliant
ECCN code	EAR99
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	13 µA
Maximum bias current (IIB) at 25C	10 µA
Maximum input offset voltage	3000 µV
JESD-30 code	R-GDIP-T8
JESD-609 code	e0
Nominal Negative Supply Voltage (Vsup)	-5 V
Number of functions	1
Number of terminals	8
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP8,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5/+-5 V
Certification status	Not Qualified
Nominal response time	10 ns
Maximum slew rate	35 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	BIPOLAR
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED

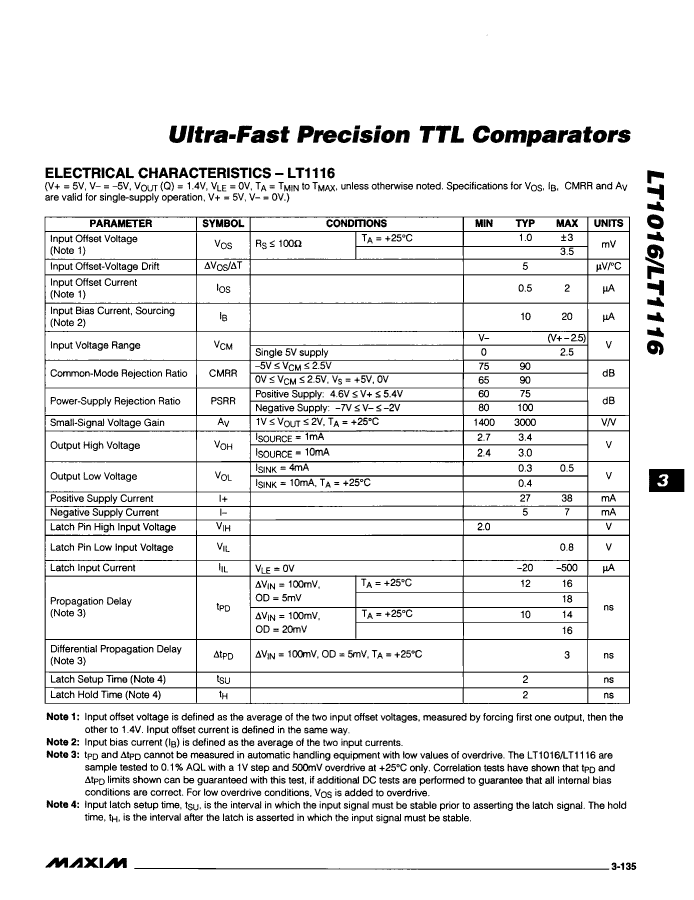

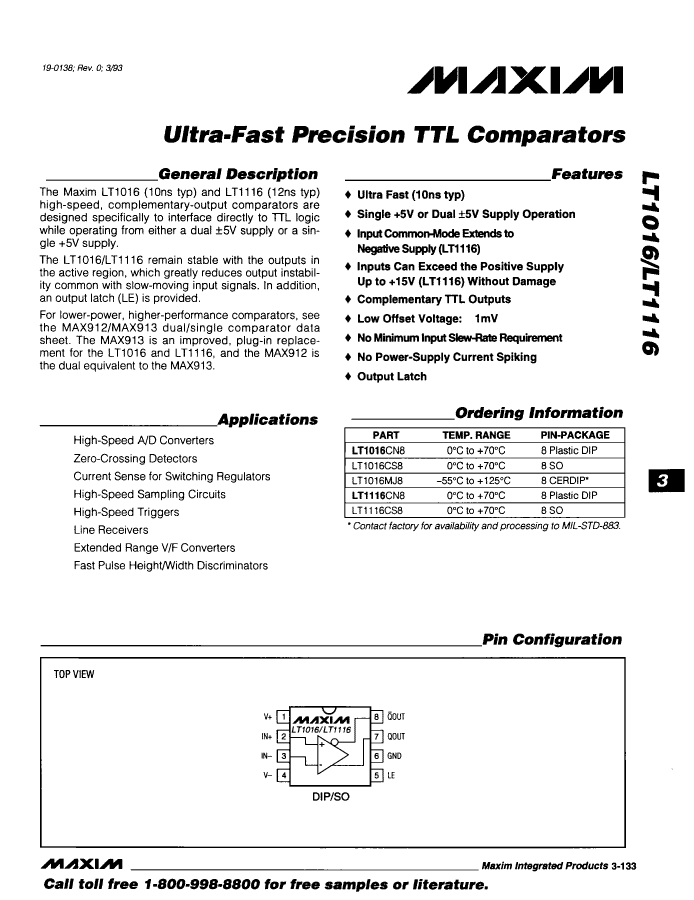

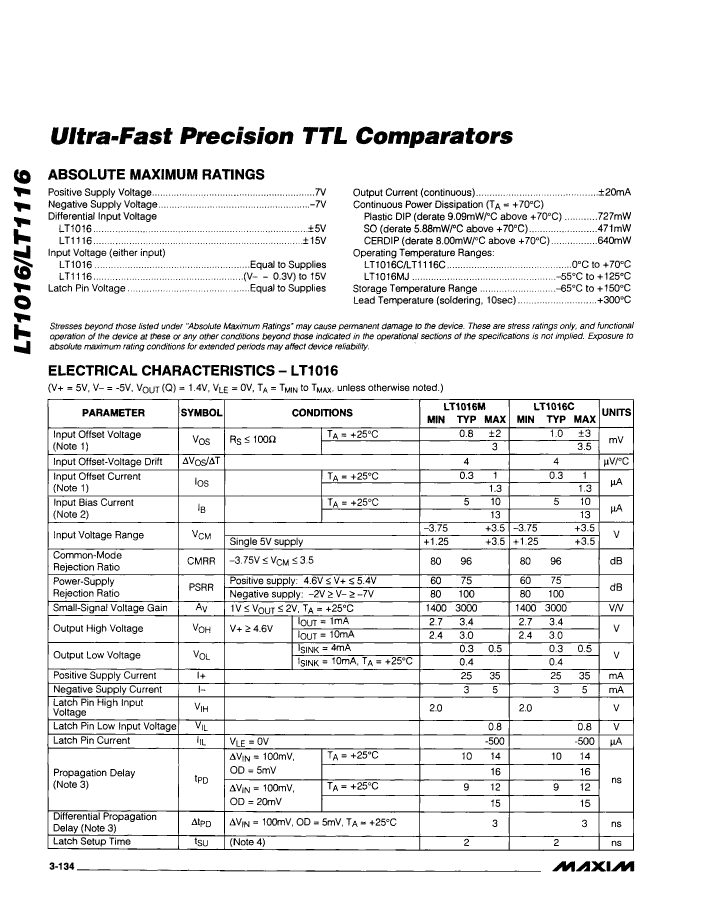

Preview

Download Datasheet

View All

LT1016MJ8 Related Products

	LT1016MJ8	LT1116CS8	LT1116CN8	LT1016CN8	LT1016CS8
Description	Comparator, 1 Func, 3000uV Offset-Max, 10ns Response Time, BIPolar, CDIP8, CERDIP-8	Comparator, 1 Func, 3500uV Offset-Max, 16ns Response Time, BIPolar, PDSO8, 0.150 INCH, SLIM, PLASTIC, SOP-8	Comparator, 1 Func, 3500uV Offset-Max, 16ns Response Time, BIPolar, PDIP8, PLASTIC, DIP-8	Comparator, 1 Func, 3500uV Offset-Max, 16ns Response Time, BIPolar, PDIP8, PLASTIC, DIP-8	Comparator, 1 Func, 3500uV Offset-Max, 16ns Response Time, BIPolar, PDSO8, 0.150 INCH, SLIM, PLASTIC, SOP-8
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Maxim	Maxim	Maxim	Maxim	Maxim
Parts packaging code	DIP	SOIC	DIP	DIP	SOIC
package instruction	CERDIP-8	SOP, SOP8,.25	PLASTIC, DIP-8	PLASTIC, DIP-8	SOP, SOP8,.25
Contacts	8	8	8	8	8
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	13 µA	20 µA	20 µA	13 µA	13 µA
Maximum bias current (IIB) at 25C	10 µA	20 µA	20 µA	10 µA	10 µA
Maximum input offset voltage	3000 µV	3500 µV	3500 µV	3500 µV	3500 µV
JESD-30 code	R-GDIP-T8	R-PDSO-G8	R-PDIP-T8	R-PDIP-T8	R-PDSO-G8
JESD-609 code	e0	e0	e0	e0	e0
Nominal Negative Supply Voltage (Vsup)	-5 V	-5 V	-5 V	-5 V	-5 V
Number of functions	1	1	1	1	1
Number of terminals	8	8	8	8	8
Maximum operating temperature	125 °C	70 °C	70 °C	70 °C	70 °C
Package body material	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	DIP	SOP	DIP	DIP	SOP
Encapsulate equivalent code	DIP8,.3	SOP8,.25	DIP8,.3	DIP8,.3	SOP8,.25
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	5/+-5 V	5/+-5 V	5/+-5 V	5/+-5 V	5/+-5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal response time	10 ns	16 ns	16 ns	16 ns	16 ns
Maximum slew rate	35 mA	38 mA	38 mA	35 mA	35 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V
surface mount	NO	YES	NO	NO	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	MILITARY	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Negative supply voltage upper limit	-	-7 V	-7 V	-7 V	-7 V
Supply voltage upper limit	-	7 V	7 V	7 V	7 V
