Mini-Com
®
TX5e
™
Corrosive Resistant
UTP Jack Modules
SPECIFICATION SHEET
specifications
Category 5e/Class D, 8-position, UTP jack module shall terminate 4-pair,
22 – 26 AWG, 100 ohm unshielded twisted pair cable and shall not
require use of a punchdown tool. Polymer based gel shall protect
electrical contacts and internal components by reducing the ingress of
moisture and other corrosive elements such as salt, providing improved
long term performance. UTP jack modules shall use a forward motion
termination method to optimize performance by maintaining cable pair
geometry while eliminating conductor untwist. The termination cap shall
be color-coded red to designate Category 5e performance and shall
include a universal label coded for T568A and T568B wiring schemes.
TX5500
™
UTP Copper
Cabling System
Mini-Com
®
TX5e
™
Corrosive
Resistant UTP Jack Module
Jack module:
CJE5E88TGIW*
TX5500
™
UTP Copper Cable
Plenum:
PUP5504**
Riser:
PUR5504**
LSZH:
PUL5504**
CM:
PUC5504**
TX5e
™
UTP Patch Cords
CM (Foot lengths):
UTPCH^Y
CM (Meter lengths):
UTPCH^^MY
LSZH (Meter lengths):
UTPCHL^^MY
Mini-Com
®
Angled Modular
Patch Panels
24-port, 1 RU:
CPPLA24WBLY
48-port, 2 RU:
CPPLA48WBLY
Mini-Com
®
Flat Modular
Patch Panels
24-port, 1 RU:
CPPL24WBLY
48-port, 2 RU:
CPPL48WBLY
For additional modular and punchdown
patch panels, visit www.panduit.com.
technical information
Category 5e/Class D
channel and component
performance:
Exceeds channel requirements of ANSI/TIA-568-C.2 Category 5e
and ISO 11801 Class D standards at swept frequencies 1 to 100 MHz
Exceeds component requirements of ANSI/TIA-568-C.2 Category 5e
and ISO 11801 Class D standards at swept frequencies 1 to 100 MHz
Meets all applicable ANSI/TIA-968-A requirements; contacts plated
with 50 microinches of gold for superior performance
Meets IEC 60603-7
Meets requirements of IEEE 802.3af and IEE 802.3at for PoE applications
UL 1863 approved
Wire cap compatible with 22 – 26 AWG solid or stranded cable with
conductor insulation diameters of 0.060 in. max and overall cable
O.D. 0.200 in. to 0.330 in.
FCC and ANSI
compliance:
IEC compliance:
PoE compliance:
UL rated:
Conductor termination
range:
key features and benefits
Polymer based gel
Protects electrical contacts and internal components by reducing the
ingress of moisture and other corrosive elements such as salt, providing
improved long term performance; operation life 75+ insertions
Enables operations in environments up to 70°C; ideal for use in warm
temperature environments or network hot spots
Confidence that each jack module will deliver the critical electrical
performance requirements
Optimizes performance by eliminating conductor untwist and reduces
installation time and expense
Conductor retention slots simplify jack module termination
UTP jack modules snap in and out of all Mini-Com
®
Faceplates,
Modular Patch Panels and Surface Mount Boxes for easy moves,
adds and changes
Controls cable bend radius for long-term installed performance
Marked with quality control number for future traceability
Industry standard interface provides a quick and easy plug and play
connection to RJ45 patch cords; backwards compatible
Can be clearly identified with optional labels and icons for port identification
EGJT termination tool ensures conductors are fully terminated by utilizing
a smooth forward motion without impact on critical internal components for
maximum reliability; TGJT termination tool ideal for high volume installations
Provides a simple and secure method to control access to data ports
while not in use
Pan-Punch
®
110 Punchdown System
See website (www.panduit.com) or catalog
for complete system information.
High temperature
resistant material
100% performance tested
Utilizes enhanced
Giga-TX
™
Technology
Improved termination cap

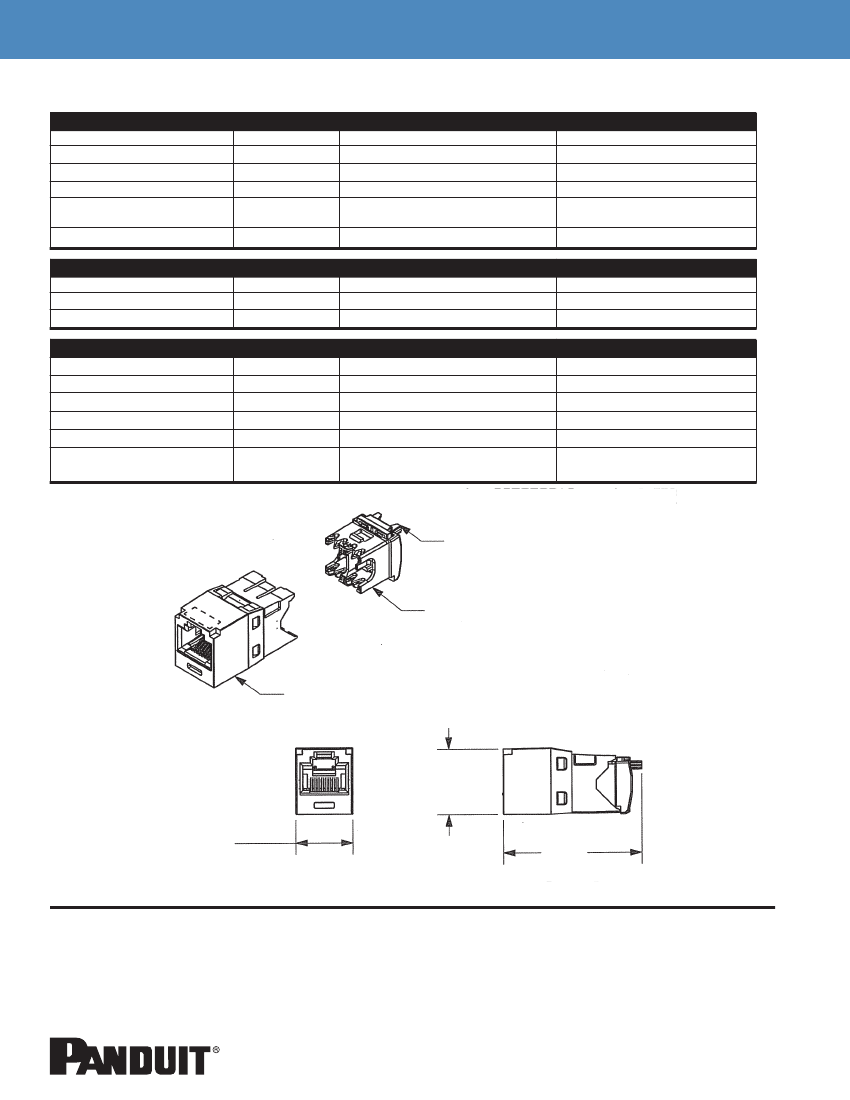

Modular
Tools and Accessories
Jack module
termination tools:
EGJT or TGJT
Wire snipping tool:
CWST
Wire stripping tool:
CJAST
Clear dust cap:
MDC-C
Block out device:
PSL-DCJB-^^^
Phone icons:
CIPIW-C‡
Data icons:
CIDIW-C‡
*To designate color other that IW (Off White), replace
IW suffix with WH (White), BL (Black), RD (Red), or
BU (Blue).
** To designate color, add suffix BU (Blue) or
WH (White). For additional cable colors, contact
customer service.
^ For lengths 1 to 20 feet (one foot increments)
and 25, 30, 35, 40 feet, change the length designation
in the part number to the desired length. For standard
cable colors other than Off White, add suffix BL (Black),
BU (Blue), RD (Red), YL (Yellow), GR (Green),
OR (Orange), or VL (Violet). For example, the part
number for a blue 15-foot patch cord is UTPCH15BUY.
^^ For lengths 1 to 10 meters (one meter increments)
and 2.5, 15, 20, 25, 30, 35, 40 meters, change the
length designation in the part number to the desired
length. For standard cable colors other than Off White,
add suffix BL (Black), BU (Blue), RD (Red), YL (Yellow),
GR (Green), OR (Orange), or VL (Violet). For example,
the part number for a blue 15-meter patch cord is
UTPCH15MBUY.
^^^To designate color other than Red, add suffix
BL (Black), BU (Blue), YL (Yellow), GR (Green), OR
(Orange), IW (Off White) or IG (International Gray) at
the end of the part number. 10/package.
‡
To designate color other than IW (Off White), replace
IW with EI (Electric Ivory), IG (International Gray),
BL (Black), BU (Blue), RD (Red), YL (Yellow),
GR (Green), OR (Orange), or VL (Violet) in the
part number. 100/package.
Contact customer service for bulk packaged
and/or keyed jack modules and patch cords.
True strain relief
Individually serialized
RJ45 interface
Identification
Termination tools (optional)
Block out device (optional)
applications
Mini-Com
®
TX5e
™
Corrosive Resistant UTP Jack
Modules are a component of the TX5500
™
UTP
Copper Cabling System. This end-to-end system
provides Gigabit Ethernet performance with usable
bandwidth beyond 100 MHz. With certified
performance to the ANSI/TIA-568-C.2 Category 5e
and ISO 11801 Class D Edition 2.1 standards, this
system will support the following applications:
• Ethernet 10BASE-T, 100BASE-T (Fast
Ethernet), 1000BASE-T (Gigabit Ethernet)
• 155 Mb/s ATM, 622 Mb/s ATM
• Token ring 4/16
• Voice/data systems
• Voice over Internet Protocol (VoIP)
w w w. p a n d u i t . c o m
