Part Number

Search

03904GRF

Description
Silicon Controlled Rectifier / Inverter
CategoryAnalog mixed-signal IC    Trigger device
File Size177KB,4 Pages
ManufacturerMicrosemi
Websitehttps://www.microsemi.com
Download Datasheet Parametric Compare View All

03904GRF Online Shopping

Suppliers Part Number Price MOQ In stock
03904GRF - - View Buy Now

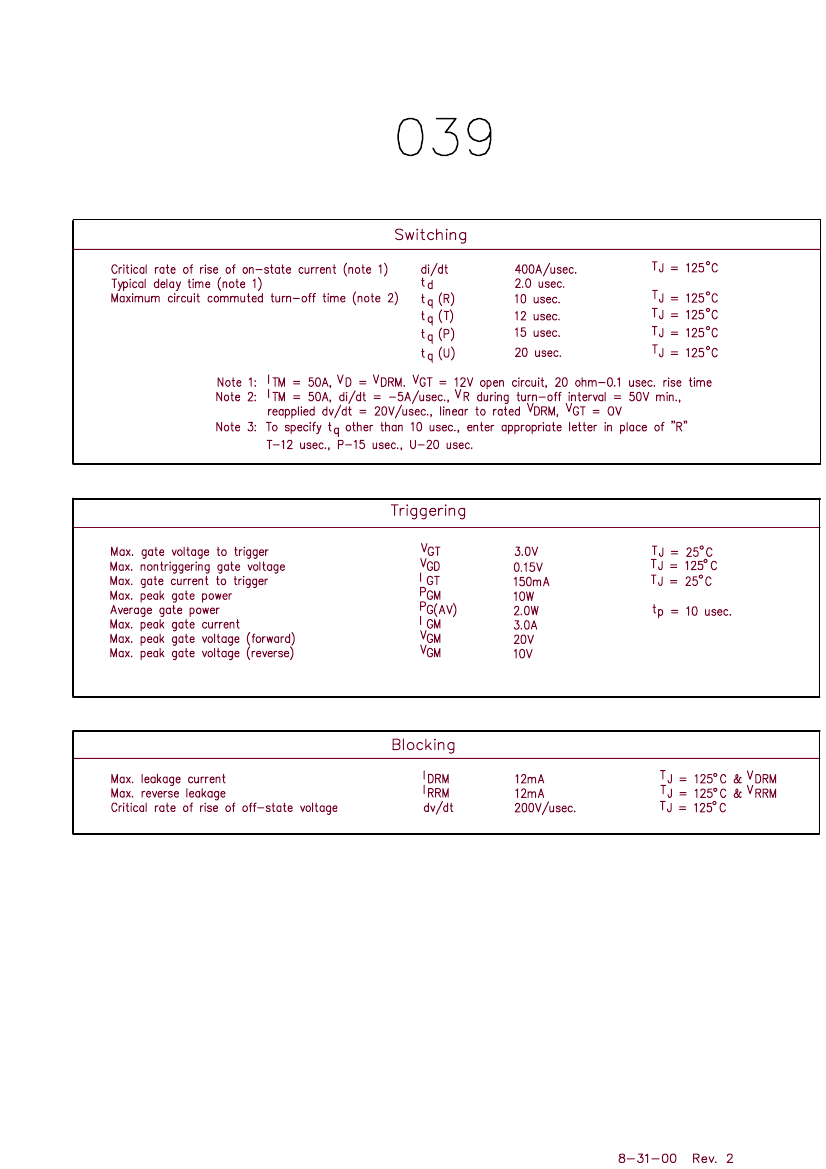

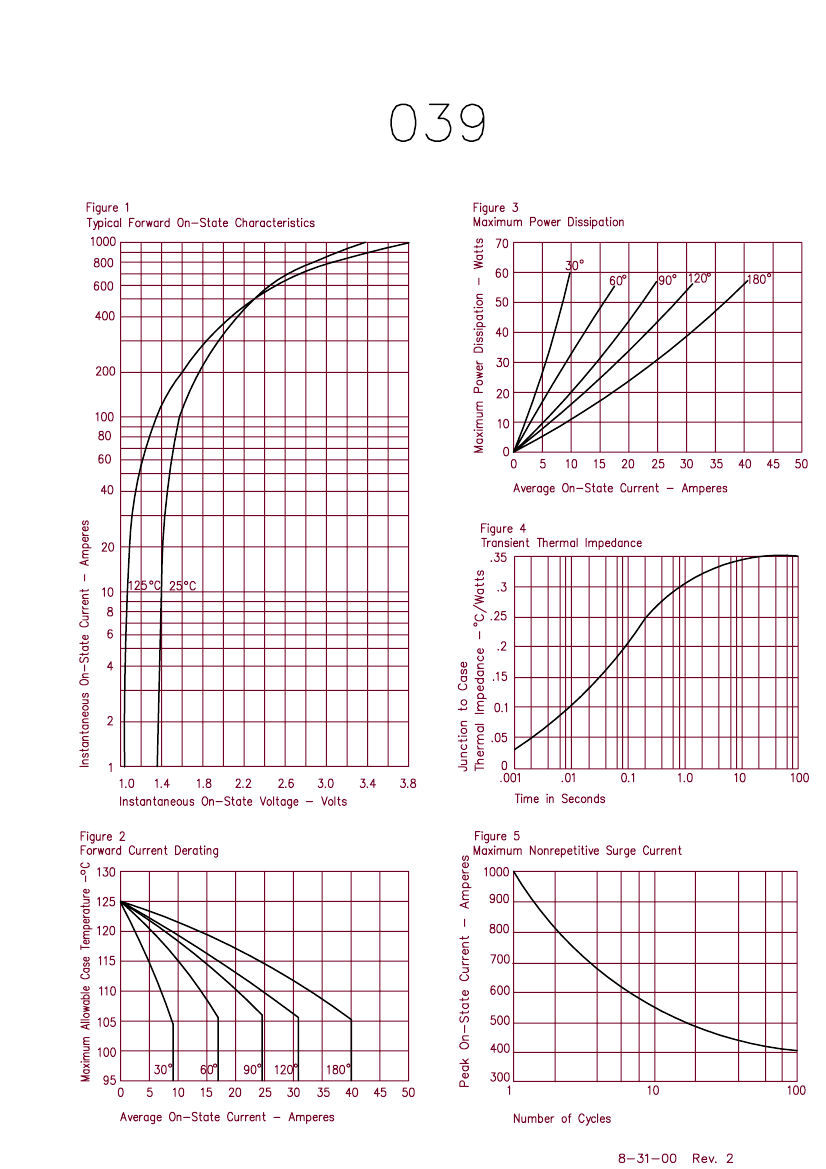

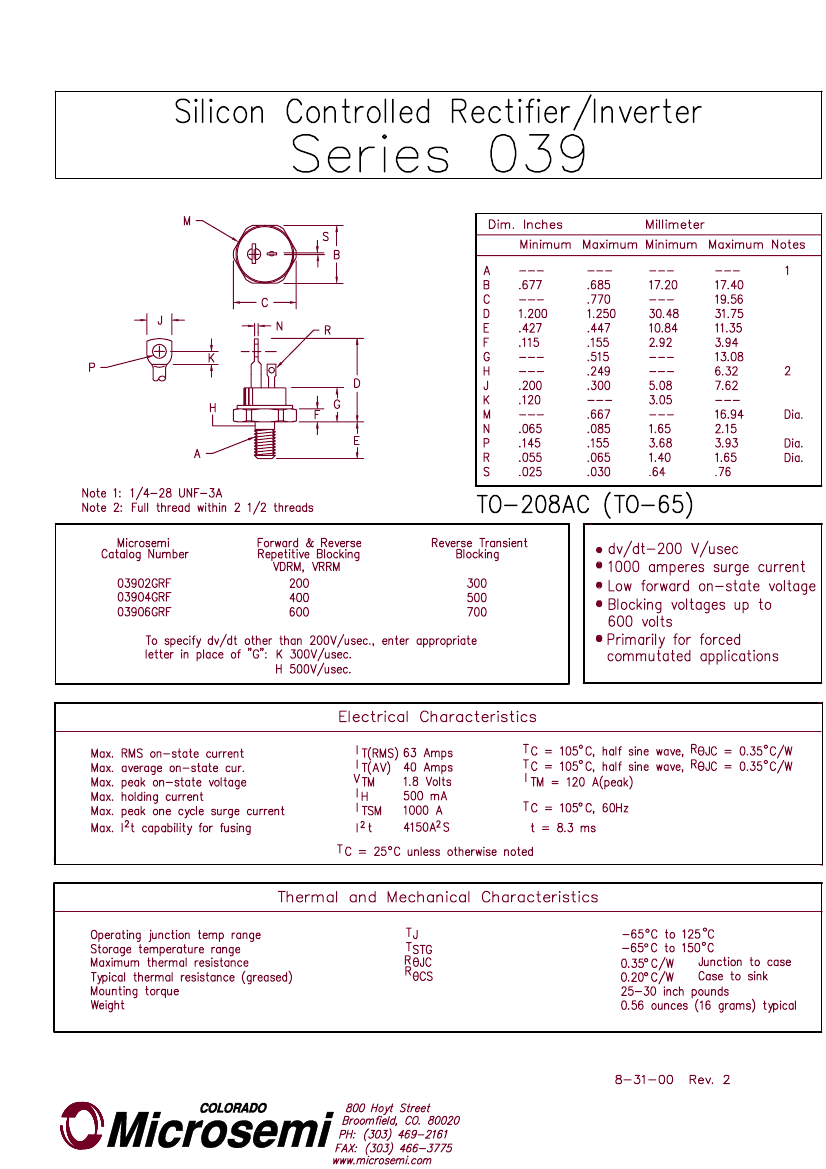

03904GRF Overview

Silicon Controlled Rectifier / Inverter

03904GRF Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerMicrosemi
Parts packaging codeTO-65
package instructionPOST/STUD MOUNT, O-MUPM-D2
Contacts2
Reach Compliance Codeunknown
Is SamacsysN
ConfigurationSINGLE
Maximum DC gate trigger current150 mA
JEDEC-95 codeTO-208AC
JESD-30 codeO-MUPM-D2
JESD-609 codee0
Number of components1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-65 °C
Package body materialMETAL
Package shapeROUND
Package formPOST/STUD MOUNT
Peak Reflow Temperature (Celsius)NOT SPECIFIED
Certification statusNot Qualified
Maximum rms on-state current63 A
Off-state repetitive peak voltage400 V
Repeated peak reverse voltage400 V
surface mountNO
Terminal surfaceTIN LEAD
Terminal formSOLDER LUG
Terminal locationUPPER
Maximum time at peak reflow temperatureNOT SPECIFIED
Trigger device typeSCR
Base Number Matches1

03904GRF Related Products

03904GRF 03906GRF 03902GRF 039
Description Silicon Controlled Rectifier / Inverter Silicon Controlled Rectifier / Inverter Silicon Controlled Rectifier / Inverter Silicon Controlled Rectifier / Inverter
Is it lead-free? Contains lead Contains lead Contains lead -
Is it Rohs certified? incompatible incompatible incompatible -
Maker Microsemi Microsemi Microsemi -
Parts packaging code TO-65 TO-65 TO-65 -
package instruction POST/STUD MOUNT, O-MUPM-D2 POST/STUD MOUNT, O-MUPM-D2 POST/STUD MOUNT, O-MUPM-D2 -
Contacts 2 2 2 -
Reach Compliance Code unknown unknown unknown -
Is Samacsys N N N -
Configuration SINGLE SINGLE SINGLE -
Maximum DC gate trigger current 150 mA 150 mA 150 mA -
JEDEC-95 code TO-208AC TO-208AC TO-208AC -
JESD-30 code O-MUPM-D2 O-MUPM-D2 O-MUPM-D2 -
JESD-609 code e0 e0 e0 -
Number of components 1 1 1 -
Number of terminals 2 2 2 -
Maximum operating temperature 125 °C 125 °C 125 °C -
Minimum operating temperature -65 °C -65 °C -65 °C -
Package body material METAL METAL METAL -
Package shape ROUND ROUND ROUND -
Package form POST/STUD MOUNT POST/STUD MOUNT POST/STUD MOUNT -
Peak Reflow Temperature (Celsius) NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED -
Certification status Not Qualified Not Qualified Not Qualified -
Maximum rms on-state current 63 A 63 A 63 A -
Off-state repetitive peak voltage 400 V 600 V 200 V -
Repeated peak reverse voltage 400 V 600 V 200 V -
surface mount NO NO NO -
Terminal surface TIN LEAD TIN LEAD TIN LEAD -
Terminal form SOLDER LUG SOLDER LUG SOLDER LUG -
Terminal location UPPER UPPER UPPER -
Maximum time at peak reflow temperature NOT SPECIFIED NOT SPECIFIED NOT SPECIFIED -
Trigger device type SCR SCR SCR -
Base Number Matches 1 1 1 -
