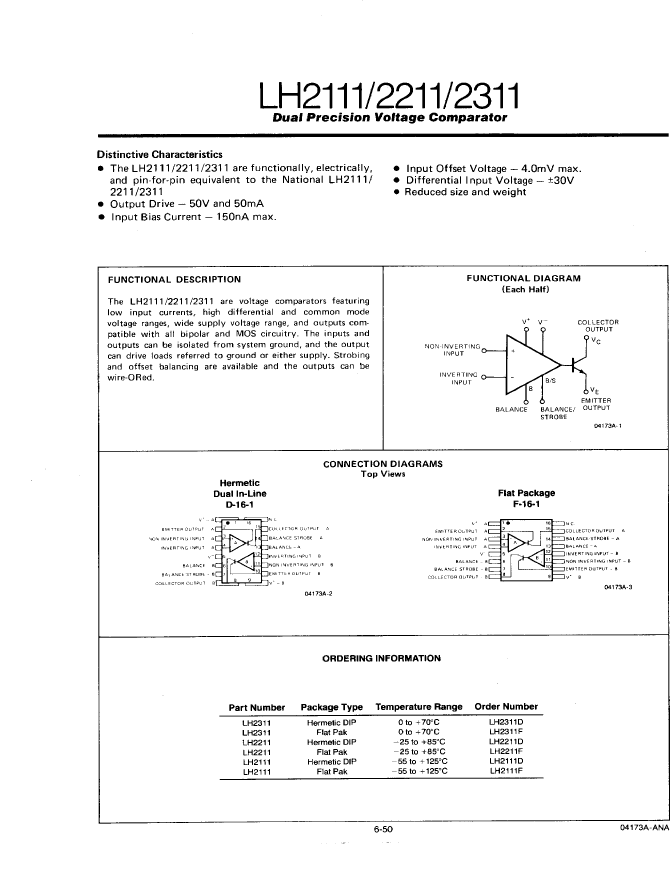

Comparator, 2 Func, 4000uV Offset-Max, 200ns Response Time, BIPolar, CDIP16, HERMETIC SEALED, DIP-16

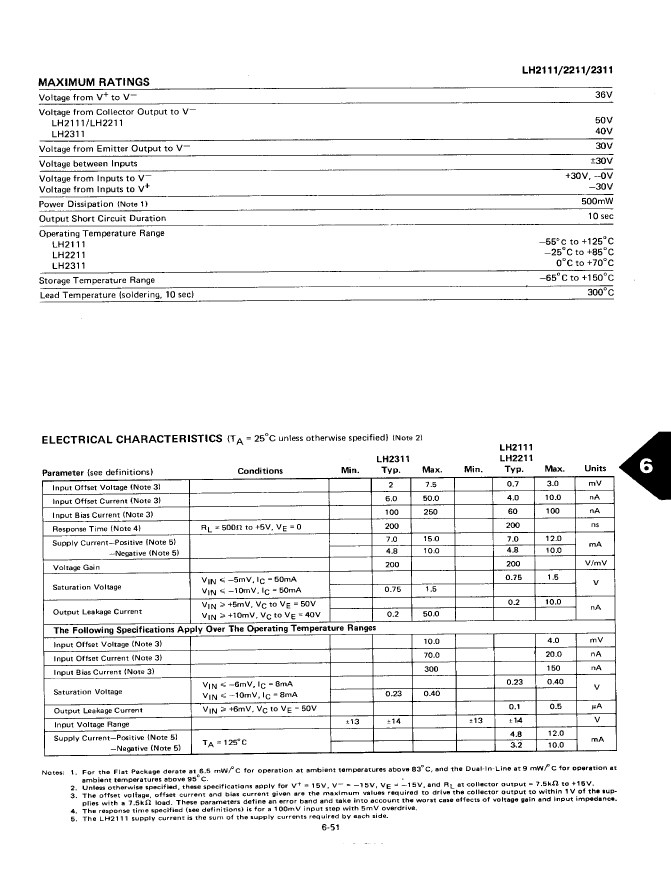

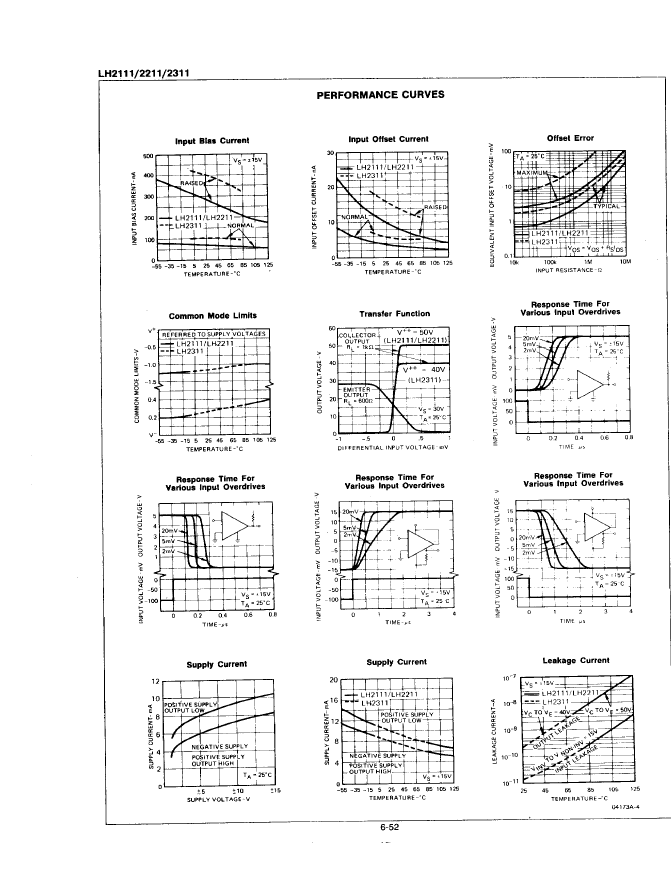

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | AMD |
| Parts packaging code | DIP |
| package instruction | DIP, DIP16,.3 |
| Contacts | 16 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Amplifier type | COMPARATOR |
| Maximum average bias current (IIB) | 0.15 µA |
| Maximum input offset voltage | 4000 µV |
| JESD-30 code | R-CDIP-T16 |
| JESD-609 code | e0 |
| Negative supply voltage upper limit | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V |
| Number of functions | 2 |
| Number of terminals | 16 |
| Maximum operating temperature | 85 °C |
| Minimum operating temperature | -25 °C |
| Output type | OPEN-COLLECTOR/OPEN-EMITTER |
| Package body material | CERAMIC, METAL-SEALED COFIRED |
| encapsulated code | DIP |
| Encapsulate equivalent code | DIP16,.3 |
| Package shape | RECTANGULAR |
| Package form | IN-LINE |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED |
| power supply | +-15 V |
| Certification status | Not Qualified |
| Nominal response time | 200 ns |
| Maximum slew rate | 12 mA |
| Supply voltage upper limit | 18 V |
| Nominal supply voltage (Vsup) | 15 V |
| surface mount | NO |
| technology | BIPOLAR |
| Temperature level | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE |
| Terminal pitch | 2.54 mm |
| Terminal location | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED |
| LH2211D | LH2111D | LH2111F | LH2311D | LH2311F | LH2211F | |
|---|---|---|---|---|---|---|
| Description | Comparator, 2 Func, 4000uV Offset-Max, 200ns Response Time, BIPolar, CDIP16, HERMETIC SEALED, DIP-16 | Comparator, 2 Func, 4000uV Offset-Max, 200ns Response Time, BIPolar, CDIP16, HERMETIC SEALED, DIP-16 | Comparator, 2 Func, 4000uV Offset-Max, 200ns Response Time, BIPolar, CDFP16, FP-16 | Comparator, 2 Func, 10000uV Offset-Max, 200ns Response Time, BIPolar, CDIP16, HERMETIC SEALED, DIP-16 | Comparator, 2 Func, 10000uV Offset-Max, 200ns Response Time, BIPolar, CDFP16, FP-16 | Comparator, 2 Func, 4000uV Offset-Max, 200ns Response Time, BIPolar, CDFP16, FP-16 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | AMD | AMD | AMD | AMD | AMD | AMD |
| Parts packaging code | DIP | DIP | DFP | DIP | DFP | DFP |
| package instruction | DIP, DIP16,.3 | DIP, DIP16,.3 | DFP, FL16,.3 | DIP, DIP16,.3 | DFP, FL16,.3 | DFP, FL16,.3 |
| Contacts | 16 | 16 | 16 | 16 | 16 | 16 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| Amplifier type | COMPARATOR | COMPARATOR | COMPARATOR | COMPARATOR | COMPARATOR | COMPARATOR |
| Maximum average bias current (IIB) | 0.15 µA | 0.15 µA | 0.15 µA | 0.3 µA | 0.3 µA | 0.15 µA |
| Maximum input offset voltage | 4000 µV | 4000 µV | 4000 µV | 10000 µV | 10000 µV | 4000 µV |
| JESD-30 code | R-CDIP-T16 | R-CDIP-T16 | R-GDFP-F16 | R-CDIP-T16 | R-GDFP-F16 | R-GDFP-F16 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 |
| Negative supply voltage upper limit | -18 V | -18 V | -18 V | -18 V | -18 V | -18 V |
| Nominal Negative Supply Voltage (Vsup) | -15 V | -15 V | -15 V | -15 V | -15 V | -15 V |
| Number of functions | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of terminals | 16 | 16 | 16 | 16 | 16 | 16 |
| Maximum operating temperature | 85 °C | 125 °C | 125 °C | 70 °C | 70 °C | 85 °C |
| Minimum operating temperature | -25 °C | -55 °C | -55 °C | - | - | -25 °C |
| Output type | OPEN-COLLECTOR/OPEN-EMITTER | OPEN-COLLECTOR/OPEN-EMITTER | OPEN-COLLECTOR/OPEN-EMITTER | OPEN-COLLECTOR/OPEN-EMITTER | OPEN-COLLECTOR/OPEN-EMITTER | OPEN-COLLECTOR/OPEN-EMITTER |
| Package body material | CERAMIC, METAL-SEALED COFIRED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, METAL-SEALED COFIRED | CERAMIC, GLASS-SEALED | CERAMIC, GLASS-SEALED |
| encapsulated code | DIP | DIP | DFP | DIP | DFP | DFP |
| Encapsulate equivalent code | DIP16,.3 | DIP16,.3 | FL16,.3 | DIP16,.3 | FL16,.3 | FL16,.3 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | IN-LINE | IN-LINE | FLATPACK | IN-LINE | FLATPACK | FLATPACK |
| Peak Reflow Temperature (Celsius) | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
| power supply | +-15 V | +-15 V | +-15 V | +-15 V | +-15 V | +-15 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| Nominal response time | 200 ns | 200 ns | 200 ns | 200 ns | 200 ns | 200 ns |
| Maximum slew rate | 12 mA | 12 mA | 12 mA | 15 mA | 15 mA | 12 mA |
| Supply voltage upper limit | 18 V | 18 V | 18 V | 18 V | 18 V | 18 V |
| Nominal supply voltage (Vsup) | 15 V | 15 V | 15 V | 15 V | 15 V | 15 V |
| surface mount | NO | NO | YES | NO | YES | YES |
| technology | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR | BIPOLAR |
| Temperature level | OTHER | MILITARY | MILITARY | COMMERCIAL | COMMERCIAL | OTHER |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | THROUGH-HOLE | THROUGH-HOLE | FLAT | THROUGH-HOLE | FLAT | FLAT |
| Terminal pitch | 2.54 mm | 2.54 mm | 1.27 mm | 2.54 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| Maximum time at peak reflow temperature | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED | NOT SPECIFIED |
