STM037SC2DC030HM datasheet, PDF

STM037SC2DC030HM: DescriptionHEADER CONNECTOR,CABLE MNT,PLUG,37 CONTACTS,SKT,0.025 PITCH,WIRE TERMINAL,HOLE .03-.06; CategoryThe connector The connector; File Size271KB，3 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com

Download Datasheet Parametric View All

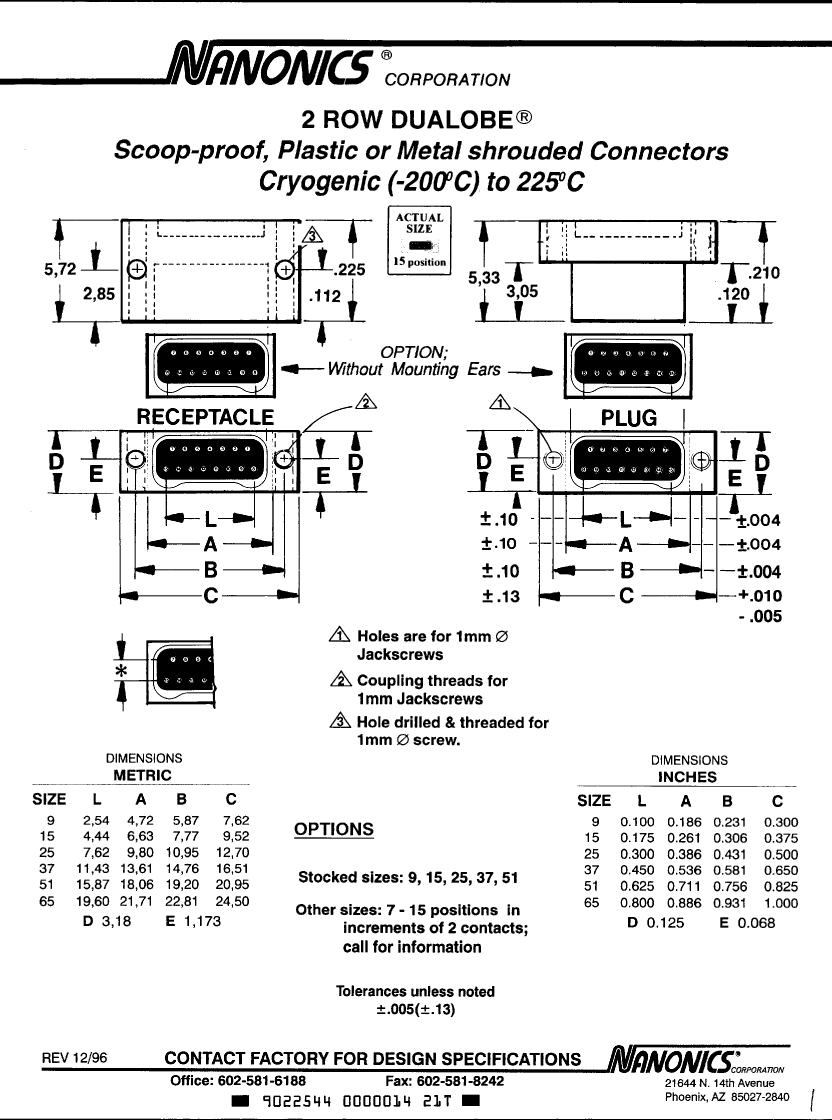

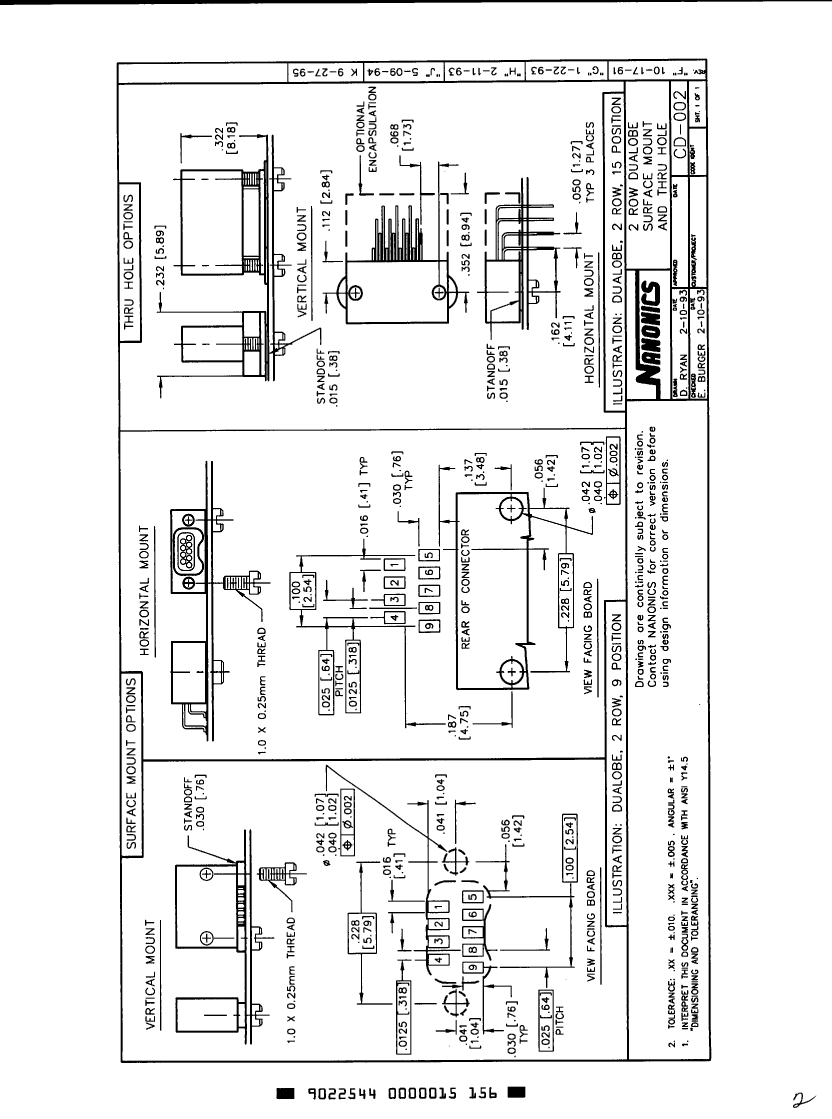

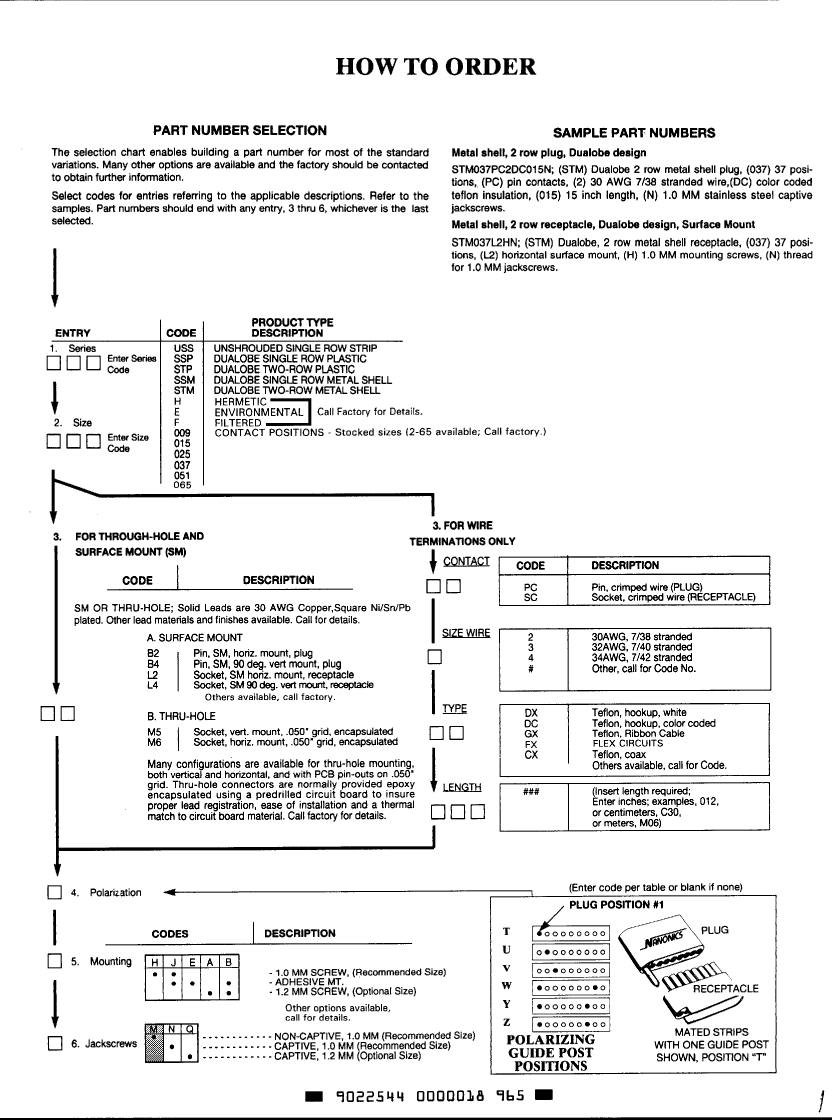

STM037SC2DC030HM Overview

HEADER CONNECTOR,CABLE MNT,PLUG,37 CONTACTS,SKT,0.025 PITCH,WIRE TERMINAL,HOLE .03-.06

Parameter Name	Attribute value
Maker	TE Connectivity
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	COLOR CODED TEFLON HOOKUP WIRE
body width	0.125 inch
subject depth	0.21 inch
body length	0.65 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contactor design	PREASSEM CONN
Contact point gender	FEMALE
contact mode	STAGGERED
Contact style	RND PIN-SKT
Manufacturer's serial number	STM
Plug contact pitch	0.025 inch
Installation option 1	HOLE .03-.06
Installation option 2	JACKSCREW
Installation type	CABLE
Number of rows loaded	2
Maximum operating temperature	225 °C
Minimum operating temperature	-200 °C
polarization key	POLARIZED HOUSING
reliability	COMMERCIAL
Termination type	WIRE
Total number of contacts	37
Maximum wire diameter	30 AWG
Minimum wire diameter	30 AWG
