MD-70SN datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> MD-70SN

MD-70SN: Description7 Pin, Metal Panel Mount Socket; CategoryThe connector The connector; File Size248KB，4 Pages; ManufacturerCUI Devices; Environmental Compliance

Download Datasheet Parametric Compare View All

MD-70SN Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	MD-70SN	-	-	View	Buy Now

MD-70SN Overview

7 Pin, Metal Panel Mount Socket

MD-70SN Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	CUI Devices
Reach Compliance Code	compliant

MD-70SN Preview

Additional Resources:

Product Page

3D Model

date

page

02/19/2020

1 of 4

SERIES:

MD-SN

│

DESCRIPTION:

MINI DIN CONNECTOR

FEATURES

• vertical

• panel mount

• thin metal mounting ears

RoHS

PART NUMBER KEY

MD -

Base Number

Pin Options

30 = 3 pins

40 = 4 pins

50 = 5 pins

60 = 6 pins

70 = 7 pins

80 = 8 pins

90 = 9 pins

SPECIFICATIONS

parameter

rated input voltage

rated input current

contact resistance

insulation resistance

voltage withstand

insertion force

withdrawal force

operating temperature

life

flammability rating

RoHS

UL94V-0

yes

0.9

-20

4,000

at 250 Vdc

for 1 minute

250

4.5

105

at 100 Vac

at 12 Vdc

conditions/description

min

typ

100

max

units

Vac

Vdc

mΩ

MΩ

Vac

°C

cycles

cuidevices.com

Additional Resources:

Product Page

3D Model

CUI Devices

│

SERIES:

MD-SN

│

DESCRIPTION:

MINI DIN CONNECTOR

date

02/19/2020

│

page

2 of 4

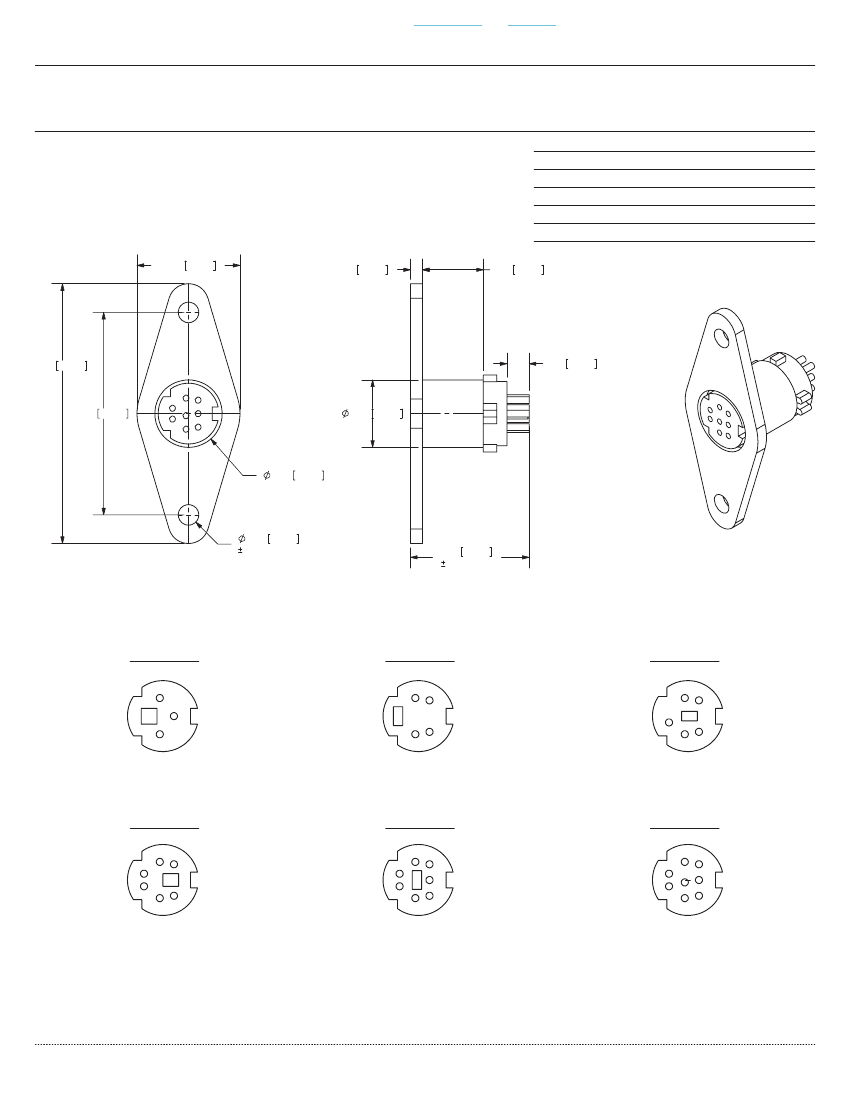

MECHANICAL DRAWINGS

units: mm[inches]

TOLERANCE: ±0.1mm

MATERIAL

shell (30~80)

shell (90)

contact terminals (1~9)

plastic

iron

brass

phosphor bronze

nylon + fiber

PLATING

nickel

silver

15.25 0.600

1.8 0.071

9.0 0.354

38.5 1.516

3.3 0.130

30.0 1.181

10.0 0.394

3.05 0.120

0.05 (2 PLCS)

17.6 0.693

0.2

MD-30SN

MD-40SN

MD-50SN

MD-60SN

MD-70SN

MD-80SN

cuidevices.com

Additional Resources:

Product Page

3D Model

CUI Devices

│

SERIES:

MD-SN

│

DESCRIPTION:

MINI DIN CONNECTOR

date

02/19/2020

│

page

3 of 4

MECHANICAL DRAWINGS (CONTINUED)

MD-90SN

15.25 0.600

1.55 0.061

8.85 0.348

38.55 1.518

3.2 0.126

30.0 1.181

10.9 0.429

10.25 0.404

3.05 0.120

0.05 (2 PLCS)

17.6 0.693

0.2

cuidevices.com

Additional Resources:

Product Page

3D Model

CUI Devices

│

SERIES:

MD-SN

│

DESCRIPTION:

MINI DIN CONNECTOR

date

02/19/2020

│

page

4 of 4

REVISION HISTORY

rev.

1.0

1.01

1.02

1.03

1.04

description

initial release

new template applied

housing updates

updated datasheet

brand update

date

04/07/2006

05/02/2012

05/04/2012

09/08/2017

02/19/2020

The revision history provided is for informational purposes only and is believed to be accurate.

CUI Devices offers a one (1) year limited warranty. Complete warranty information is listed on our website.

CUI Devices reserves the right to make changes to the product at any time without notice. Information provided by CUI Devices is believed to be accurate and reliable. However, no

responsibility is assumed by CUI Devices for its use, nor for any infringements of patents or other rights of third parties which may result from its use.

CUI Devices products are not authorized or warranted for use as critical components in equipment that requires an extremely high level of reliability. A critical component is any

component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or

effectiveness.

cuidevices.com
