TECHNICAL DATA SHEET
6 Lake Street, Lawrence, MA 01841
1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803
Website: http: //www.microsemi.com
Gort Road Business Park, Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044 Fax: +353 (0) 65 6822298
CURRENT REGULATOR DIODES
– LEADLESS PACKAGE FOR SURFACE MOUNT
– METALLURGICALLY BONDED
Qualified per MIL-PRF-19500/463
DEVICES
QUALIFIED LEVELS
1N5283UR-1 Thru 1N5314UR-1
CDLL5283 Thru CDLL5314
JAN
JANTX
JANTXV
JANS
MAXIMUM RATING AT 25°C
Operating Temperature:
Storage Temperature:
DC Power Dissipation:
Power Derating:
Peak Operating Voltage:
-65°C to +175°C
-65°C to +175°C
500mW @ +75°C @ T
EC
= +125°C
10mW / °C above T
EC
= +125°C
100 Volts
ELECTRICAL CHARACTERISTICS
(TA = 25°C, unless otherwise specified)
TYPE
NUMBER
REGULATOR CURRENT
Ip (mA) @ V
S
= 25V
NOM
CDLL5283
CDLL5284
CDLL5285
CDLL5286
CDLL5287
CDLL5288
CDLL5289
CDLL5290
CDLL5291
CDLL5292
CDLL5293
CDLL5294
CDLL5295
CDLL5296
CDLL5297
CDLL5298
CDLL5299
CDLL5300
CDLL5301
CDLL5302
CDLL5303
CDLL5304
CDLL5305
CDLL5306
CDLL5307
CDLL5308
CDLL5309
CDLL5310
CDLL5311
CDLL5312
CDLL5313
CDLL5314
0.22
0.24
0.27
0.30
0.33
0.39
0.43
0.47
0.56
0.62
0.68
0.75
0.82
0.91
1.00
1.10
1.20
1.30
1.40
1.50
1.60
1.80
2.00
2.20
2.40
2.70
3.00
3.30
3.60
3.90
4.30
4.70
MIN
0.198
0.216
0.243
0.270
0.297
0.351
0.387
0.423
0.504
0.558
0.612
0.675
0.738
0.819
0.900
0.990
1.08
1.17
1.26
1.35
1.44
1.62
1.80
1.98
2.16
2.43
2.70
2.97
3.24
3.51
3.87
4.23
MAX
0.242
0.264
0.297
0.330
0.363
0.429
0.473
0.517
0.616
0.682
0.748
0.825
0.902
1.001
1.100
1.210
1.32
1.43
1.54
1.65
1.76
1.98
2.20
2.42
2.64
2.97
3.30
3.63
3.96
4.29
4.73
5.17
MINIMUM DYNAMIC
IMPEDANCE
@ V
S
= 25
Z
S
(M)
(Note 1)
25.0
19.0
14.0
9.0
6.6
4.10
3.30
2.70
1.90
1.55
1.35
1.15
1.00
0.880
0.800
0.700
0.640
0.580
0.540
0.510
0.475
0.420
0.395
0.370
0.345
0.320
0.300
0.280
0.265
0.255
0.245
0.235
MINIMUM KNEE
IMPEDANCE
@ V
K
= 6.0V
Z
K
(M)
(Note 2)
2.75
2.35
1.95
1.60
1.35
1.00
0.870
0.750
0.560
0.470
0.400
0.335
0.290
0.240
0.205
0.180
0.155
0.135
0.115
0.105
0.092
0.074
0.061
0.052
0.044
0.035
0.029
0.024
0.020
0.017
0.014
0.012
MAXIMUM
LIMITING
VOLTAGE
@ I
L
= 0.8 Ip (min)
V
L
(VOLTS)
1.00
1.00
1.00
1.00
1.00
1.05
1.05
1.05
1.10
1.13
1.15
1.20
1.25
1.29
1.35
1.40
1.45
1.50
1.55
1.60
1.65
1.75
1.85
1.95
2.00
2.15
2.25
2.35
2.50
2.60
2.75
2.90
DO-213AB
NOTE 1:
Z
S
is derived by superimposing A 90Hz RMS signal equal to 10% of V
S
on V
S
NOTE 2:
Z
K
is derived by superimposing A 90Hz RMS signal equal to 10% of V
K
on V
K
LDS-0160 Rev. 1 (100435)
Page 1 of 3
TECHNICAL DATA SHEET
6 Lake Street, Lawrence, MA 01841
1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803
Website: http: //www.microsemi.com
Gort Road Business Park, Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044 Fax: +353 (0) 65 6822298

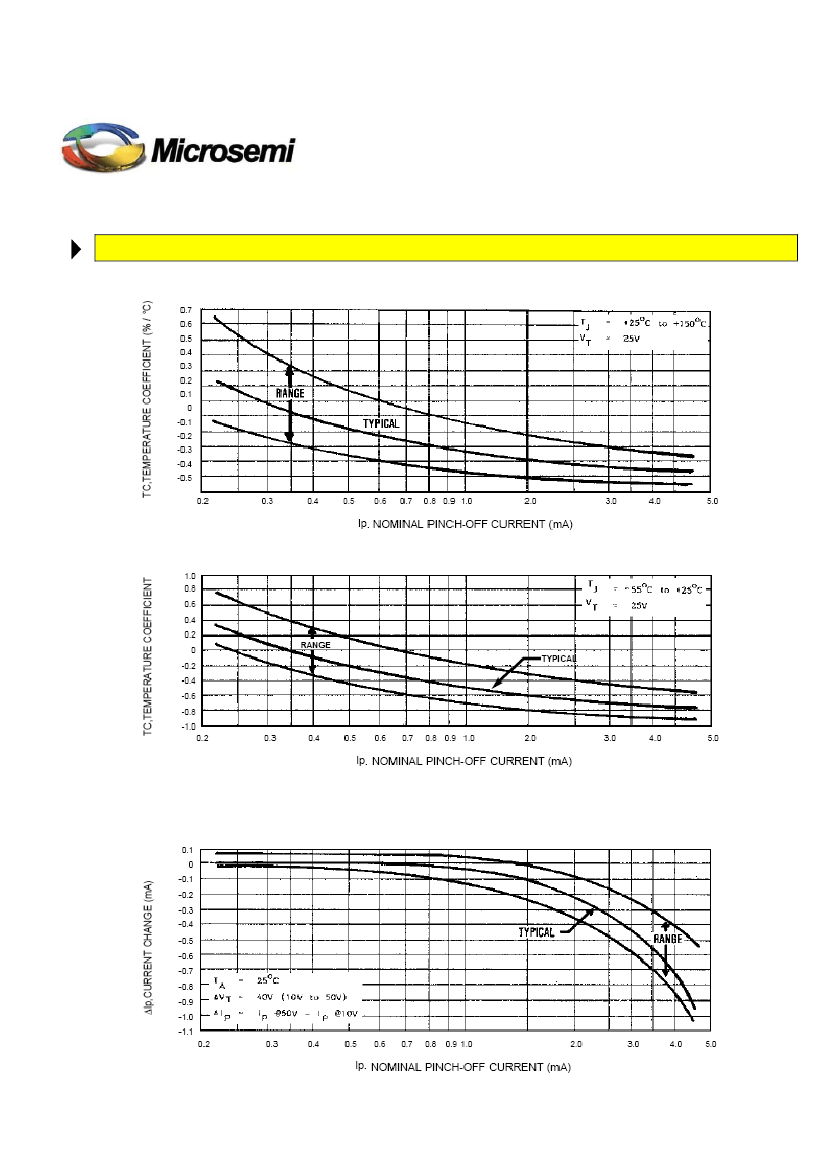

GRAPHS
FIGURE 2:
TEMPERATURE COEFFICIENT
FIGURE 3:
TEMPERATURE COEFFICIENT
FIGURE 4:
CURRENT REGULATION FACTOR
LDS-0160 Rev. 1 (100435)
Page 2 of 3
TECHNICAL DATA SHEET
6 Lake Street, Lawrence, MA 01841
1-800-446-1158 / (978) 620-2600 / Fax: (978) 689-0803
Website: http: //www.microsemi.com
Gort Road Business Park, Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044 Fax: +353 (0) 65 6822298
PACKAGE DIMENSIONS
DO-213AB
NOTE:
1. Dimensions are in inches.
2. Millimeters are given for general information only.
3. In accordance with ASME Y14.5M, diameters are equivalent to
Φx
symbology.
Ltr
BD
BL
ECT
S
Dimensions
Inches
Millimeters
Min
Max
Min
Max
.094
.105
2.39
2.67
.189
.205
4.80
5.21
.016
.022
0.41
0.55
.001 min
0.03 min

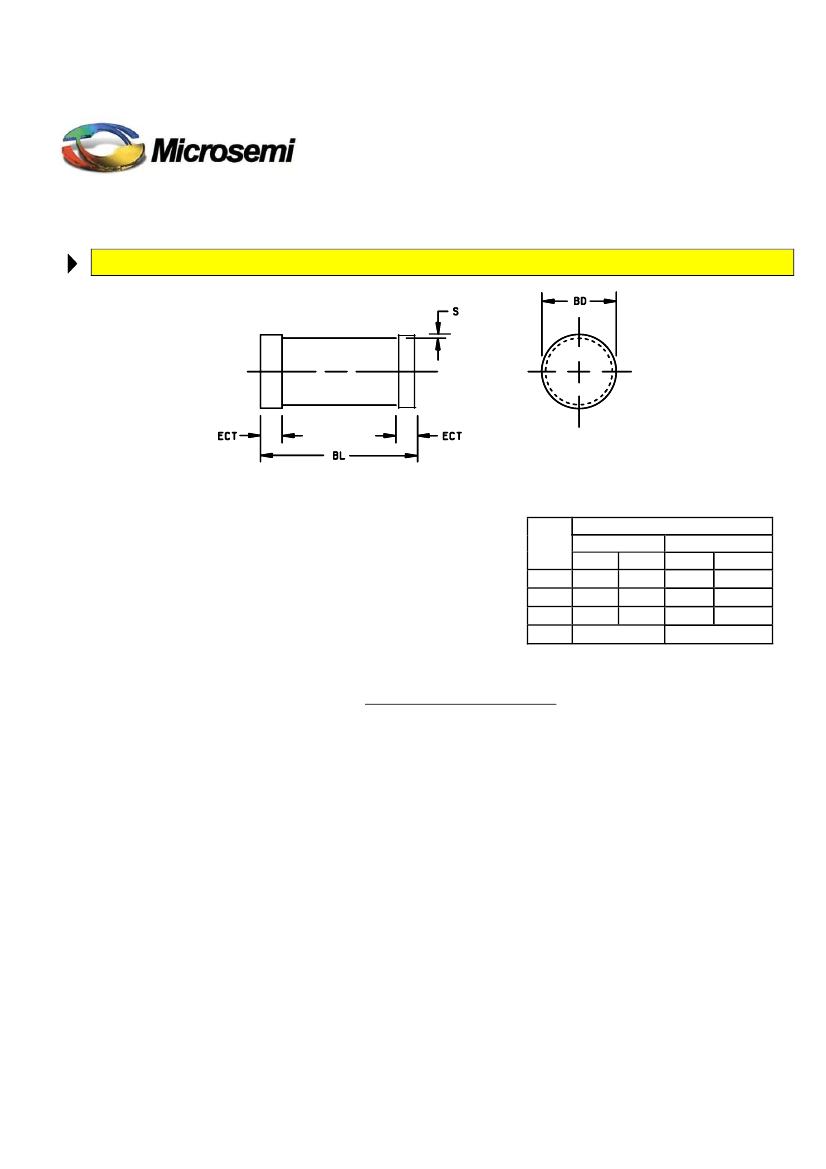

FIGURE 1.
Physical dimensions (DO-213AB).
DESIGN DATA
CASE:
DO-213AB, Hermetically sealed glass case. (MELF, LL41).
LEAD FINISH:
Tin / Lead
THERMAL RESISTANCE:
(R
θJEC
): 50°C/W maximum at L = 0 inch
THERMAL IMPEDANCE:
(Z
θJX
): 25°C/W maximum
POLARITY:
Diode to be operated with the banded (Cathode) end negative.
MOUNTING SURFACE SELECTION:
The Axial Coefficient of Expansion (COE) of this device is approximately +6PPM/°C.
The COE of the Mounting Surface System should be selected to provide A suitable match with this device.
LDS-0160 Rev. 1 (100435)
Page 3 of 3
