HD64180SCP8 datasheet, PDF - EEWORLD Datasheet

HD64180SCP8: Description8-BIT, 8MHz, MICROPROCESSOR, PQCC84, PLASTIC, LCC-84; CategoryThe embedded processor and controller Microcontrollers and processors; File Size127KB，4 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

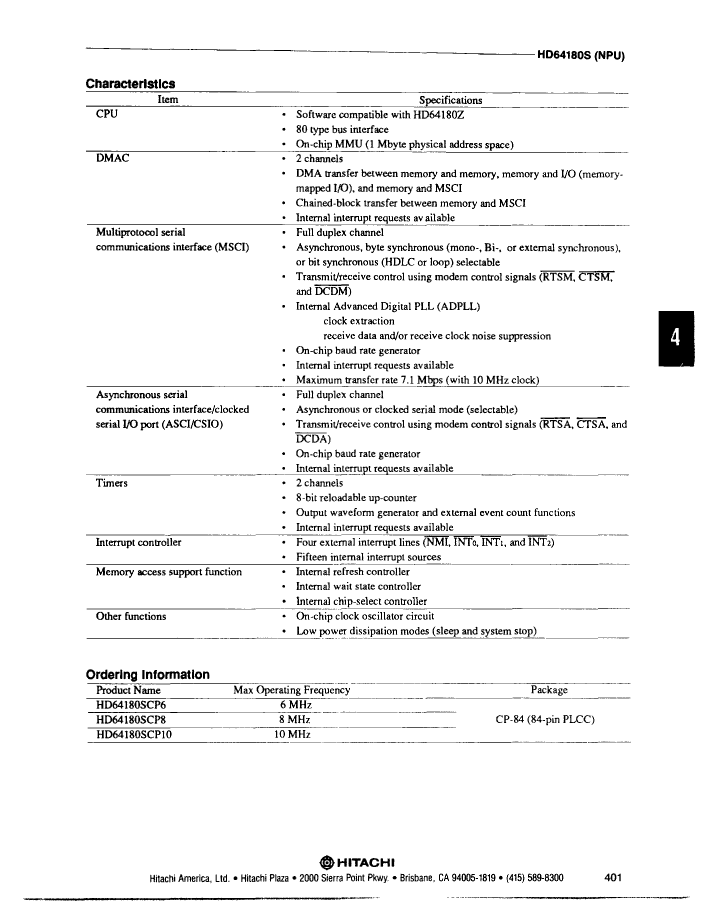

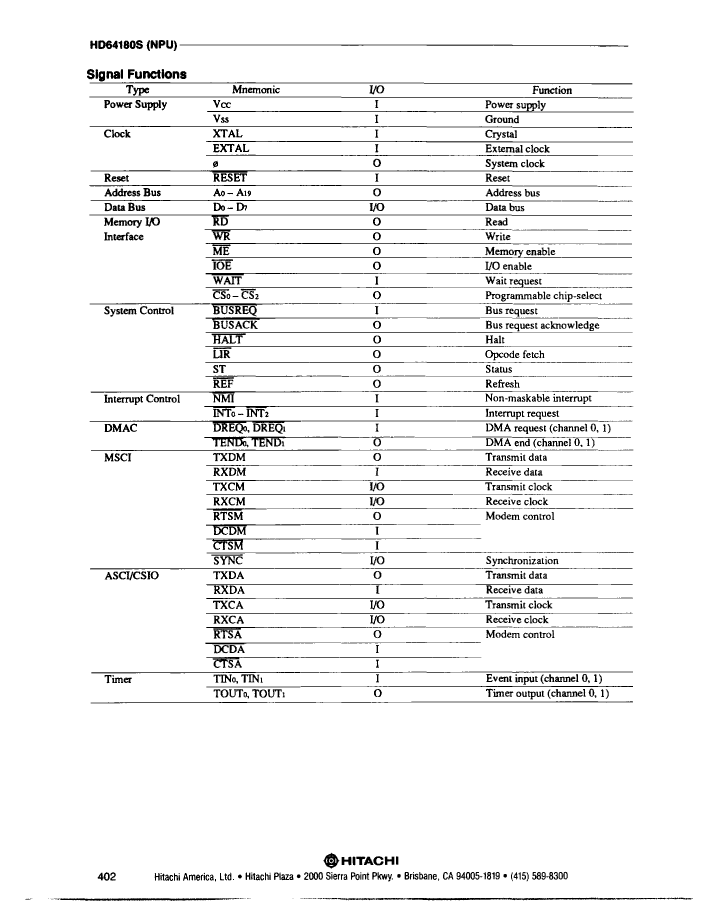

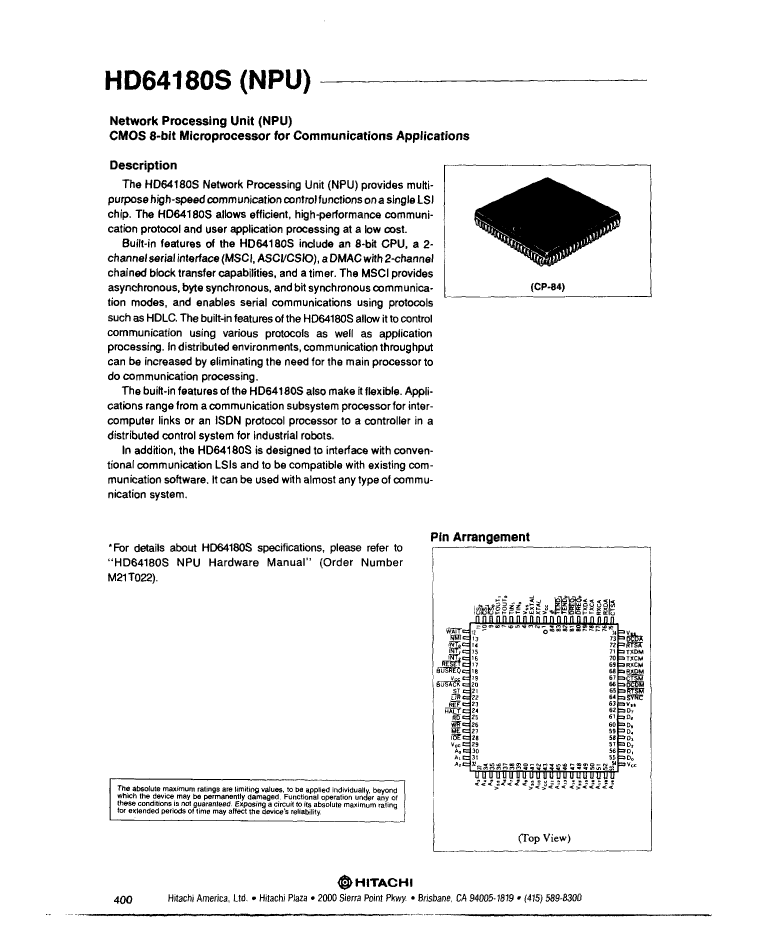

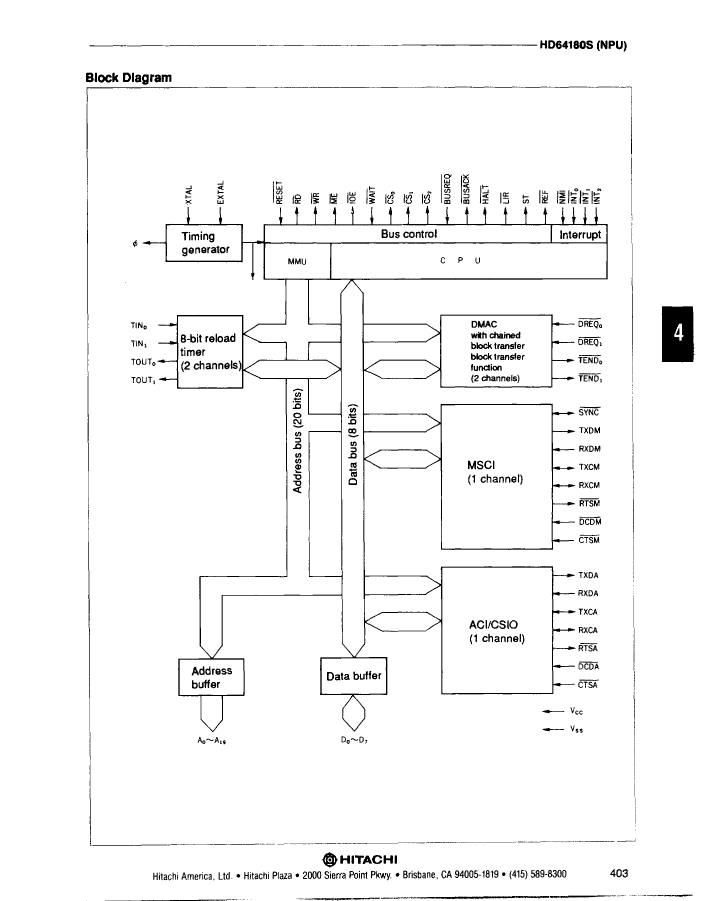

HD64180SCP8 Overview

8-BIT, 8MHz, MICROPROCESSOR, PQCC84, PLASTIC, LCC-84

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	LCC
package instruction	PLASTIC, LCC-84
Contacts	84
Reach Compliance Code	unknown
Address bus width	20
bit size	8
boundary scan	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-PQCC-J84
length	29.2862 mm
low power mode	YES
Number of terminals	84
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
Certification status	Not Qualified
Maximum seat height	4.6 mm
speed	8 MHz
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
width	29.2862 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR

	HD64180SCP8	HD64180SCP10
Description	8-BIT, 8MHz, MICROPROCESSOR, PQCC84, PLASTIC, LCC-84	8-BIT, 10 MHz, MICROPROCESSOR, PQCC84, PLASTIC, LCC-84
Is it lead-free?	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	LCC	LCC
package instruction	PLASTIC, LCC-84	QCCJ,
Contacts	84	84
Reach Compliance Code	unknown	unknown
Address bus width	20	20
bit size	8	8
boundary scan	NO	NO
External data bus width	8	8
Format	FIXED POINT	FIXED POINT
Integrated cache	NO	NO
JESD-30 code	S-PQCC-J84	S-PQCC-J84
length	29.2862 mm	29.2862 mm
low power mode	YES	YES
Number of terminals	84	84
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	QCCJ	QCCJ
Package shape	SQUARE	SQUARE
Package form	CHIP CARRIER	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
Certification status	Not Qualified	Not Qualified
Maximum seat height	4.6 mm	4.6 mm
speed	8 MHz	10 MHz
Nominal supply voltage	5 V	5 V
surface mount	YES	YES
technology	CMOS	CMOS
Terminal form	J BEND	J BEND
Terminal pitch	1.27 mm	1.27 mm
Terminal location	QUAD	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	29.2862 mm	29.2862 mm
uPs/uCs/peripheral integrated circuit type	MICROPROCESSOR	MICROPROCESSOR
