SPL300CUV405
3mm dome 405nm Ultraviolet High-Flux LEDs
55° viewing angle
DWG BY:
BLE / JAG
04-20-06
CHK BY:
PL
06-06-06
QA:
GZ
06-07-06
MFG:
__
__-__-__
REVISION
LTR: -
04-20-06
Part No.
SPL300CUV405
DWG NO.
DSMS0076
Page
1 of 4
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424
E-mail: webmaster@ledtronics.com
Website: http://www.ledtronics.com
• Package dimensions
• Features:
1. Chip material: InGaN / SiC
2. Emitted color: Untraviolet
3. Lens Appearance: Water Clear
4. High current operation
5. High flux output
6. Low thermal resistance
7. Low profile
8. Wide viewing angle
9. Meets SAE/ECE/JIS automotive
color requirements
10.Tube package for automatic loading and
insertion processes
11. This product does not contain restricted
substances, complies with
ROHS standards
1.90(.075)
2.50±0.50
(.098±.020)
0.50(.020) TYP.
0.40±0.20 TYP.
(.016±.008)
1.55±0.20 TYP.
(.061±.008)
5.08±0.30
(.200±.012)
∅
3.00±0.20
(∅.118±.008)
A
A
CHAMFER 1.25x1.25
(.049x.049)
C
R0.69±0.20
(.027±.008)
C
Ø1.00
[Ø.039]
(typ)
FOOTPRINT HOLE PATTERN
7.62±0.50
(.300±.020)
5.08
[.200]
7.62±0.50
(.300±.020)
5.08
[.200]
5.0 X TYP.
4.40±0.20
(.173±.008)
7.00±0.20
(.276±.008)
0.76±0.10 TYP.
(.030±.004)
5.08±0.20
(.200±.008)
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is ±0.25mm (0.01”) unless otherwise specified.
3. Lead spacing is measured where the leads emerge from
the package.
4. Specifications are subject to change without notice.
• Applications:
1. TV sets
2. Monitors
3. Telephones
4. Computers
5. Circuit boards
! CAUTION
This UV LED during operation radiates intense UV light.
Do not look directly into the UV light during operation of
device. This can be harmful to the eyes even for brief
period due to the intense UV light.
If viewing the UV light is necessary, please use UV
filtered glasses to avoid damage by the UV light.
If the UV LED in your product might be viewed directly,
please affix a caution label to your product to that effect.
Avoid direct eye exposure to UV light.
Keep out of reach of children.
• Absolute maximum ratings (Ta=25°C)
Parameter
Power Dissipation
Forward Current
Peak Forward Current*
1
Reverse
Voltage
Operating Temperature
Storage Temperature
Soldering Temperature
Symbol
Pd
I
F
I
FP
V
R
Topr
Tstg
Tsol
Rating
120
30
150
5
-40°C~80°C
-40°C~85°C
260°C (for 5 seconds)
Unit
mW
mA
mA
V
*
1
Condition for I
FP
is pulse of 1/10 duty and 0.1msec width.
Part No.
SPL300CUV405
DWG NO.
DSMS0076
Page
2 of 4
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424
E-mail: webmaster@ledtronics.com
Website: http://www.ledtronics.com
• Electrical and optical characteristics (Ta=25°C)
Parameter
Forward Voltage
Luminous Intensity
Symbol Condition
V
F
Iv
I
R
λ
p
λ
d
∆λ
2θ
1/2
I
F
=20mA
I
F
=20mA
V
R
=5V
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
I
F
=20mA
X
Y
I
F
=20mA
I
F
=20mA
Min.
-
4
-
398
410
-
45
-
-
6,500
-
-
Typ.
3.2
9
-
400
420
16
50
-
-
13,000
0.17
0.006
Max.
4.0
-
100
404
425
-
55
-
-
20,000
-
-
Unit
V
mcd
Reverse Current
Peak Wavelength
Dominant Wavelength
Spectral Line Half-width
Viewing Angle
SCP
Lumens
Radiant Intensity
Chromaticity
Coordinates
µA
nm
nm
nm
deg
cd
lm
µW/sr

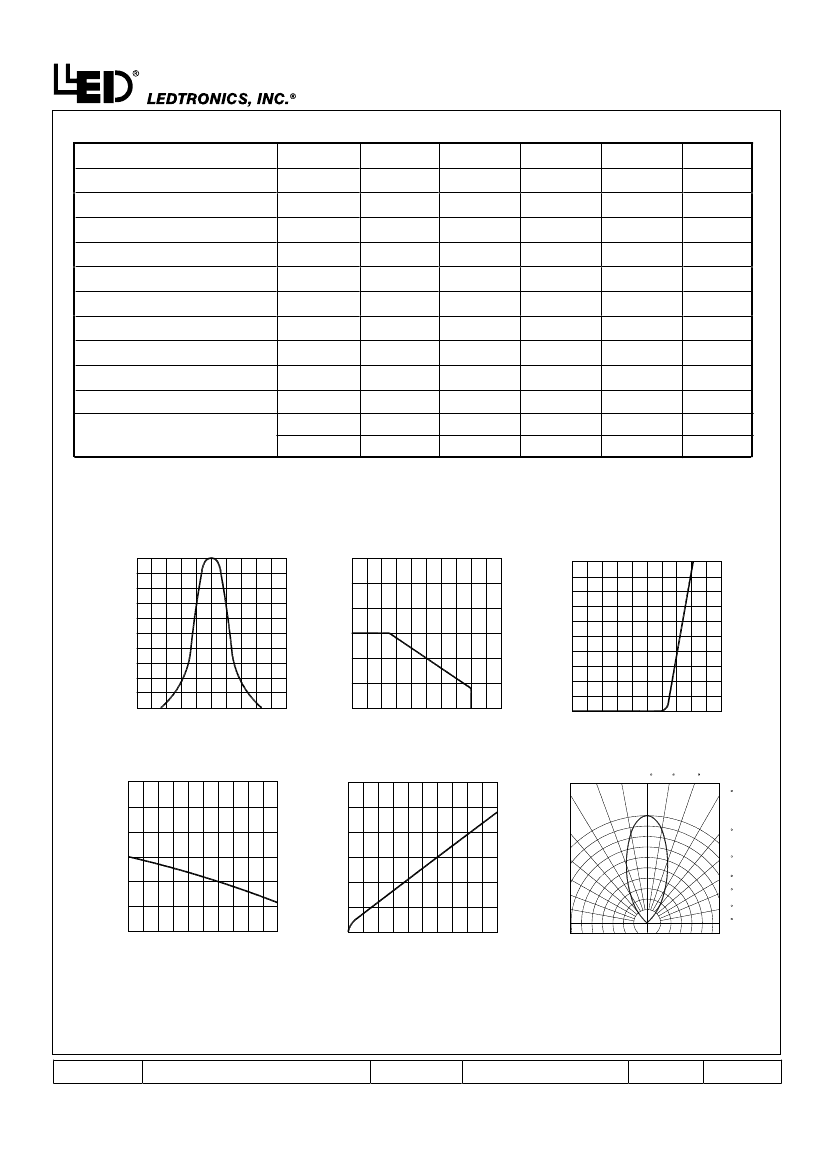

• Typical electro-optical characteristics curves
Fig.1 Relative intensity vs. Wavelength
1.0
60
Fig.2 Forward current derating curve
vs. Ambient temperature
50
Fig.3 Forward current vs. Forward voltage
50
Relative radiant intensity
40
Forward current(mA)
40
Forward current(mA)
20
40
60
80
100
30
0.5
30
20
20
10
0
0
10
355
405
455
0
Wavelength (nm)
Ambient temperature Ta (°C)
1
2
3
4
5
Forward voltage (V)
Fig.4 Relative luminous intensity
vs. Ambient temperature
3.0
3.0
Fig. 5 Relative luminous intensity
vs. Forward current
Relative luminous intensity(@20mA)
Fig.6 Radiation diagram
0
10
20
30
Relative luminous intensity
2.0
2.0
Relative radiant intensity
2.5
1.0
40
1.5
0.9
0.8
50
60
70
1.0
1.0
0.5
0.7
0
80
90
0
-40
-20
0
20
40
60
Ambient temperature Ta (°C)
10
20
30
40
50
0.5
0.3
0.1
0.2
0.4
0.6
Forward current (mA)
Part No.
SPL300CUV405
DWG NO.
DSMS0076
Page
3 of 4
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424
E-mail: webmaster@ledtronics.com
Website: http://www.ledtronics.com
• Bin Limits
1. Intensity Bin Limits (At I
F
= 20mA)
Bin Code
B
C
D
E
F
G
H
Min. (mcd)
0.4
0.6
0.9
1.4
2.1
3.8
6.8
Max. (mcd)
0.8
1.2
1.8
2.8
4.2
7.2
10.2
2 . C o l o r B i n L i m i t s ( A t I
F
= 2 0 m A )
:
Domi nant Wave Length
λd
(nm)
Bin Code
5
6
7
3 . V
F
B i n L i m i ts ( A t I
F
= 2 0 m A )
Min. (nm)
409
414
421
Max. (nm)
416
421
425
Bin Code
G
H
J
K
L
M
•
Bin: x
x
x
Min. (v)
2.75
2.95
3.15
3.35
3.55
3.75
Max. (v)
3.05
3.25
3.45
3.65
3.85
4.05
V
F
bin code
Color bin code
Intensity bin code
Part No.
SPL300CUV405
DWG NO.
DSMS0076
Page
4 of 4
LTR
-
RELEASED
REVISION
DATE
03-10-00
APPD
JCH

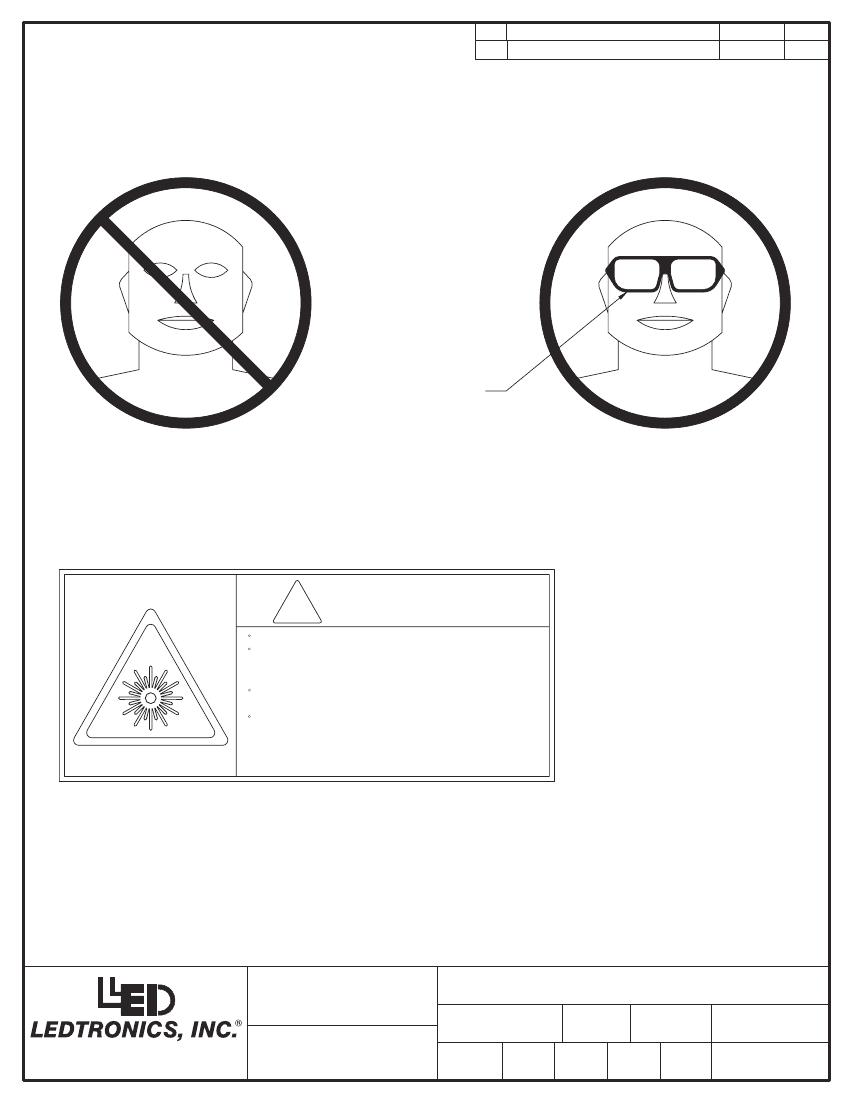

ULTRAVIOLET LIGHT SAFETY
PROCEDURE
INSPECTORS AND OTHER
PERSONS VIEWING
ULTRAVIOLET LIGHT
MUST
WEAR PROPER PROTECTIVE
EYEWEAR
WILLSON UV GLASSES
PART # F117501
! CAUTION
This UV LED during operation radiates intense UV light.
Do not look directly into the UV light during operation of
device. This can be harmful to the eyes even for brief
period due to the intense UV light.
If viewing the UV light is necessary, please use UV
filtered glasses to avoid damage by the UV light.
If the UV LED in your product might be viewed directly,
please affix a caution label to your product to that effect.
NORMAL SUNGLASSES
WILL NOT
PROTECT YOU FROM UV LIGHT
DAMAGE.
YOU
MUST
USE THE APPROVED UV
GLASSES
Avoid direct eye exposure to UV light.
Keep out of reach of children.
ONLY THOSE PERSONS WHO HAVE COMPLETED UV TESTING
CERTIFICATION ARE TO VIEW THIS PRODUCT
THE SAFETY OF ALL EMPLOYEES IS THE UTMOST CONCERN OF
LEDTRONICS
