EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DDM-202-006
REV:
1.0
2.0" 5*7 LED Lamp Dot Matrix Displays
MODEL NO :
LM-2002WB/SYGC/S400-E1
█
Features :
●
Large emitting dot 0.264"diameter.
●
Low power/high brightness.
ECN :
Page:
1/5
█
Applications:
●
Instrument panels
●
Digital read out display
█
Description :
●
The LM-2002 series are a
large emitting area(5.0mm
diameter)LAMP sources configured
in a 35 dots 5*7 matrix array.
●
These device is made with white
clear dots and black surface.
PART NO
Material
CHIP
Emitted Color
Super Yellow Green
C.C. or C.A.
LM-2002WB/SYGC/S400-E1
AlGaInP
C.A.
OFFICE : NO. 25,Lane 76,Sec.3, Chung Yang Rd., Tucheng 236, Taipei, Taiwan, R.O.C.
TEL : 886-2-2267-2000,2267-9936
FAX : 886-2-2267-6244,22676189,22676306
http://www.everlight.com
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DDM-202-006
REV:
1.0
2.0" 5*7 LED Lamp Dot Matrix Displays
MODEL NO :
LM-2002WB/SYGC/S400-E1
█

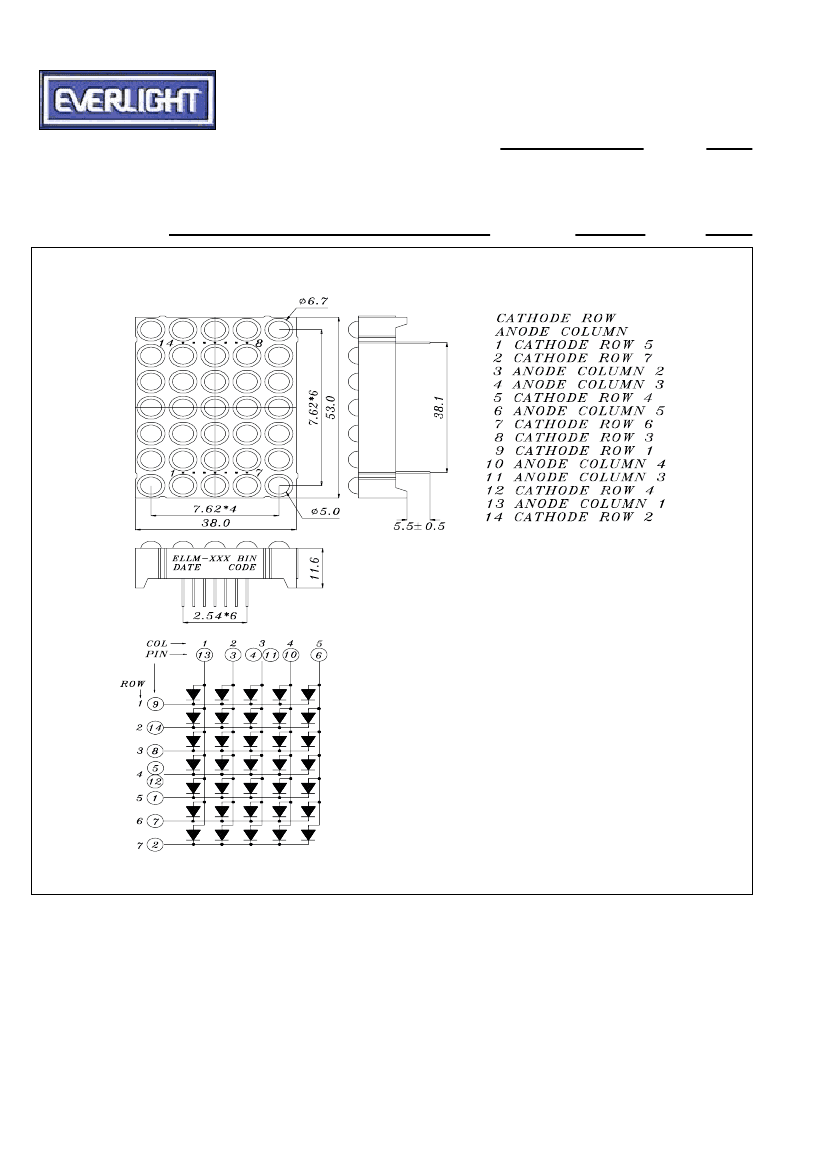

Package Dimension:
ECN :
Page:
2/5
█
NOTES:
1.All dimensions are millimeters ,tolerance is 0.25mm unlessotherwisenoted.
2.Above specification may be changed without notice.
Supplier will reserve authority on material change for above specification .
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number
DDM-202-006
REV:
1.0
2.0" 5*7 LED Lamp Dot Matrix Displays
MODEL NO : LM-2002WB/SYGC/S400-E1
█
Absolute maximum ratings at Ta = 25℃：
Parameter
Reverse Voltage
Forward Current
Operating Temperature
Storage Temperature
Soldering Temperature
Electrostatic Discharge
Power Dissipation
Peak Forward
Current(Duty 1/10 @
1KHZ)
Symbol
Vr
If
Topr
Tstg
Tsol
ESD
Pd
If(Peak)
Rating
5
40
-40 to +85
-40to+100
260 ± 5
2000
ECN :
Page:
3/5
Unit
V
mA
℃
℃
℃
V
mW
mA
100
180
█
Electronic optical characteristics :
Parameter
Luminous Intensity
Symbol
Iv
MIN.
----
250
Peak Wavelength
Dominant Wavelength
Spectrum Rediation
Bandwidth
Forward
Voltage
λp
λd
△λ
Vf
Ir
----
----
----
----
----
TYP.
22.8
380
575
573
20
2.0
----
----
----
----
2.4
10
nm
nm
nm
V
V
MAX.
----
Unit Condition
mcd
If=2mA
If=10mA
If=20mA
If=20mA
If=20mA
If=20mA
Vr=5V
Reverse Current
EVERLIGHT ELECTRONICS CO.,LTD.
Device Numb
DDM-202-006
REV:
1.0
2.0" 5*7 LED Lamp Dot Matrix Displays
MODEL NO :
LM-2002WB/SYGC/S400-E1
█
Reliability test item and condition:
NO
Item
Test Conditions
TEMP : 260℃ ± 5
℃
H : +85℃ 30min
∫
5 min
L : -55℃ 30min
H : +100℃ 5min
∫
10 sec
L : -10℃ 5min
TEMP : 100℃
Test
Sample Size Ac/Re
Hours/Cycle
ECN :
Page:
4/5
1
Solder Heat
5 SEC
76 PCS
0/1
2
Temperature Cycle
50 CYCLE
76 PCS
0/1
3
Thermal Shock
High Temperature
Storage
Low Temperature Storage
50 CYCLE
76 PCS
0/1
4
1000 HRS
76 PCS
0/1
5
TEMP : -55℃
1000 HRS
76 PCS
0/1
6
DC Operating Life
High Temperature / High
Humidity
If = 20 mA
1000 HRS
76 PCS
0/1
7
85℃/85% RH
1000 HRS
76 PCS
0/1
EVERLIGHT ELECTRONICS CO.,LTD.
Device Number :
DDM-202-006
REV:
1.0
2.0" 5*7 LED Lamp Dot Matrix Displays
MODEL NO: LM-2002WB/SYGC/S400-E1
█
Typical Electro-Optical Characteristic Curves:
ECN :
Page:
5/5
