4.8mm RIGHT ANGLE LED INDICATORS
L73CB/ SERIES
L73CB/2 SERIES
L73CB/3 SERIES
L73CB/4 SERIES
L73HB/ SERIES
L73JB/ SERIES
Features
PRE-TRIMMED LEADS FOR PC MOUNTING.
I.C. COMPATIBLE.
BLACK CASE ENHANCES CONTRAST RATIO.
WIDE VIEWING ANGLE.
HIGH RELIABILITY - LIFE MEASURED IN YEARS.
UL RATING : 94V-0.
HOUSING MATERIAL: TYPE 66 NYLON.
Description
The Bright Red source color devices are made with Gallium
Phosphide Red Light Emitting Diode.
The High Efficiency Red source color devices are made
with Gallium Arsenide Phosphide on Gallium Phosphide
Orange Light Emitting Diode.
The Green source color devices are made with Gallium
Phosphide Green Light Emitting Diode.
The Yellow source color devices are made with Gallium
Arsenide Phosphide on Gallium Phosphide Yellow Light
Emitting Diode.
The Super Bright Red source color devices are made with
Gallium Aluminum Arsenide Red Light Emitting Diode.

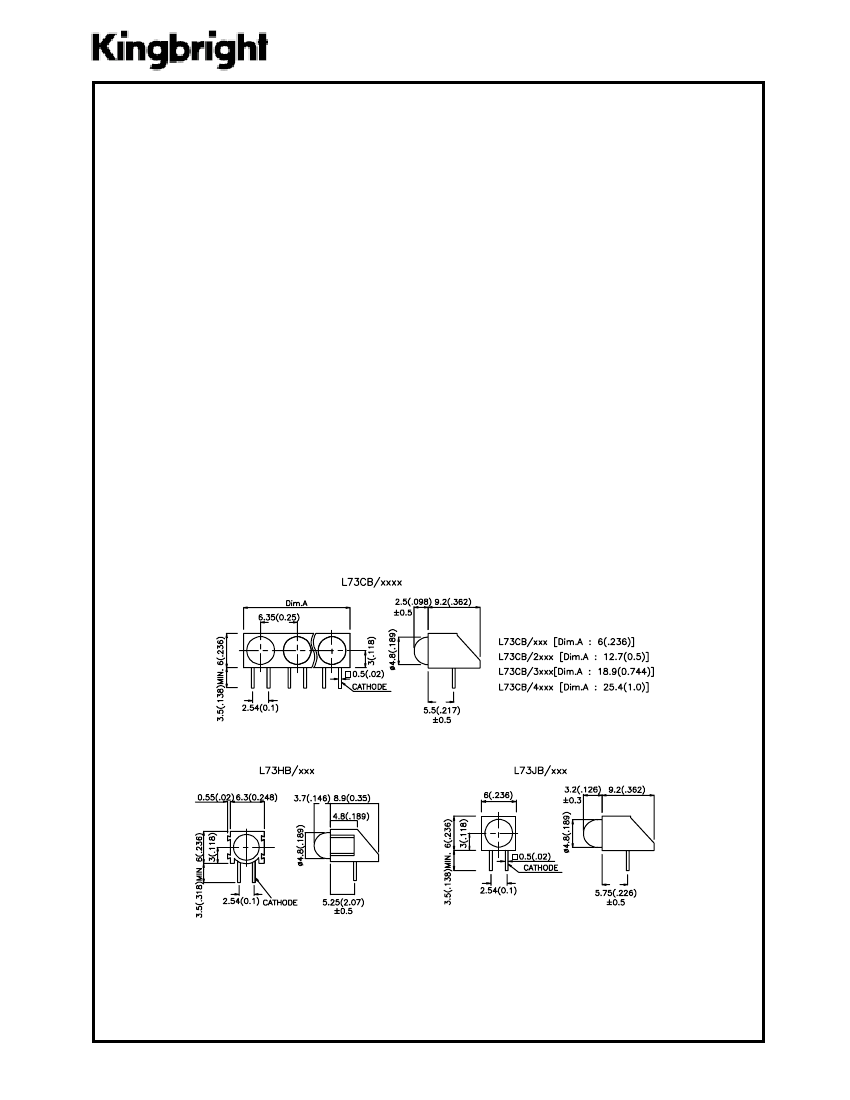

Package Dimensions
Notes:
1. All dimensions are in millimeters (inches).
2. Tolerance is
±0.25(0.01")
unless otherwise noted.
3. Lead spacing is measured where the lead emerge package.
4. Specifications are subjected to change without notice.
SPEC NO: DSAA0
REV NO: V.1
DATE: MAR/22/2001
PAGE: 1 OF 6
Selection Guide
Par t No .
L73CB/HDA
L73CB/2HDA
L73CB/3HDA
L73CB/4HDA
L73HB/HDA
L73JB/HDA
L73CB/IDA
L73CB/2IDA
L73CB/3IDA
L73CB/4IDA
L73HB/IDA
L73JB/IDA
L73CB/GDA
L73CB/2GDA
L73CB/3GDA
L73CB/4GDA
L73HB/GDA
L73JB/GDA
L73CB/YDA
L73CB/2YDA
L73CB/3YDA
L73CB/4YDA
L73HB/YDA
L73JB/YDA
L73CB/SRDA
L73CB/2SRDA
L73CB/3SRDA
L73CB/4SRDA
L73HB/SRDA
L73JB/SRDA
Di c e
L en s Ty p e
Iv (mc d )
@ 10 mA
Min .
Ty p .
View in g
An g l e
2θ1/2
BRIGHT RED (GaP)
RED DIFFUSED
1.2
3
60°
HIGH EFFICIENCY RED (GaAsP/GaP)
RED DIFFUSED
5
20
60°
GREEN (GaP)
GREEN DIFFUSED
8
20
60°
YELLOW (GaAsP/GaP)
YELLOW DIFFUSED
5
20
60°
SUPER BRIGHT RED (GaAlAs)
RED DIFFUSED
*100
*300
60°
Notes:
1.
θ1/2
is the angle from optical centerline where the luminous intensity is 1/2 the optical centerline value.
2. * Luminous intensity with asterisk is measured at 20mA.
°
Electrical / Optical Characteristics at T
)
=25°C
Sy m b o l
Par ameter
Dev ic e
Bright Red
High Efficiency Red
Green
Yellow
Super Bright Red
Ty p .
700
625
565
590
660
45
45
30
35
20
40
12
45
10
95
2.0
2.0
2.2
2.1
1.85
2.5
2.5
2.5
2.5
2.5
10
Max .
Un i t s
Tes t Co n d itio n s
λ
peak
Peak Wavelength
nm
IF=20mA
∆λ
1/2
Bright Red
High Efficiency Red
Spectral Line Halfwidth Green
Yellow
Super Bright Red
Bright Red
High Efficiency Red
Green
Yellow
Super Bright Red
Bright Red
High Efficiency Red
Green
Yellow
Super Bright Red
All
nm
IF=20mA
C
Capacitance
pF
VF=0V;f=1MHz
V
F
Forward Voltage
V
IF=20mA
I
R
Reverse Current
uA
VR = 5V
SPEC NO: DSAA0
REV NO: V.1
DATE: MAR/22/2001
PAGE: 2 OF 6

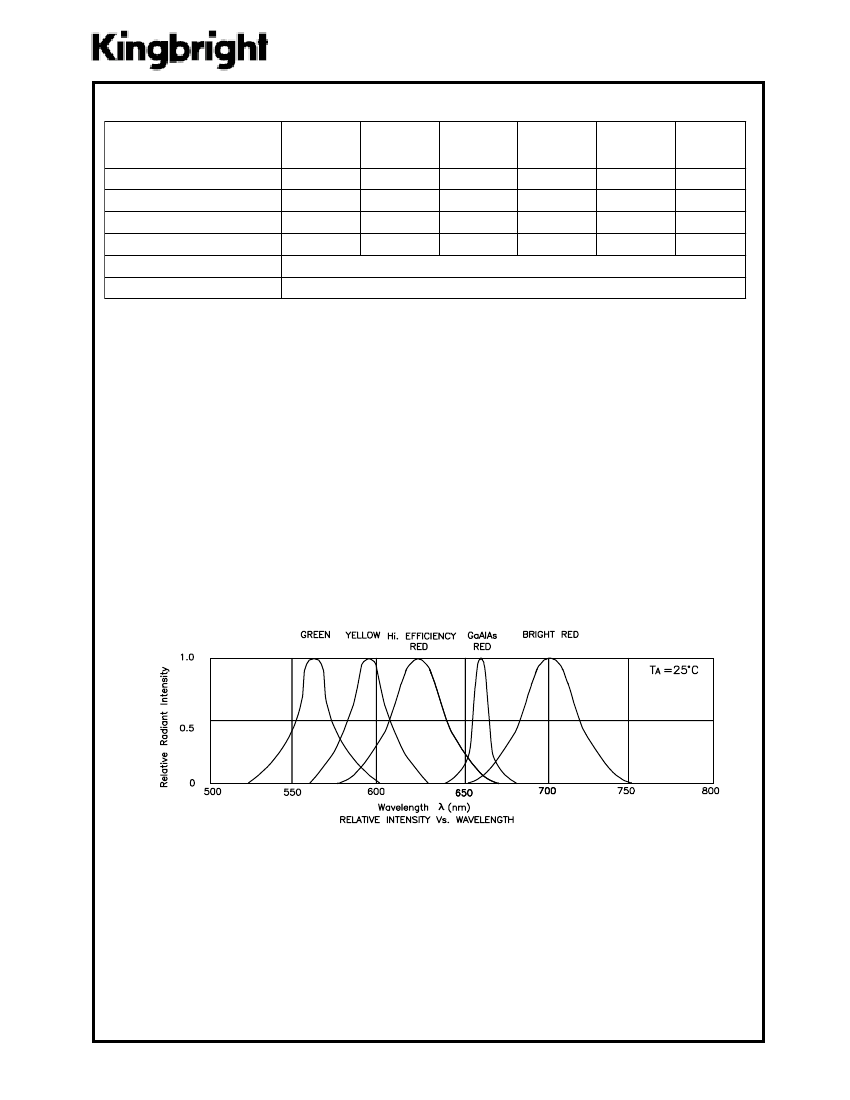

Absolute Maximum Ratings at T
)
=25°C
°
Par ameter
Power dissipation
DC Forward Current
Peak Forward Current [1]
Reverse Voltage
Operating/Storage Temperature
Lead Soldering Temperature [2]
Notes:
1. 1/10 Duty Cycle, 0.1ms Pulse Width.
2. 4mm below package base.
B r ig h t Red
120
25
150
5
Hi g h
Effic ien c y
Red
105
30
150
5
Gr een
105
25
150
5
Yello w
105
30
150
5
Su p er B r ig h t
Red
100
30
150
5
Un i t s
mW
mA
mA
V
-40
°
C To +85
°C
260
°
C For 5 Seconds

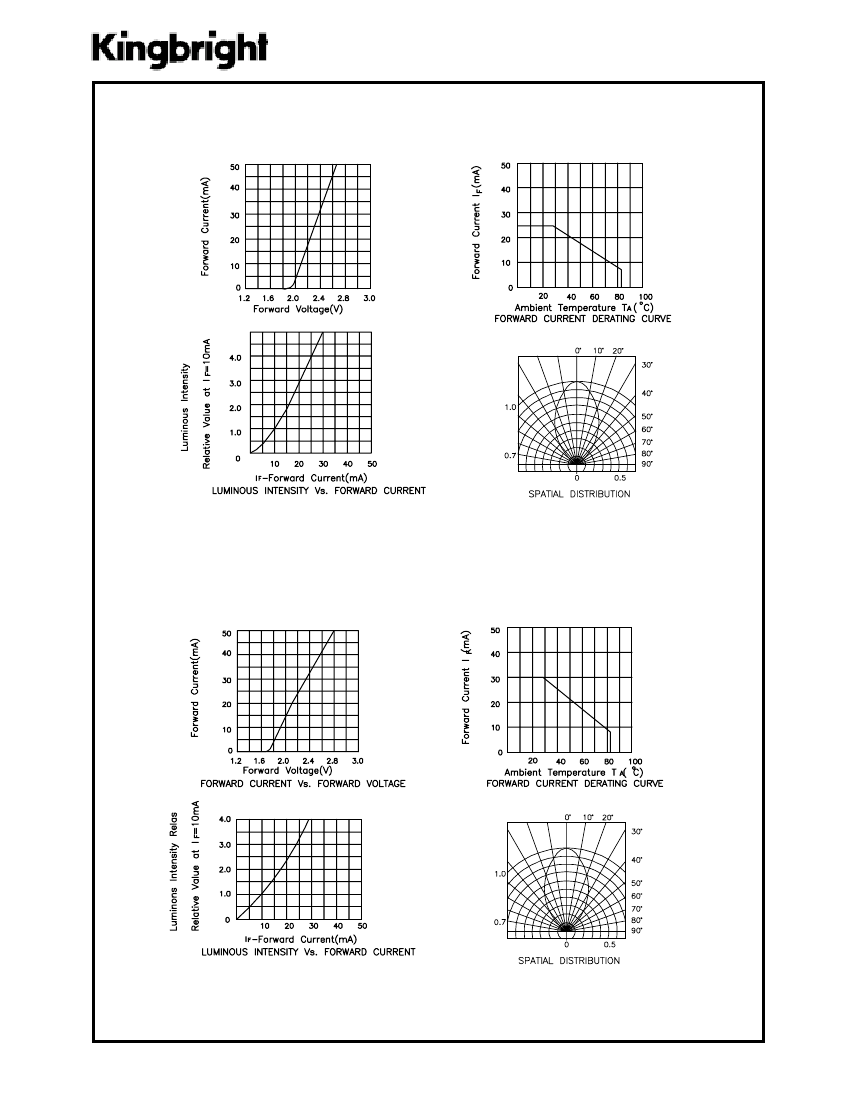

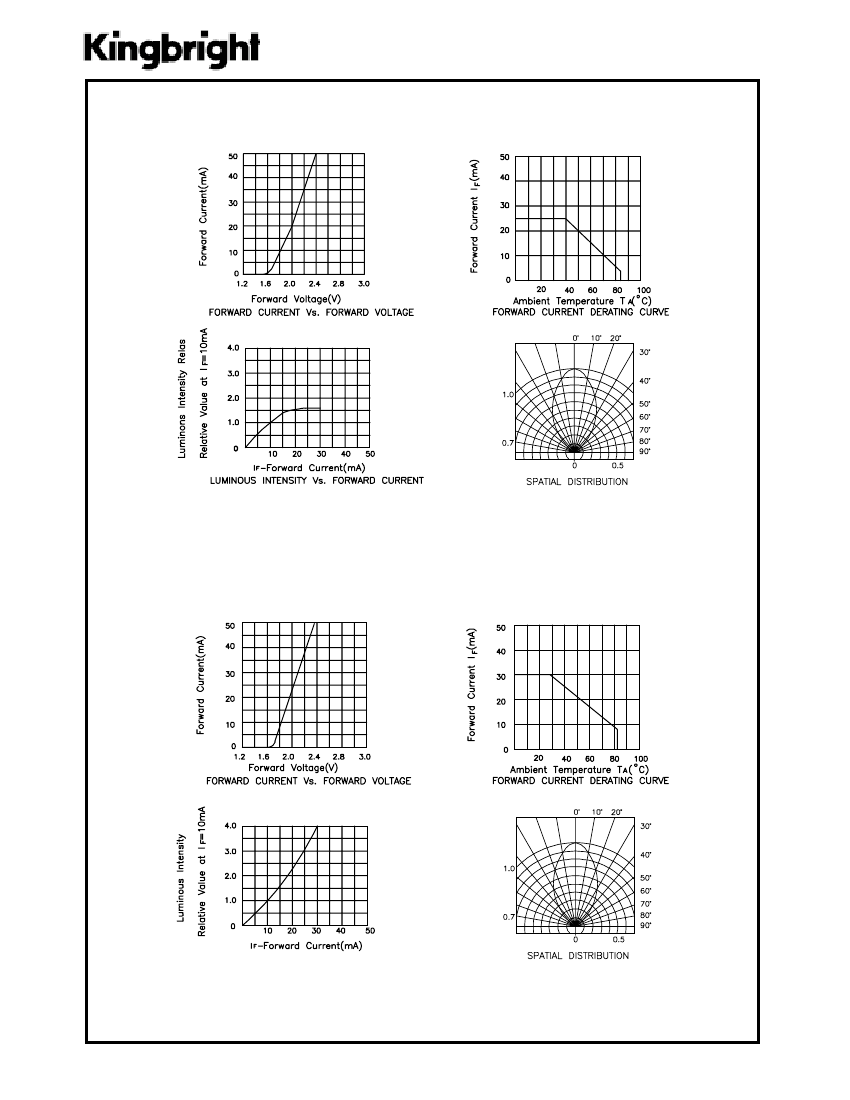

SPEC NO: DSAA0
REV NO: V.1
DATE: MAR/22/2001
PAGE: 3 OF 6
