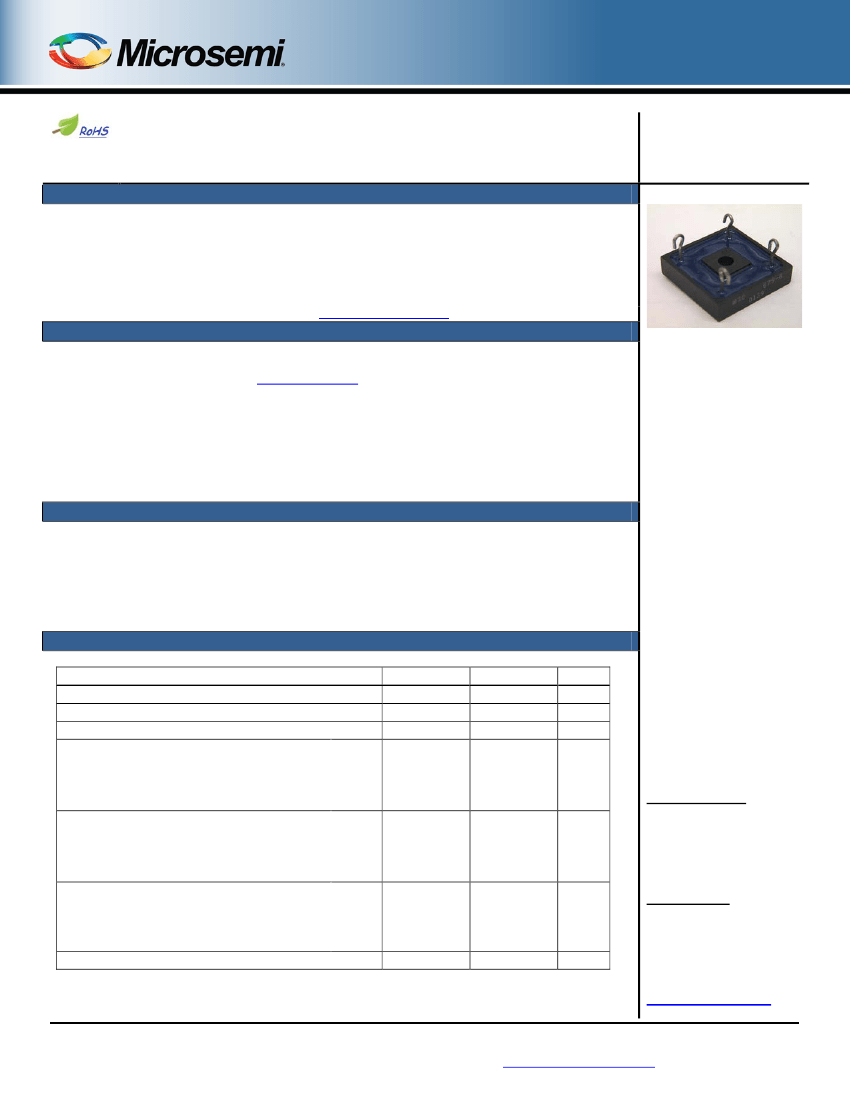

679, 680, 683 and 684 series
Available
Standard And Fast Recovery Rectifiers
DESCRIPTION
This series of high-current single-phase bridge rectifiers are constructed with hermetically
sealed rectifiers built with the same design and construction techniques used in military
applications for the upmost in reliability. These include voidless glass encapsulation and
internal "Category 1" metallurgical bonds. These 10A to 25A rectifier bridges are available in
multiple working peak reverse voltage ratings per leg.
Important:
For the latest information, visit our website
http://www.microsemi.com.
FEATURES
•
•
•
•
•
•
•
Current ratings to 25 amps
V
RWM
from 100 to 600 volts (see
part nomenclature
for all options)
150 ºC junction temperature
Surge ratings to 150 amps
Recovery times to 500 ns
MIL-PRF-19500 similarity
RoHS compliant versions available
(Actual appearance may vary)
NA or NB
Package
APPLICATIONS / BENEFITS
•
•
•
Fuse-in-glass diodes design
Electrically isolated aluminum case
Controlled avalanche characteristics
MAXIMUM RATINGS
Parameters/Test Conditions
Junction and Storage Temperature
Thermal Resistance Junction-to-Case
Thermal Resistance Junction-to-Case per package
Maximum Average DC Output Current:
679
@ T
C
= 55 ºC
680
683
684
Maximum Average DC Output Current:
@ T
C
= 100 ºC
679
680
683
684
679
680
683
684
Symbol
T
J
and T
STG
R
ӨJC
R
ӨJC
I
O
Value
-65 to +150
20
4.0
25
10
20
10
18.5
6
14
6
150
50
150
50
260
Unit
ºC
ºC/W
ºC/W
A
I
O
A
MSC – Lawrence
6 Lake Street,
Lawrence, MA 01841
Tel: 1-800-446-1158 or
(978) 620-2600
Fax: (978) 689-0803
MSC – Ireland
Gort Road Business Park,
Ennis, Co. Clare, Ireland
Tel: +353 (0) 65 6840044
Fax: +353 (0) 65 6822298
Website:
www.microsemi.com
Forward Surge Current (Peak):
@ T
C
= 100 ºC
I
FSM
A
Solder Temperature @ 10 s
o
C
RF01098, Rev A, (12/17/13)
©2013 Microsemi Corporation
Ph: 949-380-6100
sales.support@microsemi.com
Page 1 of 7
One Enterprise, Aliso Viejo, CA 92656
679, 680, 683 and 684 series
MECHANICAL and PACKAGING
•
•
•
CASE: Aluminum
TERMINALS: Tin/lead or RoHS compliant matte tin
MARKING: Alternating current input: AC
Cathode positive output: +
Anode negative: -
Part number is printed on the body
WEIGHT: 679 series = 20 grams (typical), 680 series = 10 grams (typical)
See
Package Dimensions
on last page.
•
•
PART NOMENCLATURE
679
Series type number
679 = Std Recovery Rectifier
680 = Std Recovery Rectifier
683 = Fast Recovery Rectifier
684 = Fast Recovery Rectifier
V
RRM
level
-1 = 100 V
-2 = 200 V
-3 = 300 V
-4 = 400 V
-5 = 500 V
-6 = 600 V
-1
(e3)
RoHS Compliance
e3 = RoHS compliant
Blank = non-RoHS compliant
Symbol
I
FSM
I
O
V
F
I
R
V
(BR)
V
RWM
t
rr
SYMBOLS & DEFINITIONS
Definition
Surge Peak Forward Current: The forward current including all nonrepetitive transient currents but excluding all
repetitive transients (ref JESD282-B)
Average Rectified Output Current: The Output Current averaged over a full cycle with a 50 Hz or 60 Hz sine-wave
input and a 180 degree conduction angle.
Forward Voltage: A positive dc anode-cathode voltage the device will exhibit at a specified forward current.
Reverse Current: The dc current flowing from the external circuit into the cathode terminal at the specified voltage V
R
.
Breakdown Voltage: A voltage in the breakdown region.
Working Peak Reverse Voltage: The peak voltage excluding all transient voltages (ref JESD282-B). Also sometimes
known historically as PIV.
Reverse Recovery Time: The time interval between the instant the current passes through zero when changing from
the forward direction to the reverse direction and a specified decay point after a peak reverse current occurs.
RF01098, Rev A, (12/17/13)
©2013 Microsemi Corporation
Ph: 949-380-6100
sales.support@microsemi.com
Page 2 of 7
One Enterprise, Aliso Viejo, CA 92656
679, 680, 683 and 684 series
ELECTRICAL CHARACTERISTICS
MAX FORWARD
VOLTAGE
PER LEG
V
F
(Note 2)
@ 25 ºC
Volts
679
680
683
684
1.2 @ 10 A
1.2 @ 2 A
1.2 @ 5 A
1.2 @ 2 A
MAX REVERSE
PEAK CURRENT
I
R
@ V
RWM
(Note 1)
MAX
RECOVERY
TIME
t
rr
(I
F
= 1.0 A,
I
RM
= 1.0 A,
I
R(REC)
= 0.5 A)
ns
-
-
500
500
PART
NUMBER
@ 25 ºC
µA
20
2
10
5
@ 100 ºC
µA
200
50
200
100
NOTES: 1.
MAX WORKING PEAK REVERSE VOLTAGE (V
RWM
) numbering:
PART NUMBER
WORKING
PEAK
REVERSE
VOLTAGE
V
RWM
683-1
683-2
683-3
683-4
683-5
683-6
684-1
684-2
684-3
684-4
684-5
684-6
100
200
300
400
500
600
MINIMUM
BREAKDOWN
VOLTAGE
V
(BR)
110
220
330
440
550
660
679-1
679-2
679-3
679-4
679-5
679-6
680-1
680-2
680-3
680-4
680-5
680-6
2.
Pulse test: Pulse width 300
µsec,
duty cycle 2%.
RF01098, Rev A, (12/17/13)
©2013 Microsemi Corporation
Ph: 949-380-6100
sales.support@microsemi.com
Page 3 of 7
One Enterprise, Aliso Viejo, CA 92656
679, 680, 683 and 684 series
GRAPHS

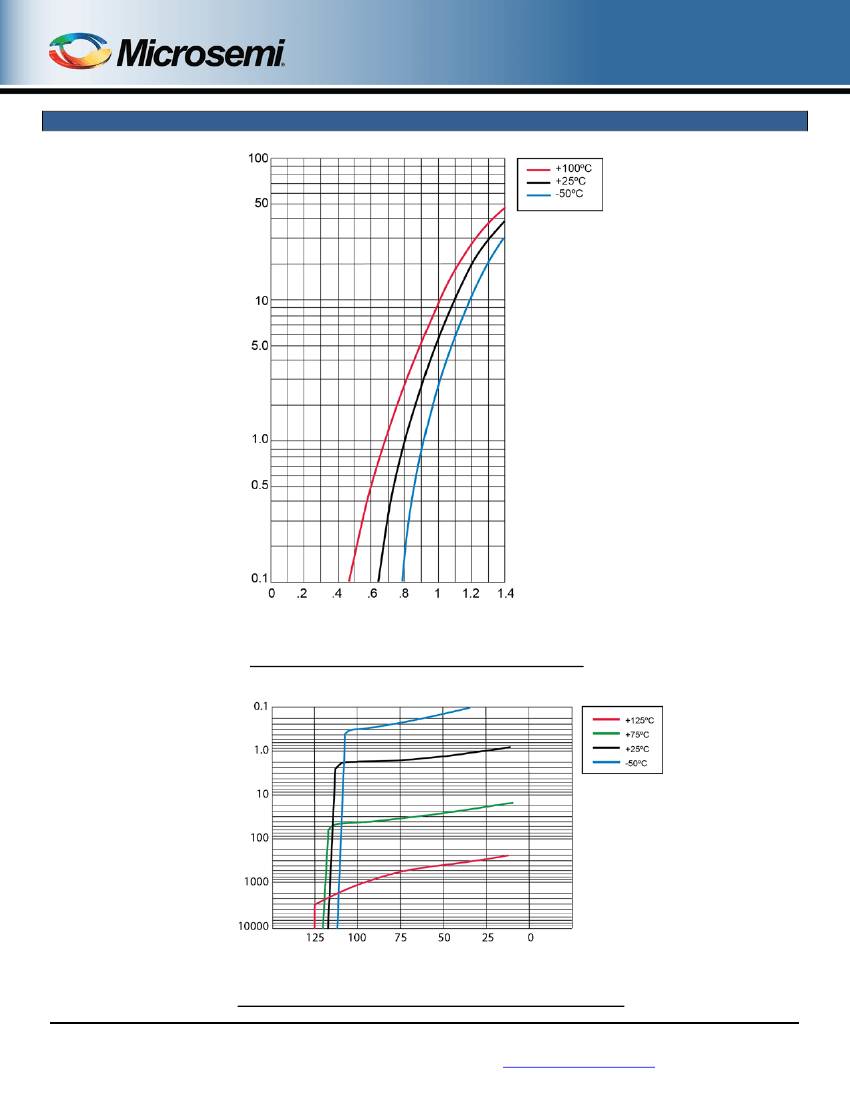

Instantaneous Forward Current - Amperes
Instantaneous Forward Voltage – Volts
FIGURE 1
Typical Forward Characteristics –
Per Leg 679 Series
Leakage Current - uA
% of Rated Voltage
FIGURE 2
Typical Reverse Leakage Current –
Per Leg 679 & 683 Series
RF01098, Rev A, (12/17/13)
©2013 Microsemi Corporation
Ph: 949-380-6100
sales.support@microsemi.com
Page 4 of 7
One Enterprise, Aliso Viejo, CA 92656
679, 680, 683 and 684 series
GRAPHS
(continued)

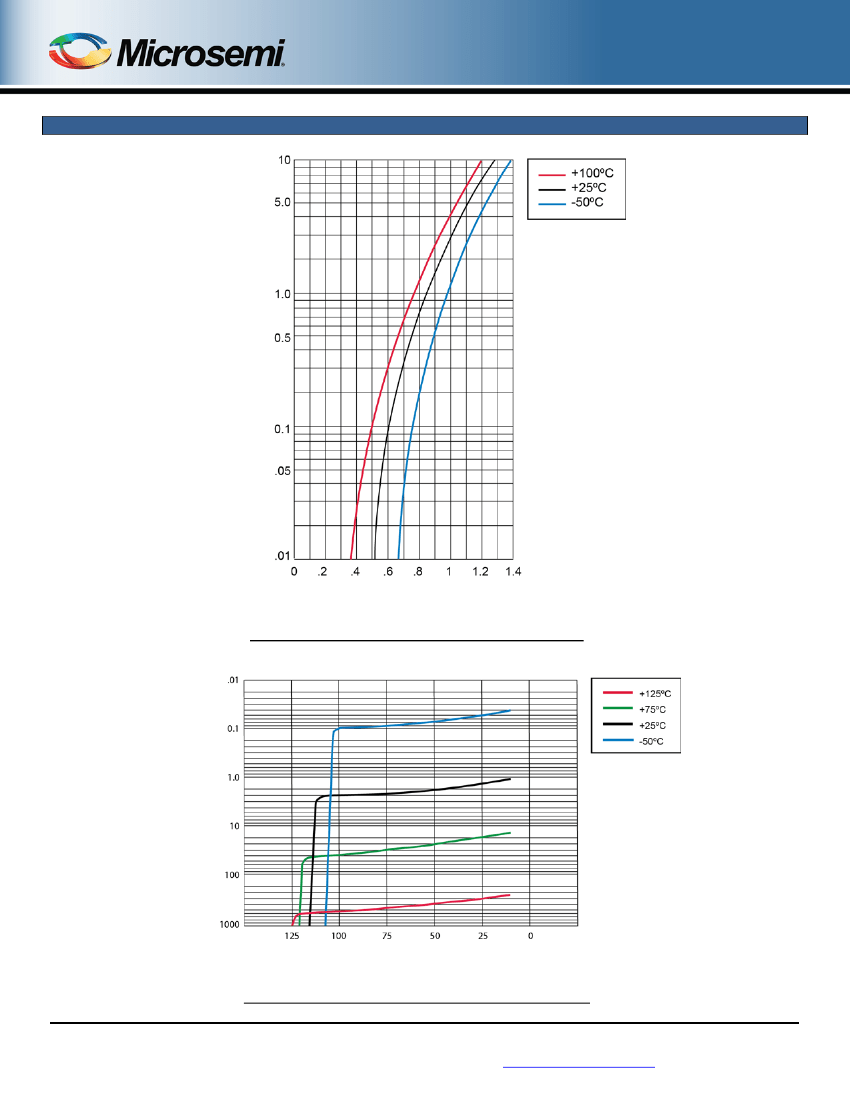

Instantaneous Forward Current - Amperes
Instantaneous Forward Voltage – Volts
FIGURE 3
Typical Forward Characteristics –
Per Leg 683 Series
Leakage Current - uA
% of Rated Voltage
FIGURE 4
Typical Reverse Leakage Current –
Per Leg 680 Series
RF01098, Rev A, (12/17/13)
©2013 Microsemi Corporation
Ph: 949-380-6100
sales.support@microsemi.com
Page 5 of 7
One Enterprise, Aliso Viejo, CA 92656
