BCP195: DescriptionMedium Power Transistor; CategoryDiscrete semiconductor The transistor; File Size527KB，3 Pages; ManufacturerSECOS; Websitehttp://www.secosgmbh.com/

Download Datasheet Parametric View All

BCP195 Overview

Medium Power Transistor

BCP195 Parametric

Parameter Name	Attribute value
Maker	SECOS
Reach Compliance Code	compli

Preview

Download Datasheet

View All

PNP

Silicon Planar

Medium Power

Transistor

RoHS Compliant Product

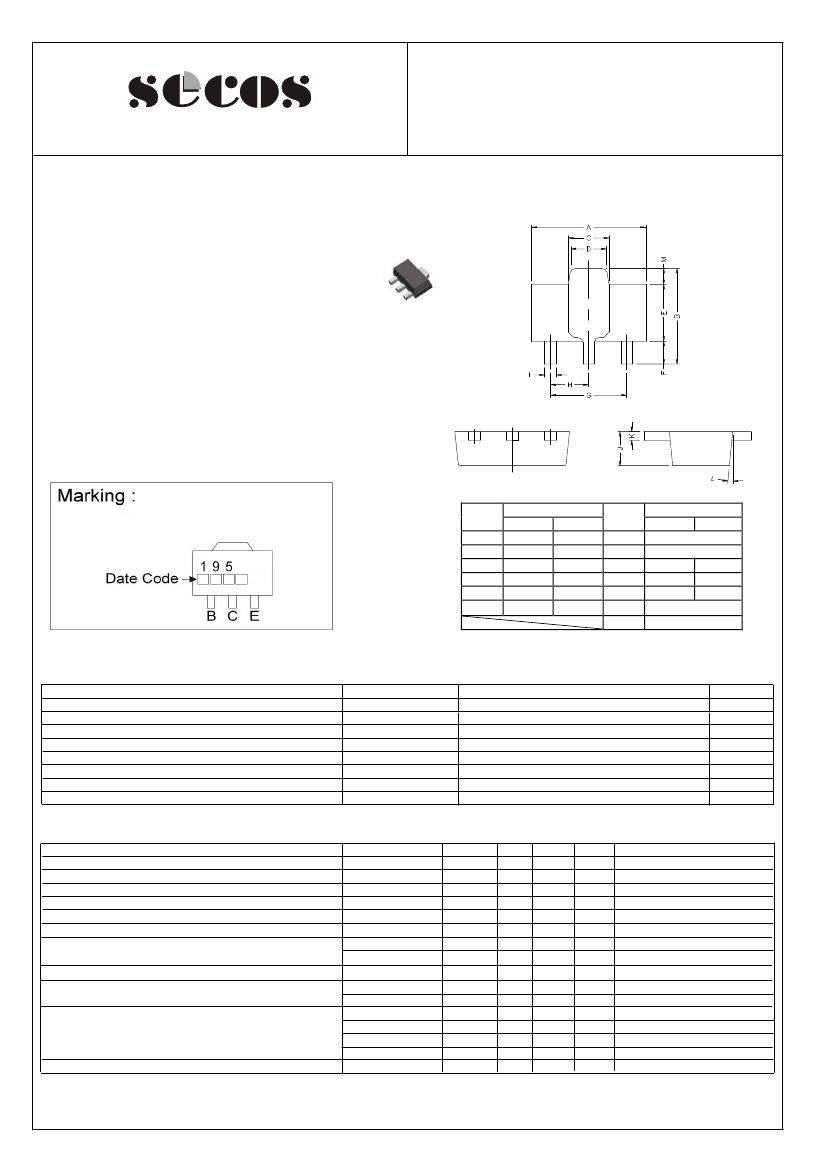

BCP195

SOT-89

Description

The BCP195 is designed for medium power

amplifier applications.

1

2

3

1.BASE

Features

* 1Amp Continuous Current

* -60V VCEO

* Complementary TO BCP194

2.COLLECTOR

3.EMITTER

REF.

A

B

C

D

E

F

Min.

4.4

4.05

1.50

1.30

2.40

0.89

Millimeter

Max.

4.6

4.25

1.70

1.50

2.60

1.20

REF.

G

H

I

J

K

L

M

Min.

Max.

3.00 REF.

1.50 REF.

0.40

0.52

1.40

1.60

0.35

0.41

5 q TYP.

0.70 REF.

Millimeter

Absolute Maximum Ratings at Ta=25 C

Collector-Base Voltage

Collector-Emitter Voltage

Emitter-Base Voltage

Collector Current (DC)

Collector Current (Pulse)

Base Current

Total Power Dissipation

Operating Junction and Storage Temperature

o

Parameter

Symbol

V

CBO

V

CEO

V

EBO

I

C

I

C

I

B

P

D

T

J

,T

STG

-80

-60

-5

-1

-2

-200

1

+150,-55 ~ +150

Value

Unit

V

A

mA

W

o

C

Electrical Characteristics (Ta=25 C, unless otherwise stated)

Collector-Base Breakdown Voltage

Collector-Emitter Breakdown Voltage

Emitter-Base Breakdown Voltage

Collector Cut-off Current

Emitter Cut-off Current

Saturation Cut-off Current

Collector-Emitter Saturation Voltage

Output Capacitance

Base-Emitter Voltage

DC Current Gain

Transition Frequency

Parameter

Symbol

BV

CBO

BV

CEO

BV

EBO

I

CBO

I

EBO

I

CES

V

CE(sat)

1

V

CE(sat)

2

C

ob

V

BE(sat)

V

BE(on)

h

FE1

h

FE2

h

FE3

h

FE4

f

T

Min.

-80

-60

-5

-

100

80

15

150

Typ. Max.

-

-100

-0.3

-0.6

10

-1.2

-1

-

300

-

Unit

V

nA

V

pF

V

MHz

I

C

=-100µA, I

E

=0

I

C

=-10mA, I

B

=0

I

E

=-100µA, I

C

=0

V

CB

=-60V, I

E

=0

V

EB

=-4V, I

C

=0

V

CES

=-60V

I

C

=-500mA, I

B

=-50mA

I

C

=-1A, I

B

=-100mA

V

CB

=-10V, f=1MHz,I

E

=0

I

C

=-1A, I

B

=-100mA

V

CE

=-5V,I

B

=-1A

V

CE

=-5V, I

C

=-1mA

V

CE

=-5V, I

C

=-500mA

V

CE

=-5V, I

C

=-1A

V

CE

=-5V, I

C

=-2A

V

CE

=-10V,I

C

=-50mA, f=100MHz

Test Conditions

http://www.SeCoSGmbH.com

Any changing of specification will not be informed individual

01-Jun-2003 Rev.B

Page 1 of 2
