BCPA42
Elektronische Bauelemente
NPN
Epitaxial Planar Transistors
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
FEATURES
The BCPA42 is designed for application as a video output to drive color CRT, or as a dialer circuit in electronics
telephone.
PACKAGE DIMENSIONS
SOT-89
A
C
D
M
REF.
A
B
C
D
E
F
I
H
G
L
Millimeter
Min.
Max.
4.40
4.60
4.05
4.25
1.50
1.70
1.30
1.50
2.40
2.60
0.89
1.20
REF.
G
H
I
J
K
L
M
Millimeter
Min.
Max.
3.00 REF.
1.50 REF.
0.40
0.52
1.40
1.60
0.35
0.41
5° TYP.
0.70 REF.
E
B
ABSOLUTE MAXIMUM RATINGS at Ta = 25°C
Parameter
Collector-Base Voltage
Collector-Emitter Voltage
Emitter-Base Voltage
Collector Current -Continuous
Collector Power Dissipation
Junction & Storage temperature
F
J
K
Symbol
V
CBO
V
CEO
V
EBO
I
C
P
D
T
J
, T
STG
Ratings
300
300
6.0
500
1.0
150, -55~150
Unit
V
V
V
mA
W
°C
ELECTRICAL CHARACTERISTICS at Ta = 25°C
Parameter
Collector-base breakdown voltage
Collector-emitter breakdown voltage
Emitter-base breakdown voltage
Collector cut-off current
Emitter cut-off current
DC current gain
Collector-emitter saturation voltage
Base-emitter saturation voltage
Transition frequency
Output Capacitance
Symbol
V
(BR)CBO
V
(BR)CEO
V
(BR)EBO
I
CBO
I
EBO
h
FE(1)
h
FE(2)
h
FE(3)
V
CE(sat)
V
BE(sat)
f
T
C
OB
Min.
300
300
6.0
-
-
25
40
40
-
-
50
-
Typ.
-
-
-
-
-
-
-
-
-
-
3
Max.
-
-
-
0.1
0.1
-
-
-
500
900
-
-
Unit
V
V
V
μA
μA
Test Conditions
I
C
= 100
μA,
I
E
=0
I
C
= 1 mA, IB=0
I
E
= 100
μA,
I
C
=0
V
CB
= 260 V
V
EB
= 6V
V
CE
= 10 V, I
C
= 1 mA
V
CE
= 10 V, I
C
= 10 mA
V
CE
= 10 V, I
C
= 30 mA
I
C
= 20 mA, I
B
= 2 mA
I
C
= 20 mA, I
B
= 2 mA
V
CE
= 20V, I
C
= 10mA, f=100MHz
V
CB
= 20V
mV
mV
MHz
pF
http://www.SeCoSGmbH.com/
Any changes of specification will not be informed individually.
01-June-2004 Rev. A
Page 1 of 2
BCPA42
Elektronische Bauelemente
NPN
Epitaxial Planar Transistors

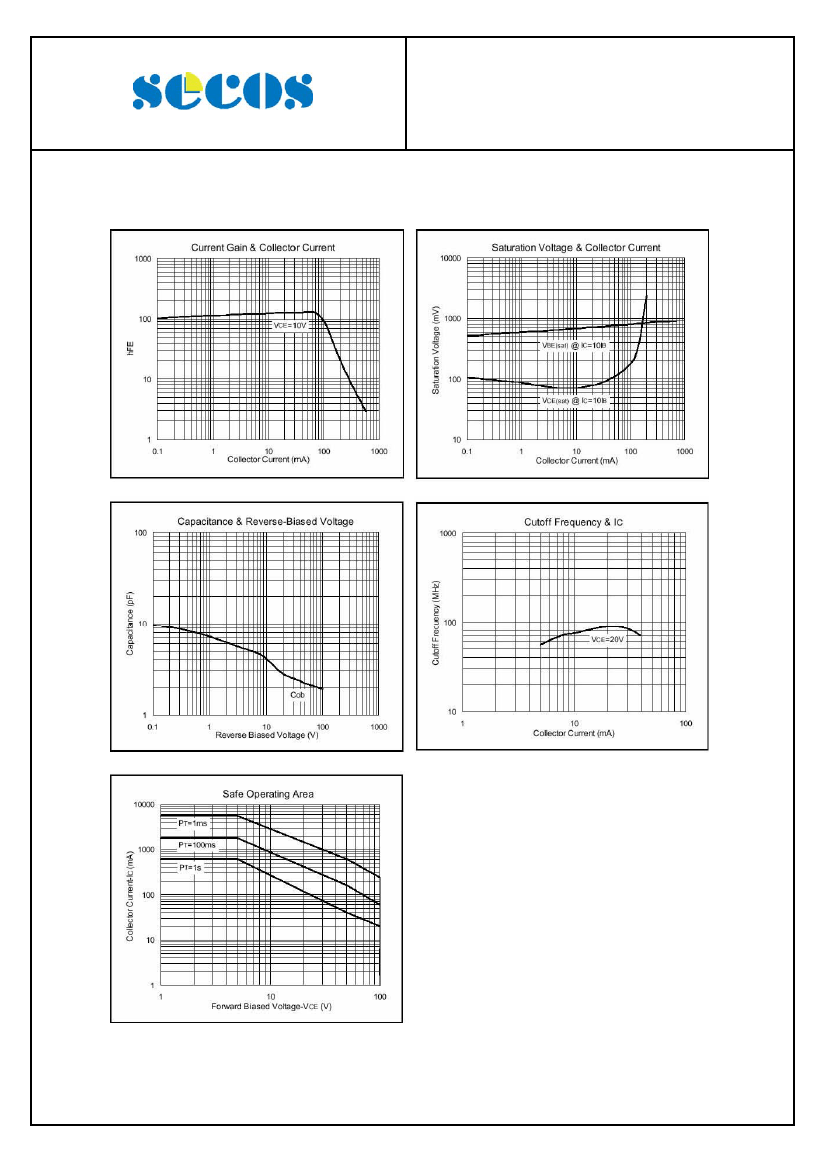

CHARACTERISTIC CURVES
